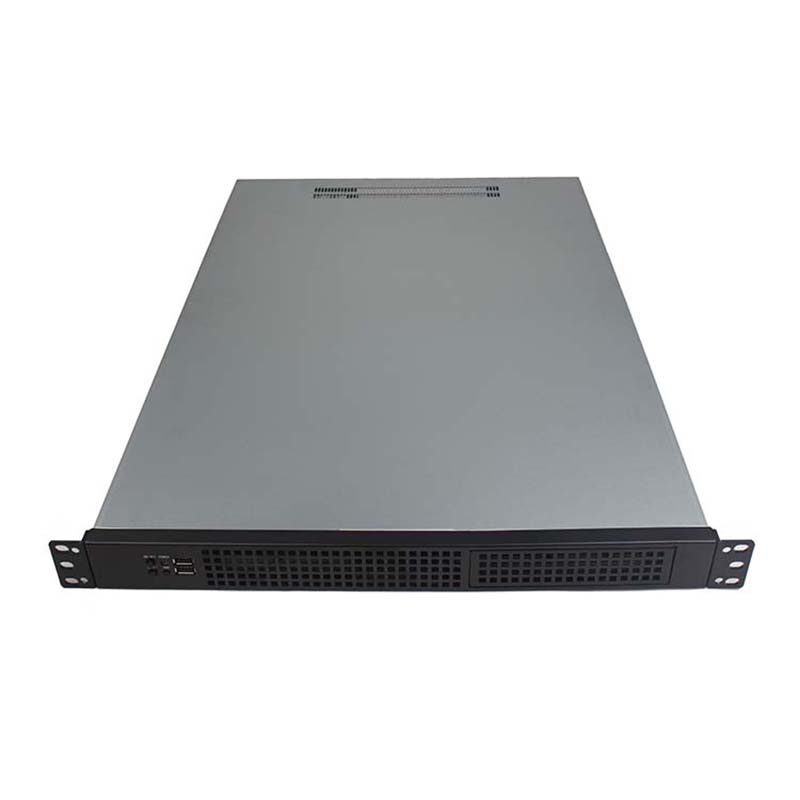

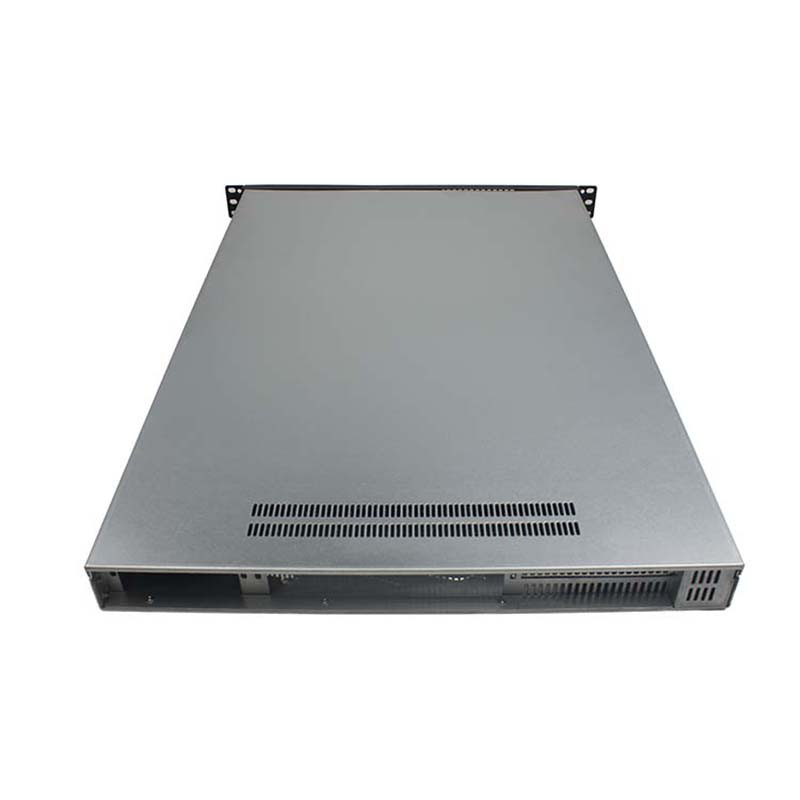

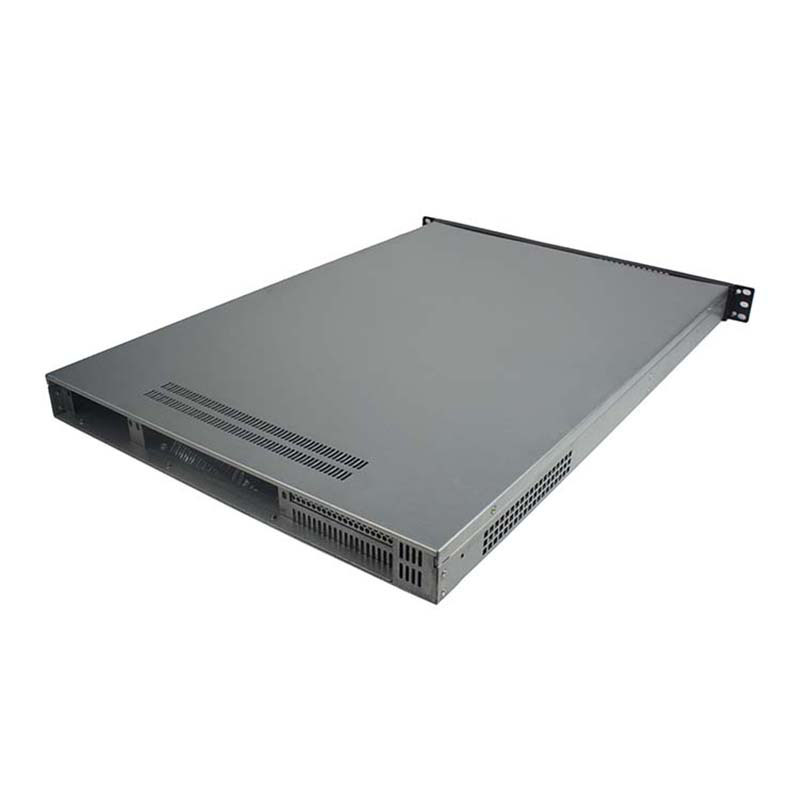

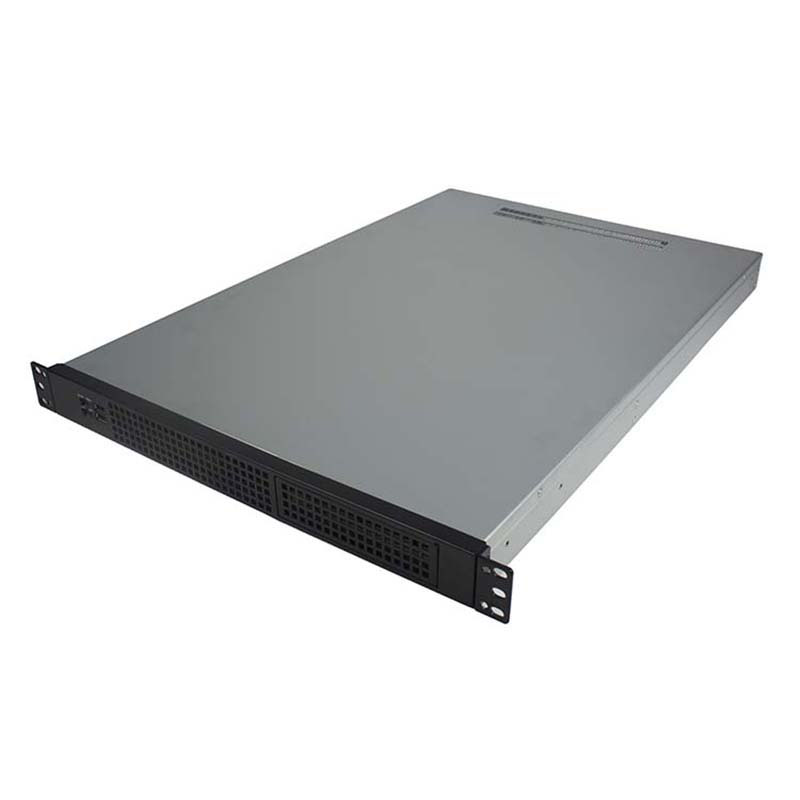

1U Rackmount Chassis- OC165F-M
• Compatible with the EATX form factor
| • 4 front pre-installed cooling fans inside to provide excellent airflow and thermal protection system
| • Widely used in the fields of automation, equipment manufacturing, power monitoring, communication, security, and defense
| > Power Supply not include
Description
Package Information
Inquiry
| Model: | OC165F-M (Barebone System) |
| 1U Rackmount Chassis: | D650 × W482 × H44.5 mm |
| Material: | 1.2 mm SGCC |
| MB Compatibility: | 12″ x 13″ (305 x 340 mm) |

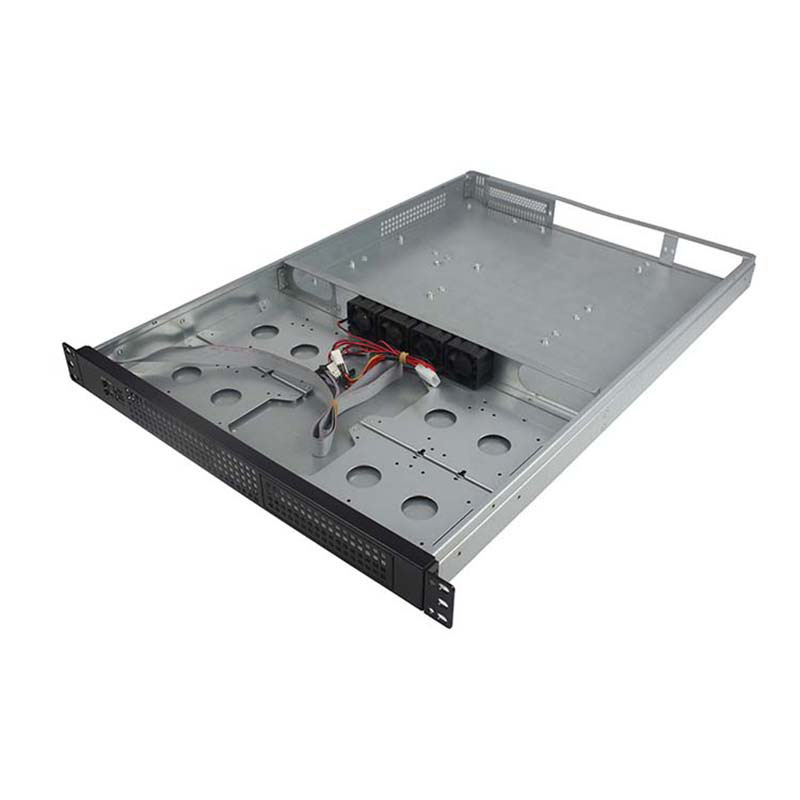

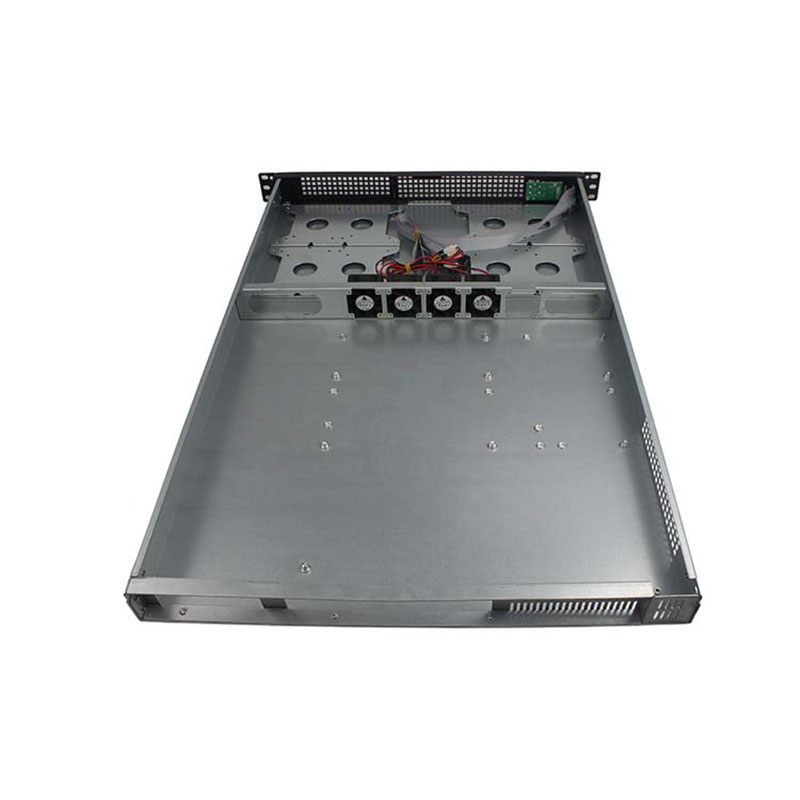

| Fan Configuration: | 4* 4028 Fan |
| PSU Form Factor: | Standard 100 mm(Width) 1U Special Power Supply |
| HDD Bay: | Support 4* 3.5-inch Hard Disk or 8* 2.5-inch Hard Disk |
| CD-ROM: | None |
| Expansion Slot: | 1* Full-Height and Straight Slot (Riser Card is needed/ Optional) |
| Panel Setting: | 2* USB2.0; 1* Power Switch, 1* Restart Switch; 1* Power Indicator, 1* HDD Indicator |
| Net Weight: | 6.94 kg |
| Gross Weight: | 8.83 kg |
| Packaging Size: | 78 * 55 * 13 cm (0.056 CBM) |
| Container Loading Qty: | 20GP: 500; 40GP: 1,0350; 40HC(HQ): 1,214 |
| Operaing Temperature: | 10°C-35°C (without direct light); Extended operating temperature: 5°C-40°C (restrictive configuration satisfied); Storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
| Net Weight: | 6.94 kg |
| Gross Weight: | 8.83 kg |
| Packaging Size: | 78 * 55 * 13 cm (0.056 CBM) |
| Container Loading Qty: | 20GP: 500; 40GP: 1,0350; 40HC(HQ): 1,214 |
