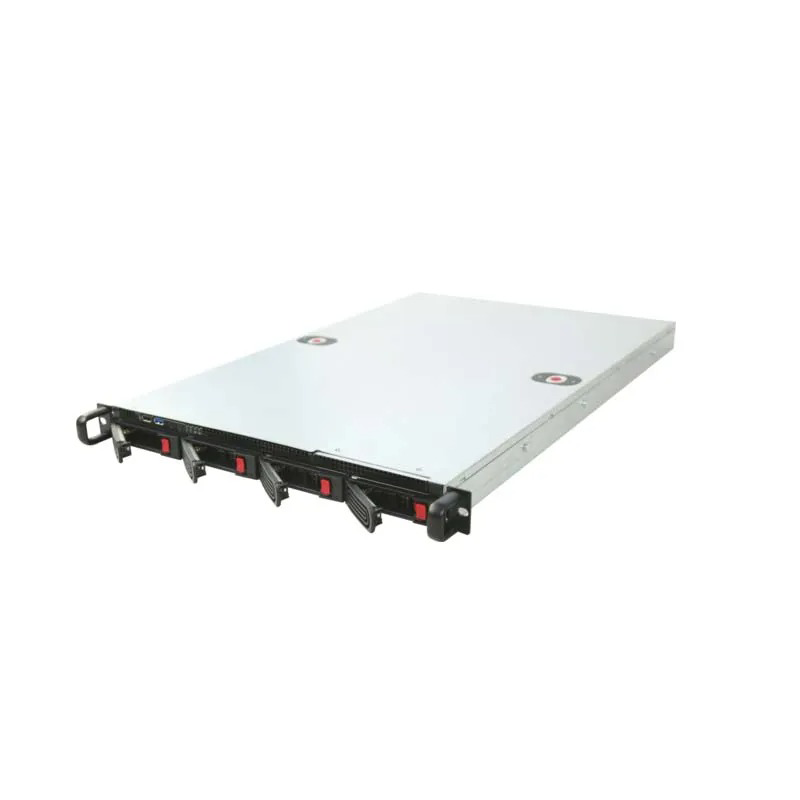

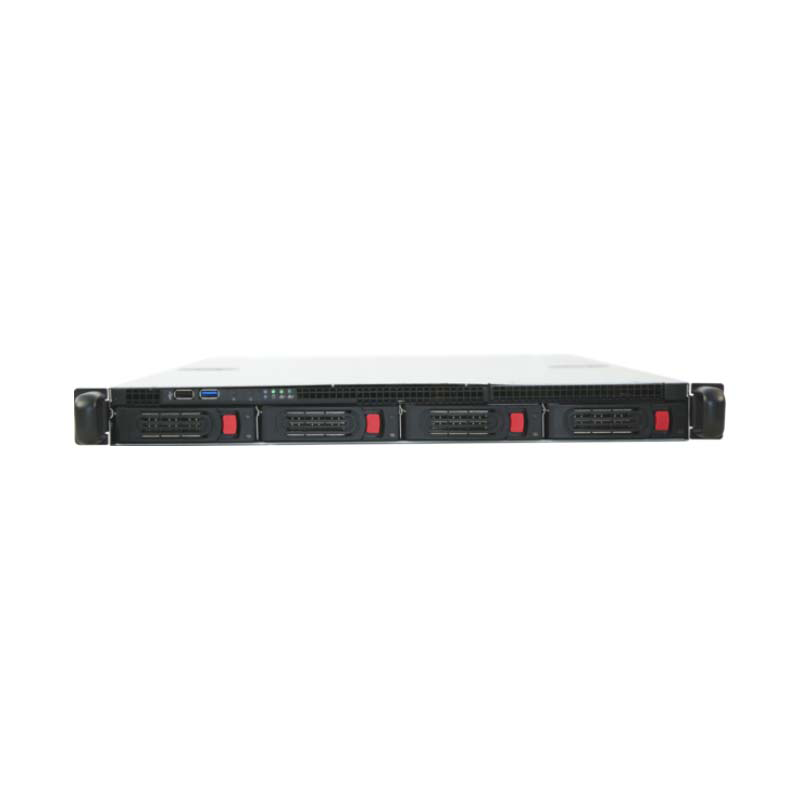

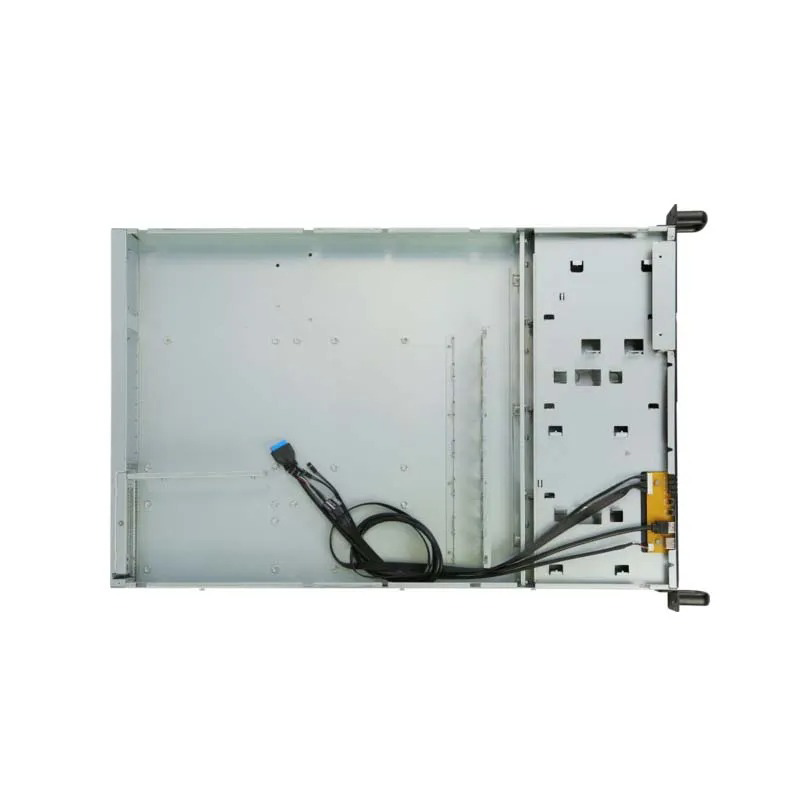

1U 4* HDD Rackmount Server Chassis -OCS1660-4-GD
• 4* 3.5″(or 2.5″) Hot-Swap HDD
| • 1* PCI expansion slot (option)
Description
Package Information
Inquiry
| Model: | OCS1660-4-GD | |
| 1U Server Chassis: | 660 (D)*430 (W)*44 (H) mm, excluding handle height | |
| Material: | 0.8-1.0 mm thick high-strength galvanized steel (SGCC) | |
| Surface Treatment: | Black powder for the ears of the chassis, no paint for the chassis body | |
| HDD Support: | Standard 4* 3.5″ hot-swappable tray | |
| System Cooling Fans: | Support 6* (40*40*28mm) fan | |
| Applicable Motherboard: | Support EEB/ATX / micro ATX motherboard | |
| Card Support: | Support 1 standard card | |
| Applicable PSU: | Support 1U standard Power supply | |
| External Interface: | Front panel USB2.0 *2 | |
| Environment Temperature: | 0℃-40℃ (Operating/ Working); -10℃-70℃ (Non-Operating) | |
| Container Loading Qty: | 20GP: 448; 40GP: 896 | |
Optional | ||
| 1. 40*40*T28 mm Fan, 6000RPM 4PIN | ||
| 2. PCI riser card *1 | ||
| 3. Backplane 6GB (4 BAY) *1 | ||
| 4. Backplane 12GB (4 BAY) *1 | ||
| 5. Front USB2.0 *1 + USB3.0 *1 | ||
| 6. Dedicated slide rails/pair | ||
