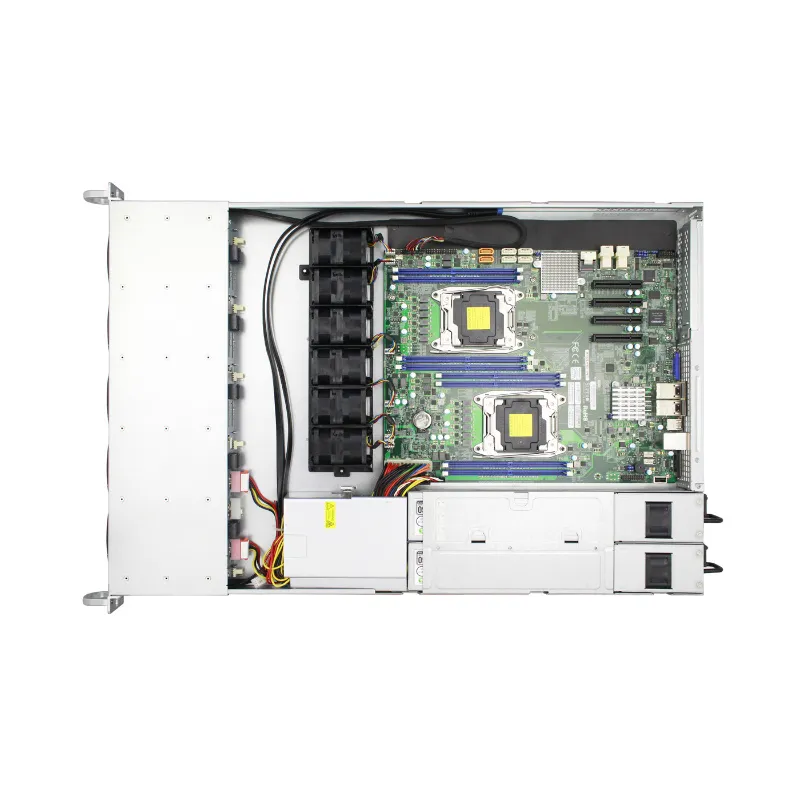

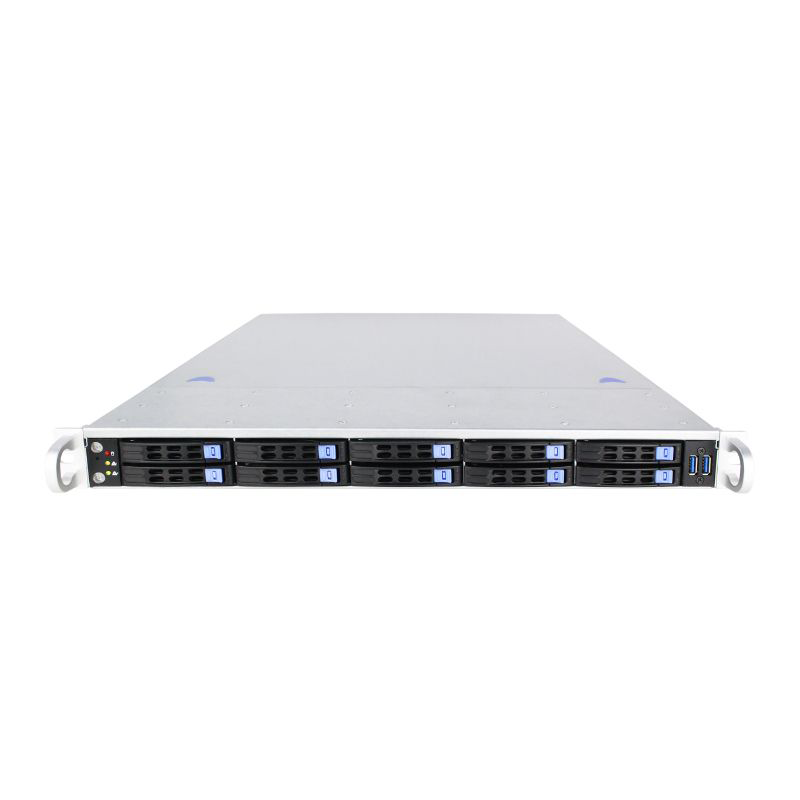

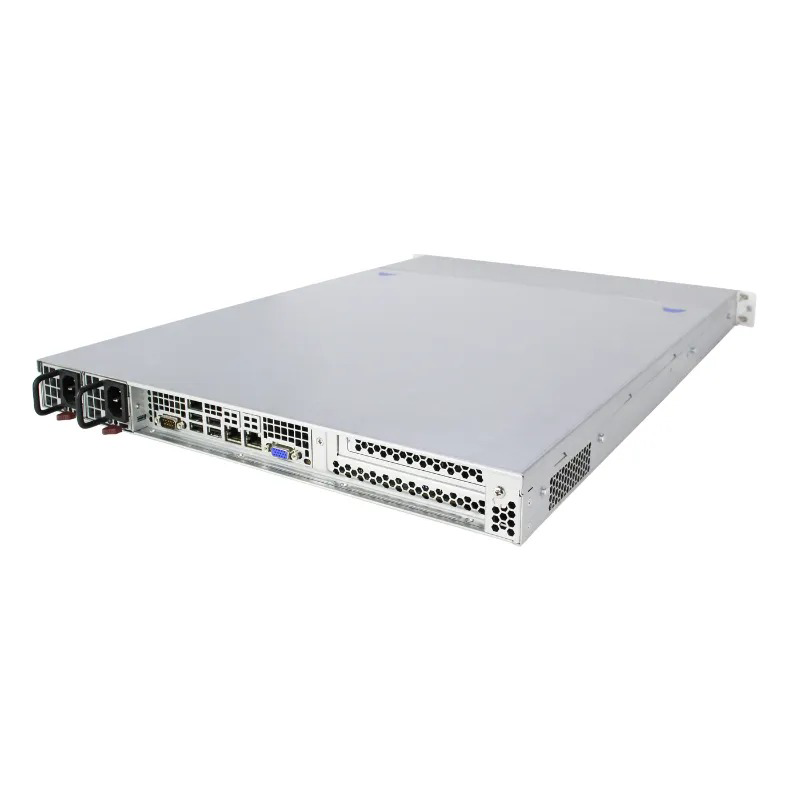

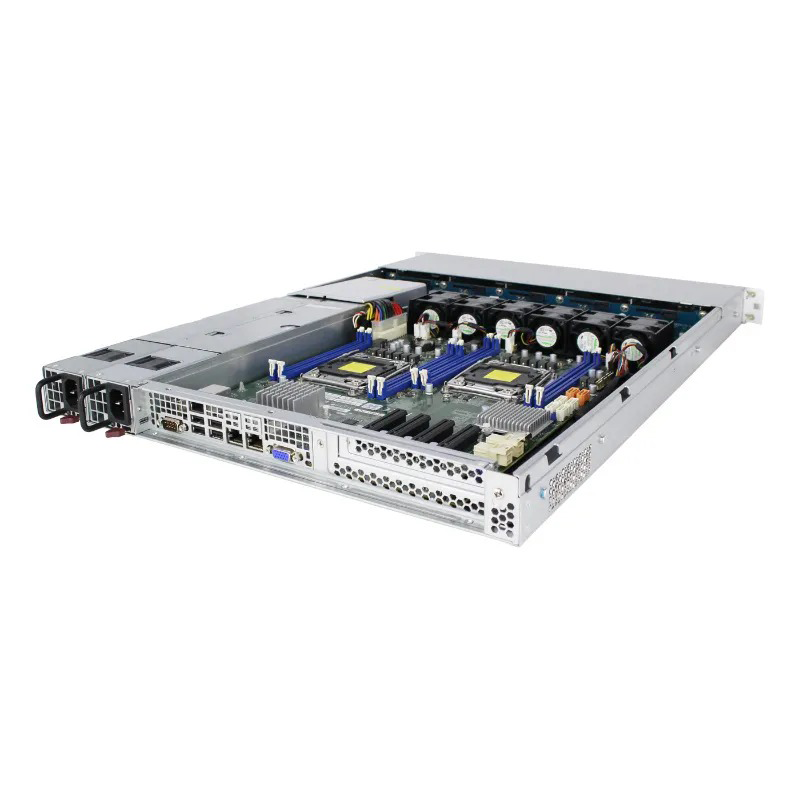

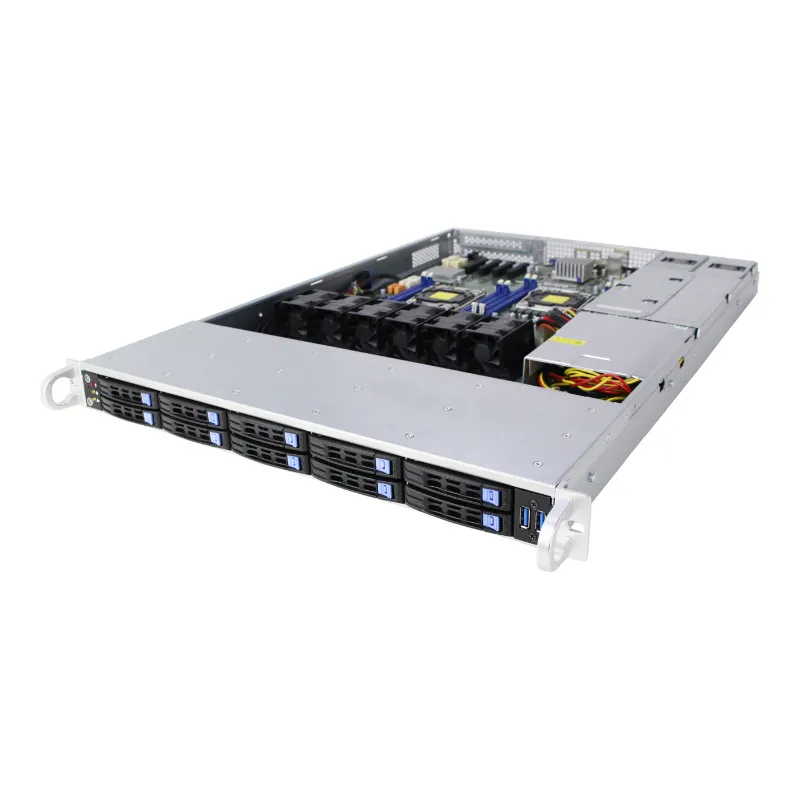

1U 10* HDD Rackmount Server Chassis -OCS1650A-H10-T
• 10* 2.5″ Hot-Swap HDD
| • 1* PCI expansion slot (option)
Description
Package Information
Inquiry
| Model: | OCS1650A-H10-T | |
| 1U Server Chassis: | 650 (D)*437.5 (W)*44 (H) mm; Rackmount style | |
| Material: | Sinosteel, environmentally friendly, anti-fingerprint 1.0 mm SGCC | |
| Surface Treatment: | Hanging ears are sprayed black, other steel plates are of natural color | |
| M/B Form Factor: | Applicable standard motherboards 12″* 13″ (E-ATX) and below | |
| PSU Form Factor: | Standard Supermicro 500W redundant power supply | |
| HDD Support: | 10* front 2.5″ HDD | |
| Expansion Slot: | 1* full-height PCI/PCI-E expansion slot, horizontal insertion | |
| System Cooling Fans: | 6* 4 cm fan positions, standard 6* 4056B-ball fans, 12000RPM, support hot swap and shock absorption (brand NIDEC) | |
| Front Panel Control: | Power SW *1, Reset *1, UID SW *1; Power LED *1, HDD LED *1, NIC LED *2, UID LED *1; USB2.0 *2 | |
| Packing: | Pearl cotton + outer box | |
| Carton Size: | 805*565*155 mm | |
| Applicable Fields: | Cloud storage, cloud computing, big data, and other fields | |
| Operaing Temperature: | 10°C-35°C (without direct light); extended operating temperature: 5°C-40°C (restrictive configuration satisfied); storage temperature: 20%-90% | |
| Transportation & Storage Temperature: | -40°C-70°C | |
