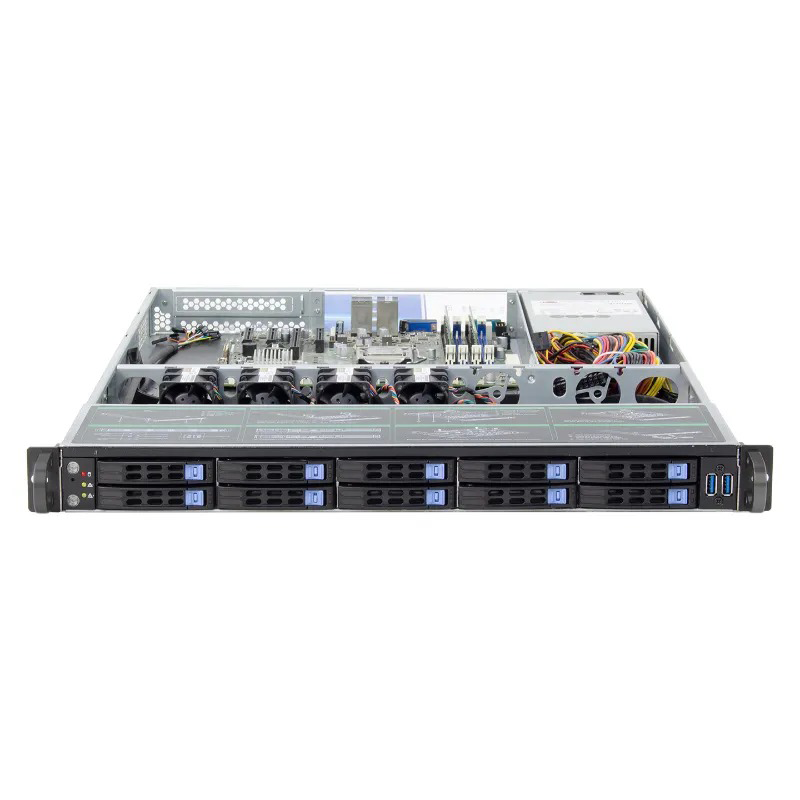

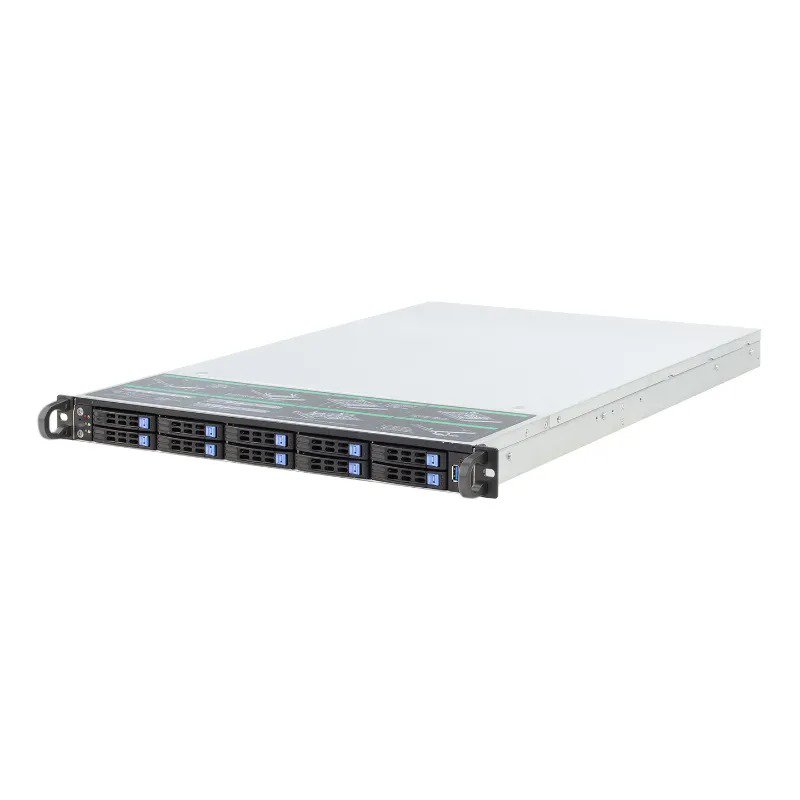

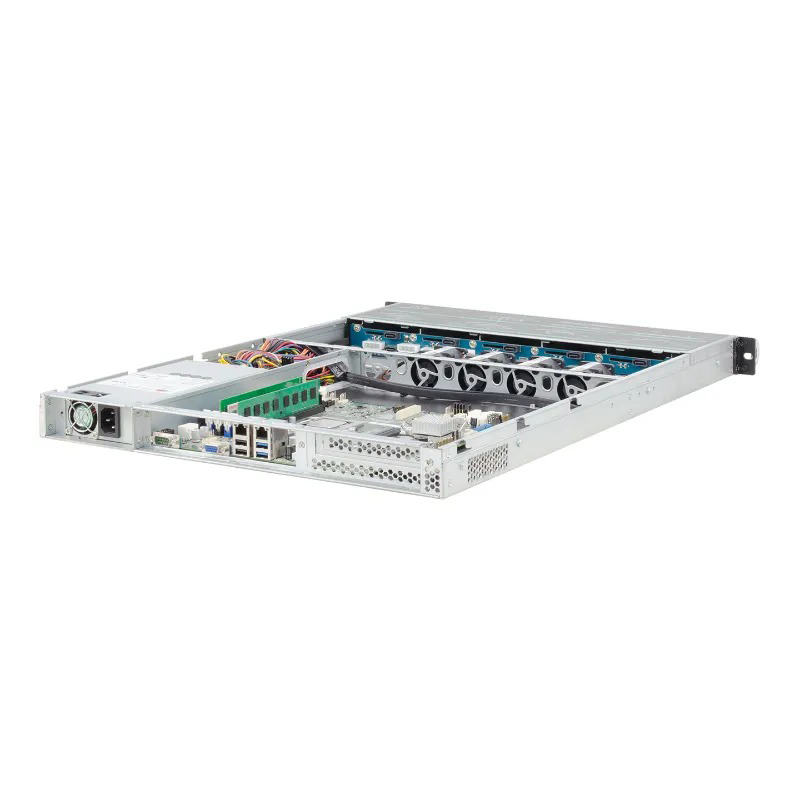

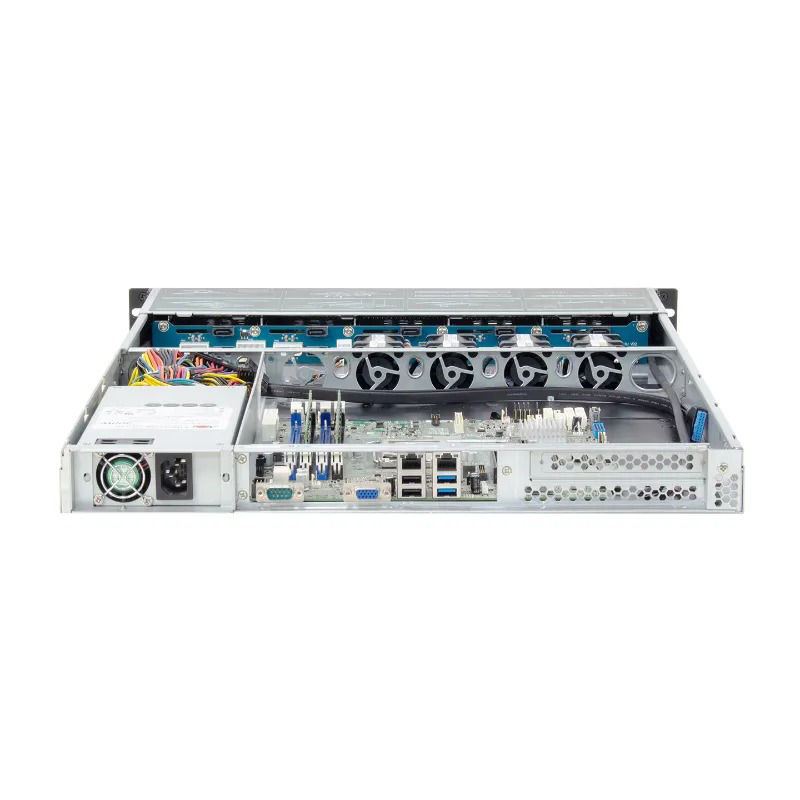

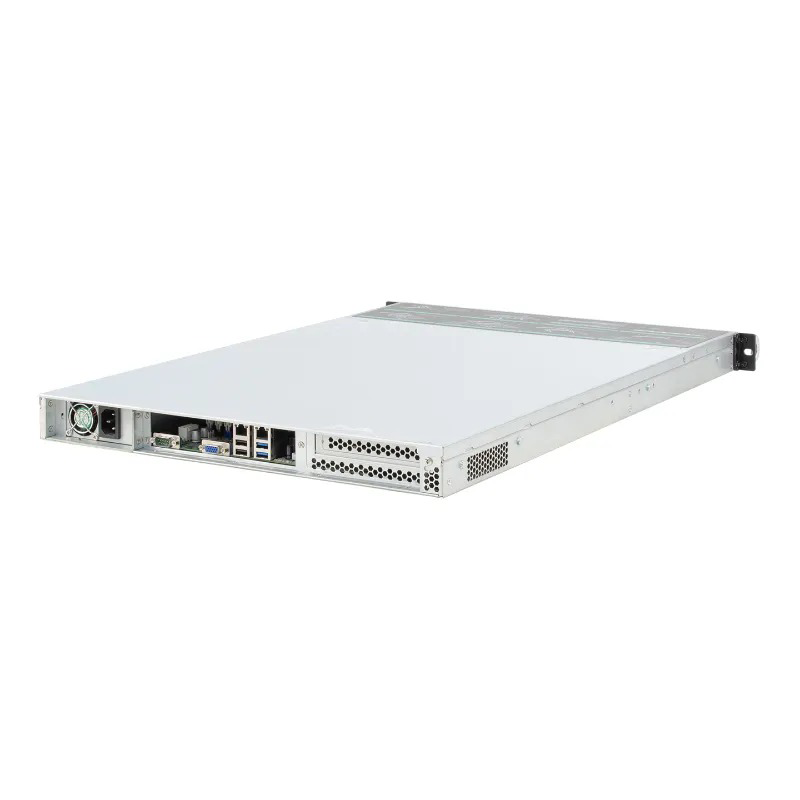

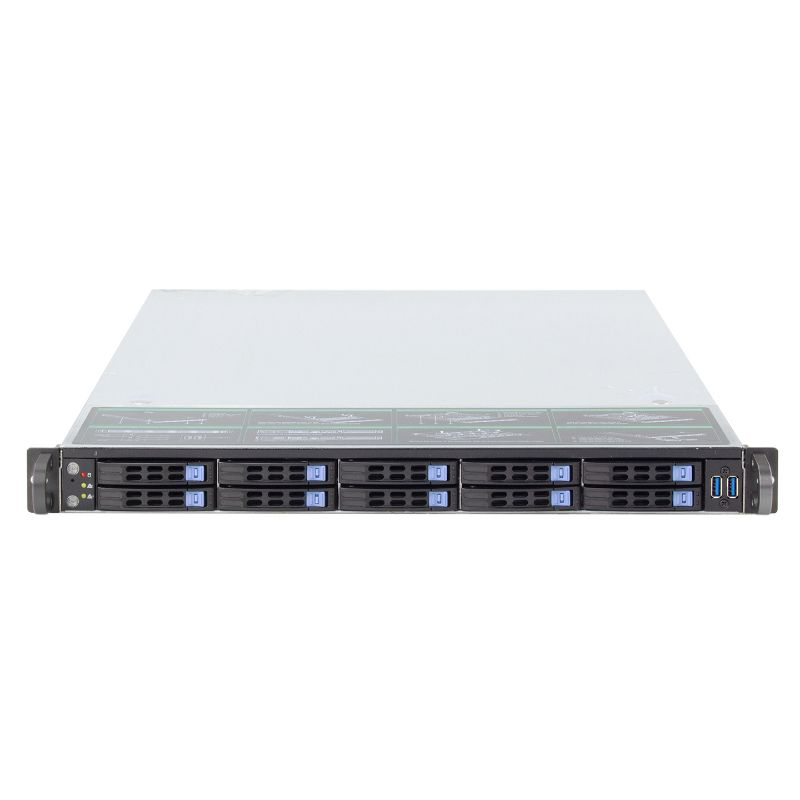

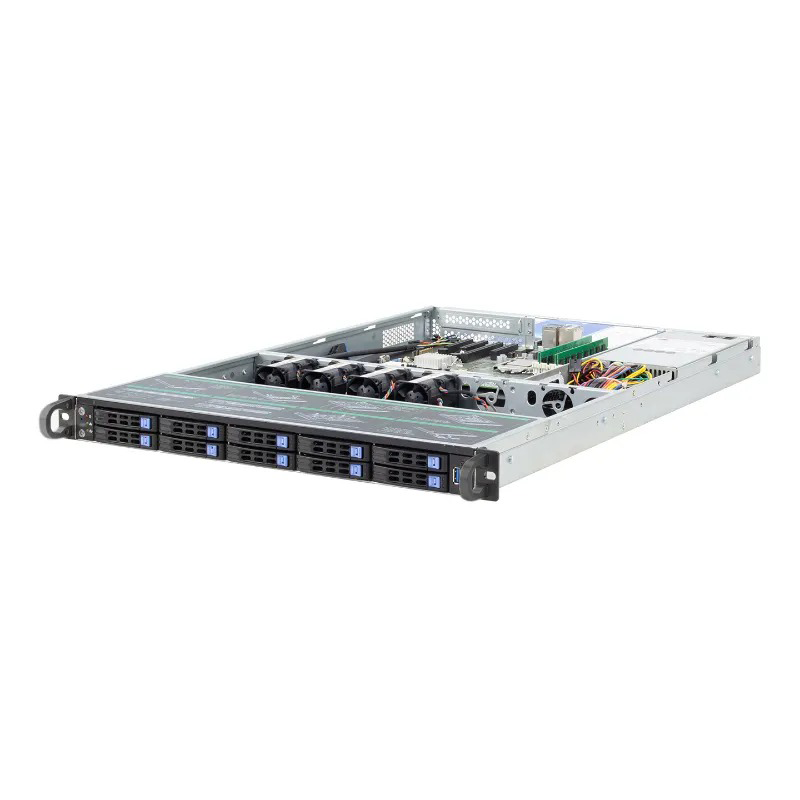

1U 10* HDD Rackmount Server Chassis -OCS1650-H10-T
1U Rackmount Server Case with 10 Hot-Swappable SATA Drive Bay, with temperature control, with SGPIO
| • 10* 2.5″ Hot-Swap HDD
| • 1* PCI expansion slot (option)
Description
Package Information
Inquiry
| Model: | OCS1650-H10-T | |
| 1U Server Chassis: | 650 (D)*437.5 (W)*44 (H) mm; Rackmount style | |
| Material: | Sinosteel, environmentally friendly, anti-fingerprint 1.0 mm SGCC | |
| Surface Treatment: | Handles and hanging ears are sandblasted and oxidized bright black, other steel plates are of natural color | |
| M/B Form Factor: | Applicable standard 12″* 13″ motherboard | |
| PSU Form Factor: | Standard 1U power supply | |
| HDD Backplane: | 6Gb/s SATA interface, with temperature control | |
| HDD Support: | 10* front 2.5″ HDD | |
| Expansion Slot: | 1* full-height PCI/PCI-E expansion slot, horizontal insertion | |
| SGPIO: | √ | |
| System Cooling Fans: | Standard 4* 4056 hot-swappable fan positions (high air pressure/high air volume) | |
| Front Panel Control: | Power SW *1, Reset *1, UID SW *1; Power LED *1, HDD LED *1, NIC LED *2, UID LED *1; USB2.0 *2 | |
| Internal Accessories: | Power bracket, screw bag | |
| Safety Standards: | GB/T 13914-2002 | |
| Packing: | Pearl cotton + outer box | |
| Carton Size: | 785*565*155 mm | |
| Applicable Fields: | Cloud storage, big data, security, etc. | |
| Operaing Temperature: | 10°C-35°C (without direct light); extended operating temperature: 5°C-40°C (restrictive configuration satisfied); storage temperature: 20%-90% | |
| Transportation & Storage Temperature: | -40°C-70°C | |
| Packing: | Pearl cotton + outer box | |
| Carton Size: | 785*565*155 mm | |
