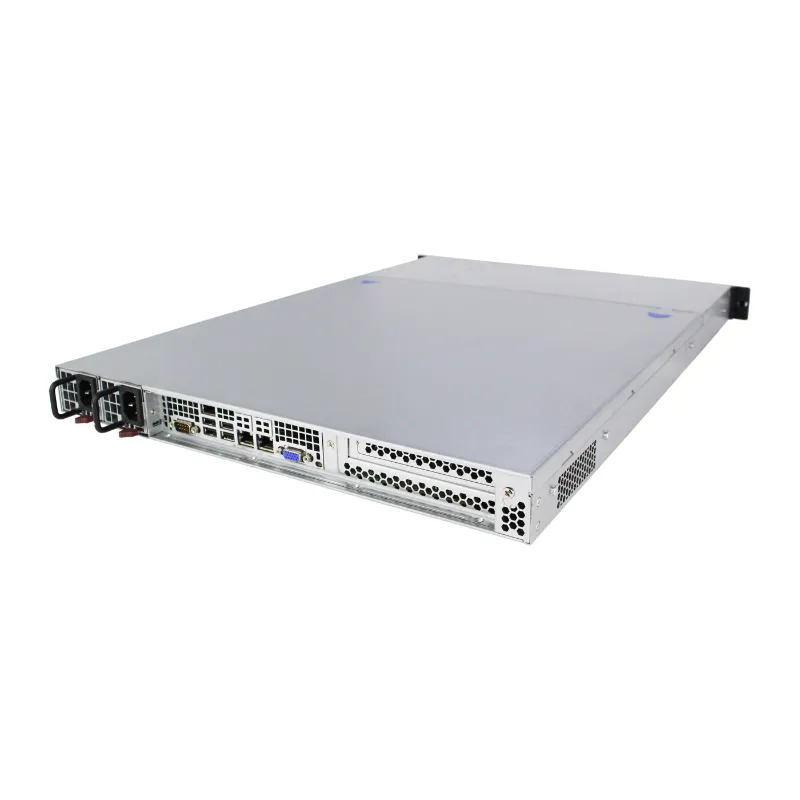

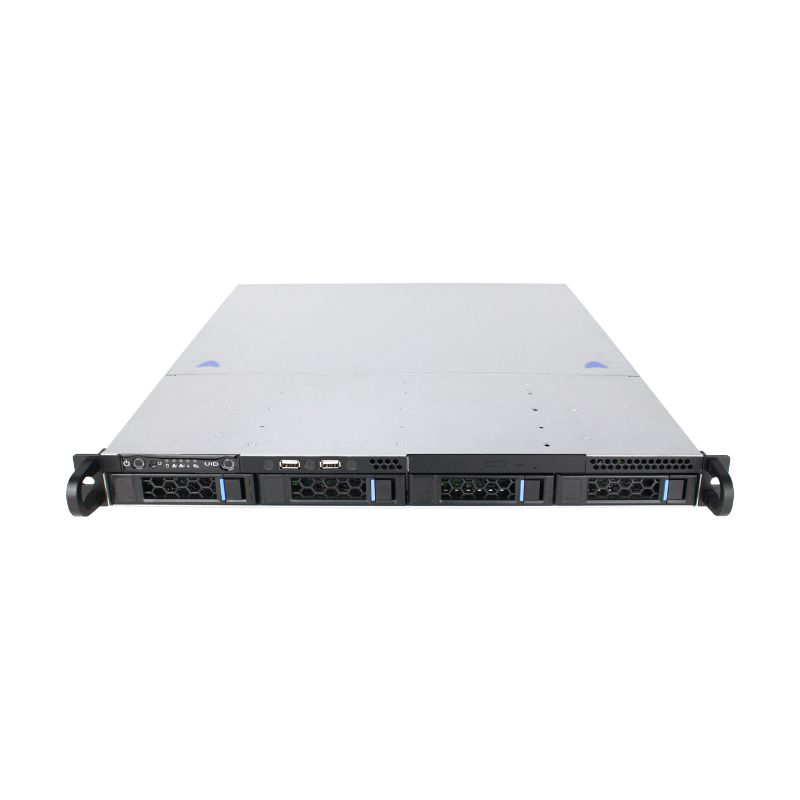

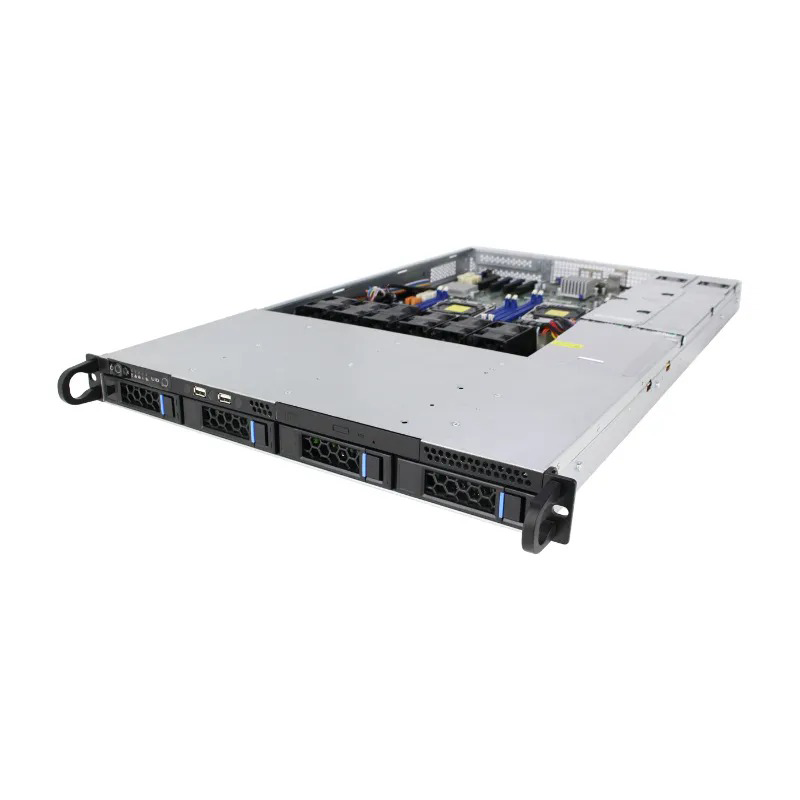

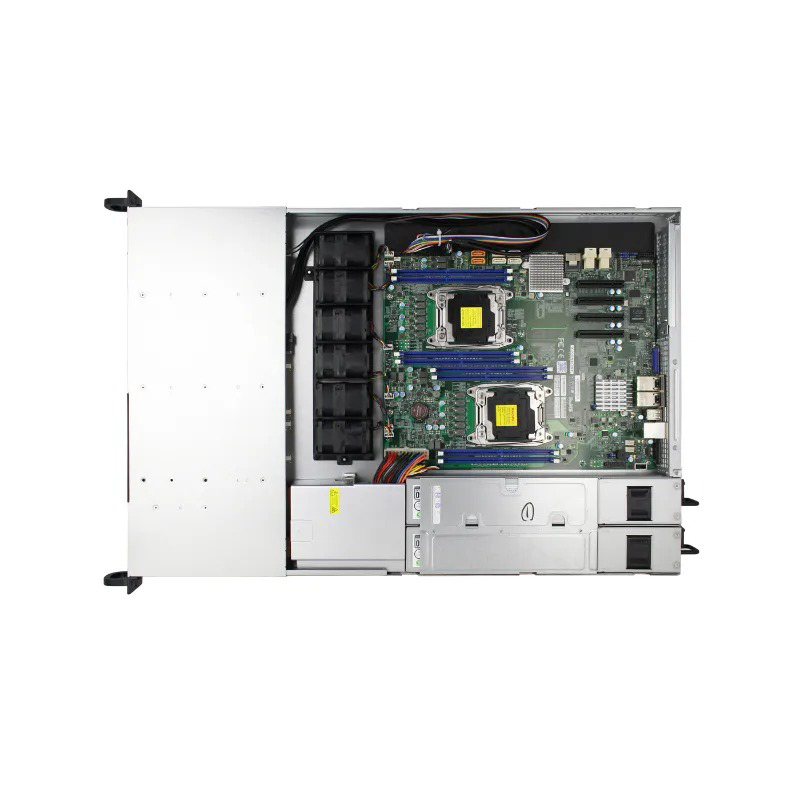

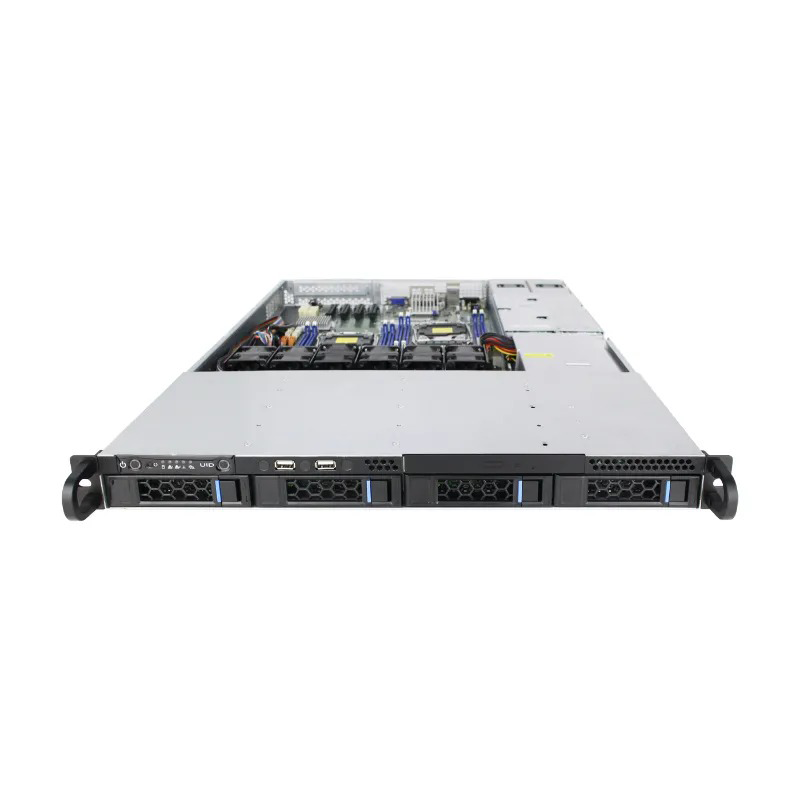

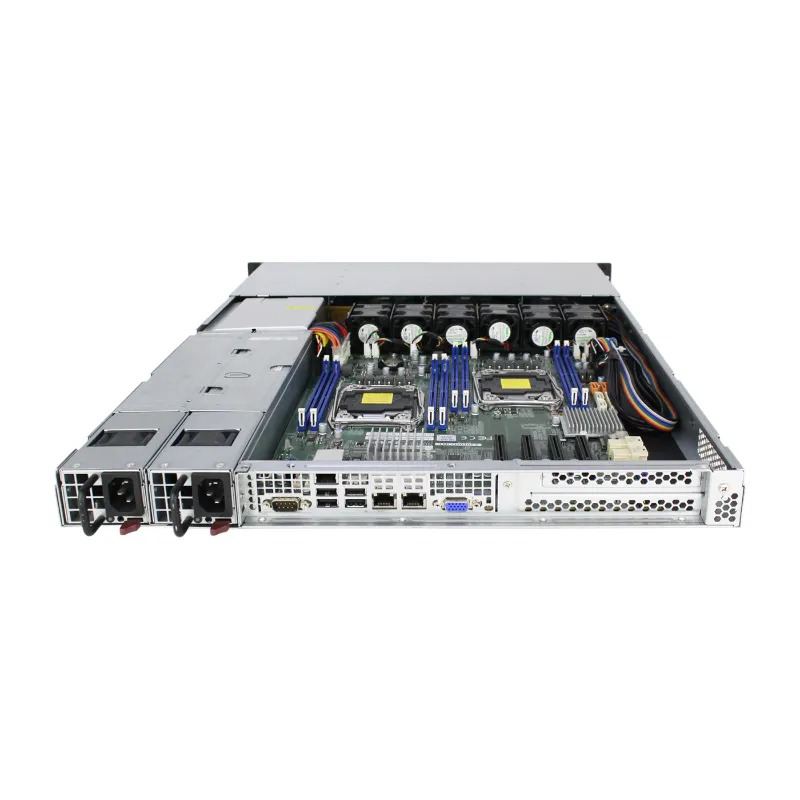

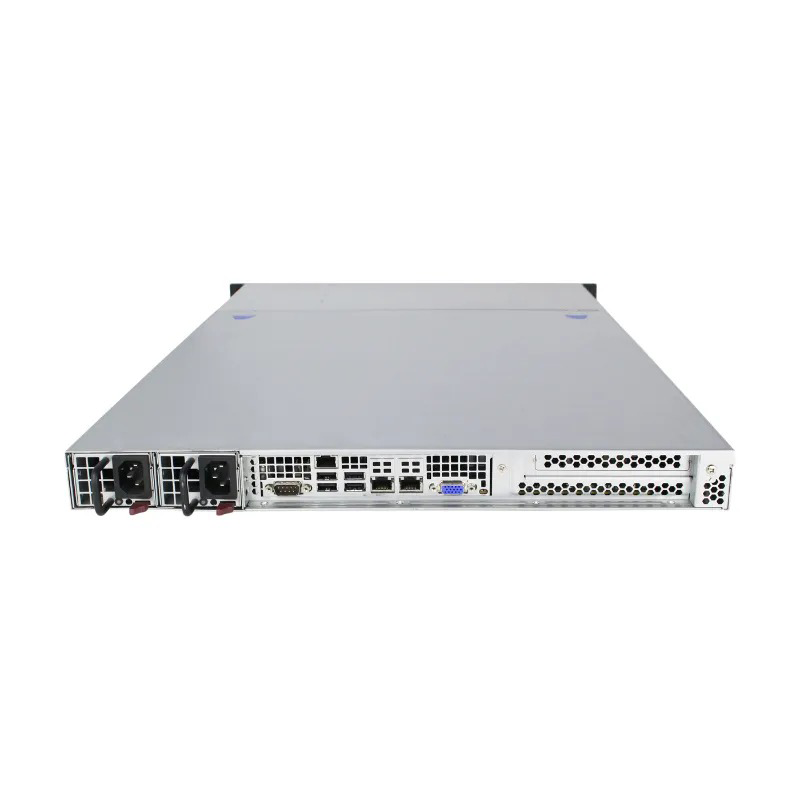

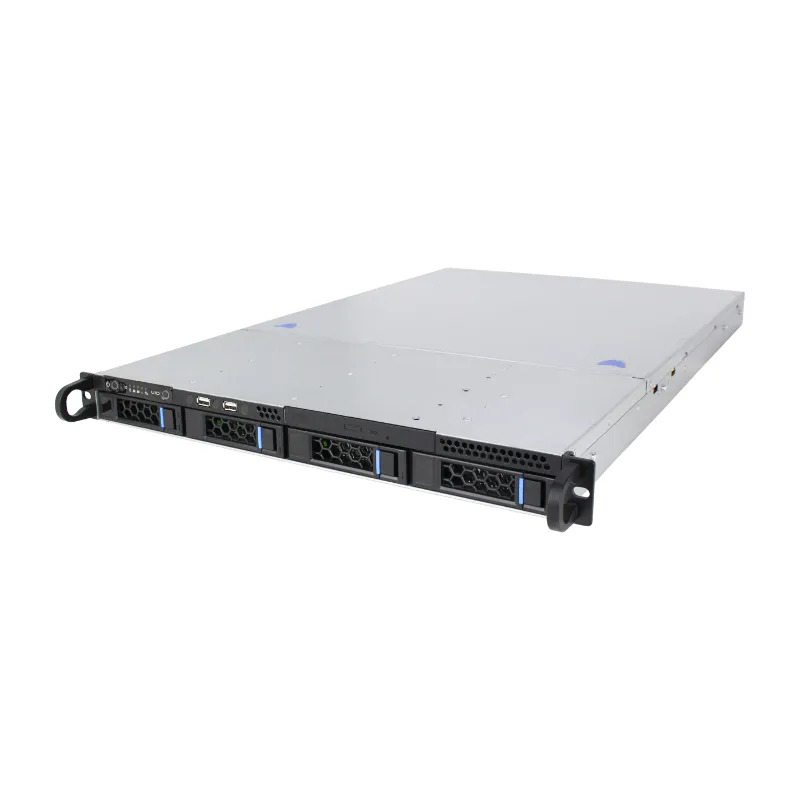

1U 4* HDD Rackmount Server Chassis -OCS1650A-H4-T
1U Rackmount Server Case with 4 Hot-Swappable SATA Drive Bay, with temperature control, with SGPIO
| • 4* 3.5″(or 2.5″) Hot-Swap HDD
| • 1* external slim CD-Rom drive bay
| • 1* PCI expansion slot (option)
Description
Package Information
Inquiry
| Model: | OCS1650A-H4-T | |
| 1U Server Chassis: | 650 (D)*437.5 (W)*44 (H) mm; Rackmount style | |
| Material: | China Steel, environmentally friendly, anti-fingerprint 1.0 mm SGCC | |
| Surface Treatment: | Handles and hanging ears are sandblasted and oxidized bright black, other steel plates are of natural color | |
| M/B Form Factor: | Applicable standard motherboards 12″* 13″ (E-ATX) and below | |
| PSU Form Factor: | Standard Supermicro 500W redundant power supply | |
| HDD Backplane: | 12Gb/s Mini-SAS HD (SFF-8643 interface), with temperature control | |
| HDD Support: | Front 4* 3.5″ HDD (compatible with 2.5″ HDD/SSD) hard disk extraction box adopts an anti-EMI design, with a light guide column, which can indicate the working status of the hard disk; slide rail design, smooth extraction | |
| Expansion Slot: | 1* full-height PCI/PCI-E horizontal expansion slot | |
| SGPIO: | √ | |
| System Cooling Fans: | Support 6* 40mm fan, standard 6* 4056B-ball fan, 12000RPM, support hot swap and shock absorption | |
| Front Panel Control: | Power SW *1, Reset *1, UID SW *1; Power LED *1, HDD LED *1, NIC LED *2, UID LED *1; USB2.0 *2 | |
| Internal Accessories: | Power bracket, screw bag | |
| Safety Standards: | GB/T 13914-2002 | |
| Packing: | Pearl cotton + outer box | |
| Carton Size: | 785*565*155 mm | |
| Applicable Fields: | Cloud storage, cloud computing, big data, and other fields | |
| Operaing Temperature: | 10°C-35°C (without direct light); extended operating temperature: 5°C-40°C (restrictive configuration satisfied); storage temperature: 20%-90% | |
| Transportation & Storage Temperature: | -40°C-70°C | |
| Packing: | Pearl cotton + outer box | |
| Carton Size: | 785*565*155 mm | |
