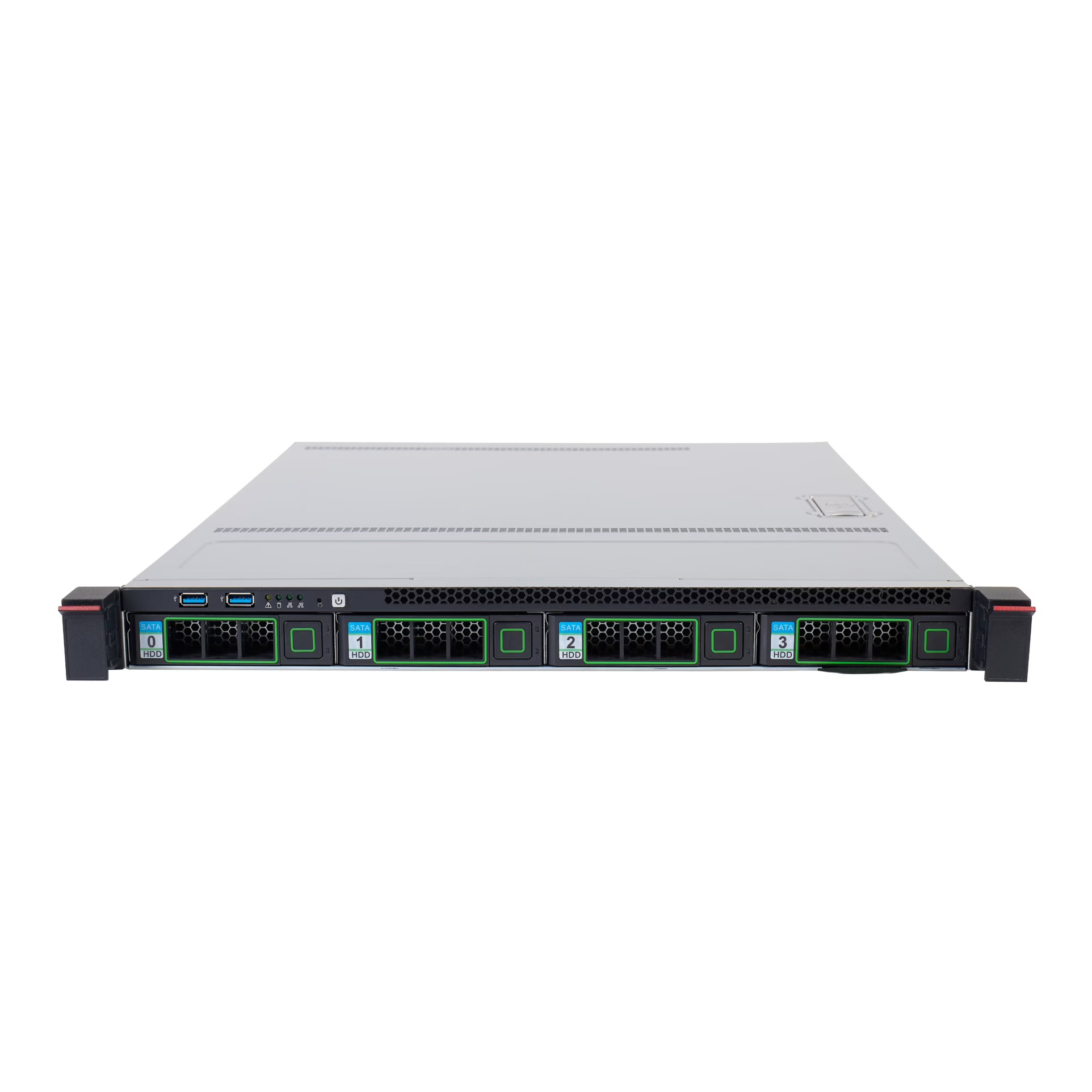

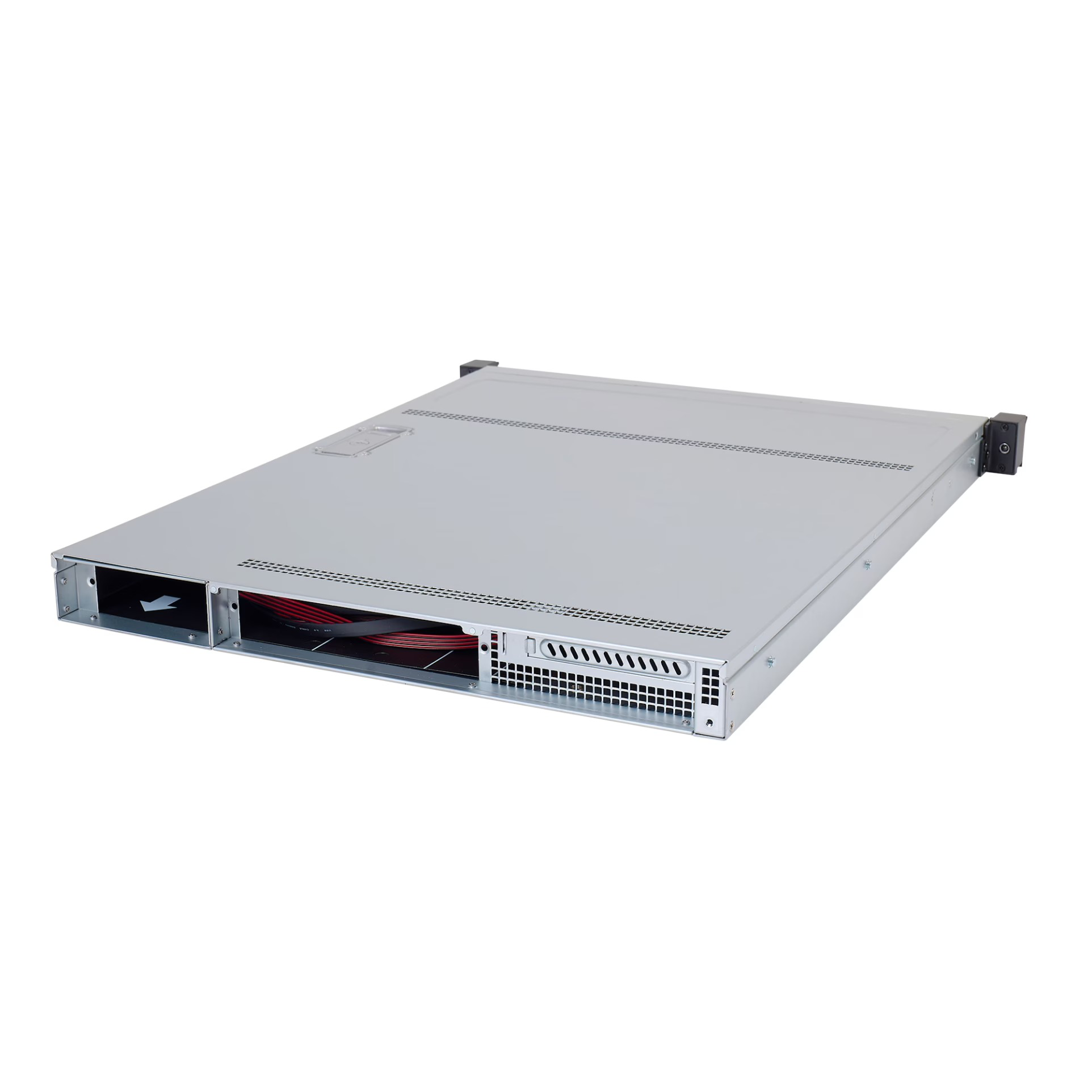

1U 4* HDD Rackmount Server Chassis -OCS1580-H04-H
| • Support 4* 3.5″ or 2.5″ hot-swappable SATA/SAS HDDs + 2* built-in 2.5” HDDs
| • Compatible with ATX / Mini-ATX / Micro-ATX / ITX motherboards
| • Single or Redundant PSU (CRPS) supported
| • High-speed SATA/SAS backplane with optional SFF-8087/8643 cabling
| • Standard 4x 40x40mm fans with smart speed control
| • Slide rails (optional) and front-panel USB, indicators & ID switch
Description
Package Information
Inquiry
| Model: | OCS1580-H04-H | |
| 1U Server Chassis: | 580 (D)*436 (W)*43.6 (H) mm; Rackmount style | |
| Material: | Taiwan Sinosteel SGCC 1.2 mm | |
| M/B Form Factor: | ATX(12″ *9.6″)/Mini-ATX(11.2″ *8.2″)/Micro-Atx(9.6″ *9.6″)/ITX(7″ *7″) | |
| PSU Form Factor: | Single 1U, 1+1 Redundant PSU, CRPS | |
| HDD Backplane: | 6Gb/12Gb SATA/SAS direct Backplane(SFF-8087/SFF-8643 cable for optional) | |
| HDD Support: | 4* 3.5″ or 2.5″ external (hot-swap); 2* 2.5″ built-in | |
| Expansion Slot: | 1* full-height PC card | |
| SGPIO: | √ | |
| System Cooling Fans: | Standard 4* 4028 fan | |
| Smart Fans Speed Control: | Backboard support | |
| Air Duct: | Support for customization of optional materials (SGCC/PC/ABS/PE, etc.) | |
| Front Panel Control: | Power SW *1, Reset *1; Power LED *1, HDD LED *1, NIC *2, Alarm *1; USB3.0/USB2.0 *2 | |
| Rails: | Slide Rail Tool-free guide rail (optional) | |
| Net Weight: | 7.5 kg | |
| Gross Weight: | 9.6 kg | |
| Packing Size: | D760* W565* H160 mm | |
| Applicable Fields: | • Small to Medium Business (SMB) NAS storage • Enterprise data backup and archiving • Edge computing or remote office data processing • Video surveillance storage platform • Private cloud or virtualization storage node | |
| Environment Temperature: | 0/55 ℃, 32/131 ℉ (Operating) -20/60 ℃, -4/140 ℉ (Non-Operating) | |
| Relative Humidity: | 5% to 95%, non-condensing | |
| Net Weight: | 7.5 kg | |
| Gross Weight: | 9.6 kg | |
| Packing Size: | D760* W565* H160 mm | |
