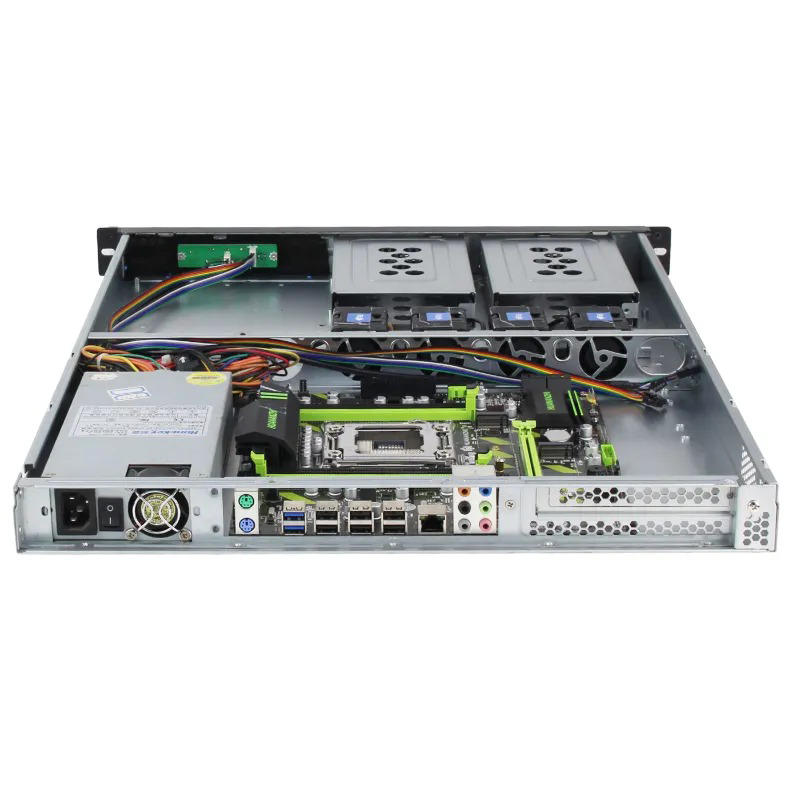

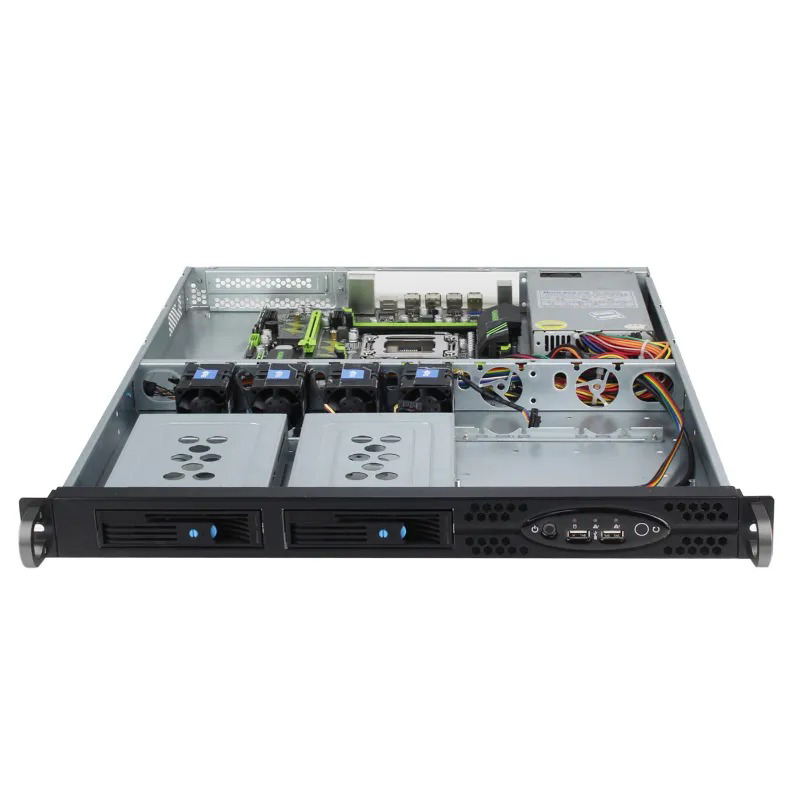

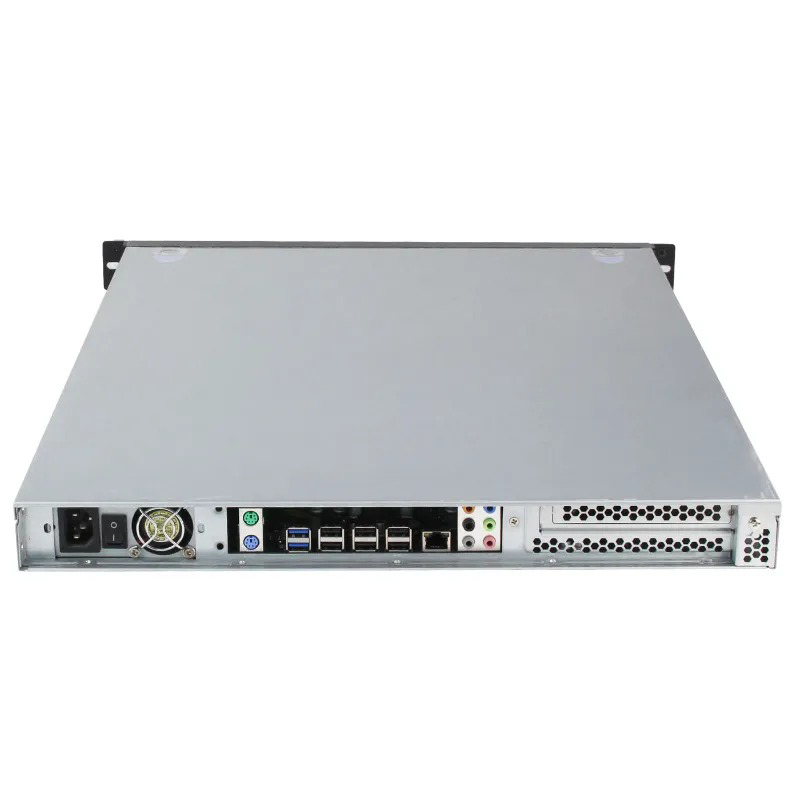

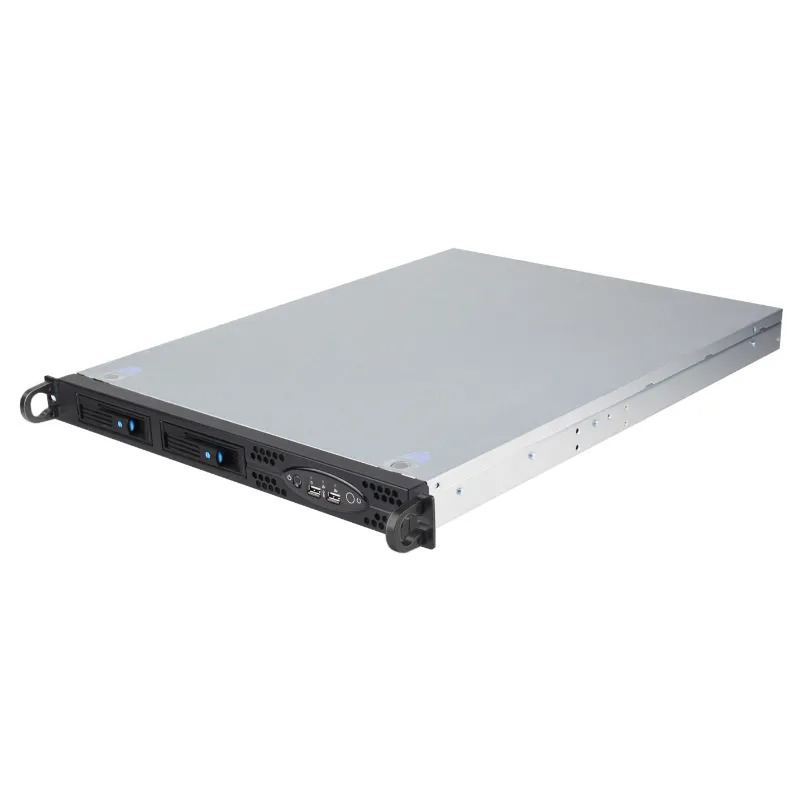

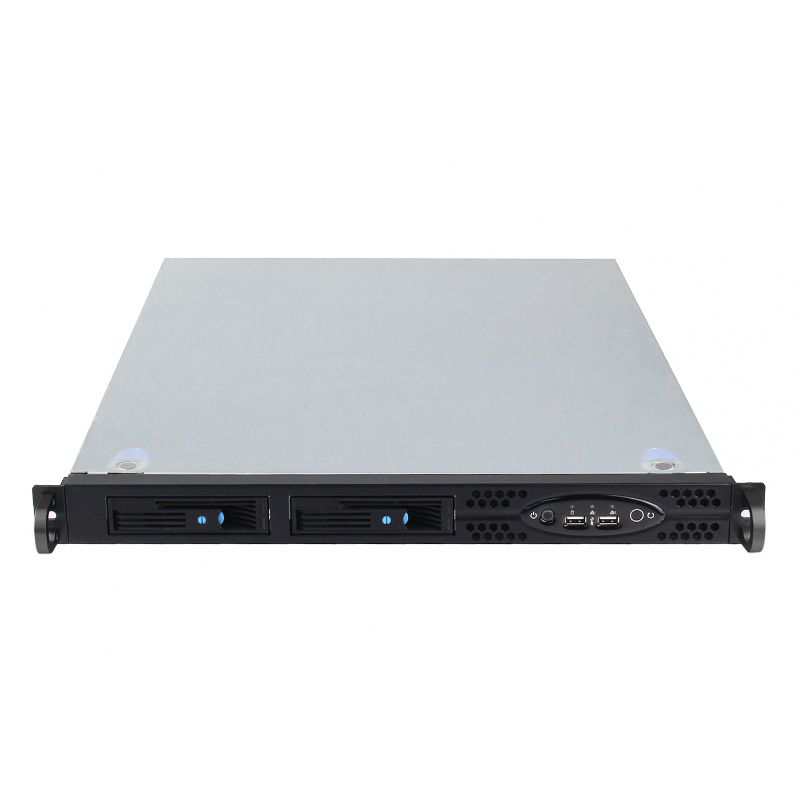

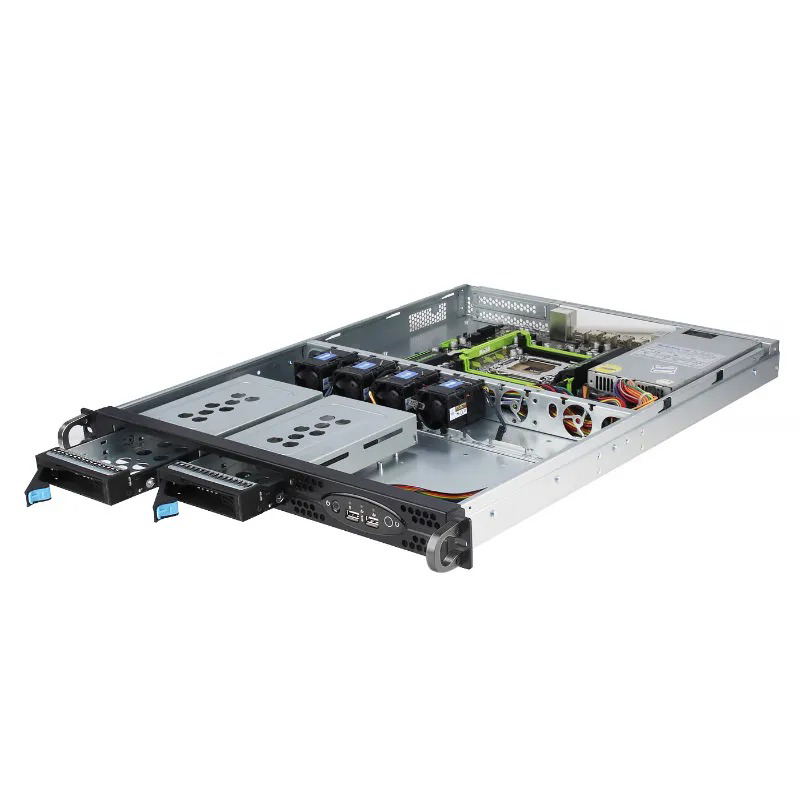

1U 2* HDD Rackmount Server Chassis -OCS1580-H2-T
1U Rackmount Server Case with 2 Hot-Swappable SATA Drive Bay

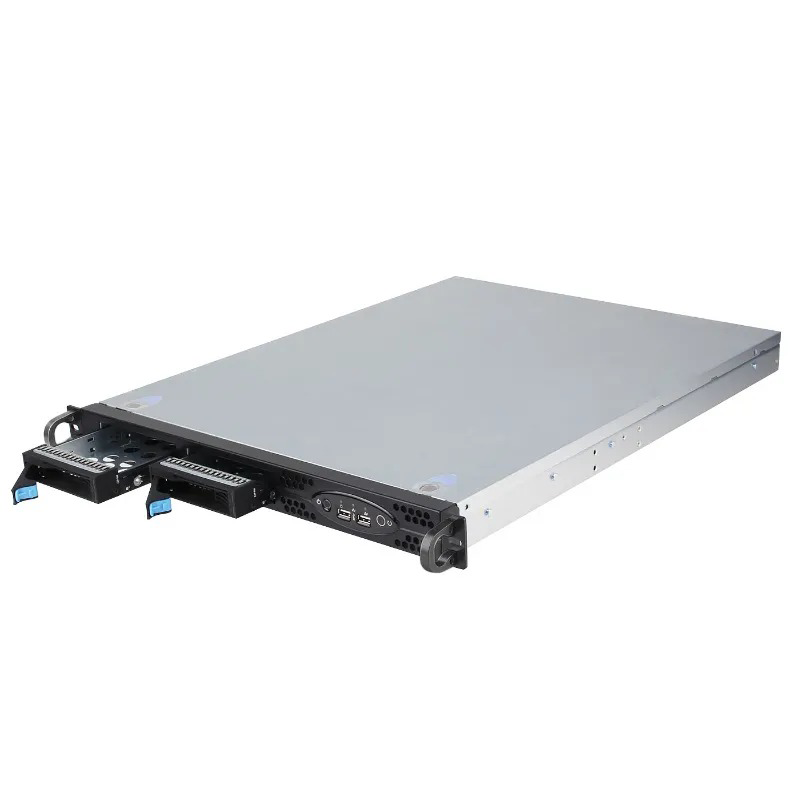

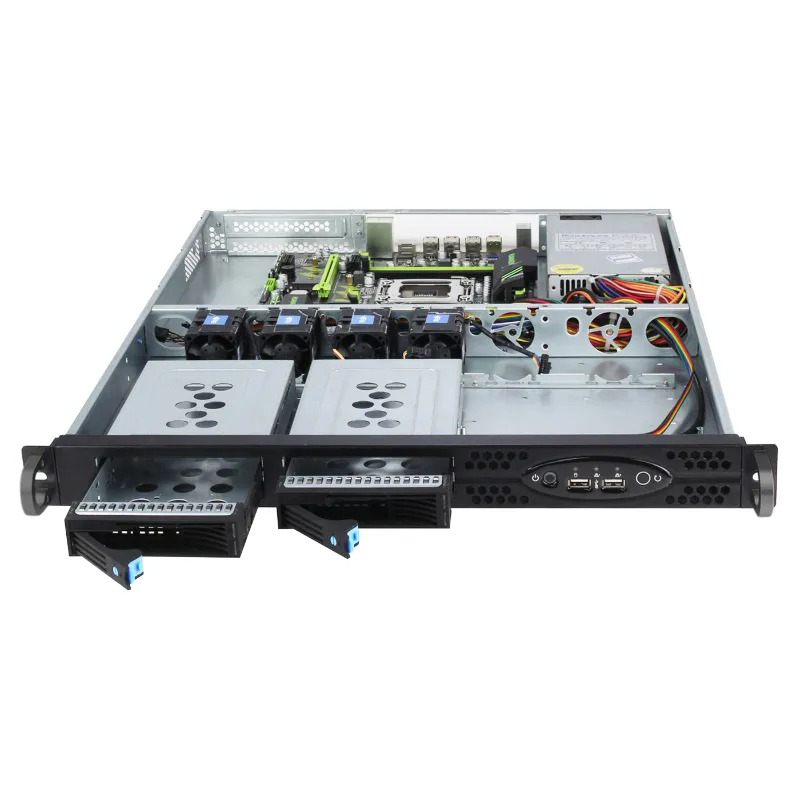

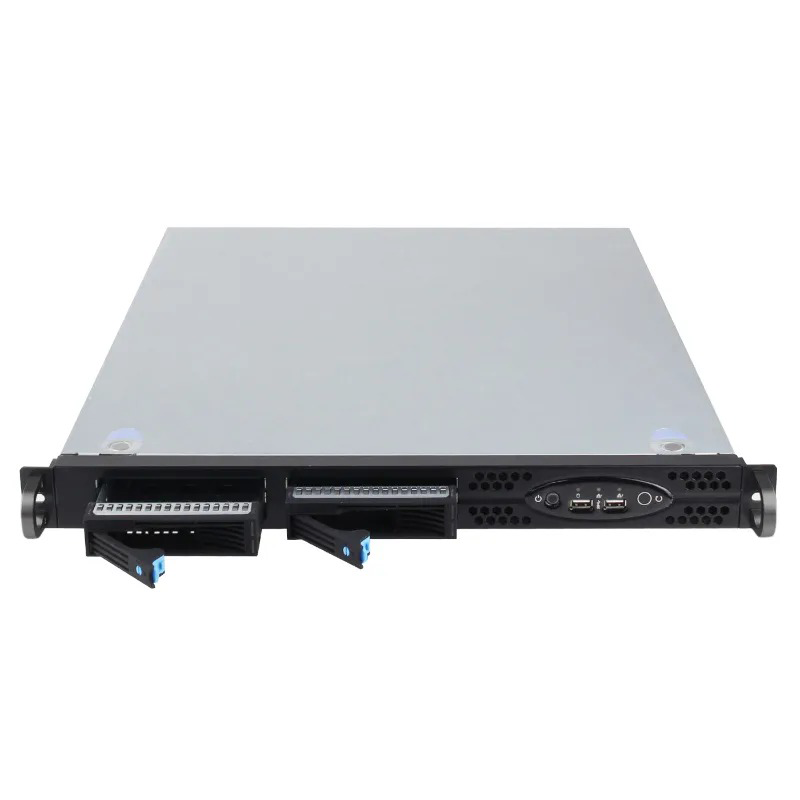

| • 2* 3.5″(or 2.5″) Hot-Swap HDD
| • 1* PCI expansion slot (option)
Description
Package Information
Inquiry
| Model: | OCS1580-H2-T | |
| 1U Server Chassis: | 580 (D)*437.5 (W)*44 (H) mm; Rackmount style | |
| Material: | High quality, environmentally friendly, fingerprint resistant 1.0 mm SGCC | |
| Surface Treatment: | Handles and hanging ears are sandblasted and oxidized bright black, the outer surface of the front panel assembly is sprayed with sand grain black (KC-31084), and the internal parts and rear window are not sprayed | |
| M/B Form Factor: | Applicable motherboards 12″* 10.5″ and below | |
| PSU Form Factor: | 1U standard power supply | |
| HDD Backplane: | 6Gb/s SATA interface | |
| HDD Support: | 2* front 3.5″ HDD compatible 2.5″ HDD/SSD | |
| Expansion Slot: | 1* full-height PCI/PCI-E horizontal expansion slot | |
| System Cooling Fans: | Standard 3* 4056/4028 hot-swap fan, optional up to 4 | |
| Front Panel Control: | Power SW *1, Reset *1; Power LED *1, HDD LED *1, NIC LED *2, UID LED *1; USB2.0 (optional USB 3.0) *2 | |
| Applicable Fields: | Cloud storage, cloud computing, big data, and other fields | |
| Packing: | Pearl cotton + outer box | |
| Operaing Temperature: | 10°C-35°C (without direct light); extended operating temperature: 5°C-40°C (restrictive configuration satisfied); storage temperature: 20%-90% | |
| Transportation & Storage Temperature: | -40°C-70°C | |
