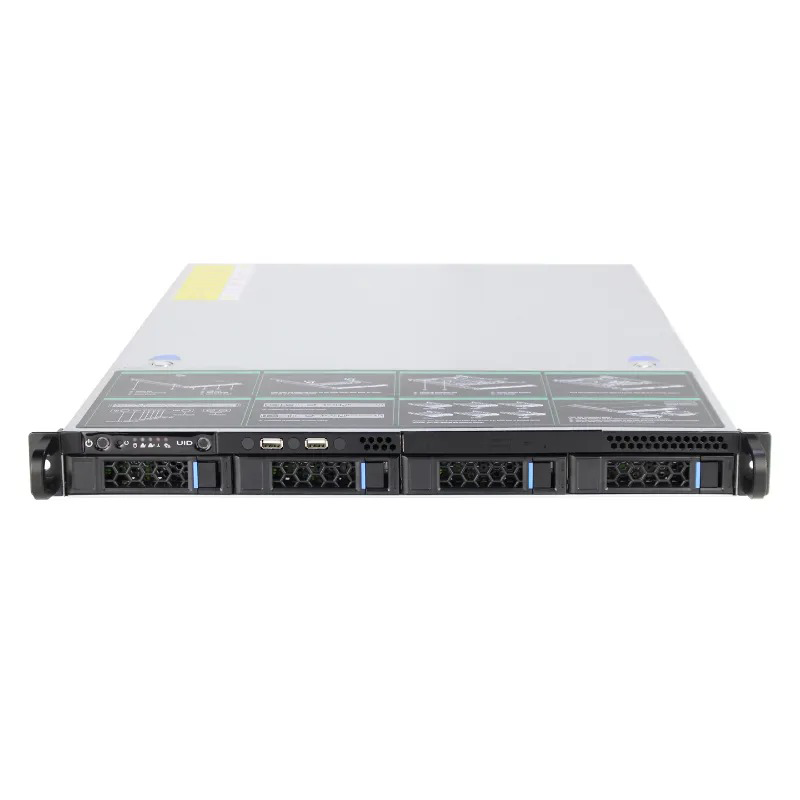

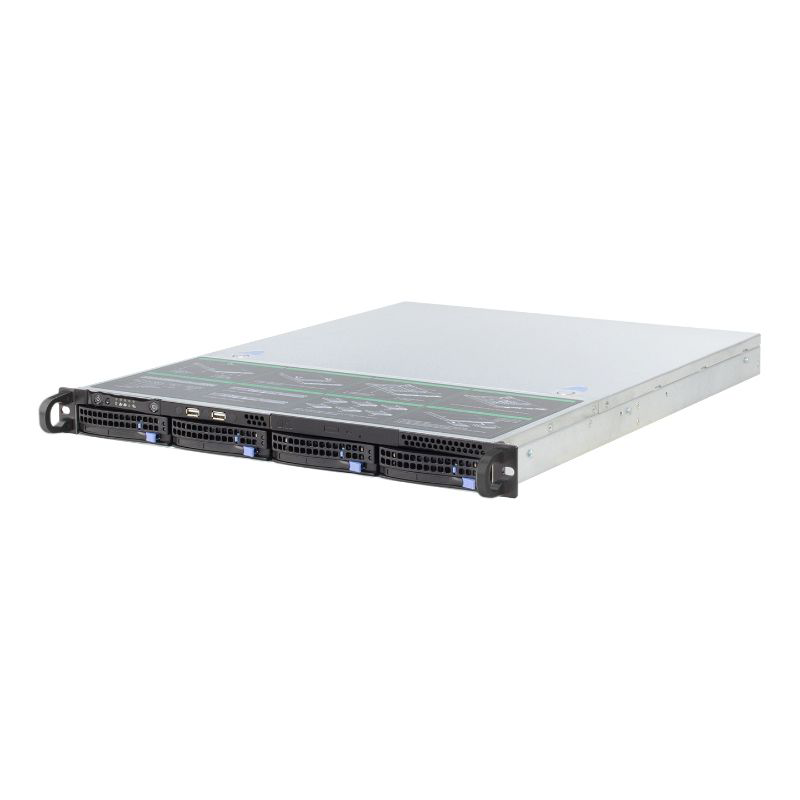

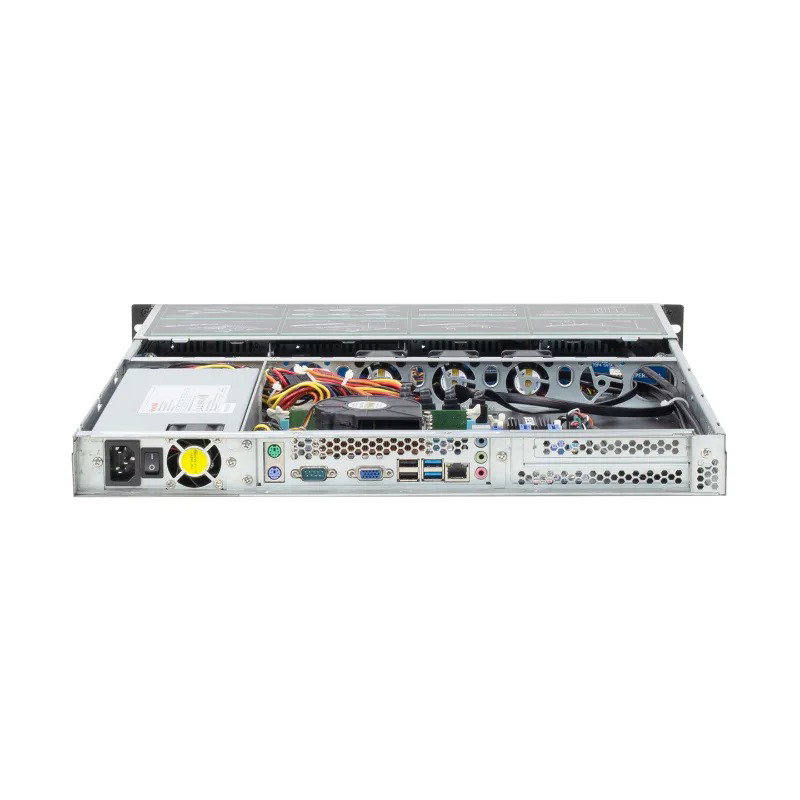

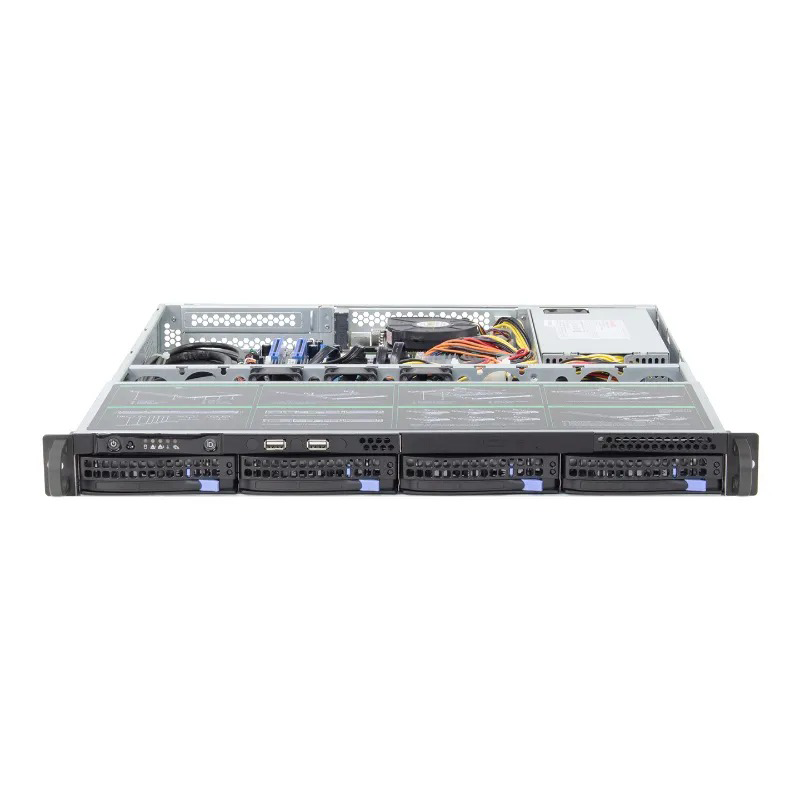

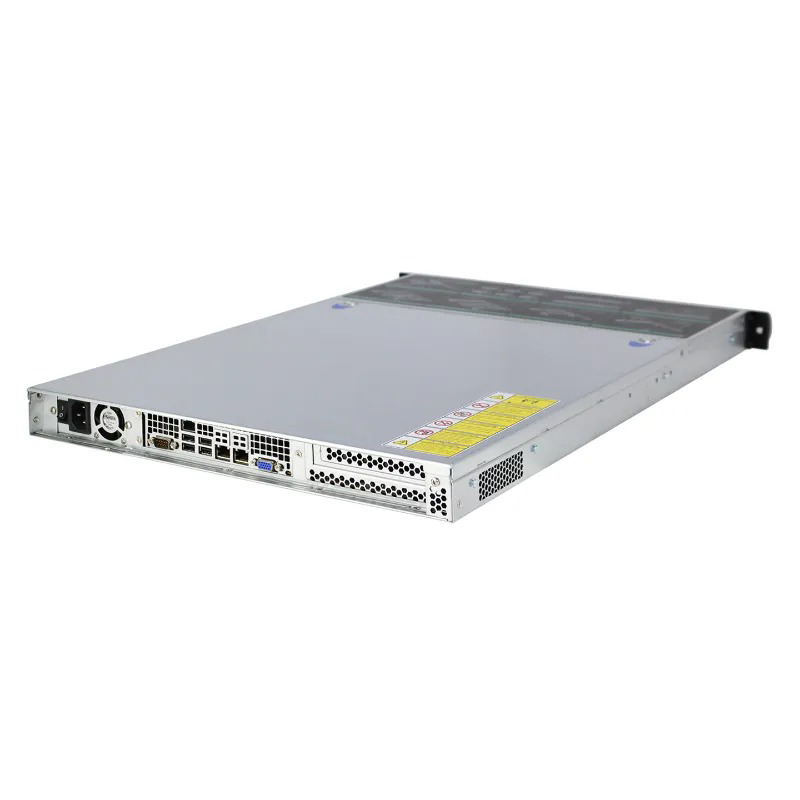

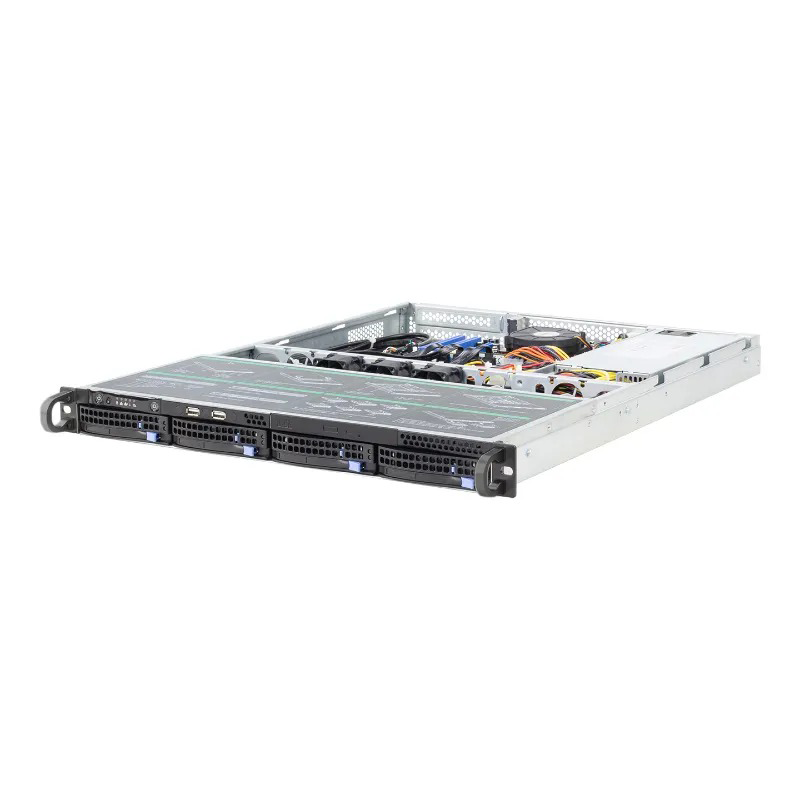

1U 4* HDD Rackmount Server Chassis -OCS1560-H4-T
1U Rackmount Server Case with 4 Hot-Swappable SATA Drive Bay, with temperature control
| • 4* 3.5″(or 2.5″) Hot-Swap HDD
| • 1* external 2.5″ bay
| • 1* external slim CD-Rom drive bay
| • 1* PCI expansion slot (option)
Description
Package Information
Inquiry
| Model: | OCS1560-H4-T | |
| 1U Server Chassis: | 560 (D)*437.5 (W)*44.5 (H) mm; Rackmount style | |
| Material: | High quality, environmentally friendly, fingerprint resistant 1.0 mm SGCC | |
| M/B Form Factor: | Applicable motherboards 12″* 10.5″ and below | |
| PSU Form Factor: | Compatible with standard 1U power supplies with a length of 225 mm and below | |
| HDD Backplane: | 6Gb/s SATA interface, with temperature control, direct connection mode | |
| HDD Support: | 4* front 3.5″ HDD (compatible with 2.5″ HDD/SSD), 1 built-in 2.5″ HDD/SSD; the hard disk extraction box adopts an anti-EMI design, with light guide column, which can indicate the working status of the hard disk; slide rail design, smooth extraction | |
| Optical Drive Slot Type: | 1 ultra-thin notebook optical drive slot | |
| Expansion Slot: | 1 standard PCI/PCI-E horizontal expansion slot at rear | |
| Front Door Panel: | None | |
| System Cooling Fans: | Support 6* 40mm fan positions, standard 3* 4028B-ball fans, 12000RPM, with hot swap and shock absorption | |
| Front Panel Control: | Power SW *1, Reset*1, UID SW *1; Power LED *1, HDD LED *1, NIC LED *2, UID LED *1, OH/FAN Fail LED *1, Power Fail LED *1; USB2.0 (optional USB 3.0) *2 | |
| Windshield: | None | |
| Top Cover Button: | Tool-free disassembly | |
| Applicable Fields: | Cloud storage, cloud computing, big data, security monitoring, and other fields | |
| Operaing Temperature: | 10°C-35°C (without direct light); extended operating temperature: 5°C-40°C (restrictive configuration satisfied); storage temperature: 20%-90% | |
| Transportation & Storage Temperature: | -40°C-70°C | |
