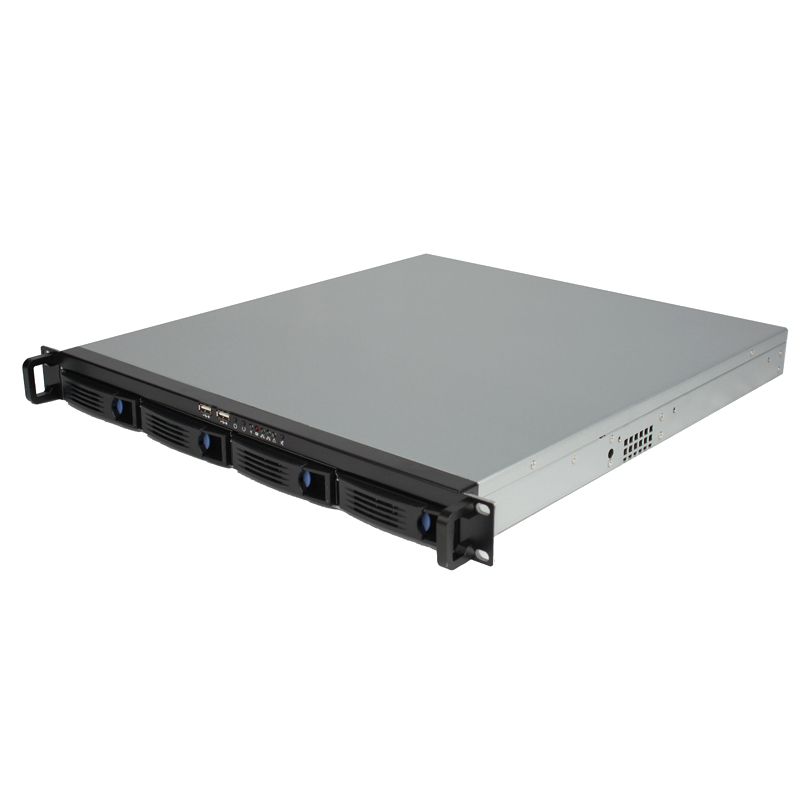

1U 4* HDD Rackmount Server Chassis -OC148-4-M
• Support ITX Motherboard
| • Support Flex Power Supply
| • SGCC steel construction
| • 2* Front USB 2.0 ports
| • Support 4* 3.5″ HDD
| • 4* 40mm cooling fan
Description
Package Information
Inquiry
| Model: | OC148-4-M | |
| 1U Server Chassis: | 482 (D)*480 (W)*44.5 (H) mm; Rackmount style | |
| Material: | 1.2 mm SGCC | |
| M/B Support: | 7″ x 7″(170 x 170mm) | |
| PSU Support: | Flex PSU | |
| HDD Backplane: | 12Gb/s SAS backplane (12Gb/s SAS Expander backplane optional) | |
| HDD Support: | 4* 3.5-inch Hard Disk | |
| CD-ROM: | No | |
| Expansion: | 1* Full-height and Straight Slot (Riser Card is needed/ Optional) | |
| System Cooling Fans: | 4* 4020 | |
| Front Panel: | Power SW *1; Restart*1; Blue Power Indicator *1; Red HD Indicator *1; Yellow Network Connection Indicators *2; USB2.0 *2 | |
| Net Weight: | 7.5 kg | |
| Gross Weight: | 9.6 kg | |
| Packing Size: | D64* W57* H17 cm (0.06CBM) | |
| Container Loading Qty: | 20GP: 466; 40GP: 966; 40HC(HQ): 1,133 | |
| Environment Temperature: | 0/55℃, 32/131℉ (Operating) -20/60℃, -4/140℉ (Non-Operating) | |
| Relative Humidity: | 5% to 95%, non-condensing | |
| Net Weight: | 7.5 kg | |
| Gross Weight: | 9.6 kg | |
| Packing Size: | D64* W57* H17 cm (0.06CBM) | |
| Container Loading Qty: | 20GP: 466; 40GP: 966; 40HC(HQ): 1,133 | |
