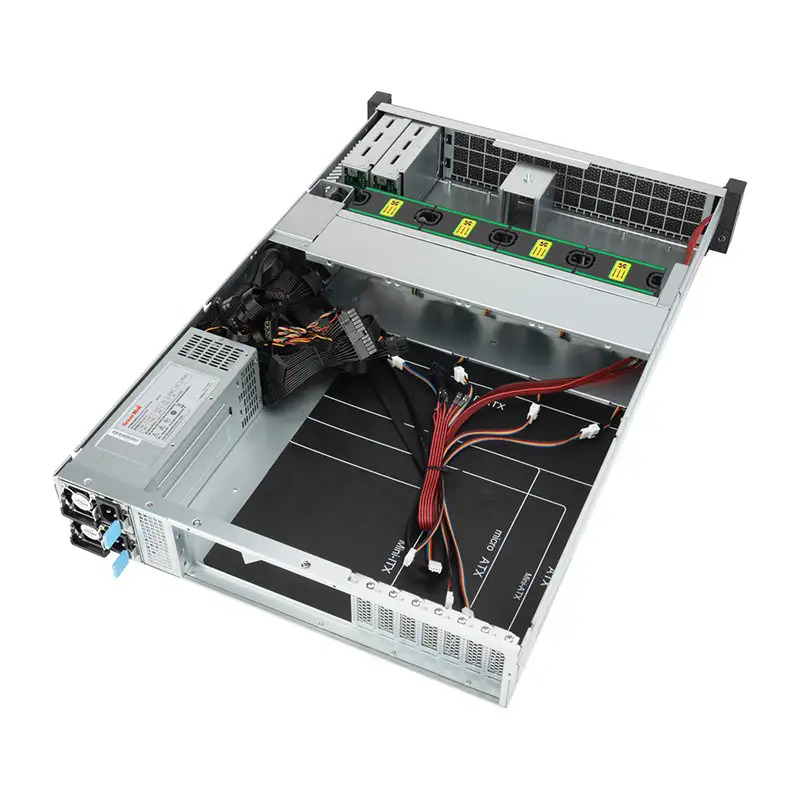

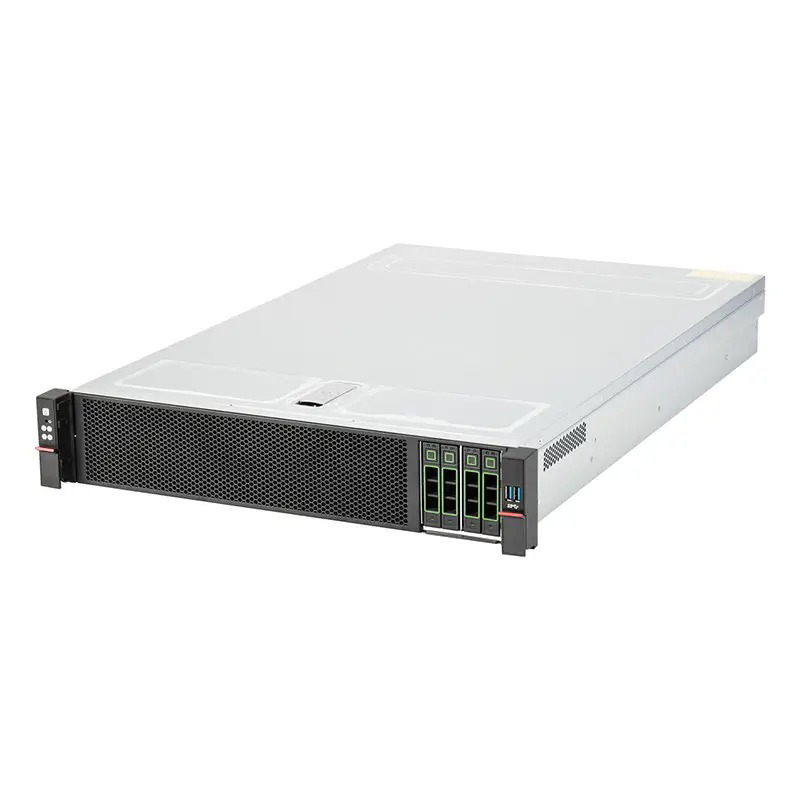

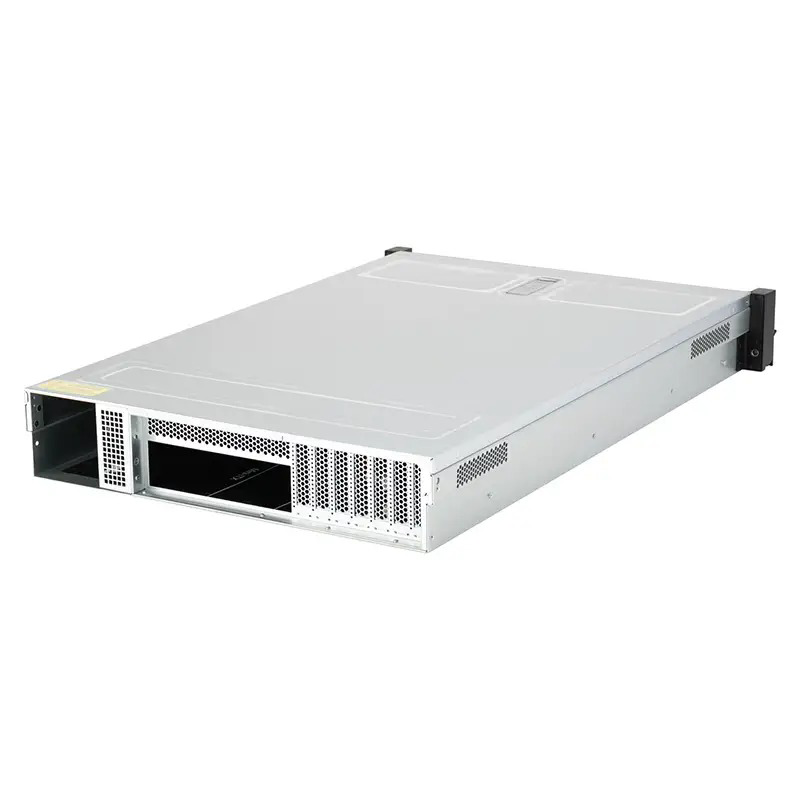

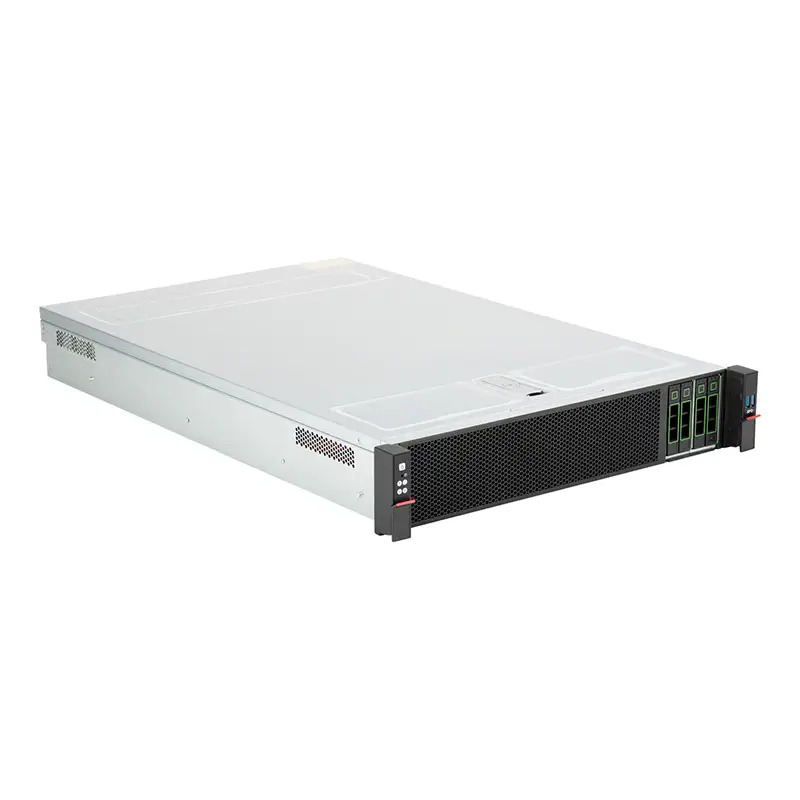

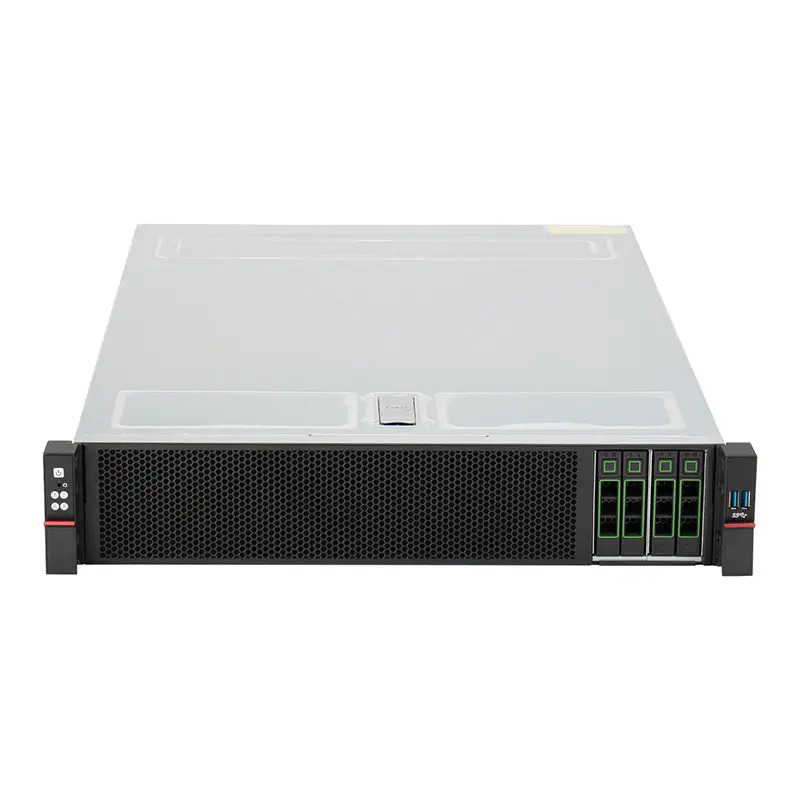

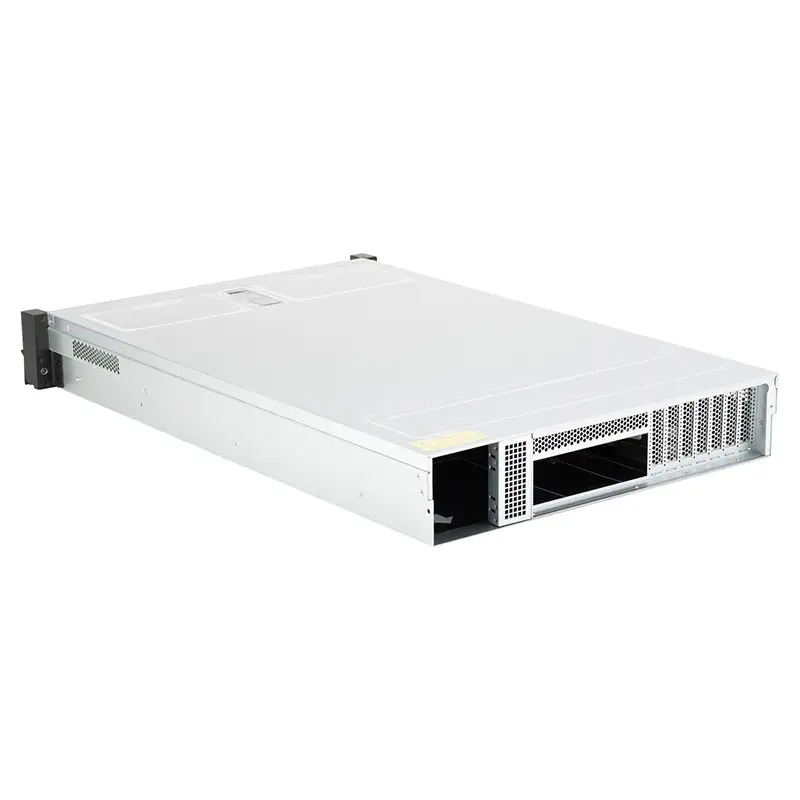

2U Rackmount Chassis- OCS2700-H04-H
• Support U.2 (8611/8654 – 81/8654 – 41)
| • Efficient cooling system
| • Convenient USB connect
| • Widely applied in data warehousing, cloud storage, virtualization, and high-availability environments, it offers robust storage solutions for enterprise data management.
| > Power Supply not include
Description
Package Information
Inquiry
| Model: | OCS2700-H04-H (Barebone System) |
| 2U Rackmount Chassis: | D700 × W436 × H88.1 mm |
| Material: | 1.2 mm Taiwan Sinosteel SGCC |
| Cabinet: | Black dusting |
| MB Compatibility: | MAX(13.9″ x 13″)/EEB(12″ x 13″)/CEB(12″ x 10.5″)/ATX(12″ x 9.6″)/Mini-ATX(11.2″ x 8.2″)/Micro-ATX(9.6″ x 9.6″)/ITX(7″ x 7″) |
| PSU Form Factor: | Single 2U, 1+1 Redundant PSU, CRPS |
| HDD Backplane: | 6Gb/12Gb SATA/SAS direct Backplane(SFF-8087/SFF-8643 cable for optional) |
| HDD Support: | 4* 3.5″ hot-swappable HDD (or 2.5″ HDD). Optional 2* 2.5″ hot-swappable HDD at the rear |
| Expansion Slot: | Support 2 Full-Height or 7 Half height PCI cards(multiple rear windows optional) |
| SGPIO: | √ |
| System Cooling Fan: | Standard 4* 8038 hot-swappable fan |
| Smart Fans Speed Control: | Backboard support |
| Air Duct: | Support for customization of optional materials (SGCC/PC/ABS/PE, etc.) |
| Front Panel Control: | Indicator: HDD *1, NIC *2, PowerAarm *1; Power ON/OFF with Indicator *1, System reset *1; USB2.0 *2/USB3.0 *2 |
| Rails: | Slide Rail Tool-free guide rail(optional) |
| Net Weight: | 10.3 kg |
| Gross Weight: | 15.5 kg |
| Packaging Size: | 860*565*217 mm |
| Net Weight: | 10.3 kg |
| Gross Weight: | 15.5 kg |
| Packaging Size: | 86 * 56.5 * 21.7 cm |
