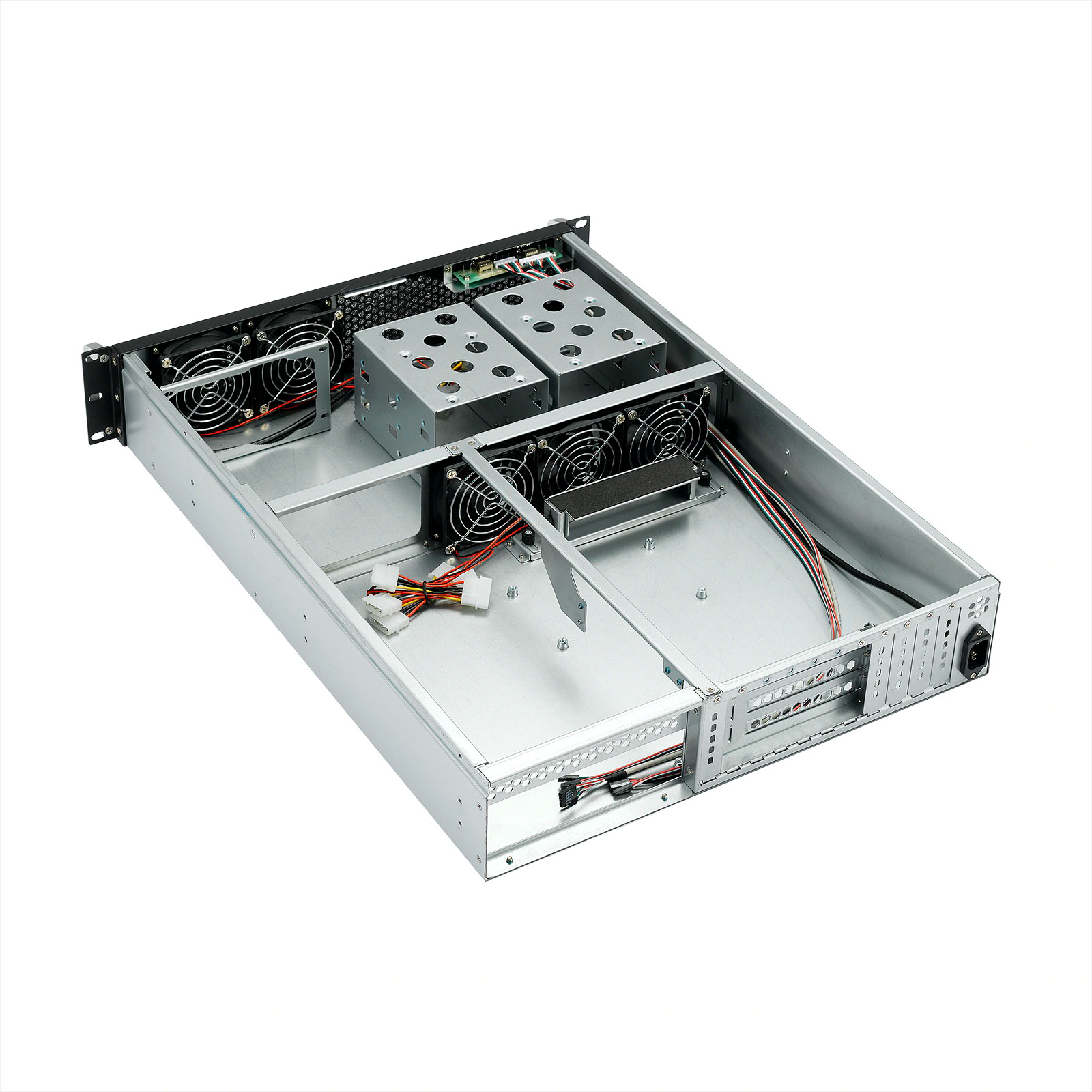

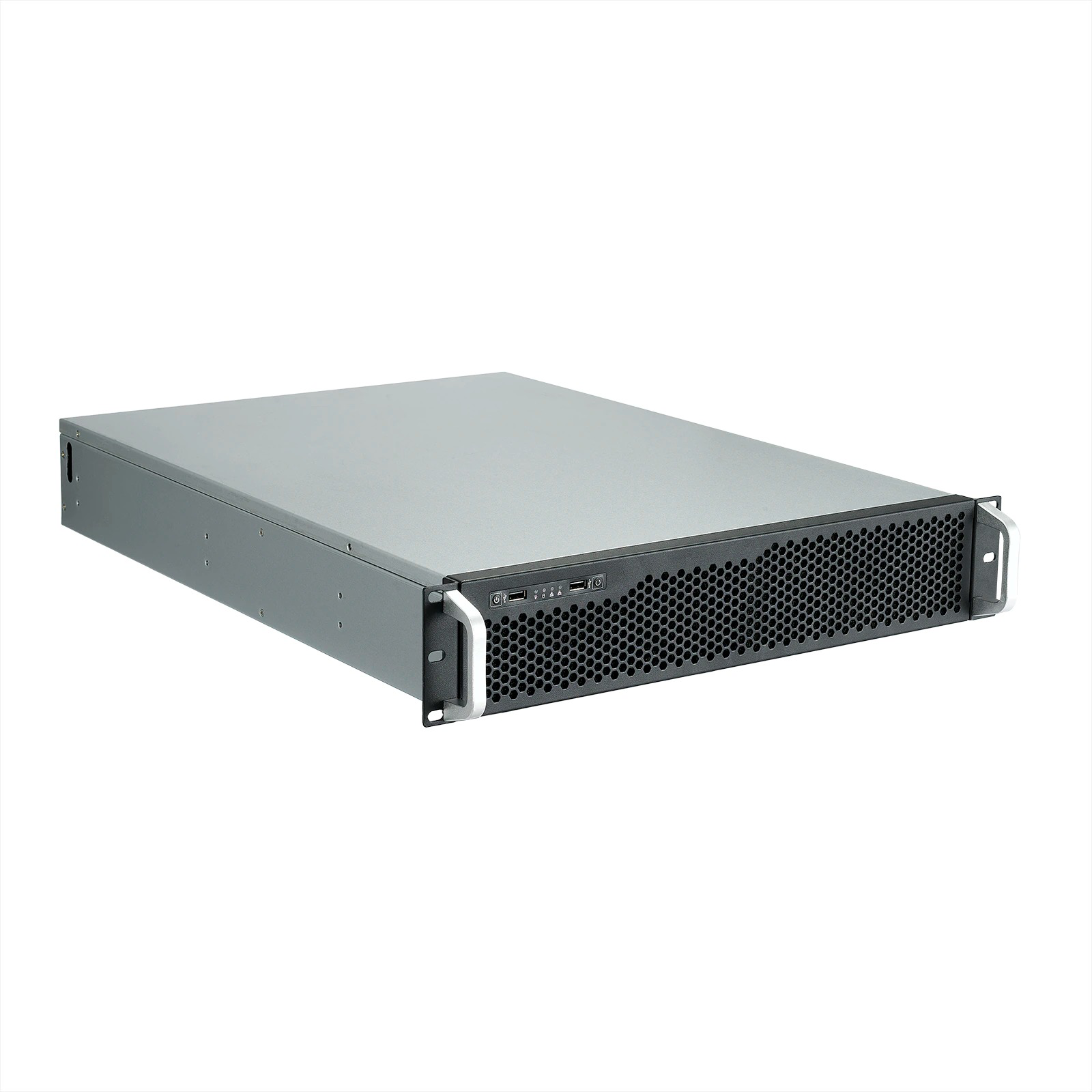

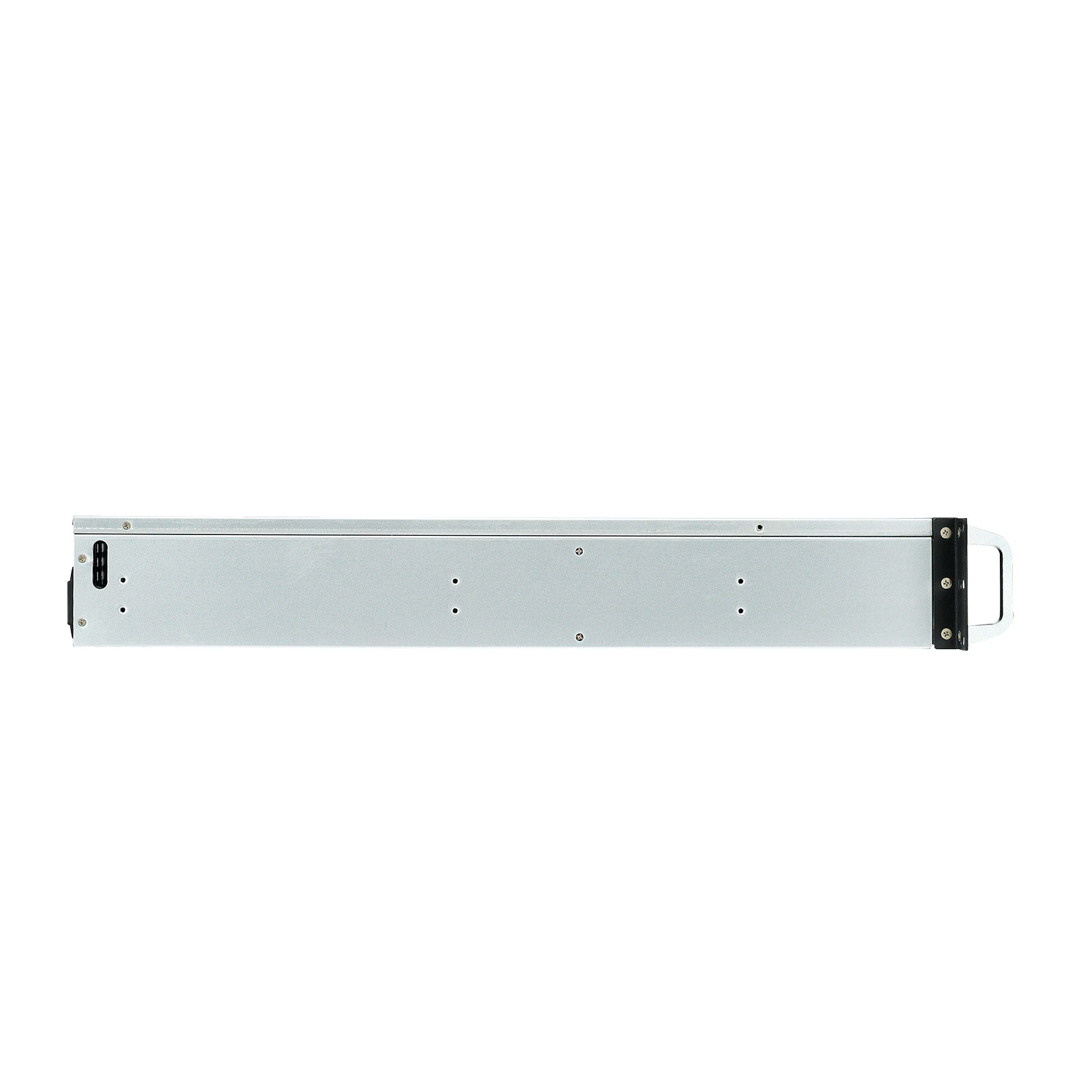

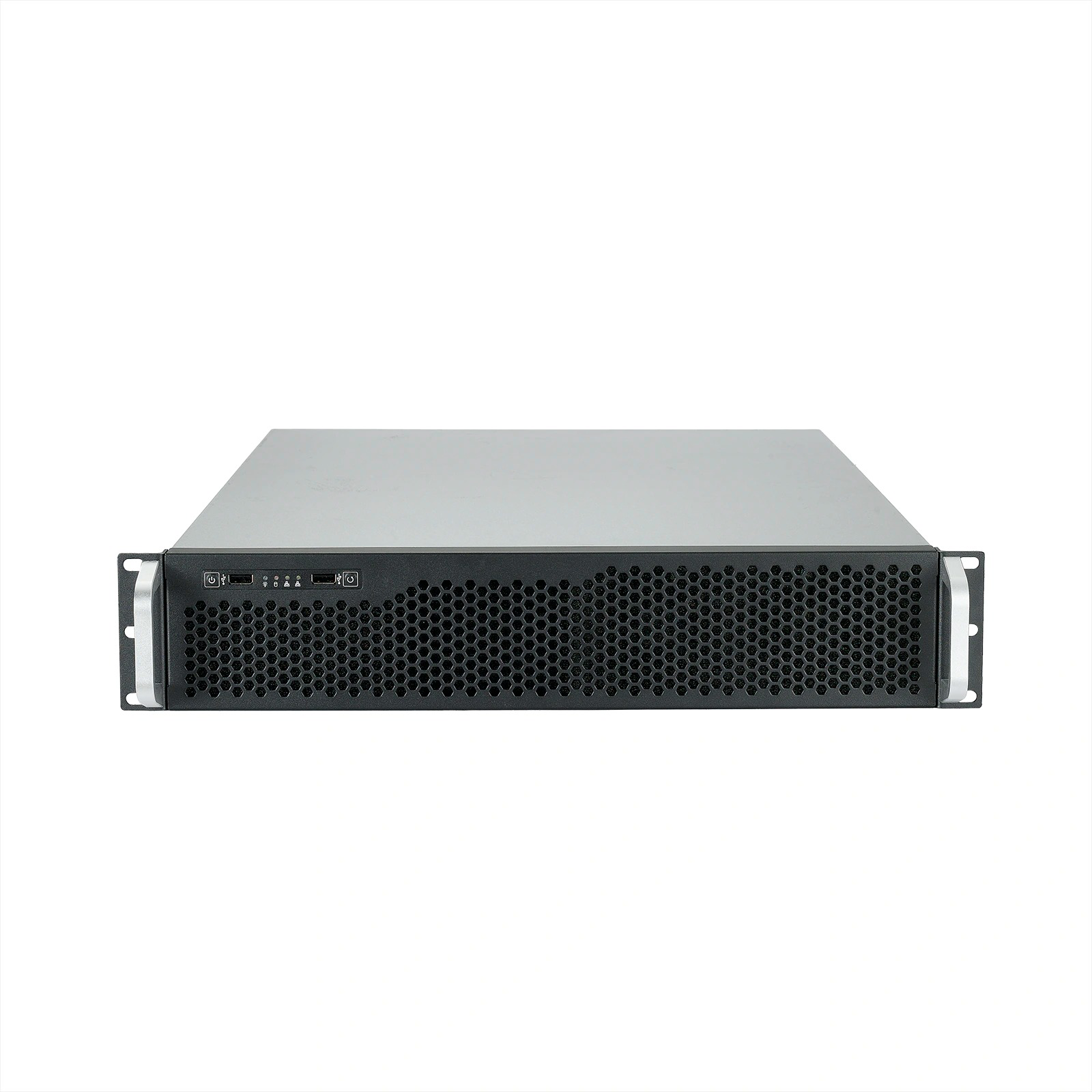

2U Rackmount Chassis- OC2600-Y
• Support ATX Motherboard
| • Efficient cooling system, keeping running at optimal temperatures
| • An ideal solution for applications that require reliable performance and efficient cooling
| • compact 2U form factor makes it an excellent space-saving option while still providing ample storage and expansion capabilities
| > Power Supply not include
Description
Package Information
Inquiry
| Model: | OC2600-Y (Barebone System) |

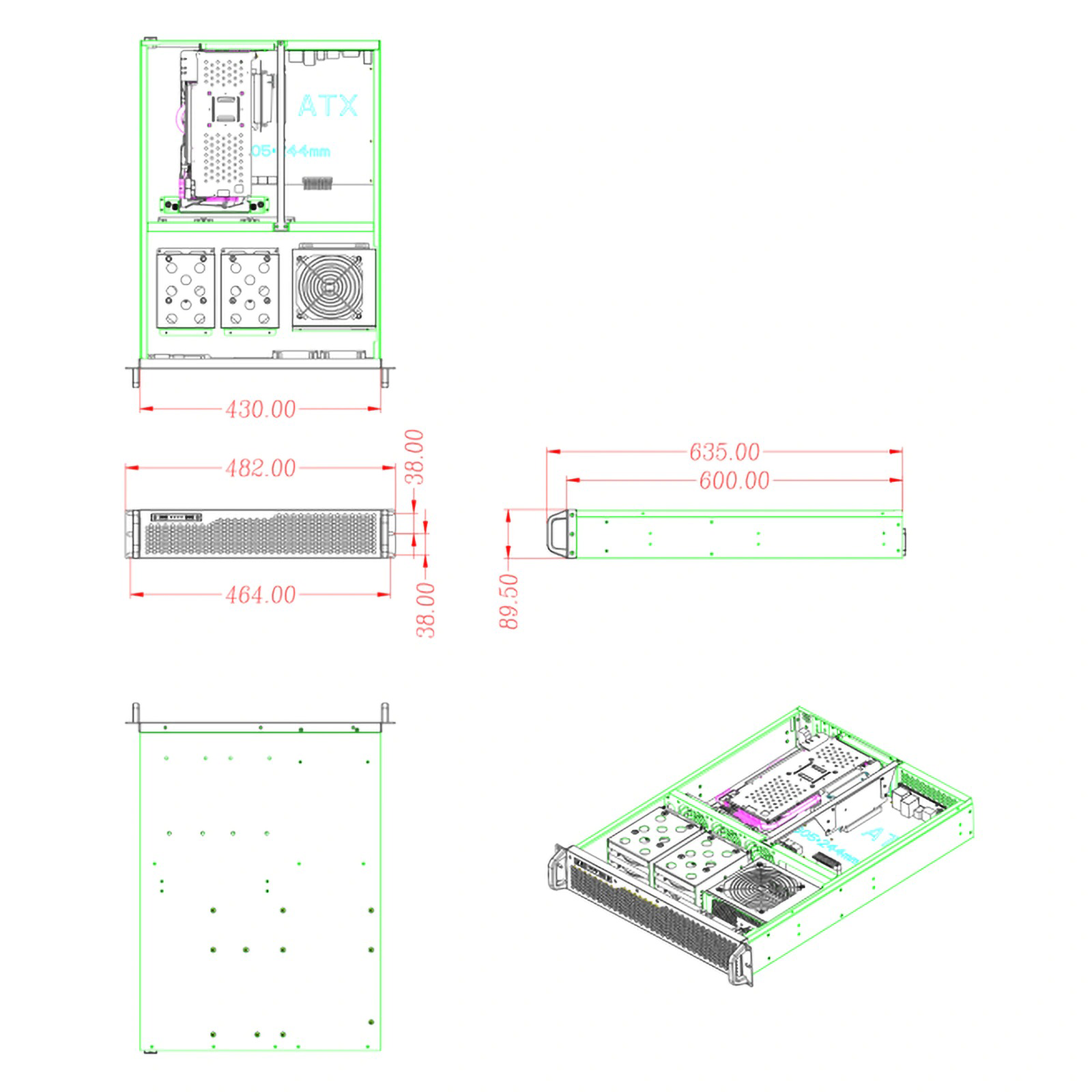

| 2U Rackmount Chassis: | D600 × W430 × H89.5 mm |
| Material: | 1.0 mm galvanized steel plate |
| Cabinet: | Natural color of galvanized sheet surface peritoneum |
| Front Panel: | Panel 1.0 honeycomb hole, black powder spraying |
| MB Compatibility: | Support ATX (maximum size within 305* 244 mm) |
| Fan Configuration: | Standard 5* 8025 fan (2500 RPM with oil) |
| PSU Form Factor: | ATX power supply |
| HDD Bay: | Support 6* 3.5 hard disk and 2* 2.5 hard disk |
| Expansion Space: | 6* PCI expansion bit (requires expansion board support) |
| Case Handle: | Optional |
| USB Port: | Switch key/USB2.0 interface *2 |
| System Control: | Power SW *1, Reset *1, Power LED *1, HDD LED *1 |
| Application: | Data centers, enterprise-level computing, etc |
| Operaing Temperature: | 10°C-35°C (without direct light) ; extended operating temperature: 5°C-40°C (restrictive configuration satisfied); storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
