2U Rackmount Chassis- OC2550-Y
• A highly functional and efficient solution for server systems
| • Efficient cooling system
| • Support flexible customization options
| > Power Supply not include
Description
Package Information
Inquiry
| Model: | OC2550-Y (Barebone System) |
| 2U Rackmount Chassis: | D550 × W430 × H89 mm |
| Material: | 1.0 mm galvanized steel plate |
| Cabinet: | Natural color of galvanized sheet surface peritoneum |
| Front Panel: | Panel 1.0 honeycomb hole, black powder spraying |
| MB Compatibility: | Support ATX (maximum size within 305* 244 mm) |

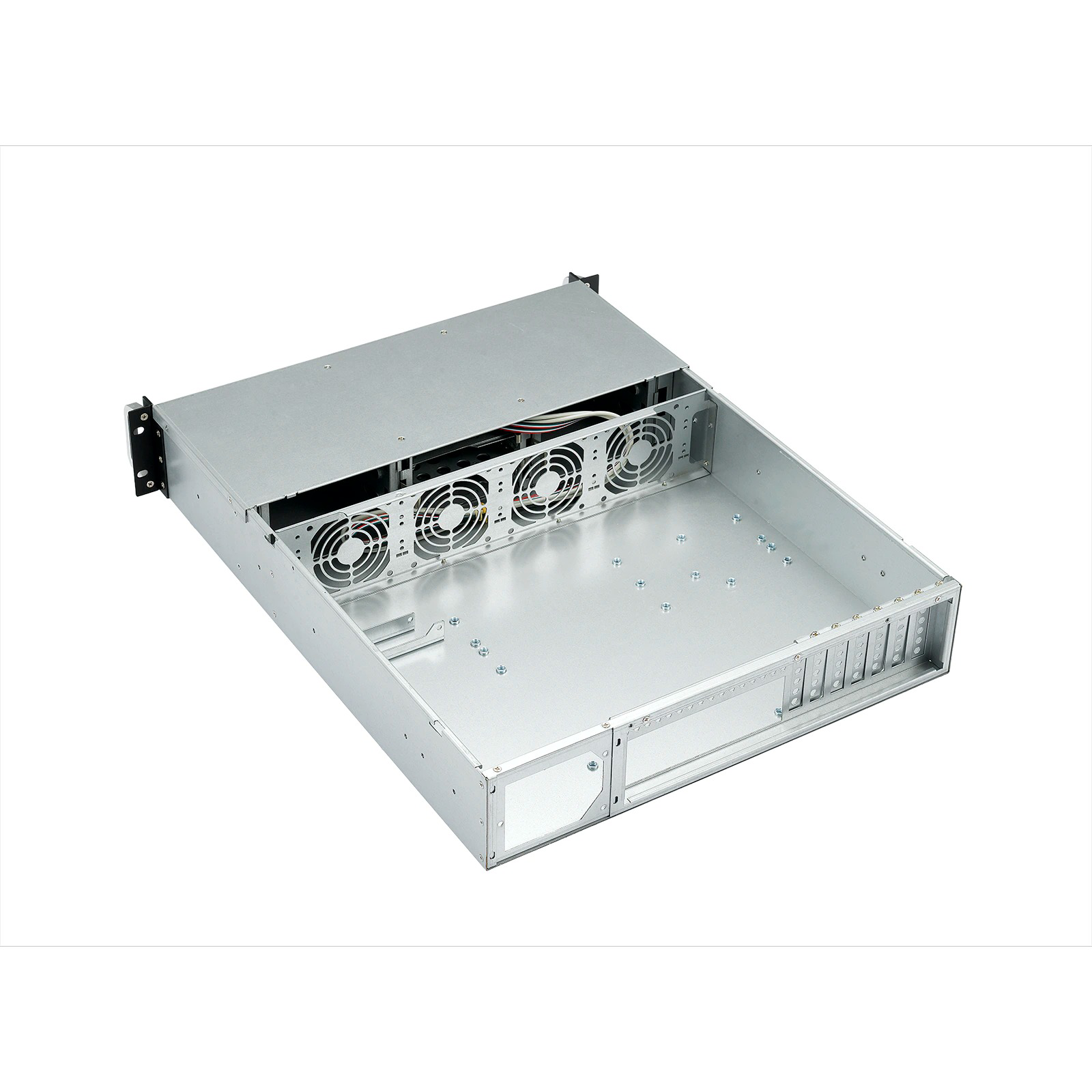

| Fan Configuration: | Standard 5* 8025 fan (2500 RPM with oil) |
| PSU Form Factor: | ATX power supply |
| HDD Bay: | Support 8* 3.5 hard disk and 1* 2.5 hard disk |
| Expansion Space: | 7* Half-Height PCI expansion bit |
| Case Handle: | Aluminum handle |
| USB Port: | Switch key/USB2.0 interface *2 |
| System Control: | Power SW *1, Reset *1, Power LED *1, HDD LED *1 |
| Operaing Temperature: | 10°C-35°C (without direct light) ; extended operating temperature: 5°C-40°C (restrictive configuration satisfied); storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
