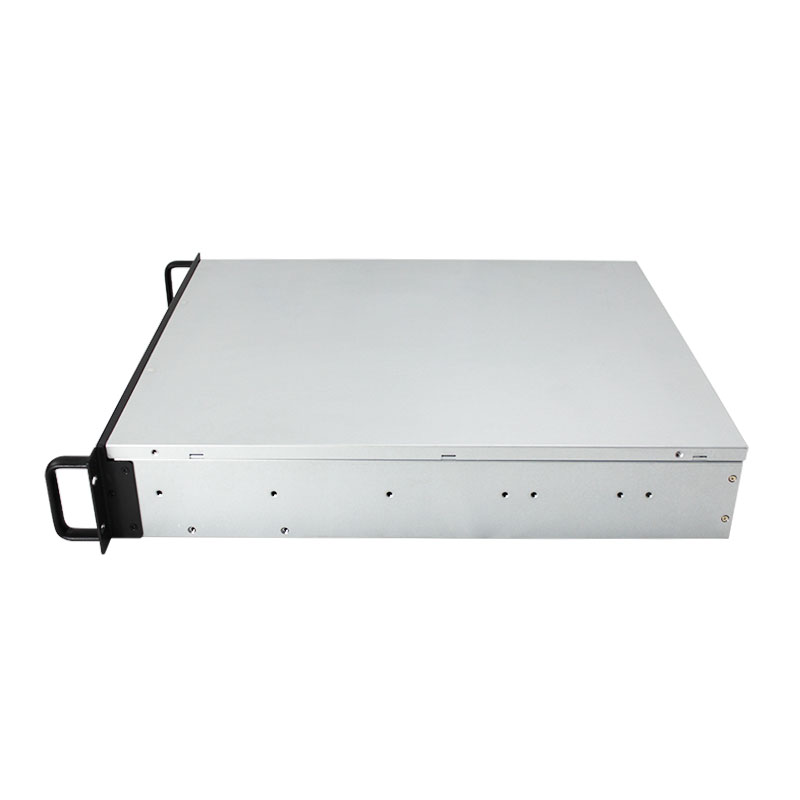

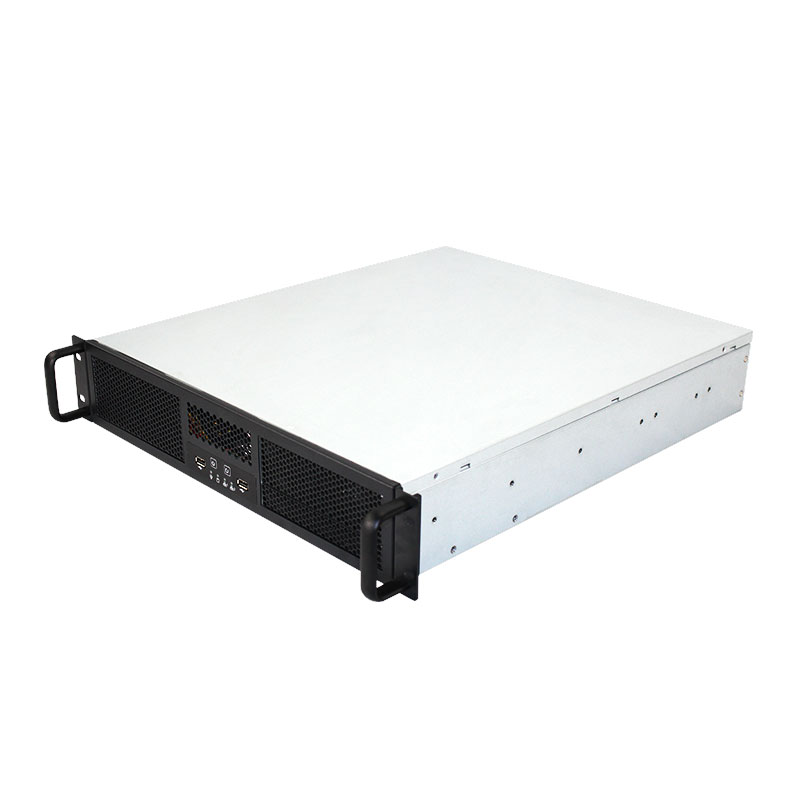

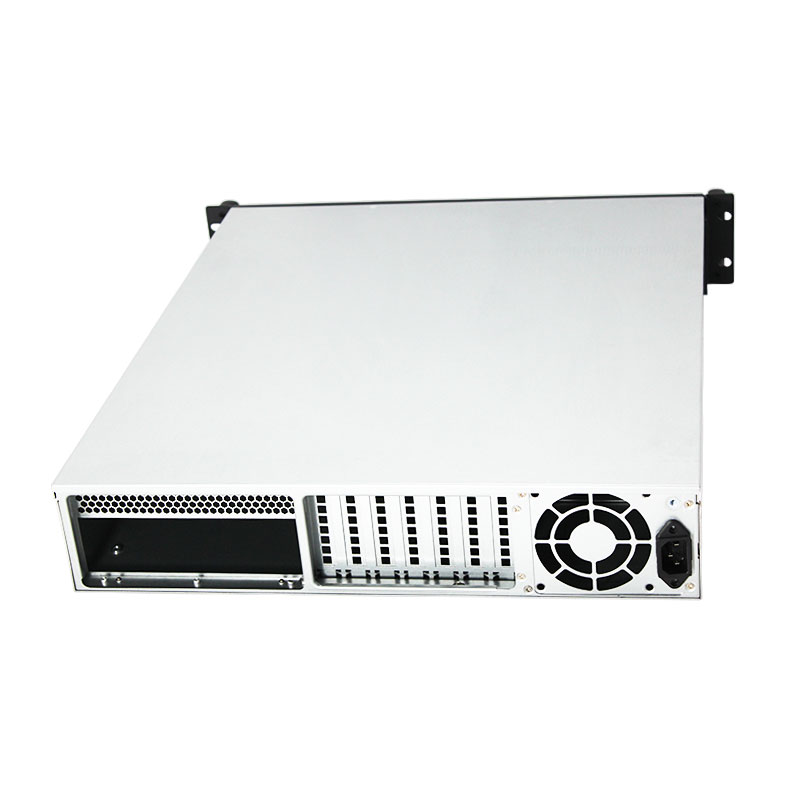

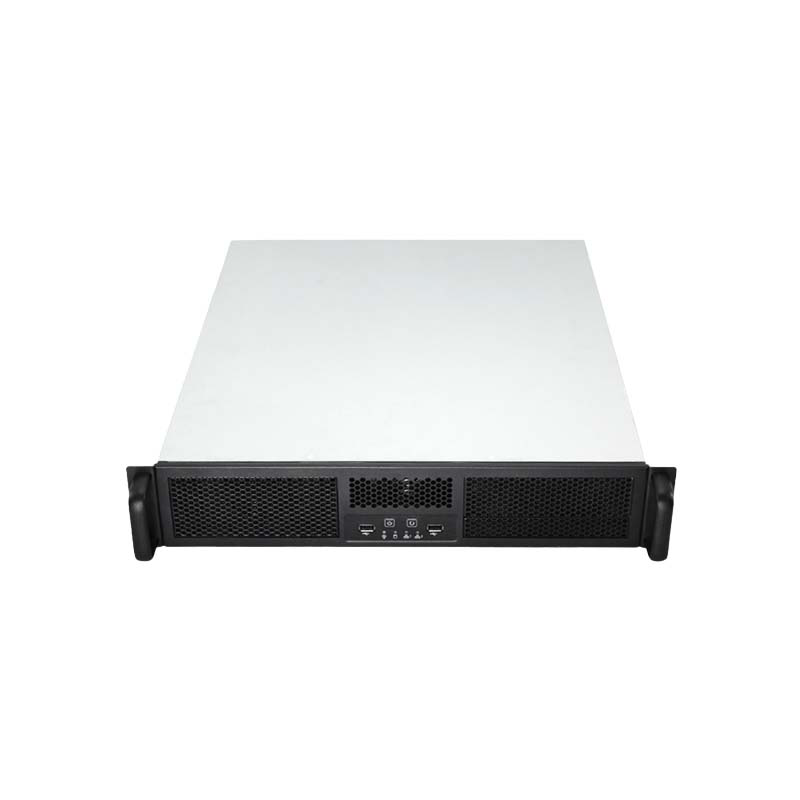

2U Rackmount Chassis- OC2501-GD
• Support flexible customization options
| > Power Supply not include
Description
Package Information
Inquiry
| Model: | OC2501-GD (Barebone System) |
| 2U Rackmount Chassis: | D509 × W430 × H88 mm, without handle height |
| Material: | 1.0-1.2 mm thick high-strength SGCC |
| Cabinet: | The front panel is roasted with black powder, and the chassis body is not painted |
| MB Compatibility: | Support 12″ x 10.5″ and Smaller size |
| PSU Form Factor: | Support 2U standard power supply |
| Configuration: | A: 5.25″ODD *1 | 3.5″HDD *4 | 2.5″HDD *4 | 60*60*25 mm fan *2 | 80*80*25 mm fan *1 |
| B: 5.25″ODD *2 | 3.5″HDD *2 | 2.5″HDD *4 | 60*60*25 mm fan *1 | |
| C: 3.5″HDD *6 | 2.5″HDD *4 | 60*60*25 mm fan *3 | |
| D: 5.25″ODD *1 | 3.5″HDD *4 | 2.5″HDD *4 | 60*60*25 mm fan *2 | |
| E: 3.5″HDD *6 | 2.5″HDD *4 | 60*60*25 mm fan *3 | 80*80*25 mm fan *1 | |
| Expansion Space: | Support 7* half-height PCI-E plug-in card |
| USB Port: | USB2.0 *2 |
| System Control: | Power SW *1, Reset *1; Power LED *1, HDD LED *1, Network Connnection LED *2 |
| Temperature: | Working temperature: 0℃-40℃; Storage temperature: -10℃-70℃ |
| Optional Accessories: | 1. Front USB 2.0 *1 + 3.0 *1 2. Front USB 3.0 *2 3. 8025 fan, 2900 rpm, 4PIN, double rollers 4. 6025 fan, 3600 rpm, 4PIN, double rollers 5. Special slide rails for industrial control |
