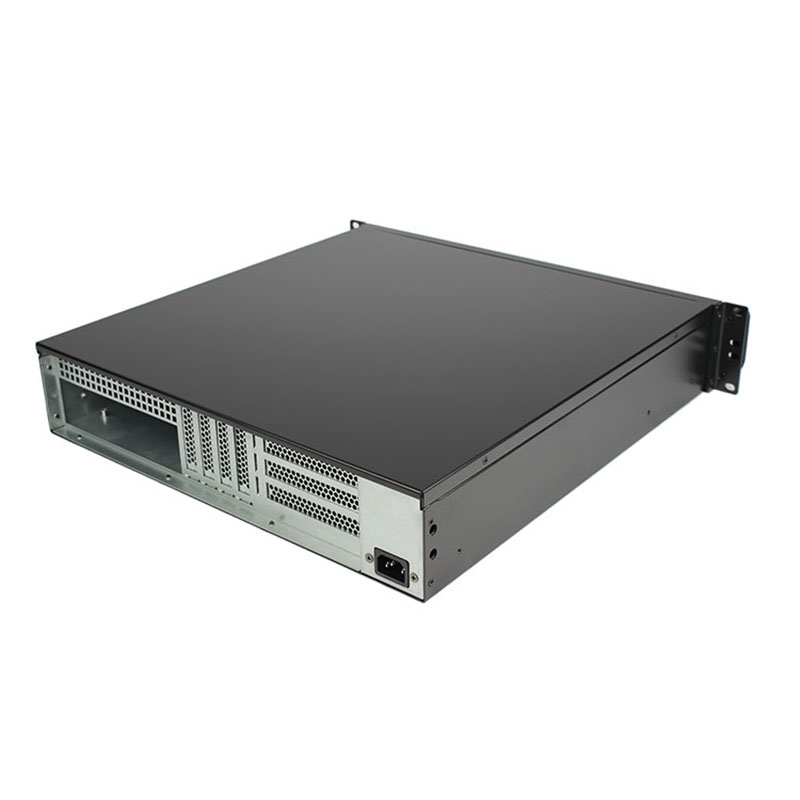

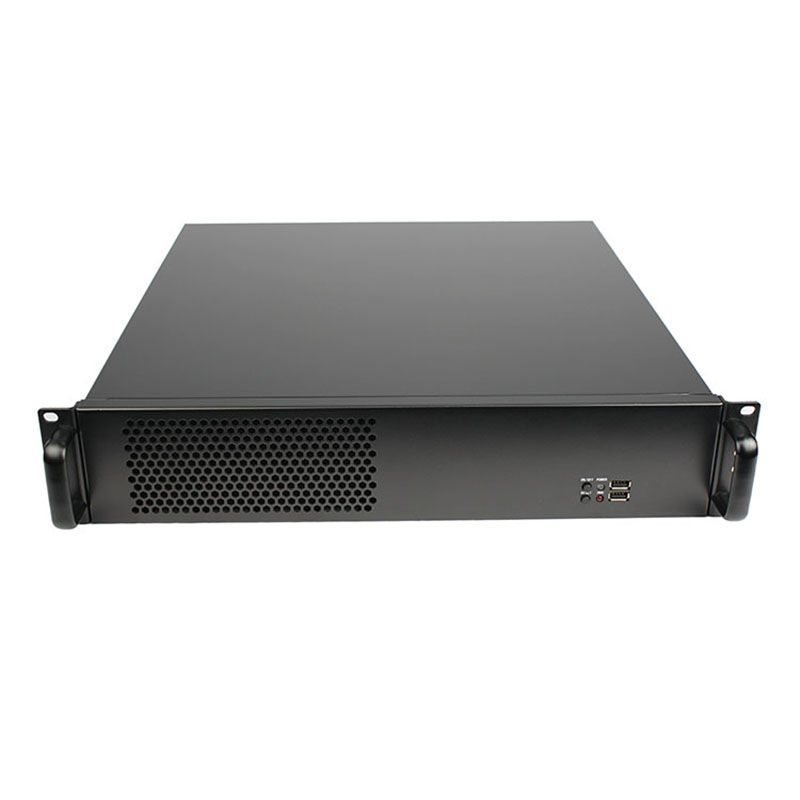

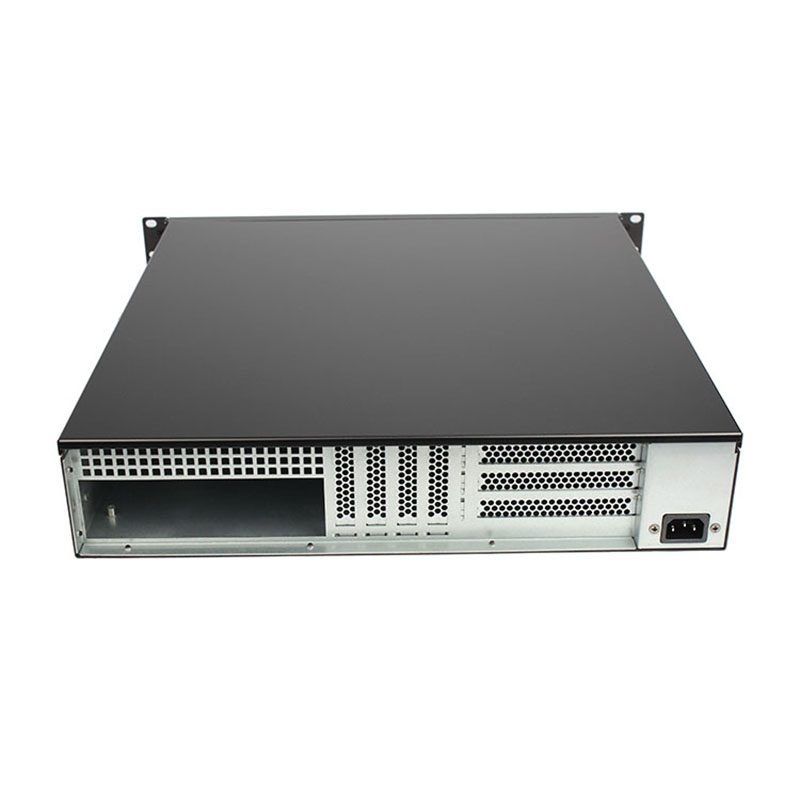

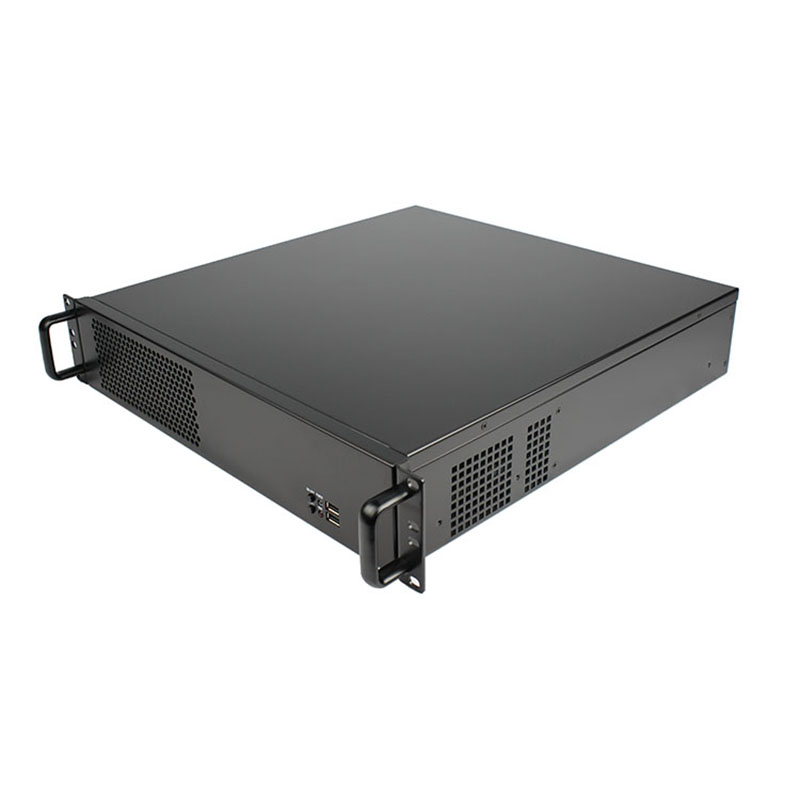

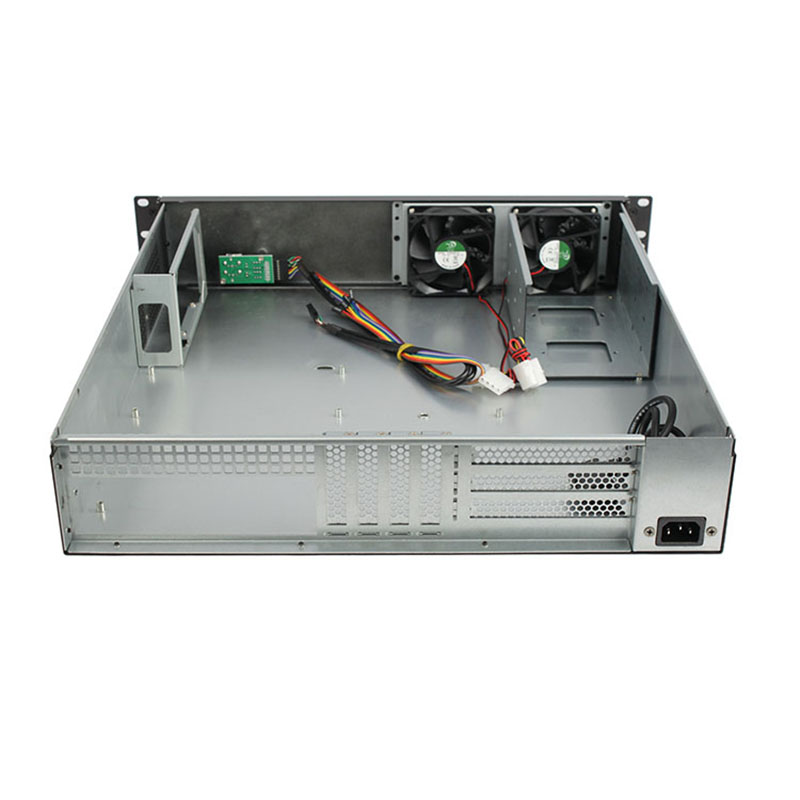

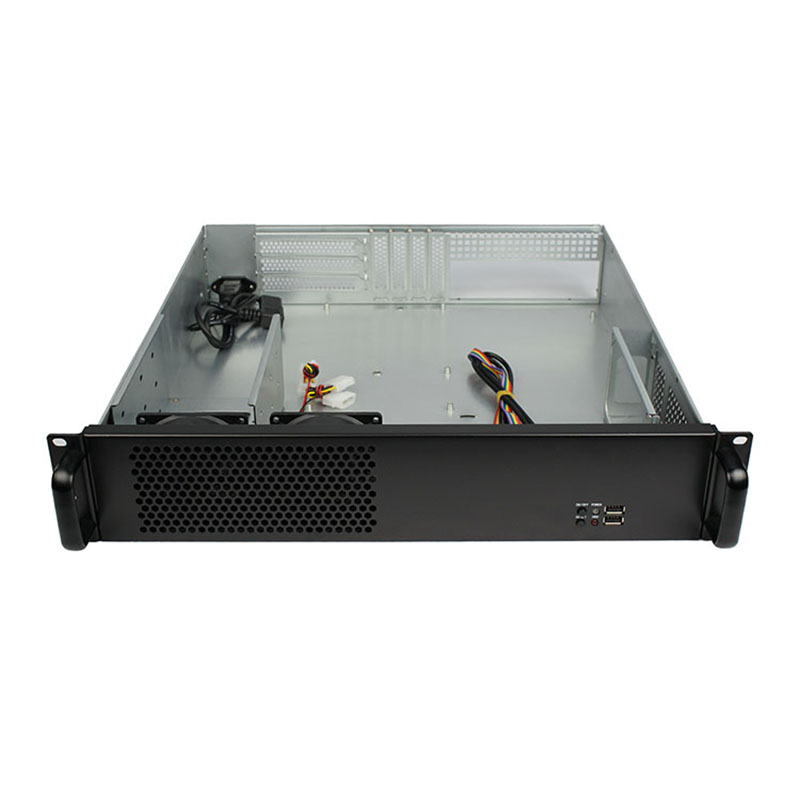

2U Rackmount Chassis- OC245F-M
• Compatible with the ATX form factor
| • 2 front pre-installed cooling fans inside to provide excellent airflow and thermal protection system
| • Widely used in the fields of automation, equipment manufacturing, power monitoring, communication, security, and defense
| > Power Supply not include
Description
Package Information
Inquiry
| Model: | OC245F-M (Barebone System) |
| 2U Rackmount Chassis: | D450 × W482 × H89 mm |
| Material: | 1.2 mm SGCC |
| MB Compatibility: | 12″ x 9.6″(305*245 mm) |
| Fan Configuration: | 2* 8025 Fan |
| PSU Form Factor: | ATX Power Supply |
| HDD Bay: | 8* 3.5-inch Hard Disk |
| CD-ROM: | None |
| Expansion Slot: | 4* Half-Height PCIE Slot and 3* Full-Height PCIE Slot |
| Front Panel Control: | 2* USB2.0; 1* Power Switch, 1* Restart Switch; 1* Power Indicator, 1* HD Indicator |
| Net Weight: | 9 kg |
| Gross Weight: | 11 kg |
| Packaging Size: | 61 * 56.5 * 19 cm (0.065 CBM) |
| Container Loading Qty: | 20GP: 430; 40GP: 890; 40HC(HQ): 1,046 |
| Operaing Temperature: | 10°C-35°C (without direct light); extended operating temperature: 5°C-40°C (restrictive configuration satisfied); storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
| Net Weight: | 9 kg |
| Gross Weight: | 11 kg |
| Packaging Size: | 61 * 56.5 * 19 cm (0.065 CBM) |
| Container Loading Qty: | 20GP: 430; 40GP: 890; 40HC(HQ): 1,046 |
