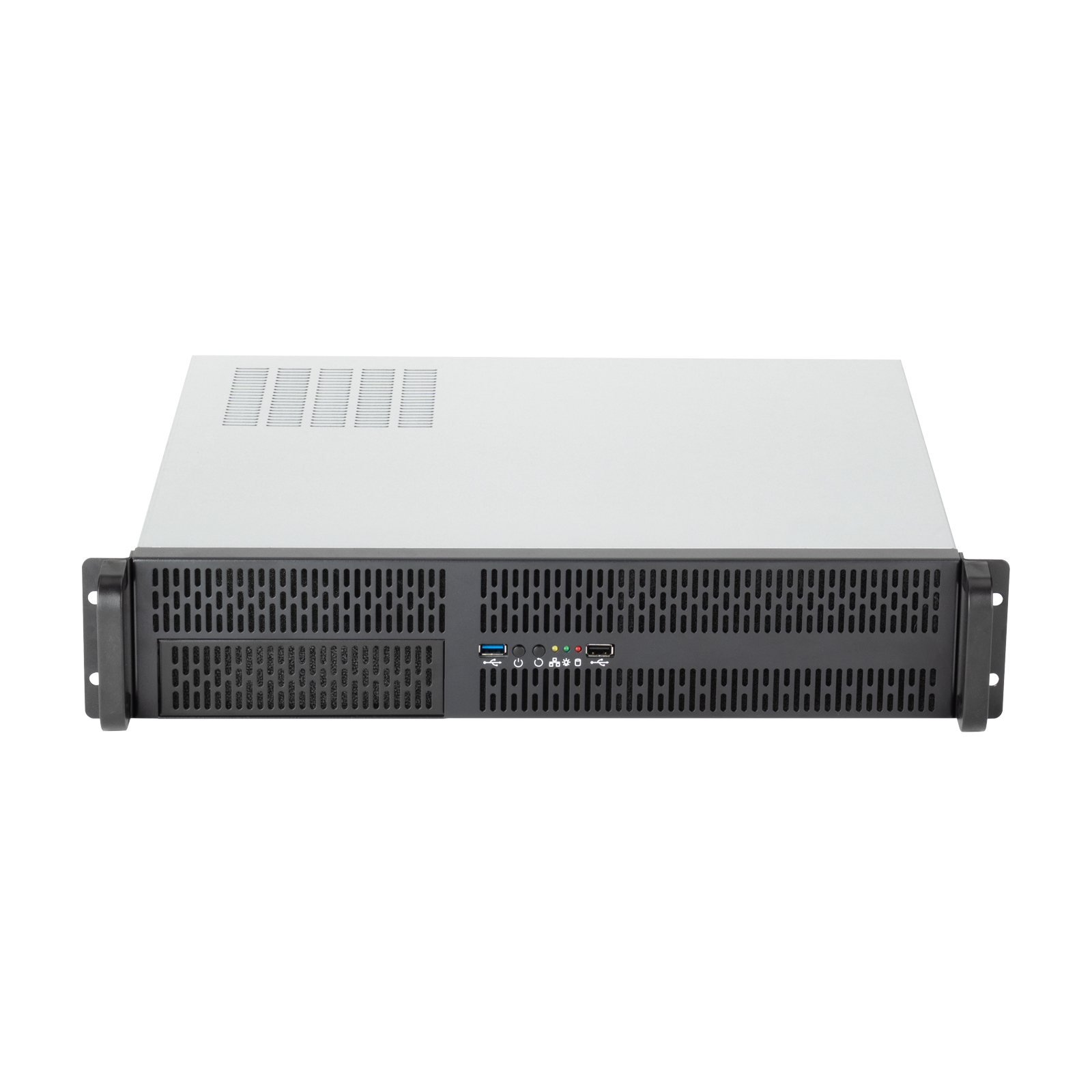

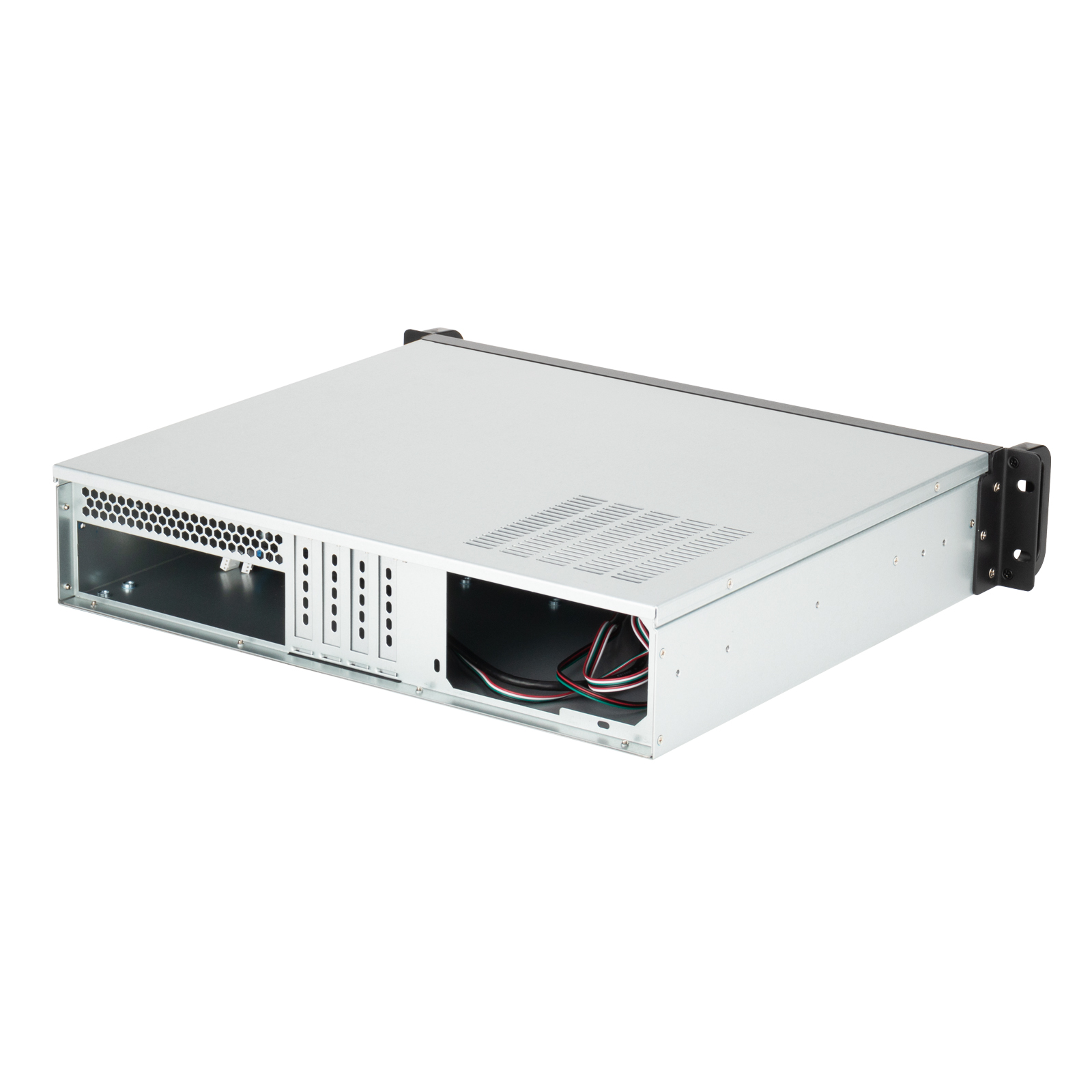

2U Rackmount Chassis- OC380B-Y

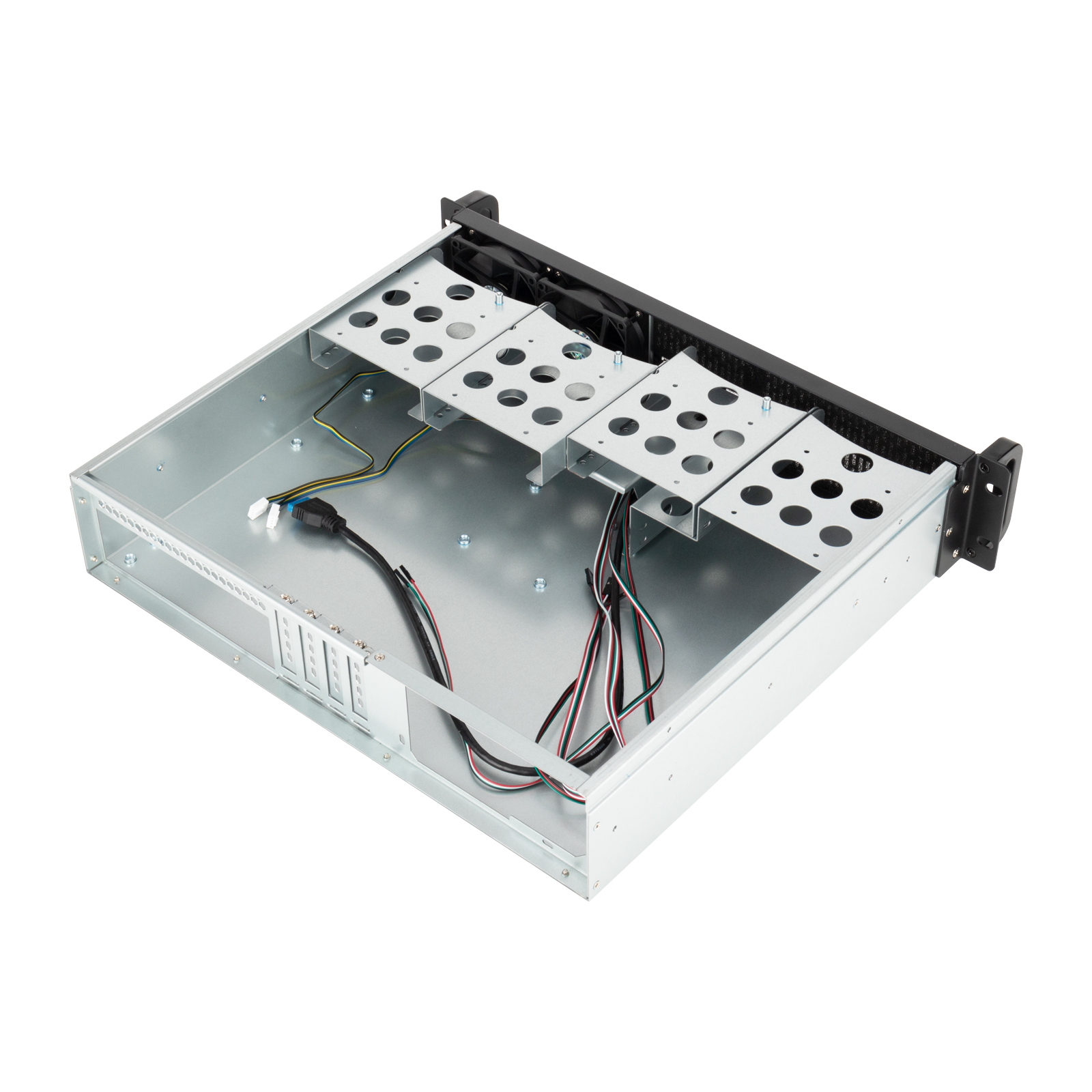

• Spacious interior provides sufficient room to accommodate your powerful hardware
| • 4 internal 3.5″ HDD bays plus room for 1 additional 5.25″ device
| • 4 PCI expansion slots and Micro-ATX compatibility gives expansion options
| • Front panel LED indicators of power, HDD, and LAN status monitoring for easy visual assessment
| • Support ATX Motherboard
| > Power Supply not include
Description
Package Information
Inquiry
| Model: | OC380B-Y (Barebone System) |
| 2U 19" Rackmount Chassis: | D380 × W430 × H89 mm |
| Material: | 1.0 mm SGCC |
| Color: | Black |
| MB Compatibility: | Support motherboard size up to 12″ x 9.6″ |
| PSU Form Factor: | ATX power supply |
| Fan Configuration: | 2* 8025 fan |
| Drive Bay: | Support 4* 3.5″ HDD bay, 1* 5.25″ CD-ROM Drive bay |
| Expansion Space: | 4* Half-Height PCI/PCI-E expansion slot |
| USB Port: | USB3.0 *1, USB2.0 *1 |
| Application: | Storage, application servers, security systems, etc |
| Operaing Temperature: | 10°C-35°C (without direct light); Extended operating temperature: 5°C-40°C(restrictive configuration satisfied); Storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
