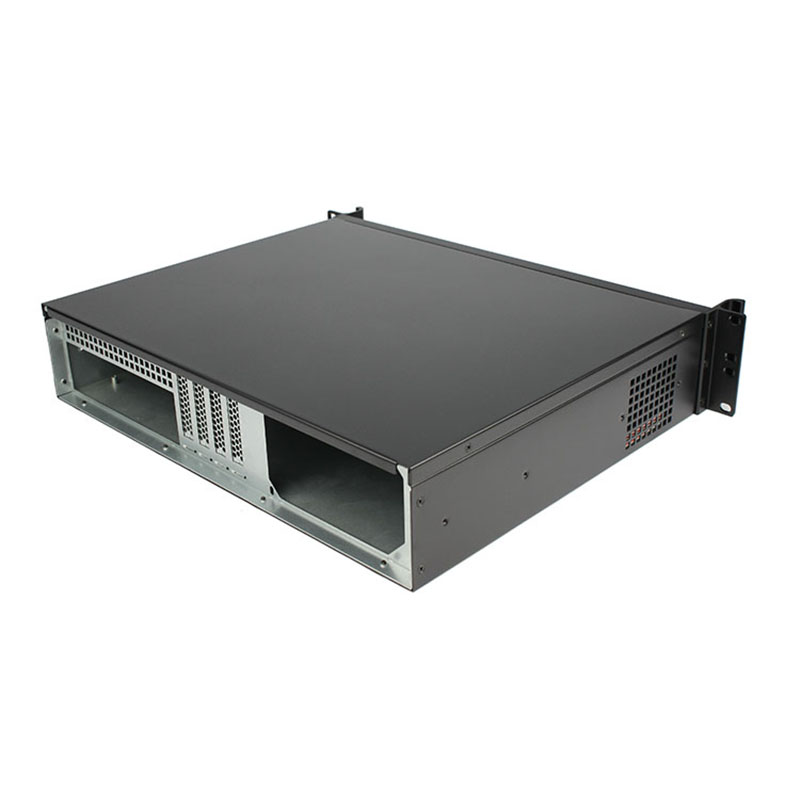

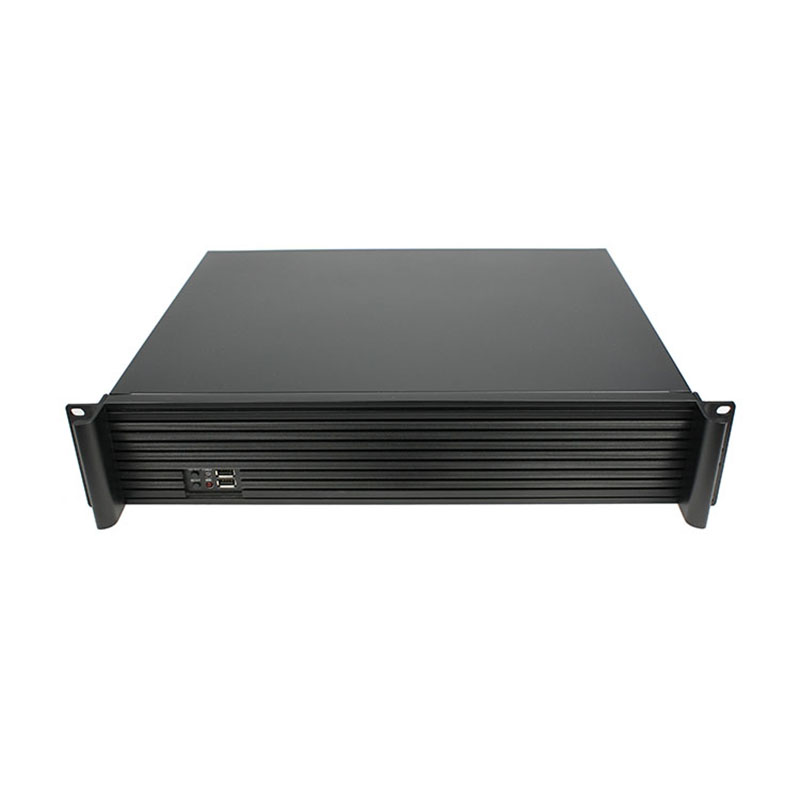

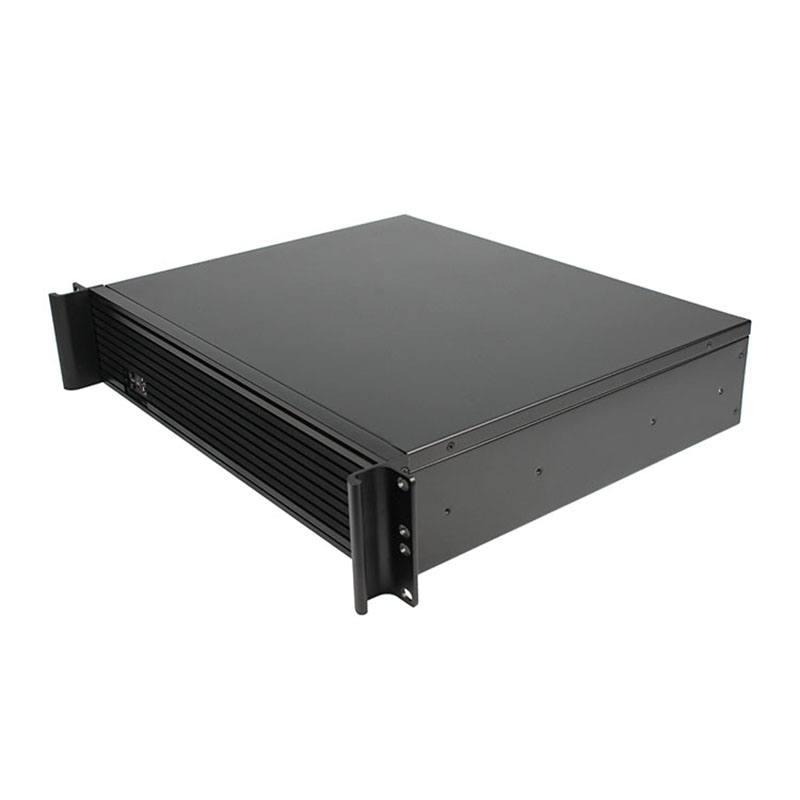

2U Rackmount Chassis- OC235L-M
• Compatible with the Marco-ATX form factor
| • 2 front pre-installed cooling fans inside to provide excellent airflow and thermal protection system
| • Widely used in the fields of automation, equipment manufacturing, power monitoring, communication, security, and defense
| > Power Supply not include
Description
Package Information
Inquiry
| Model: | OC235L-M (Barebone System) |
| 2U Rackmount Chassis: | D350 × W482 × H89 mm |
| Material: | 1.2 mm SGCC; Aluminum panel |
| MB Compatibility: | 9.6″ x 9.6″ (245 x 245 mm) |
| PSU Form Factor: | ATX Power Supply |

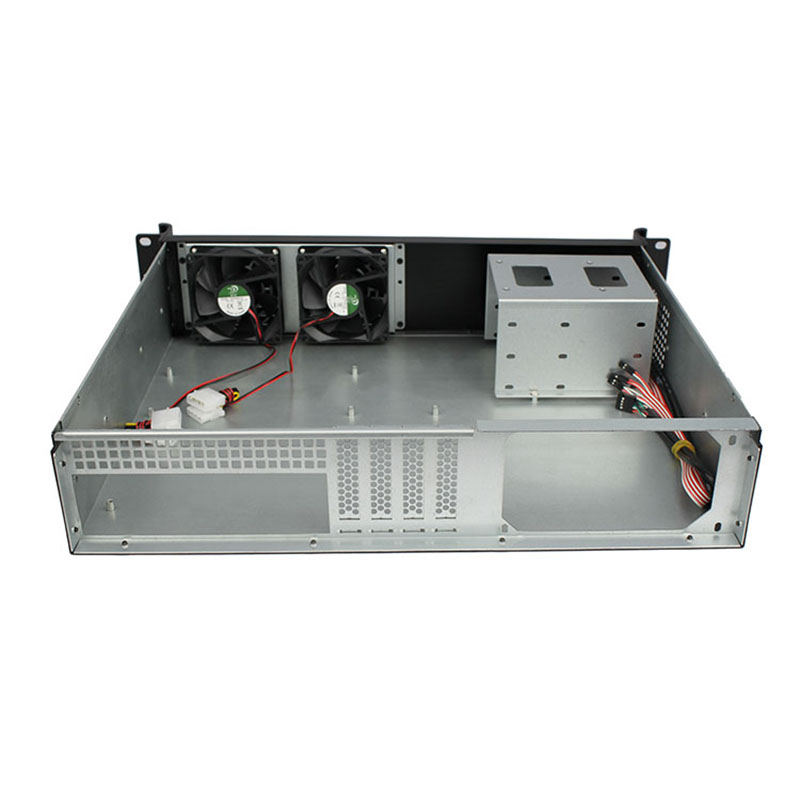

| Fan Configuration: | 2* 8025 Fan |
| HDD Bay: | 3* 3.5-inch Hard Disk, or 2* 2.5-inch & 1* 3.5-inch Hard Disk |
| CD-ROM: | None |
| Expansion Slot: | 4* Half-Height PCIE Slot |

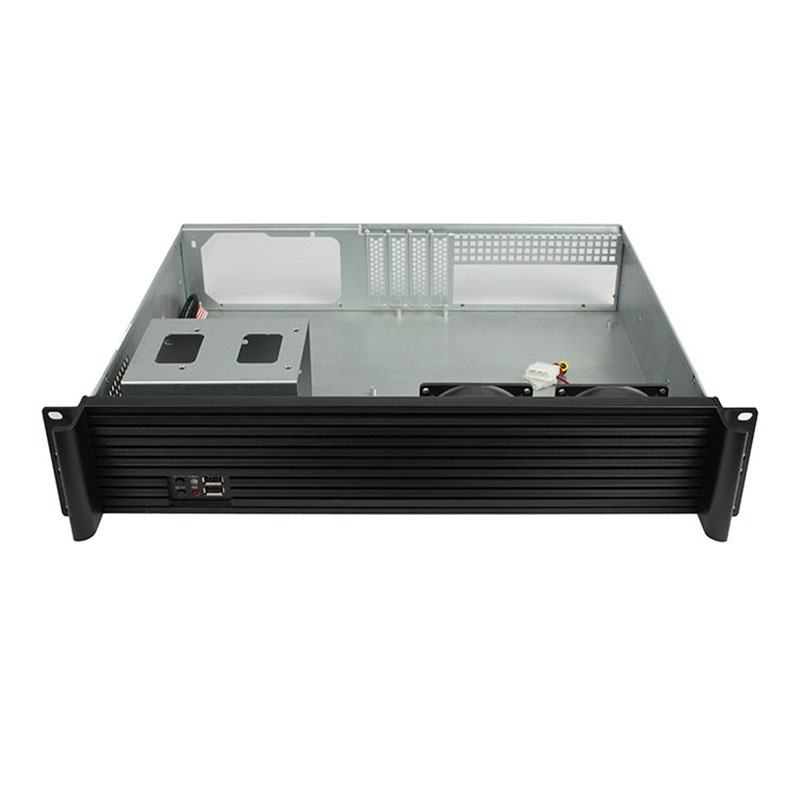

| Front Panel Control: | 2* USB2.0; 1* Power Switch, 1* Reset Switch; 1* Power Indicator, 1* HDD Indicator |
| Net Weight: | 4.3 kg |
| Gross Weight: | 5.8 kg |
| Packaging Size: | 54 * 48 * 17 cm (0.044 CBM) |
| Container Loading Qty: | 20GP: 608; 40GP: 1,260; 40HC(HQ): 1,478 |
| Operaing Temperature: | 10°C-35°C (without direct light); Extended operating temperature: 5°C-40°C (restrictive configuration satisfied); Storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
| Net Weight: | 4.3 kg |
| Gross Weight: | 5.8 kg |
| Packaging Size: | 54 * 48 * 17 cm (0.044 CBM) |
| Container Loading Qty: | 20GP: 608; 40GP: 1,260; 40HC(HQ): 1,478 |
