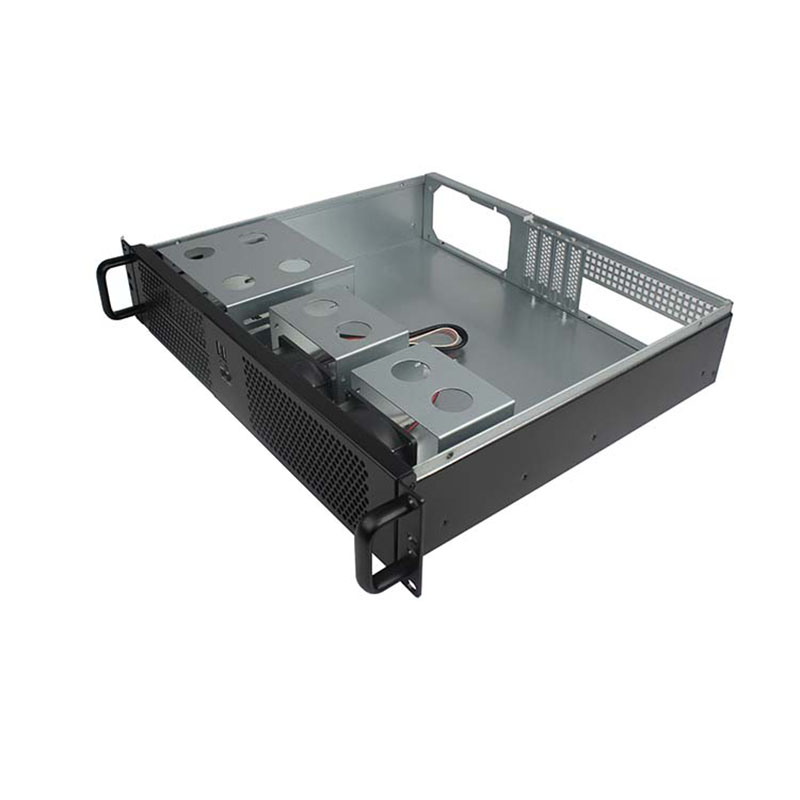

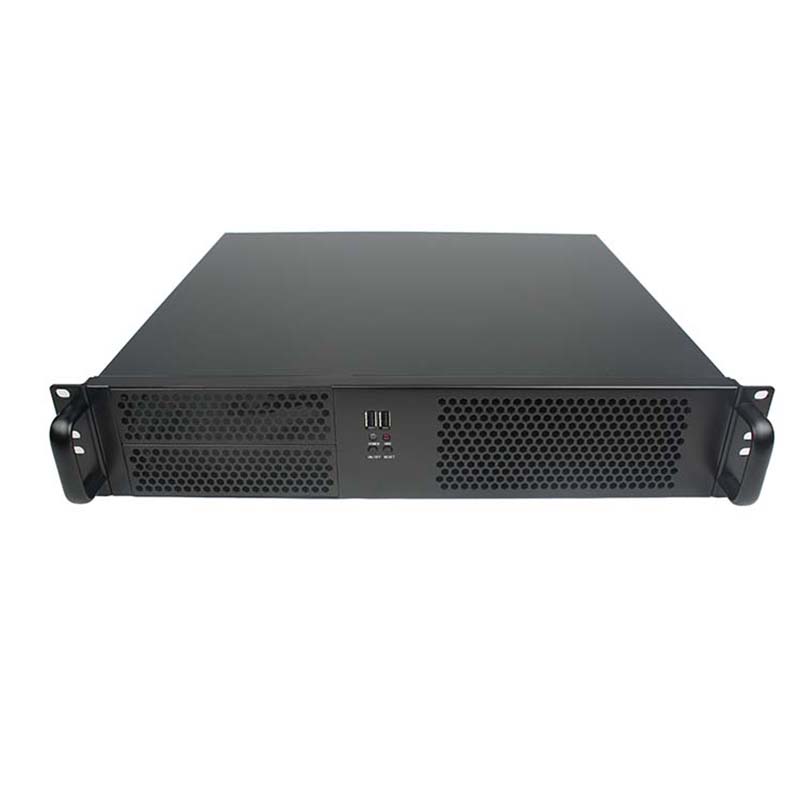

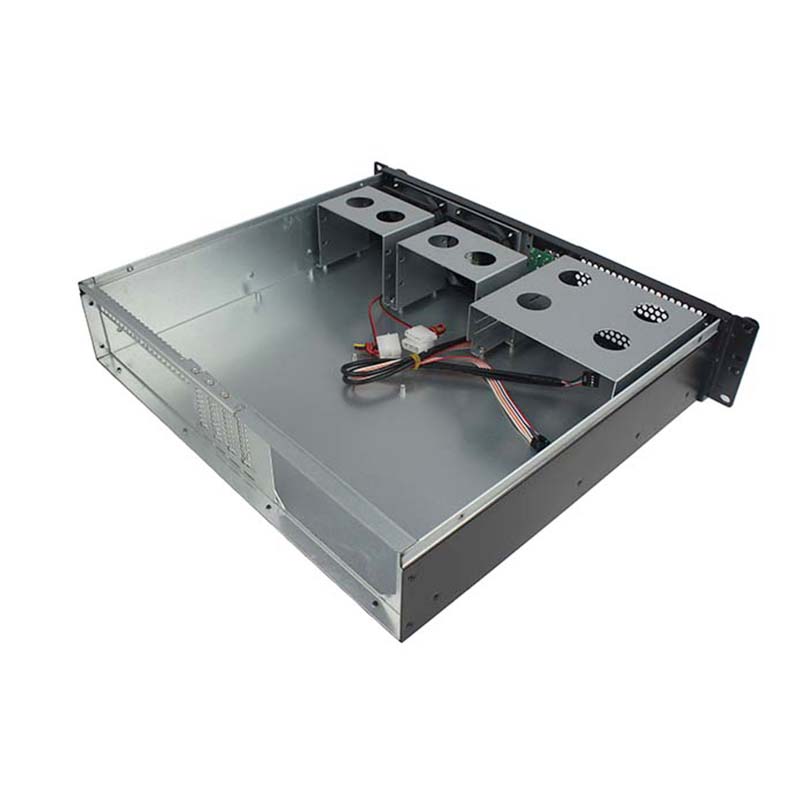

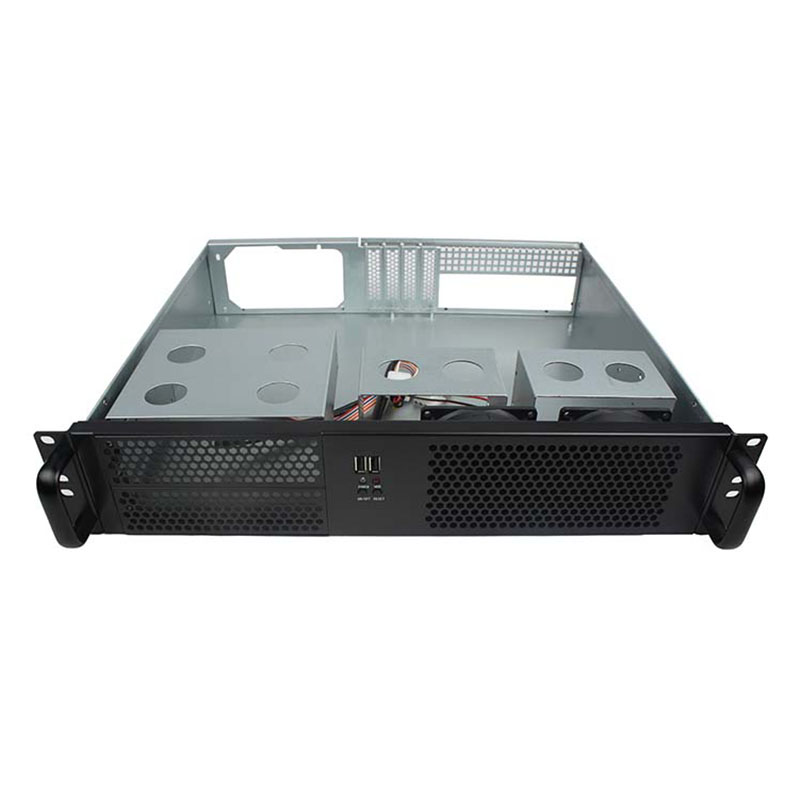

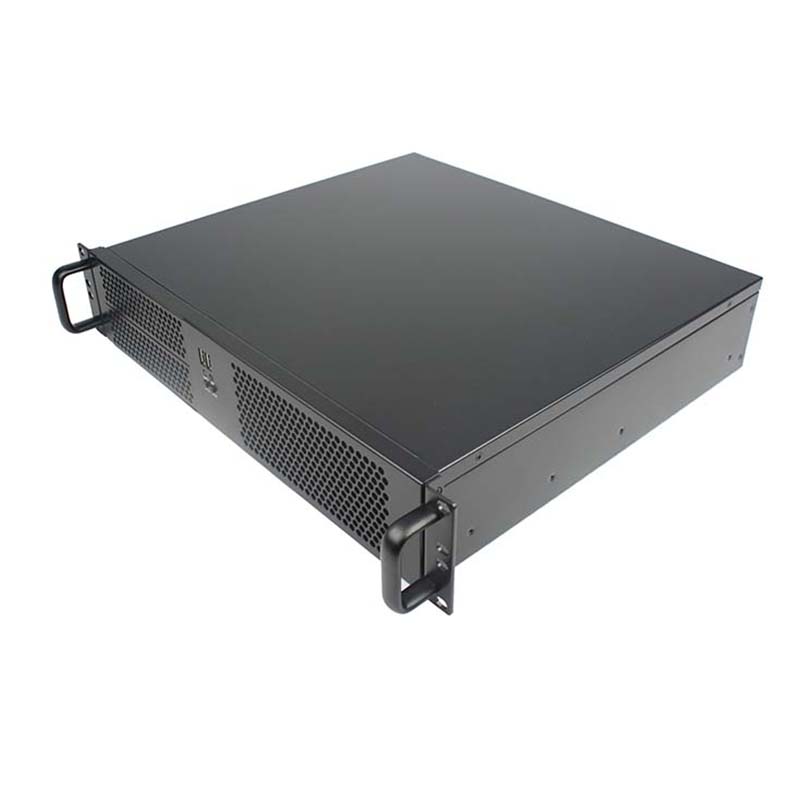

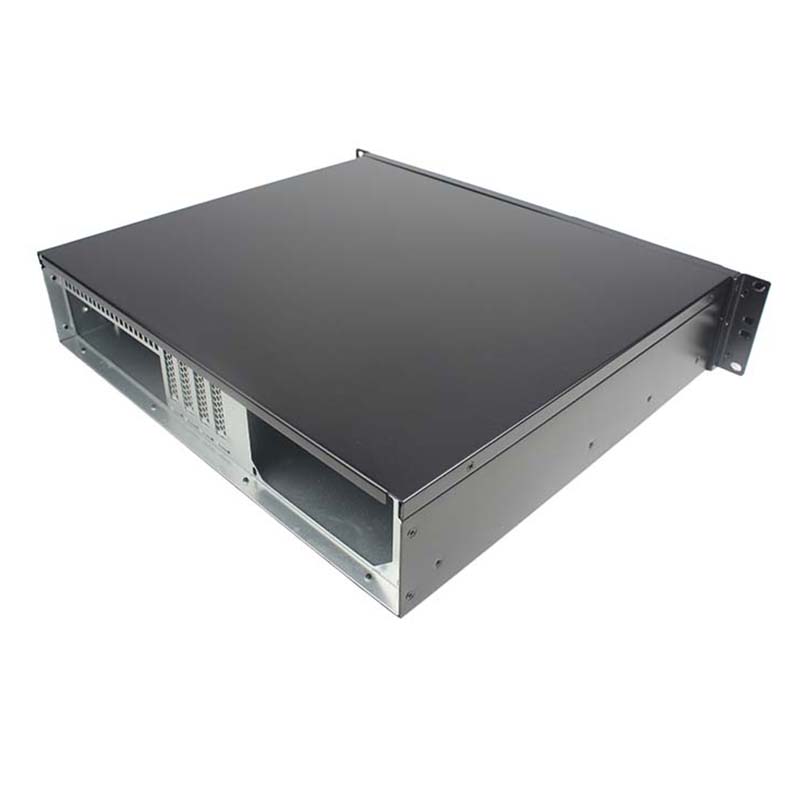

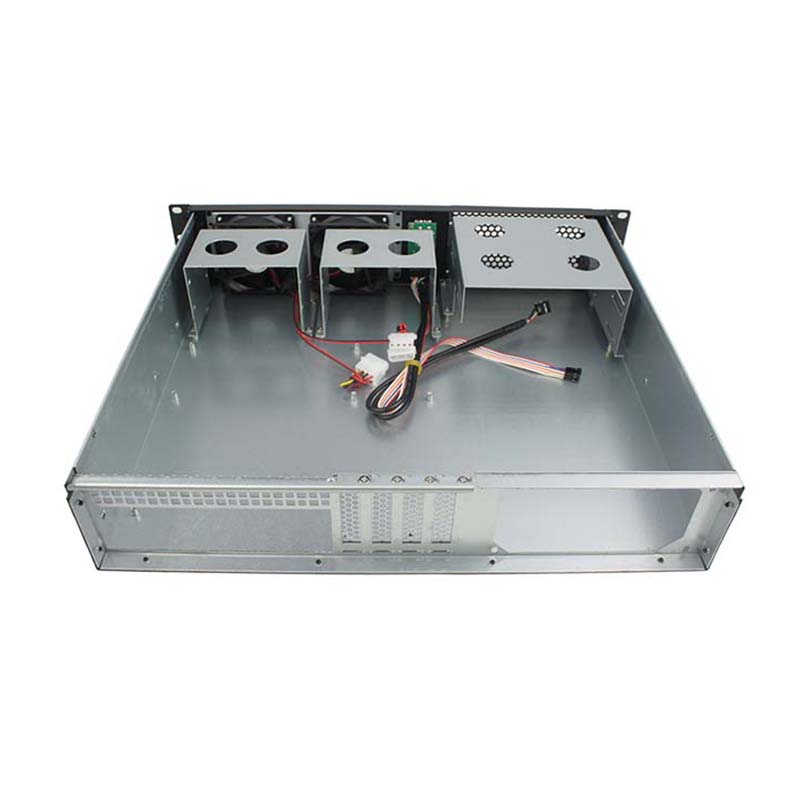

2U Rackmount Chassis- OC239F-M
The OneChassis OC239F-M is a 2U rackmount chassis compatible with the Micro-ATX motherboard form factor.
It includes two pre-installed 80mm cooling fans for superior airflow and thermal management, preventing overheating of drives and components.
This 2U enclosure accommodates up to four 3.5″ hard drives or two 5.25″ optical drives and offers four PCI expansion slots for additional components. It is commonly utilized in sectors like automation, equipment manufacturing, power monitoring, communication, security, and defense.
- Supports Micro-ATX motherboard
- Compatible with ATX power supply
- Constructed from SGCC steel
- Equipped with two front USB 2.0 ports
- Can house four 3.5″ hard drives
- Can accommodate two 5.25″ optical drives
- Features two 80mm cooling fans
- Power supply not included
Description
Package Information
Inquiry
- Supports Micro-ATX motherboard
- Compatible with ATX power supply
- Constructed from SGCC steel
- Equipped with two front USB 2.0 ports
- Can house four 3.5″ hard drives
- Can accommodate two 5.25″ optical drives
- Features two 80mm cooling fans
- Power supply not included
Model | OC239F-M |
Dimensions(mm) | 482(W)* 390(D)* 89 mm(H) |
MotherBoard | 9.6″* 9.6″(245* 245mm) |
Hard Disk | 4* 3.5-inch Hard Disks |
CD-ROM | 2* 5.25-inch CD-ROM Drive |
Power | Ordinary Desk-type ATX Power Supply PS2 |
Fan | 2* 8025 Fan |
Expansion Slot | 4* Half-Height PCIE Slots |
Panel Setting | 2* USB2.0; 1* power switch; 1* Restart Switch; 1* Power Indicator; 1* HD Indicator |
Case Material | SGCC |
Material Thickness | 1.0mm |
Packaging size | 54* 52* 17cm(0.05CBM) |
Gross weight | 6.5KG |
Net Weight | 5KG |
Container loading quantity | 20GP: 560 ; 40GP: 1160 ; 40HC(HQ): 1360 |
