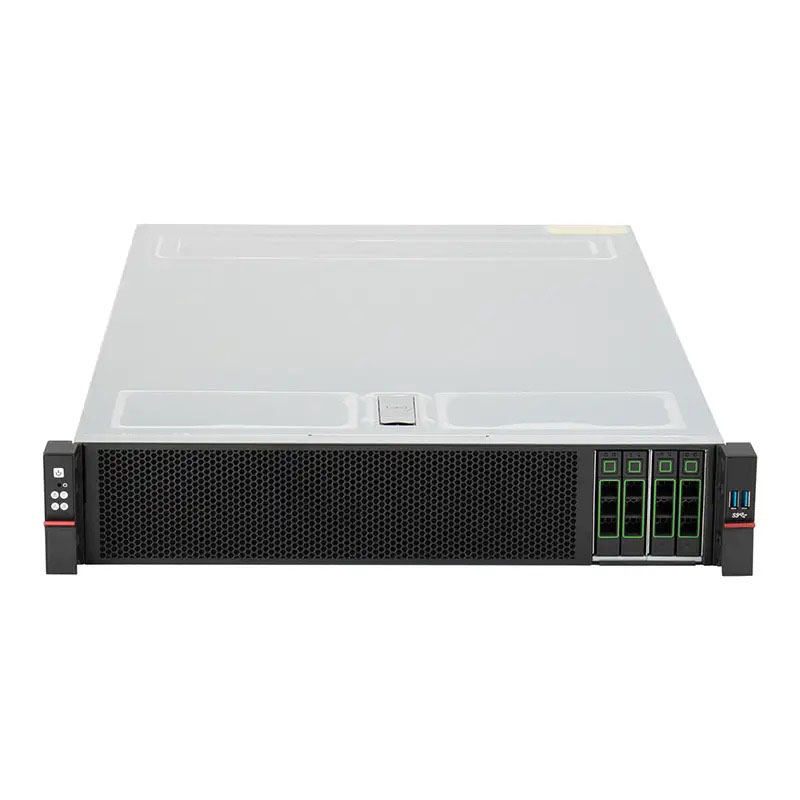

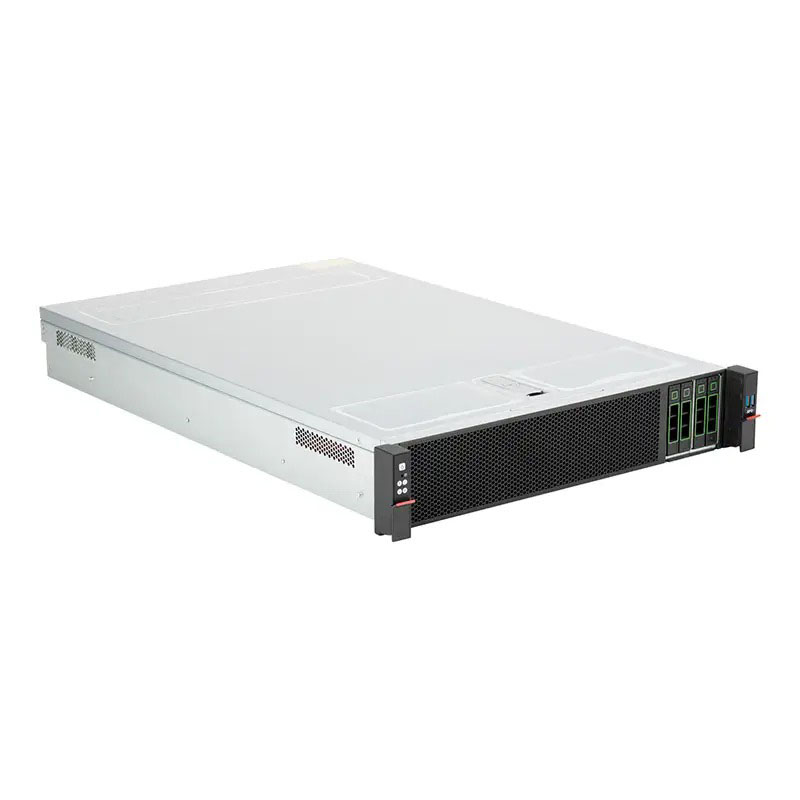

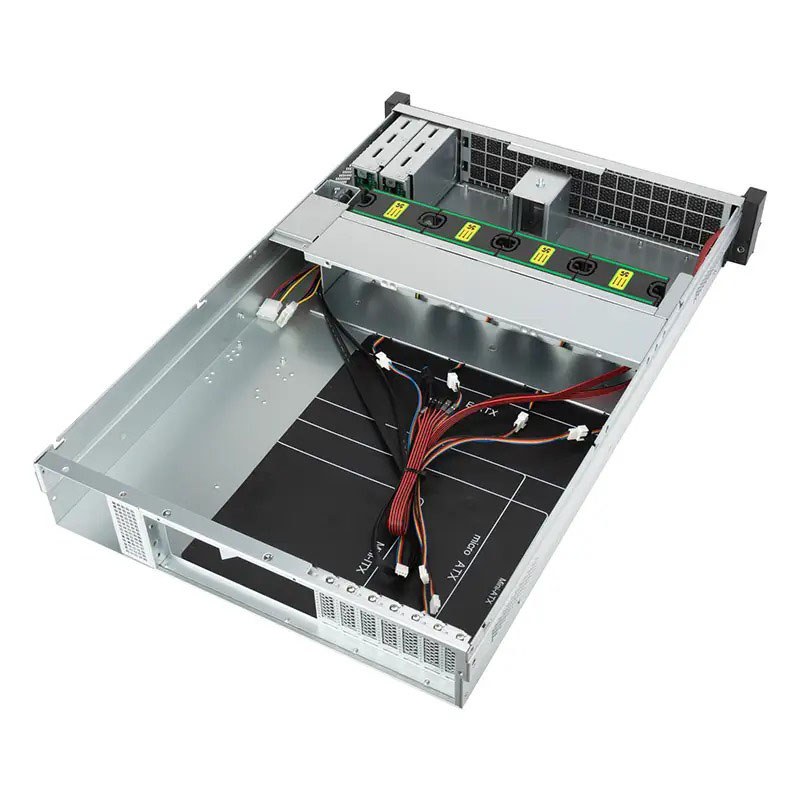

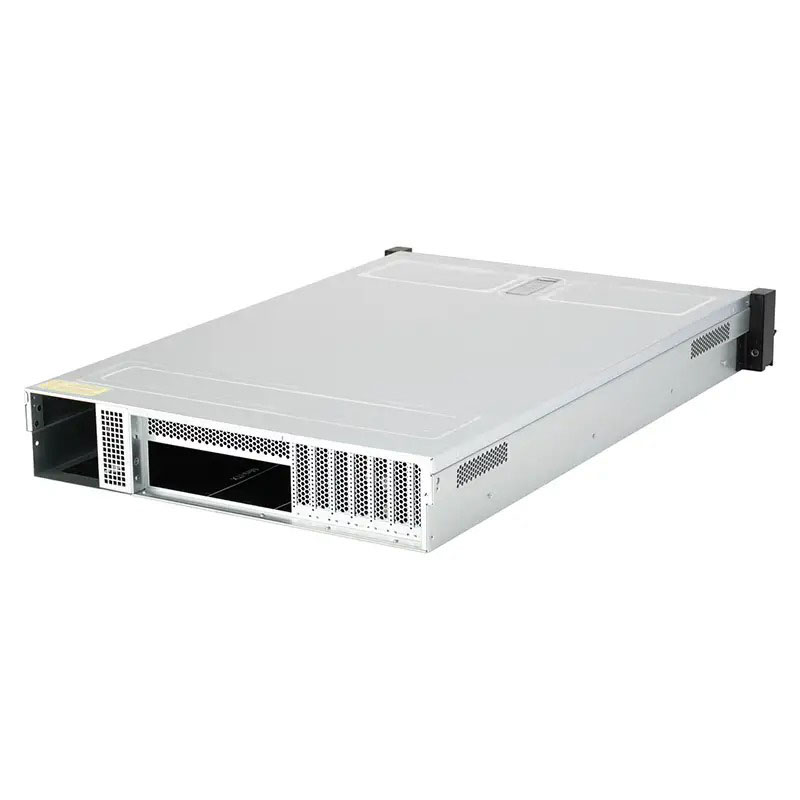

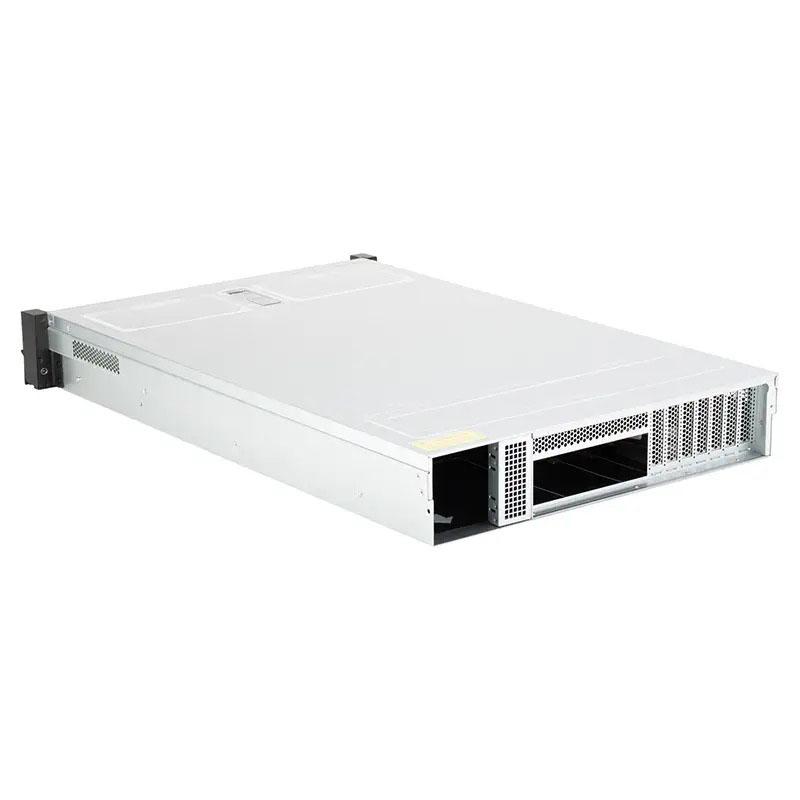

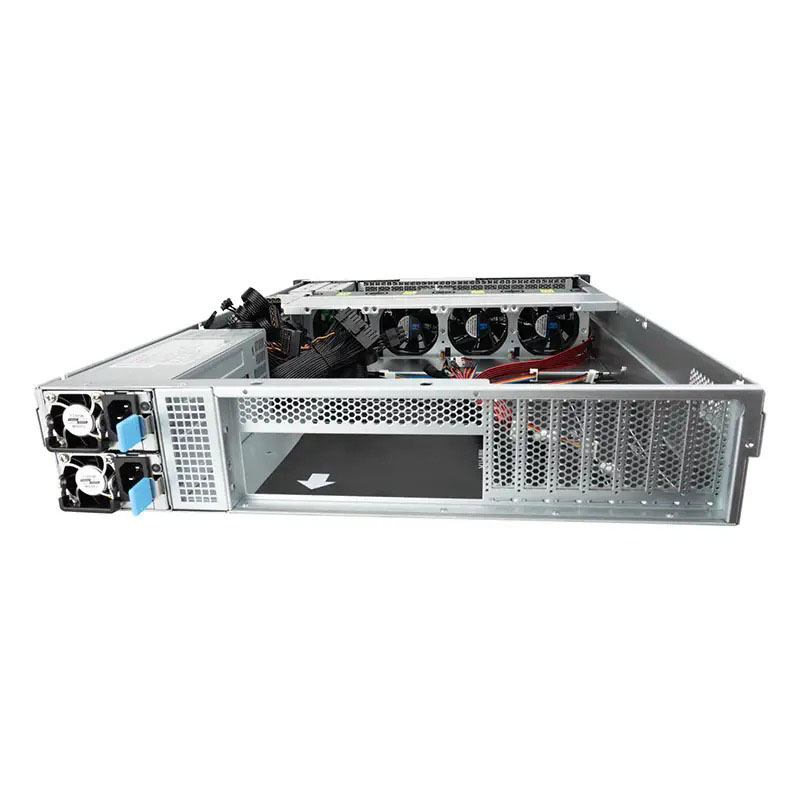

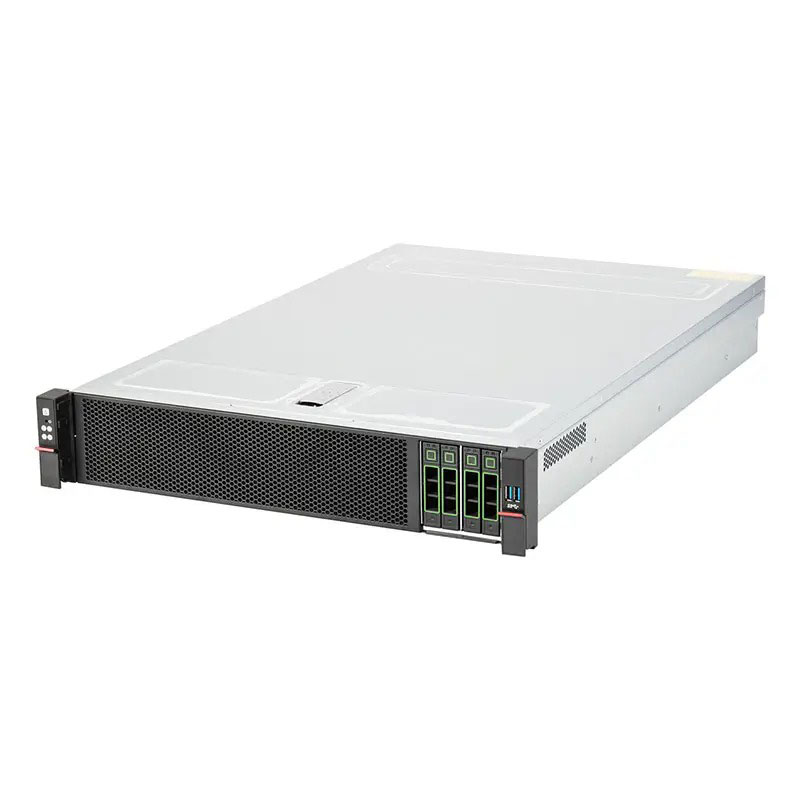

2U Rackmount Server Chassis -OCS2700-H04-H
• 4* hot-swappable 2.5" hard drive bays with optional built-in 2* 3.5" or 4* 2.5" hard drive bays
• 13.9″ x 13″ motherboards, downward compatible with EATX and below
• 2U standard 1 + 1 CRPS redundant or single power
• 6Gb/12Gb direct-attached backplane (SFF-8643 cable optional); U.2 (8611/8654 – 81/8654 – 41)
• 2 full-height & 1 half-height PCI card support (with multiple rear window options)
• Internal 2U 73 mm thick four-fan water cooling radiator can be installed; 8* 8038 fans can be placed
Description
Package Information
Inquiry
| Model: | OCS2700-H04-H | |
| 2U Server Chassis: | 700 (D)*436 (W)*88.1 (H) mm; Rackmount style | |
| Material: | Taiwan Sinosteel SGCC 1.2 mm | |
| M/B Form Factor: | MAX(13.9″ x 13″)/EEB(12″ x 13″ )/CEB(12″ x 10.5″ )/ATX(12″ x 9.6″)/Mini-ATX(11.2″ x 8.2″)/Micro-Atx(9.6″ x 9.6″)/ITX(7″ x 7″) | |
| PSU Form Factor: | Single 2U,1+1Redundant PSU, CRPS | |
| HDD Backplane: | 6Gb/12Gb SATA/SAS direct Backplane(SFF-8087/SFF-8643 cable for optional) | |
| HDD Support: | 4×3.5" hot-swappable HDD(or2.5" HDD); Optional 2×2.5" hot-swappable HDD at the rear | |
| Expansion Slot: | 2* Full-Height or 7* Half height PCl cards(multiple rear windows optional) | |
| SGPIO: | √ | |
| System Cooling Fans: | Standard 4*8038 hot-swappable fans | |
| Smart Fans Speed Control: | Backboard support | |
| Air Duct: | Support for customization, optional materials (SGCC/PC/ABS/PE, etc.) | |
| Indicators: | Power ON/OFF x 1, HDD x 1, NIC x 2, Power Alarm x 1 | |
| Front Panel Control: | Power ON/OFF x 1, System reset x 1, USB2.0 x 2/USB3.0 x 2 | |
| Slide Rail: | Tool free guide rail (optional) | |
| Carton Size: | 860*565*217 mm | |
| Net Weight: | 10.3 kg | |
| Gross Weight: | 15.5 kg | |
| Operaing Temperature: | 10°C-35°C (without direct light); extended operating temperature: 5°C-40°C (restrictive configuration satisfied); storage temperature: 20%-90% | |
Transportation & Storage Temperature: | -40°C-70°C | |
