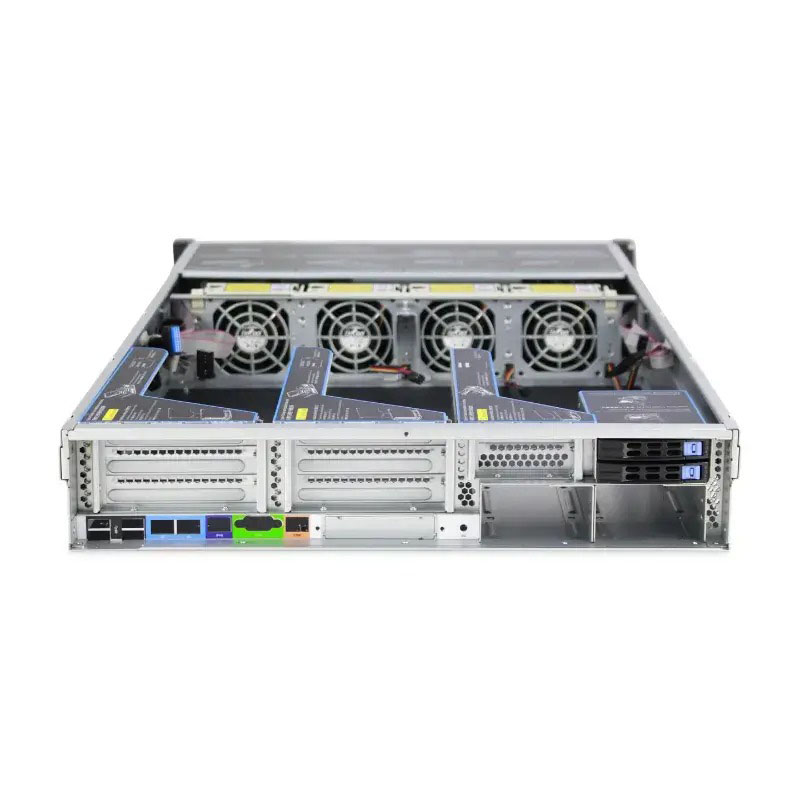

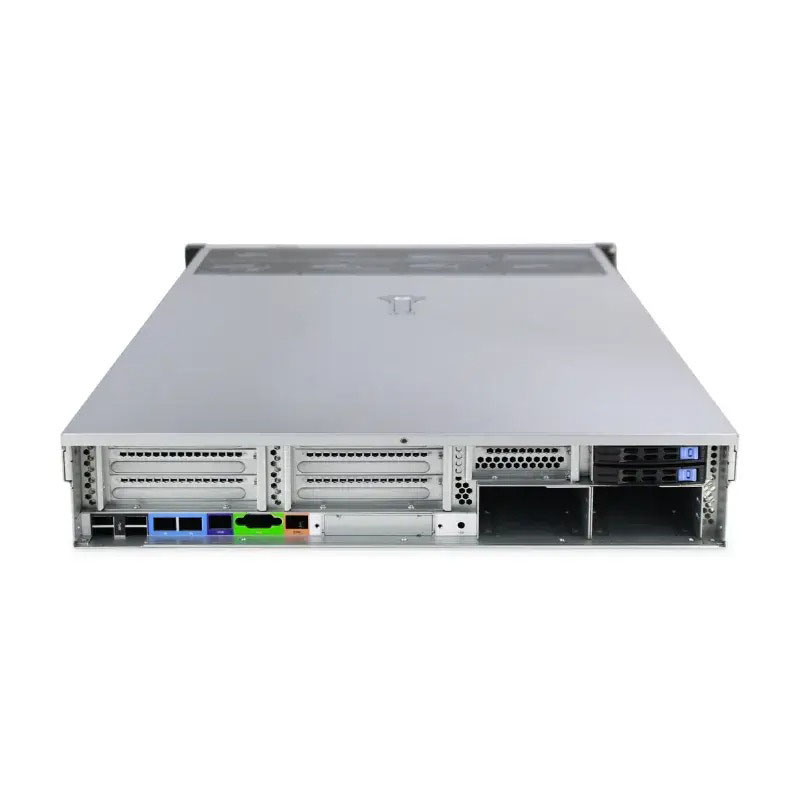

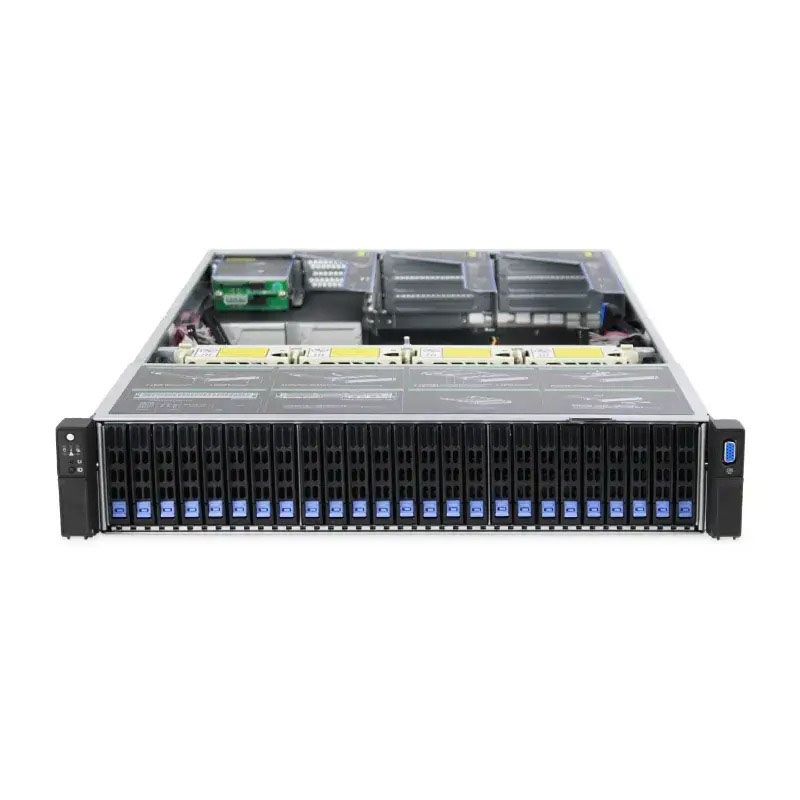

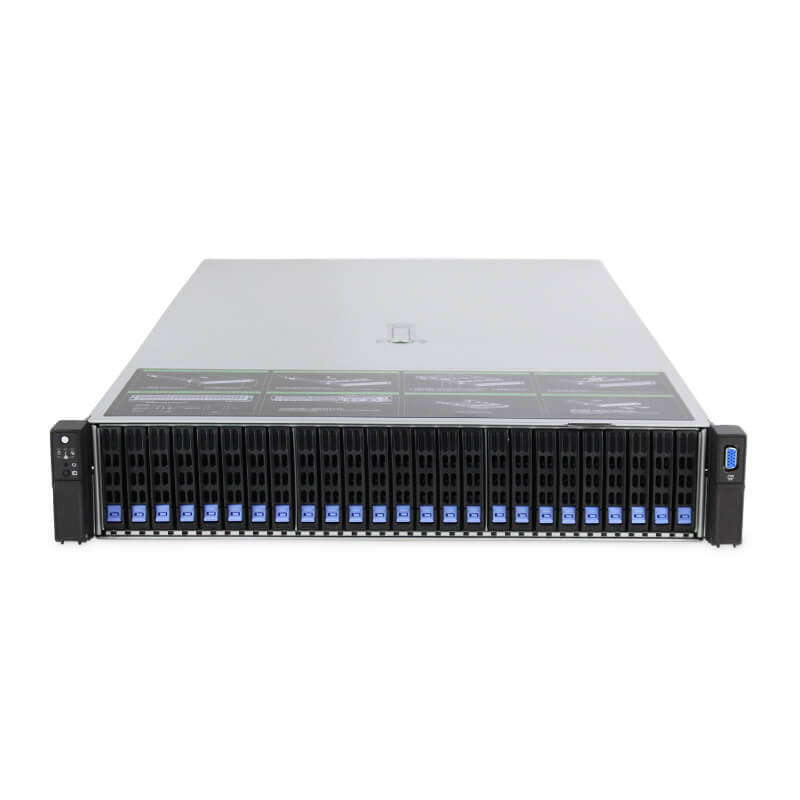

2U 25* HDD Rackmount Server Chassis -OCSM2780S-H25-T
• 25* front 2.5″ Hot-Swap HDD/SDD, HDD0-3 supports SAS/SATA/NVME three hard disk modes, HDD4-24 supports SATA/SAS hard disk mode
• 2* Full-height PCI expansion slot, and 1* Half-height PCI expansion slot, 1* VGA port, giving options for expansion
Description
Package Information
Inquiry
| Model: | OCSM2780S-H25-T | |
| 2U Server Chassis: | 780 (D)*437.5 (W)*88 (H) mm; Rackmount style | |
| Material: | Sinosteel SGCC 1.0 mm (fingerprint resistant) | |
| Surface Treatment: | Handles and hanging ears are sandblasted and oxidized bright black, other steel plates are of natural color | |
| M/B Form Factor: | Customized domestic server motherboard | |
| PSU Form Factor: | CRPS redundant power supply module | |
| HDD Backplane: | 12Gb/s MiniSAS-HD backplane interface (12Gb/s expansion backplane), with temperature control, time-sharing startup, hard disk short circuit protection, support cold storage | |
| HDD Support: | 25* front 2.5″ HDD/SSD, HDD0-3 supports SAS/SATA/NVME three hard disk modes, HDD4-24 supports SATA/SAS hard disk mode | |
| Expansion Slot: | 2 sets of horizontal full-height PCI-E expansion slots, 1 set of half-height PCI/PCI-E expansion slots | |
| SGPIO: | √ | |
| System Cooling Fans: | Standard 4* 8038 hot-swappable fans | |
| External Interface: | 2* USB 3.0 interface, 1* VGA interface | |
| System Control: | Power LED *1, Reset *1, Power SW *1, HDD LED *1, NIC LED *2, UID SW *1, Information Indicator *1, Power Alarm Indicator | |
| Internal Accessories: | Power bracket, screw bag | |
| Safety Standards: | GB/T 13914-2002 | |
| Applicable Fields: | Cloud storage, cloud computing, big data, security monitoring, and other fields | |
| Packing Info: | Pearl cotton + inner box + corner guard + outer box | |
| Operaing Temperature: | 10°C-35°C (without direct light); extended operating temperature: 5°C-40°C (restrictive configuration satisfied); storage temperature: 20%-90% | |
| Transportation & Storage Temperature: | -40°C-70°C | |
