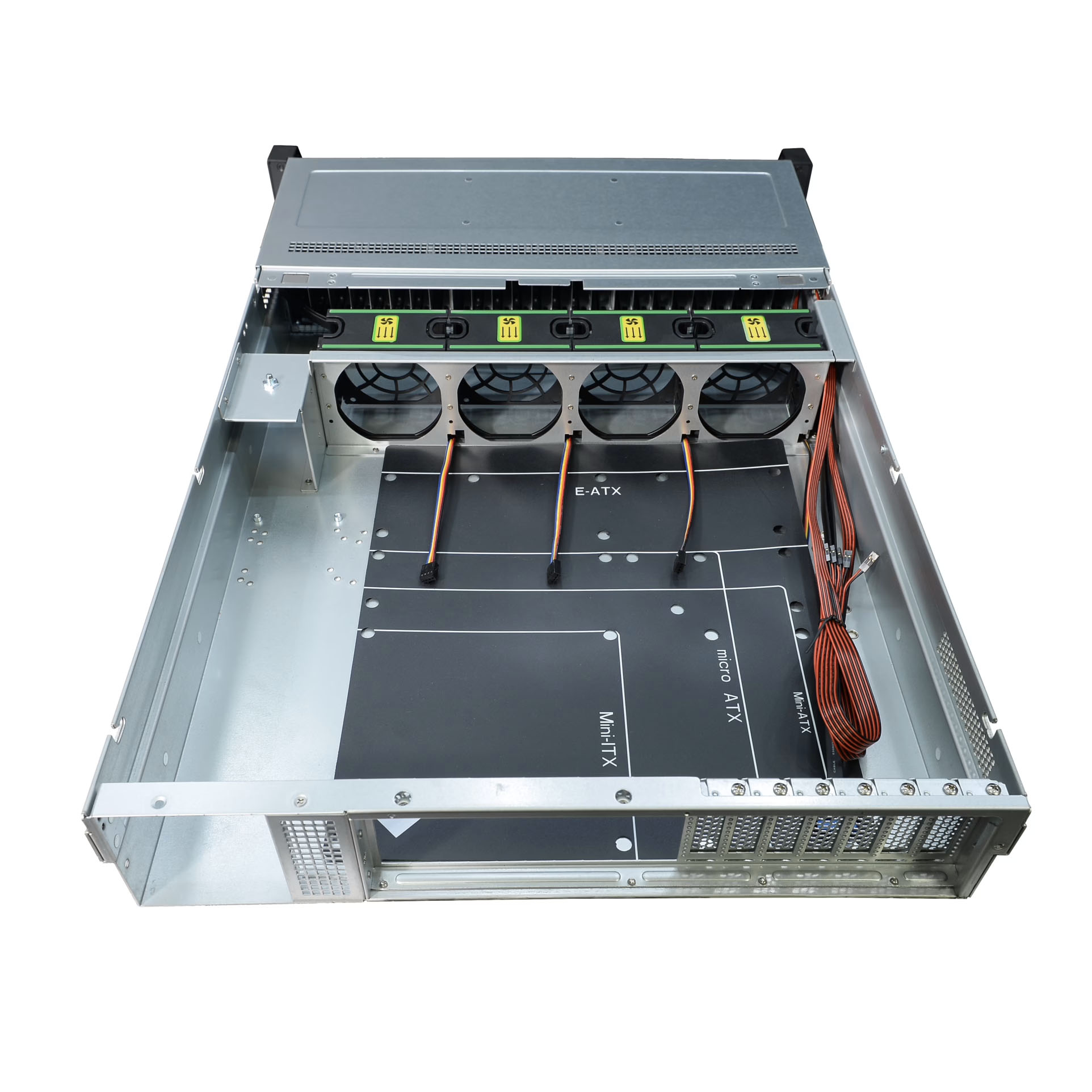

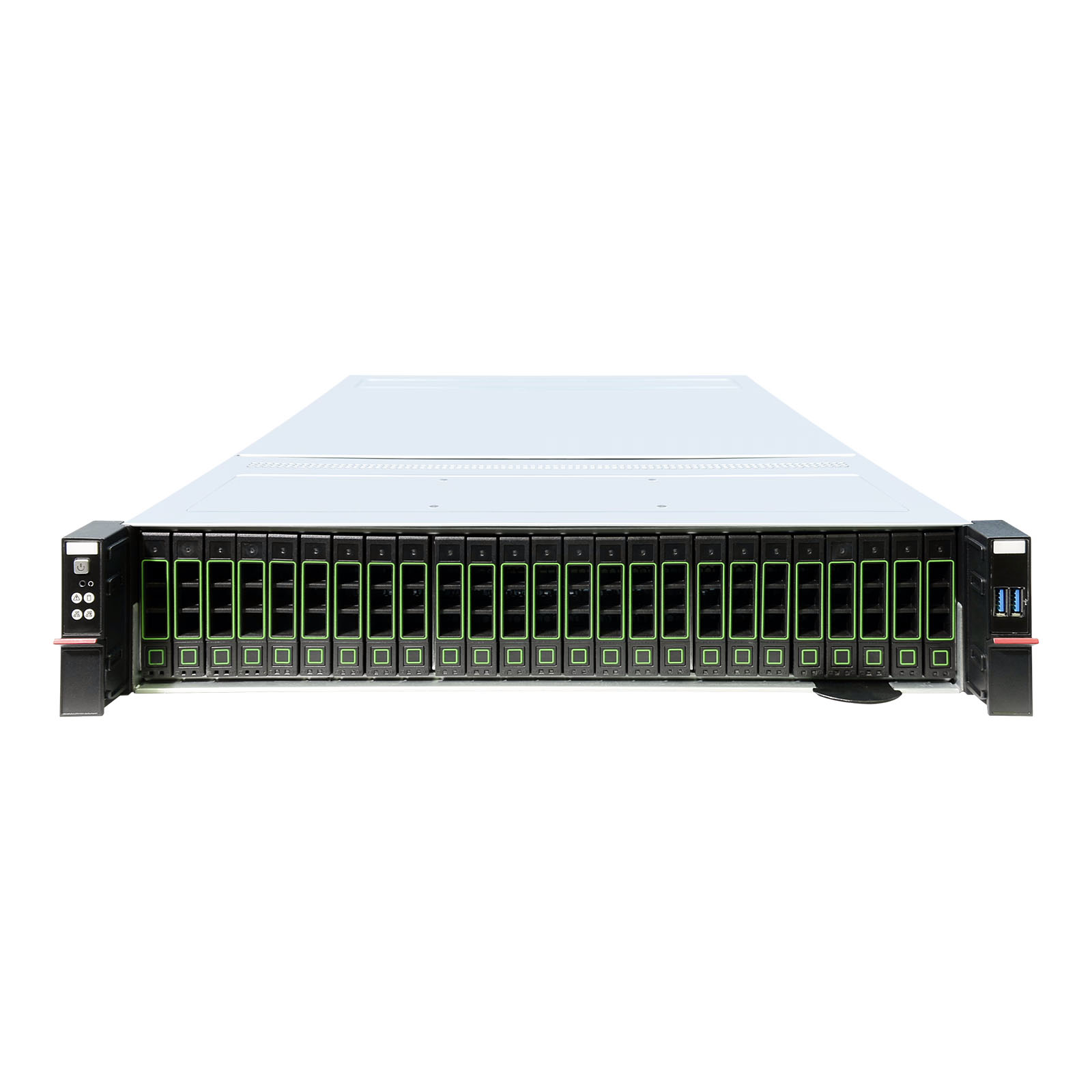

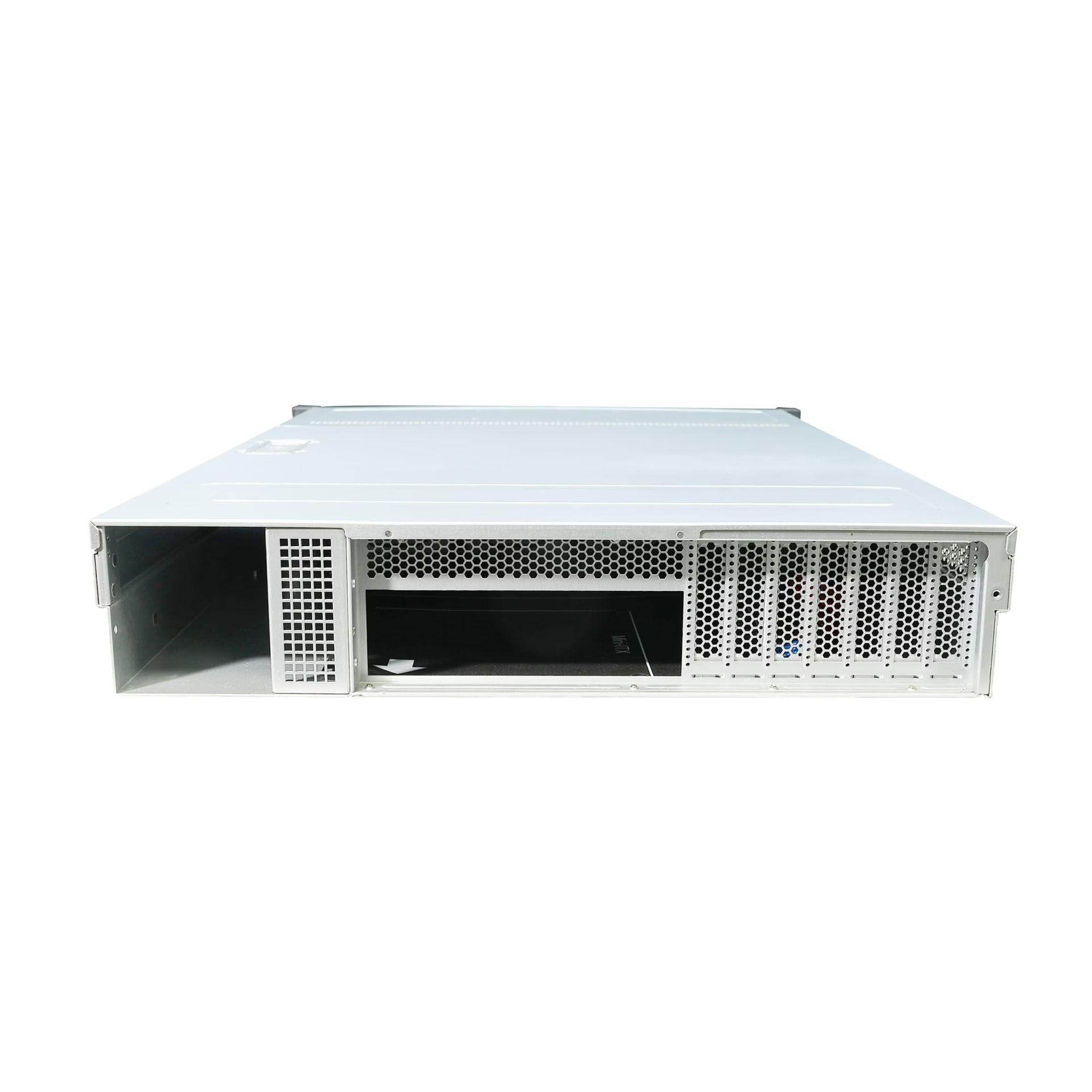

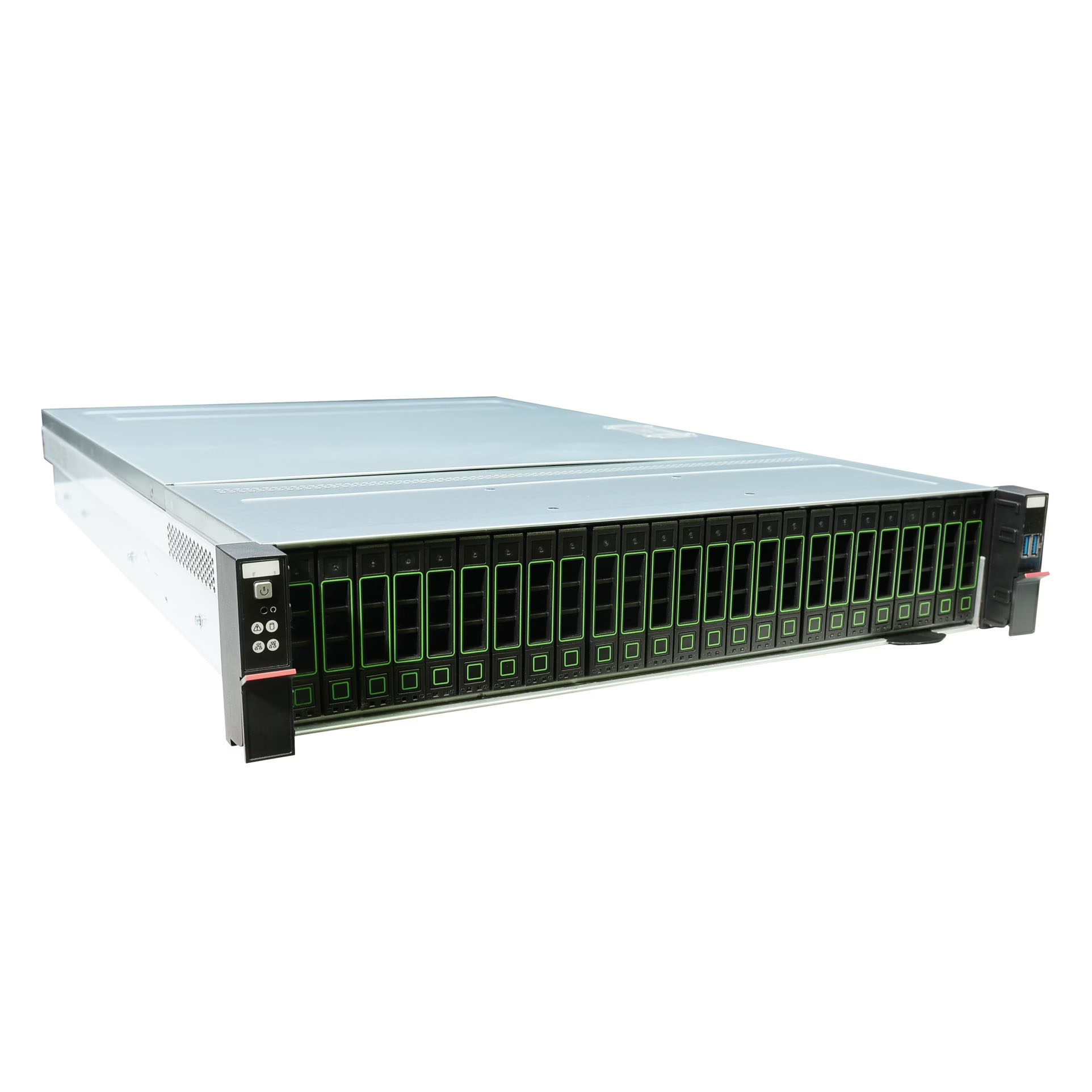

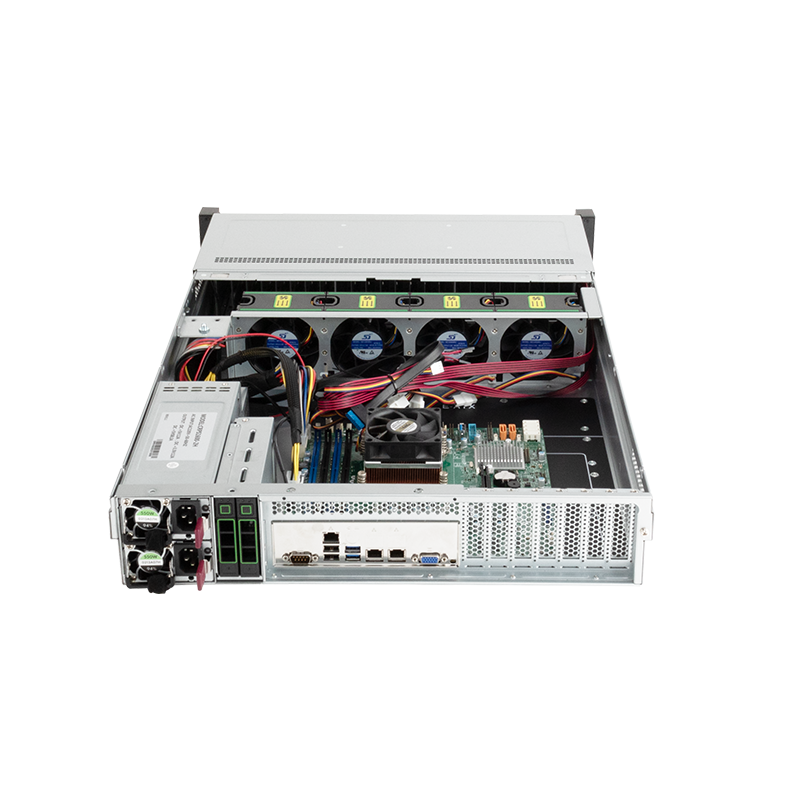

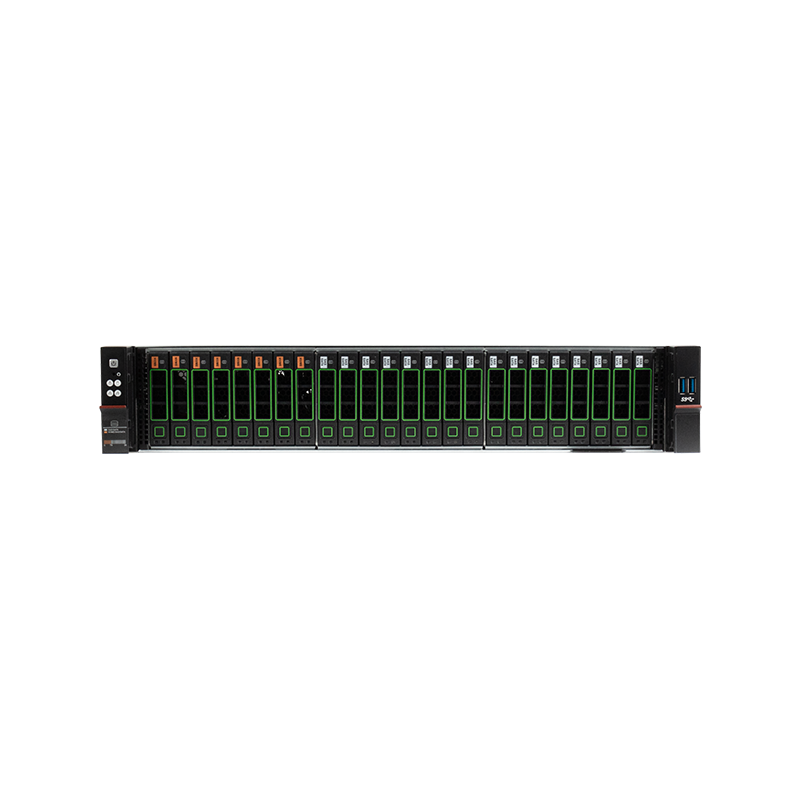

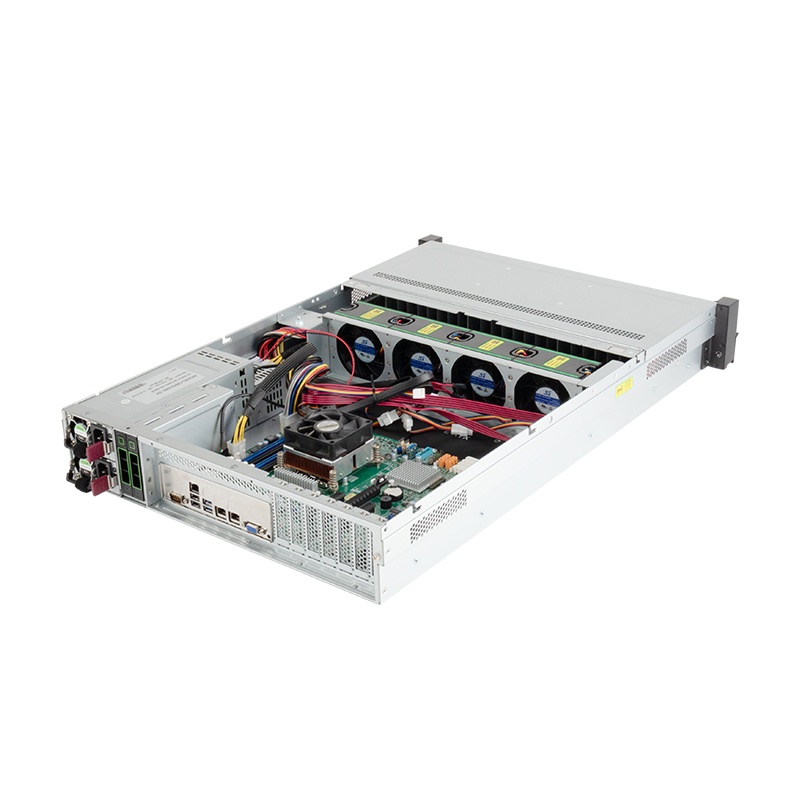

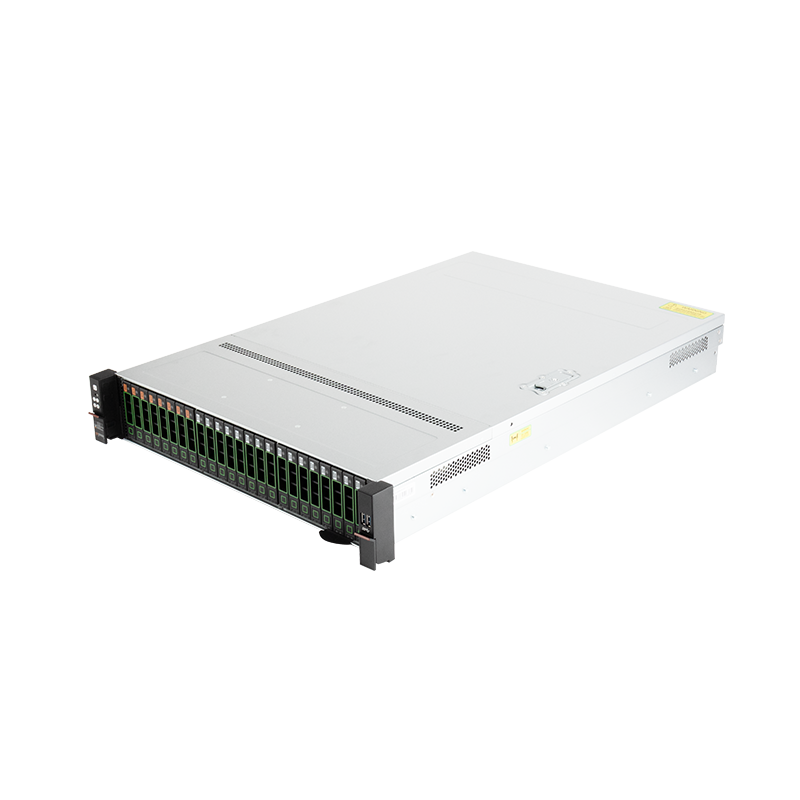

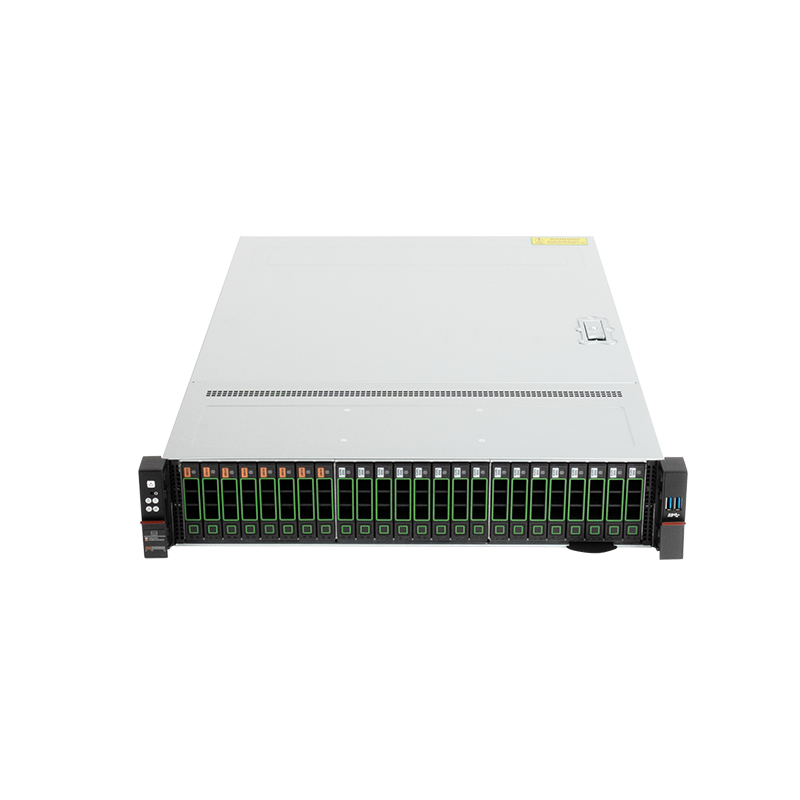

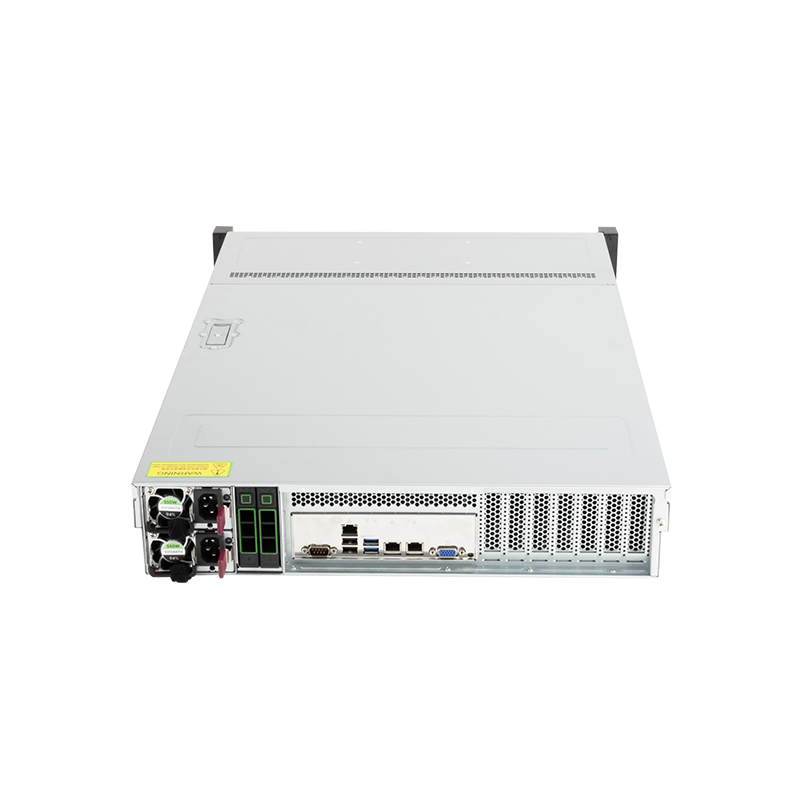

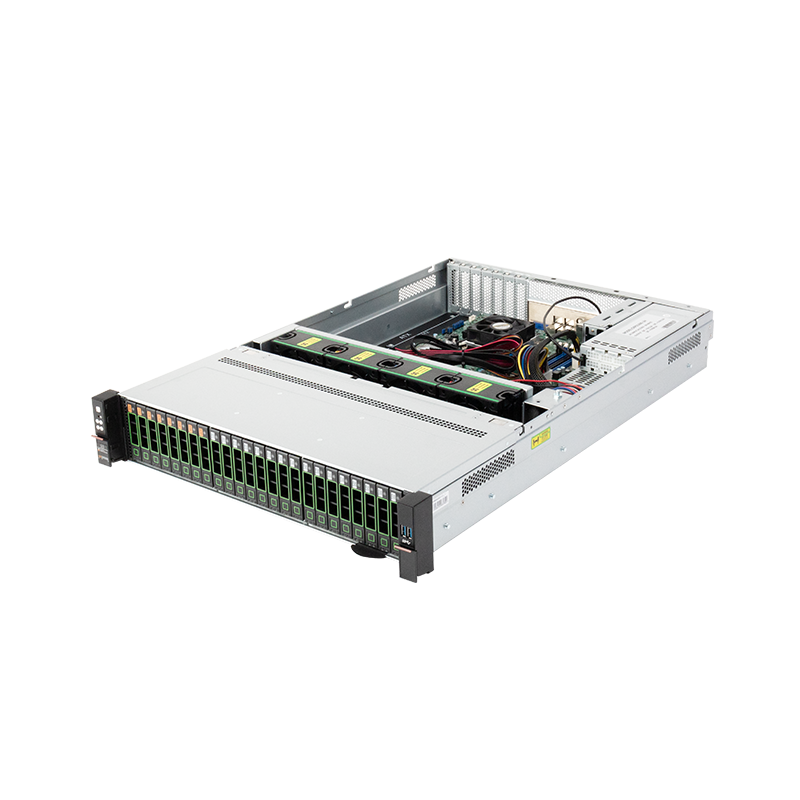

2U 24* HDD Rackmount Server Chassis -OCS2680-H24-H
• High-Density Hot-Swap Storage
• Versatile Backplane Compatibility
• Robust Build Quality
• Comprehensive Motherboard Support
• Redundant & Efficient Power Options
• Optimized Cooling & Airflow Management
• Expandable & Modular
• User-Friendly I/O & Monitoring
• Tool-Free Installation
• Compact Yet Capacious
Description
Package Information
Inquiry
| Model: | OCS2680-H24-H | |
| 2U Server Chassis: | 680 (D)*436 (W)*88.1 (H) mm; Rackmount style | |
| Material: | Taiwan Sinosteel SGCC 1.2 mm | |
| M/B Form Factor: | MAX(13.9″ x 13″)/EEB(12″ x 13″ )/CEB(12″ x 10.5″ )/ATX(12″ x 9.6″)/Mini-ATX(11.2″ x 8.2″)/Micro-Atx(9.6″ x 9.6″)/ITX(7″ x 7″) | |
| PSU Form Factor: | Single 2U,1+1Redundant PSU,CRPS | |
| HDD Backplane: | 6Gb/12Gb SATA/SAS/NVME direct Backplane(SFF-8087/SFF-8643/SFF-8654 cable for optional) | |
| HDD Support: | 24* 2.5″Hotseap HDD.optional 2* 2.5″Hotswap HDD at the rear | |
| Expansion Slot: | 7 Half height PCl cards(multiple rear windows optional) | |
| SGPIO: | √ | |
| System Cooling Fans: | Standard 4* 8038 hot-swappable fans | |
| Smart Fans Speed Control: | Backboard support | |
| Air Duct: | Support for customization, optional materials (SGCC/PC/ABS/PE, etc.) | |
| Indicators: | Power ON/OFF x 1, HDD x 1, NIC x 2, Power Alarm x 1 | |
| Front Panel Control: | Power ON/OFF x 1, System reset x 1, USB2.0 x 2/USB3.0 x 2 | |
| Slide Rail: | Tool free guide rail (optional) | |
| Applicable Fields: | Enterprise Data Centers; Private Cloud Infrastructure; High-Performance Computing (HPC) Clusters; Video Surveillance Storage; Virtualization & Hyper-Converged Infrastructure | |
| Carton Size: | 860*565*217 mm | |
| Net Weight: | 11 kg | |
| Gross Weight: | 16.2 kg | |
| Operaing Temperature: | 10°C-35°C (without direct light); extended operating temperature: 5°C-40°C (restrictive configuration satisfied); storage temperature: 20%-90% | |
| Transportation & Storage Temperature: | -40°C-70°C | |
| Carton Size: | 860*565*217 mm | |
| Gross Weight: | 16.2 kg | |
