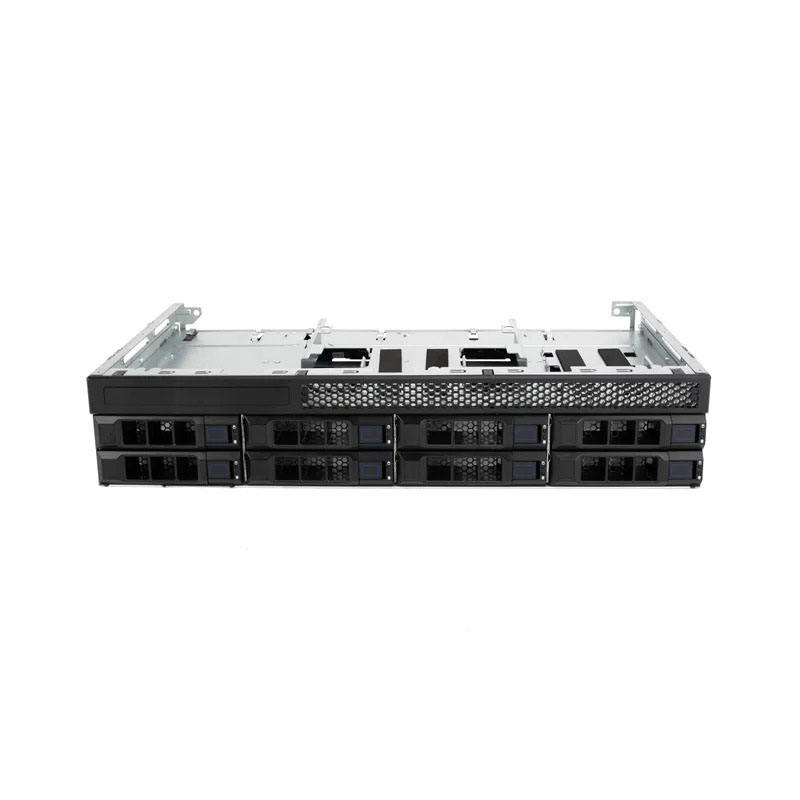

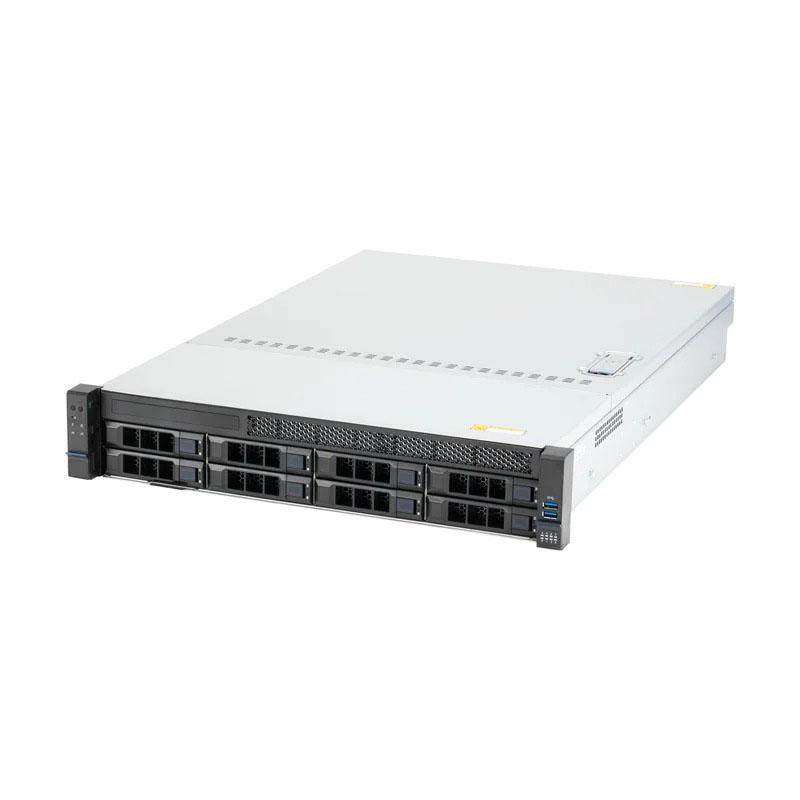

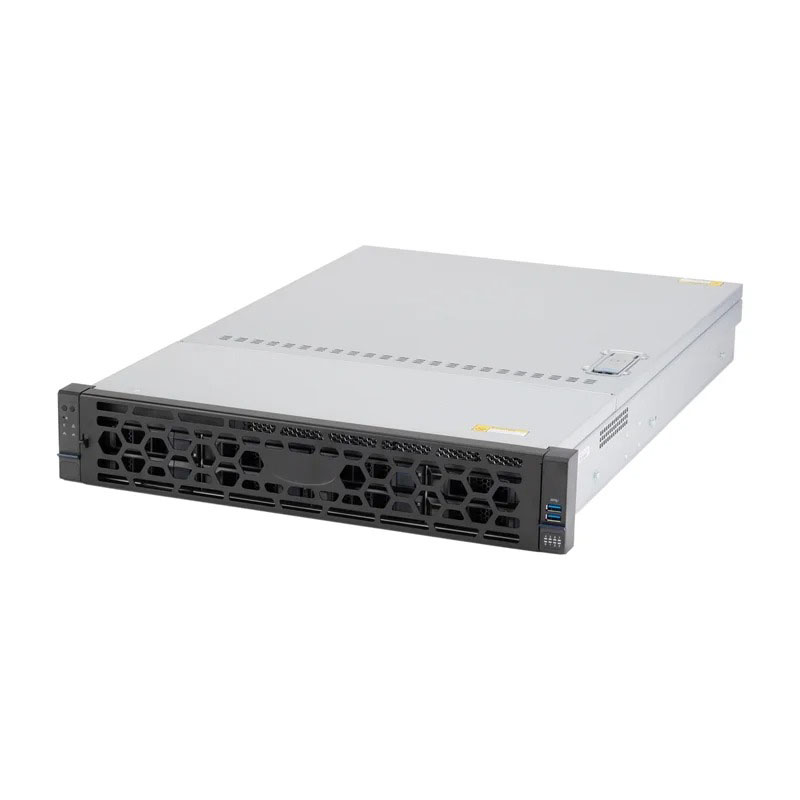

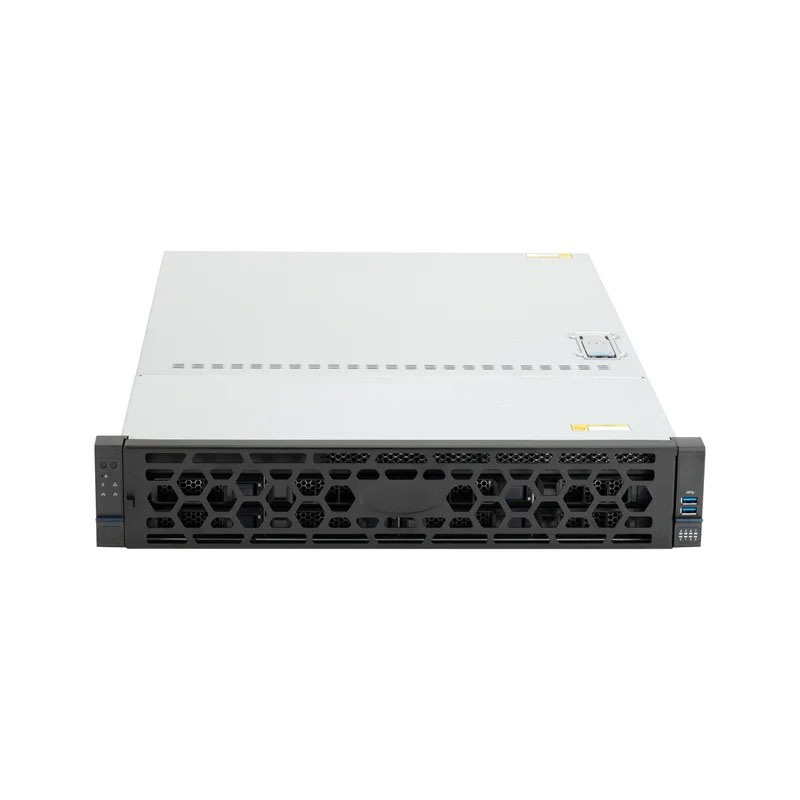

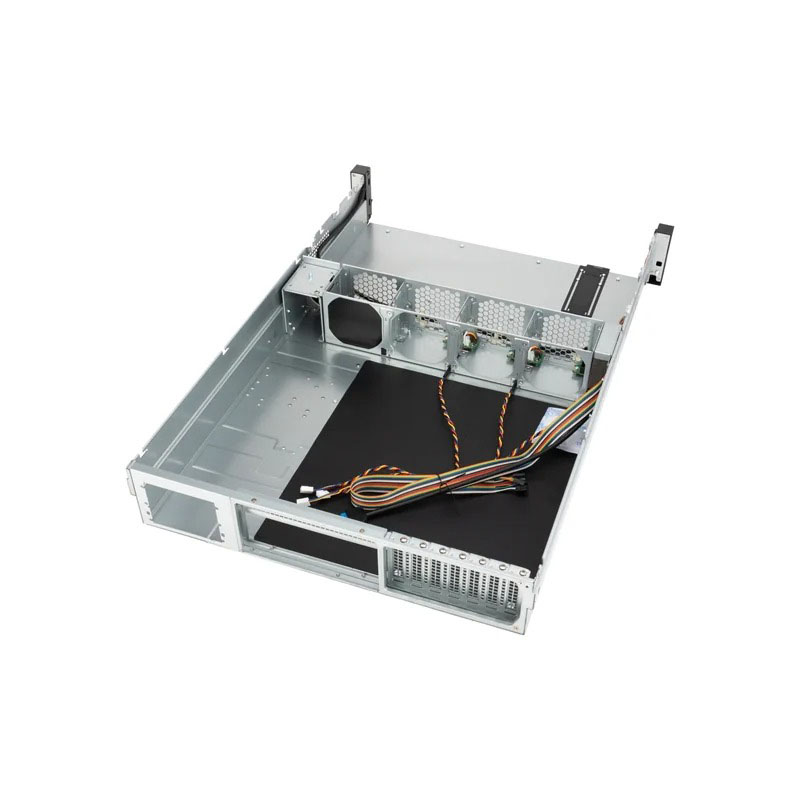

2U 8* HDD Rackmount Server Chassis -OCS266-8B-W
• Hard disk rack adopts EMI shrapnel design and unique anti-vibration fan design
• Backplane supports temperature control and can control the fan speed according to the hard disk temperature

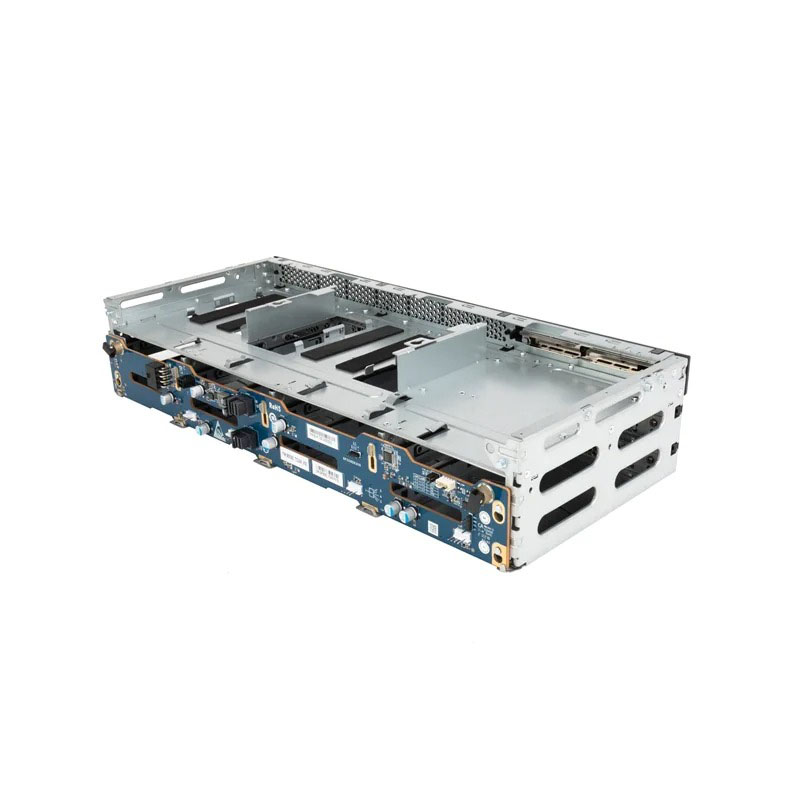

• 12Gb/s SAS high-speed backplane to ensure high-speed and stable data transmission
• Support SGPIO and can control the hard disk light according to customer definition
• Modular design, more convenient installation and maintenance
Description
Package Information
Inquiry
| Model: | OCS266-8B-W | |
| 2U Server Chassis: | Rackmount style | |
| M/B Form Factor: | EEB(12″ x 13″ )/CEB(12″ x 10.5″ )/ATX(12″ x 9.6″)/Micro-Atx(9.6″ x 9.6″) | |
| Support Brand: | Intel, ASUS, SuperMicro, TYAN, MSI, GIGABYTE, etc. | |
| PSU Form Factor: | Support type: Single power, 1+1 redundant power Qty: 1 | |
| HDD Backplane: | 12Gb/s SAS backplane; compatible with SAS and SATA hard drives | |
| HDD Support: | 8* 3.5″/2.5" hot-swappable HDD, 2* 2.5-inch built-in non-hot-swappable hard drive slots; Optional 2* 2.5″ hot-swappable HDD at the rear | |

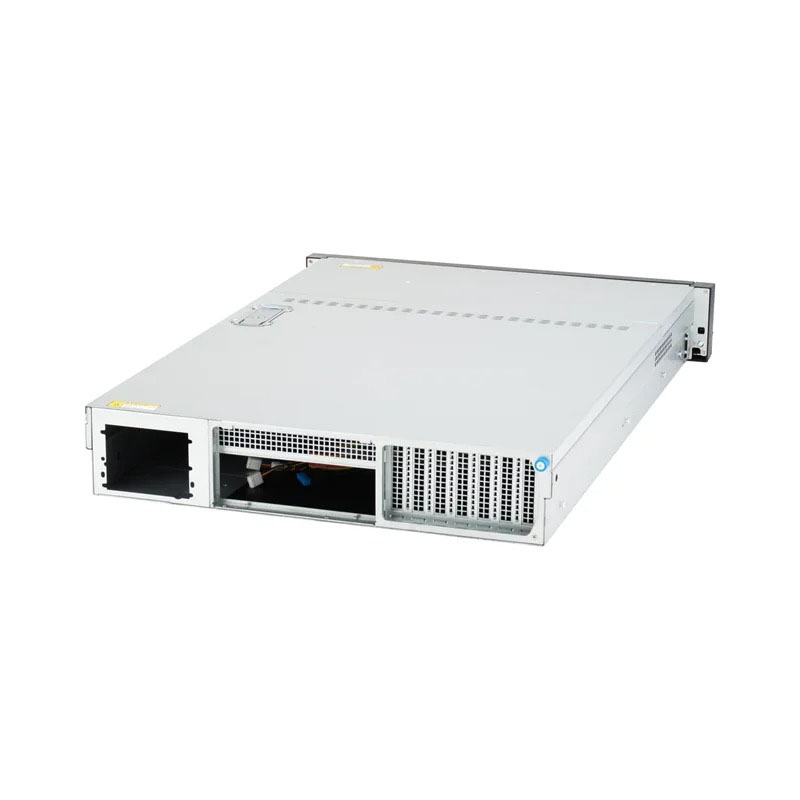

| Expansion Slot: | 7 Half height PCle or 2 full-height PCI-E card slots | |
| Optical Drive Slot: | Support 1 Slim notebook optical drive slot | |

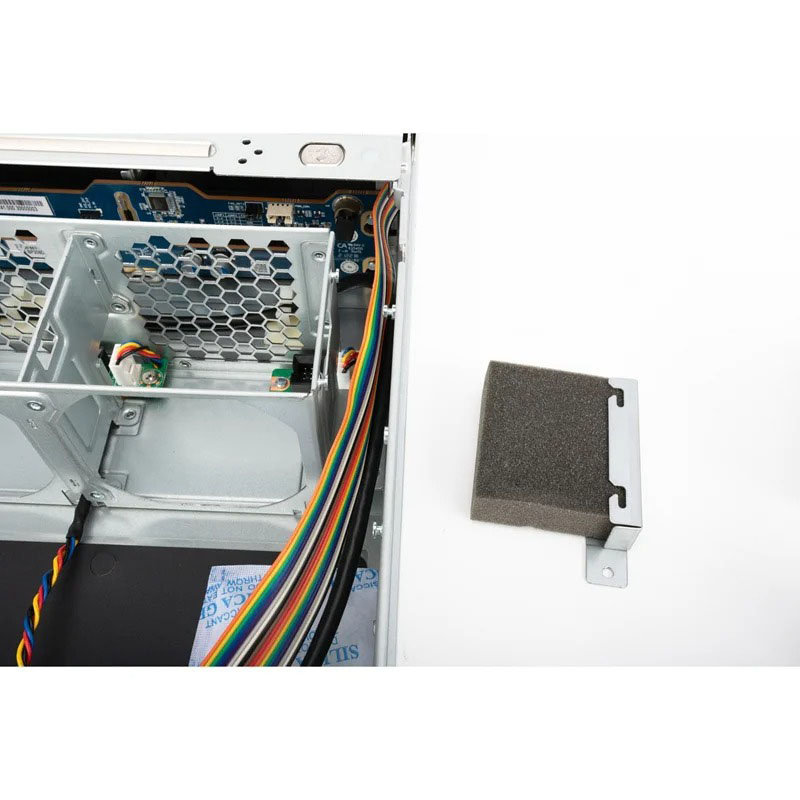

| Hard Disk Anti-vibration System: | The hard drive rack adopts EMI shrapnel design and unique shockproof fan design to reduce the resonance between the fan and the hard drive without affecting the hard drive read and write speed | |
| SGPIO: | √ | |

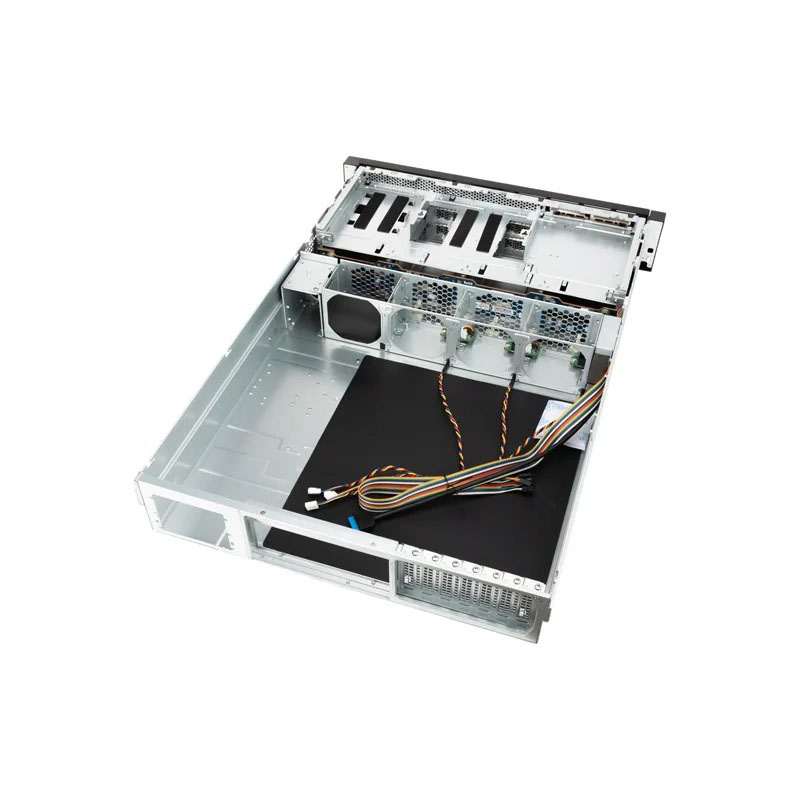

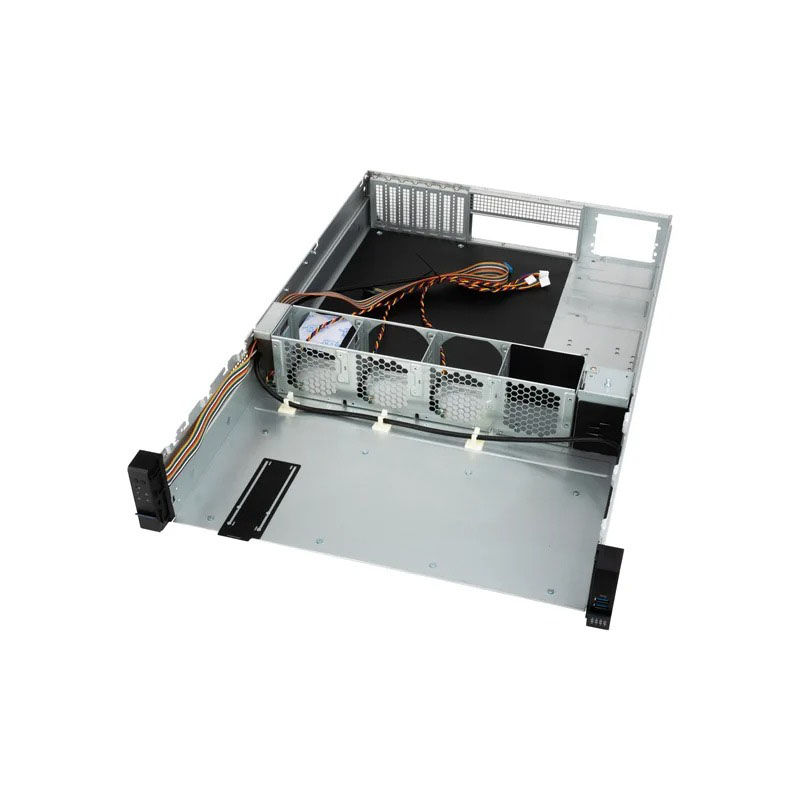

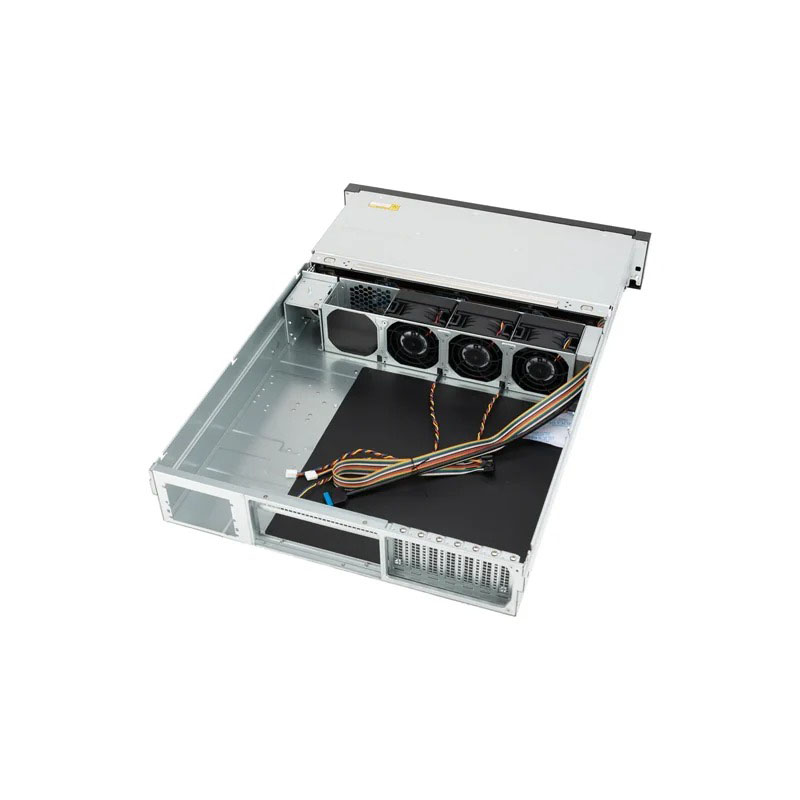

| System Cooling Fans: | Standard 3* 8038 fans, up to 4* 8038 fans | |
| Intelligent Temperature Control: | Backplane supports temperature control | |
| Slide Rail: | Optional | |
| Operaing Temperature: | 10°C-35°C (without direct light); extended operating temperature: 5°C-40°C (restrictive configuration satisfied); storage temperature: 20%-90% | |
| Transportation & Storage Temperature: | -40°C-70°C | |
