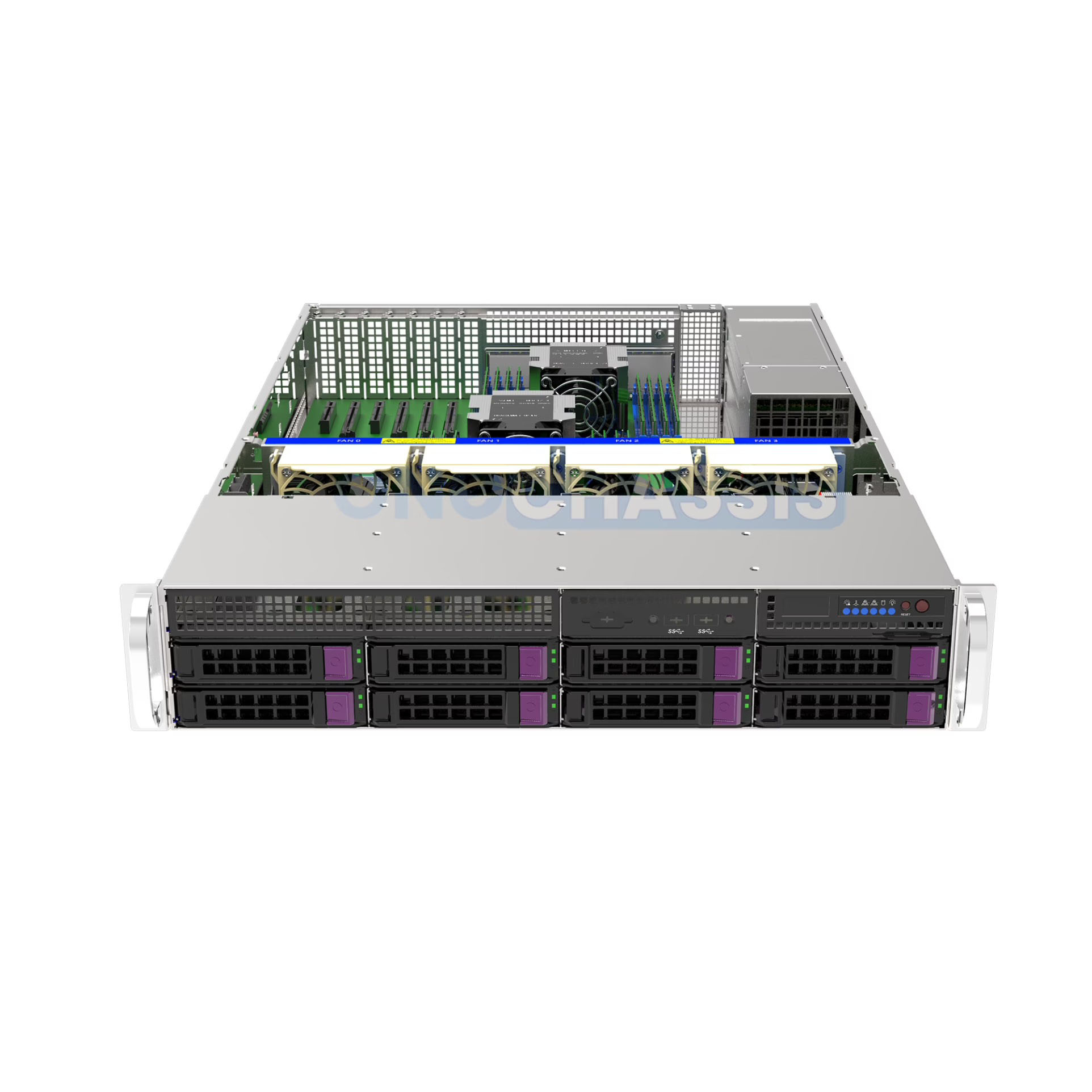

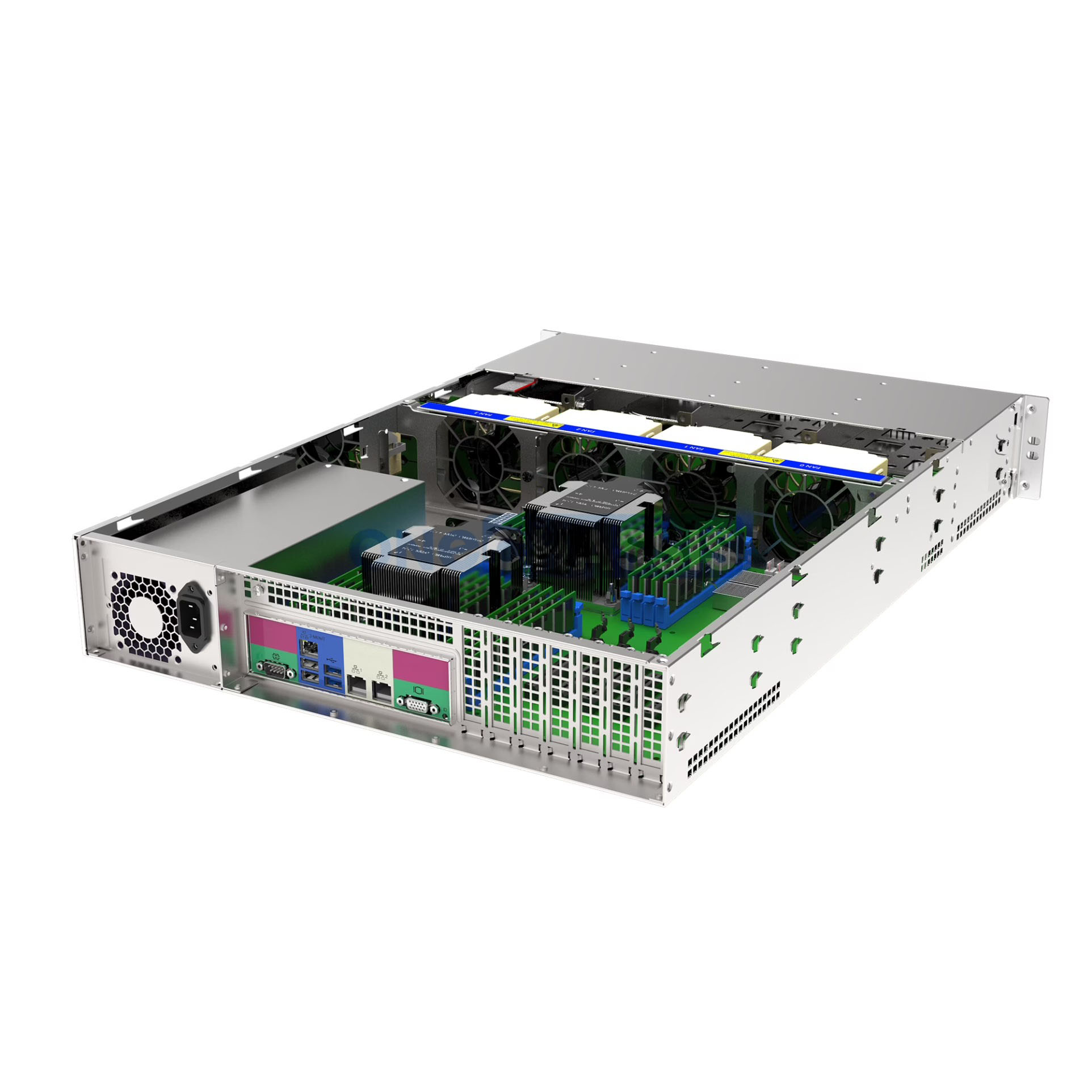

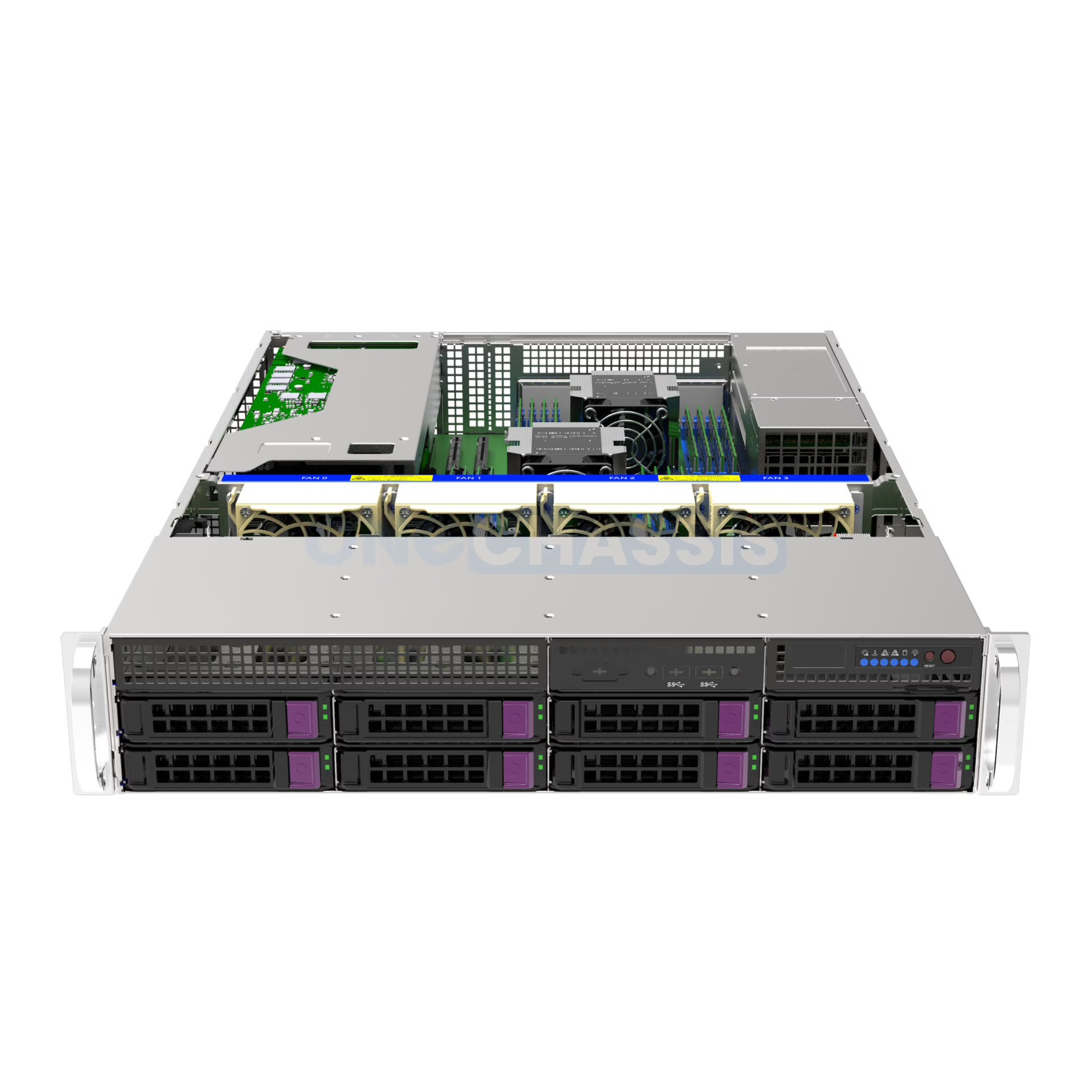

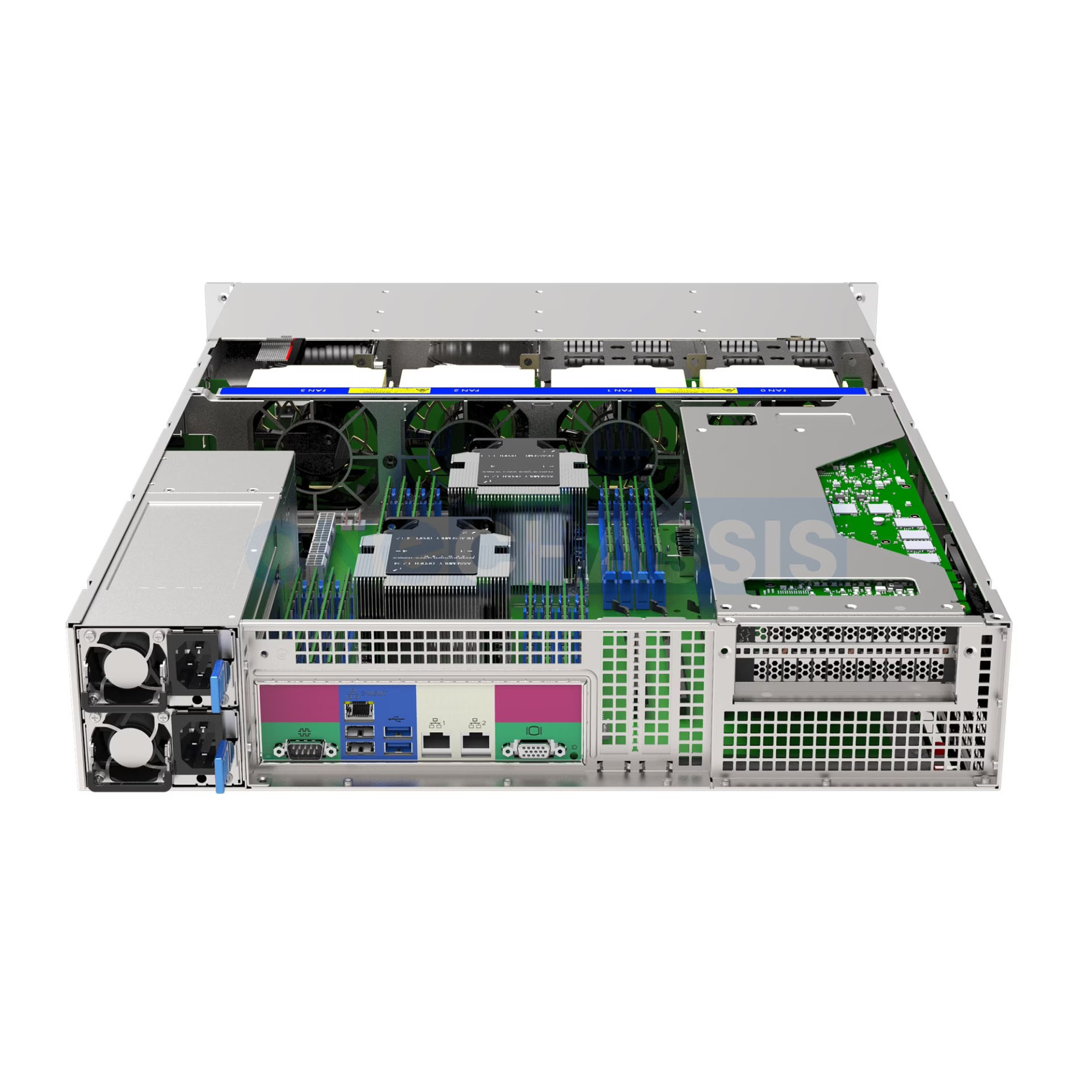

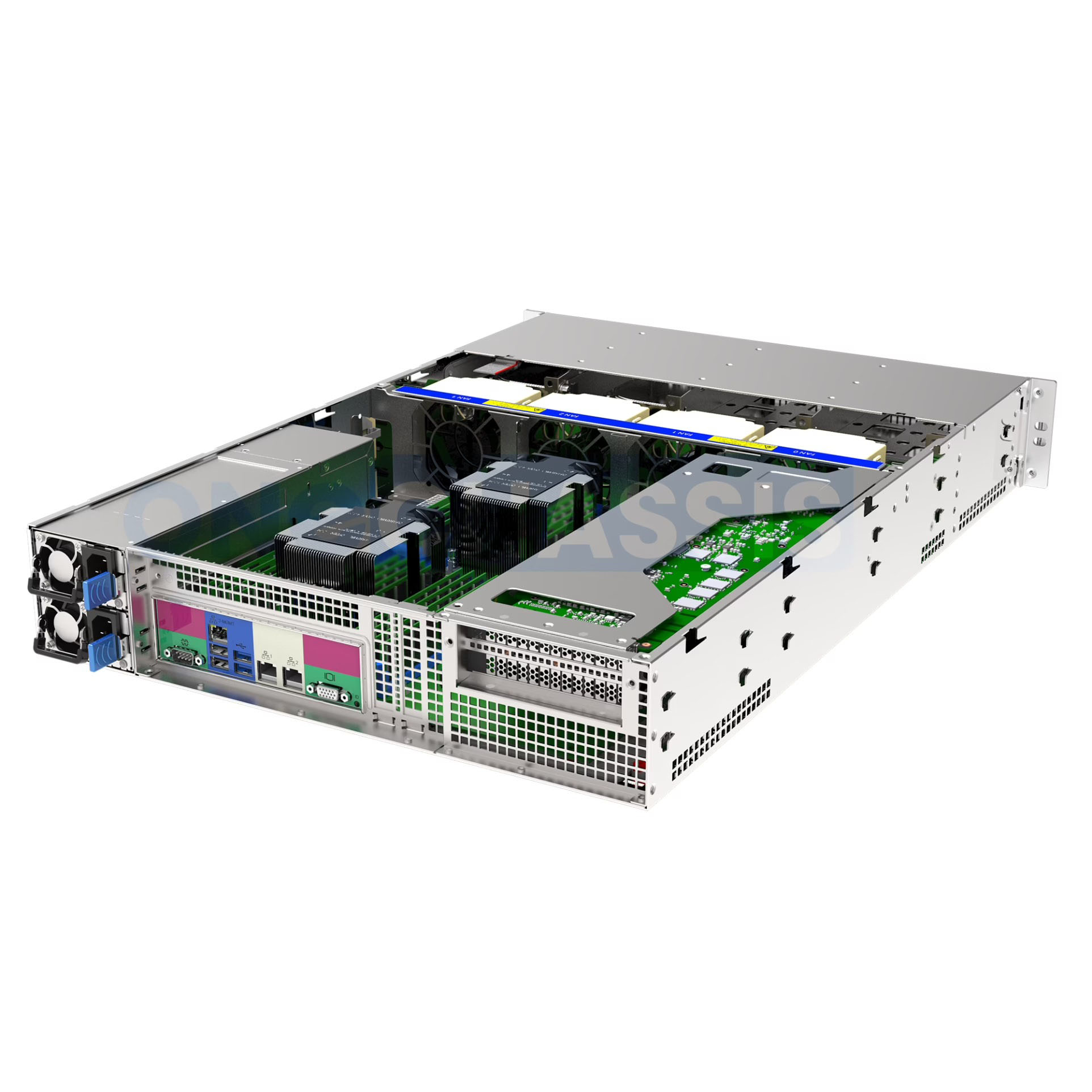

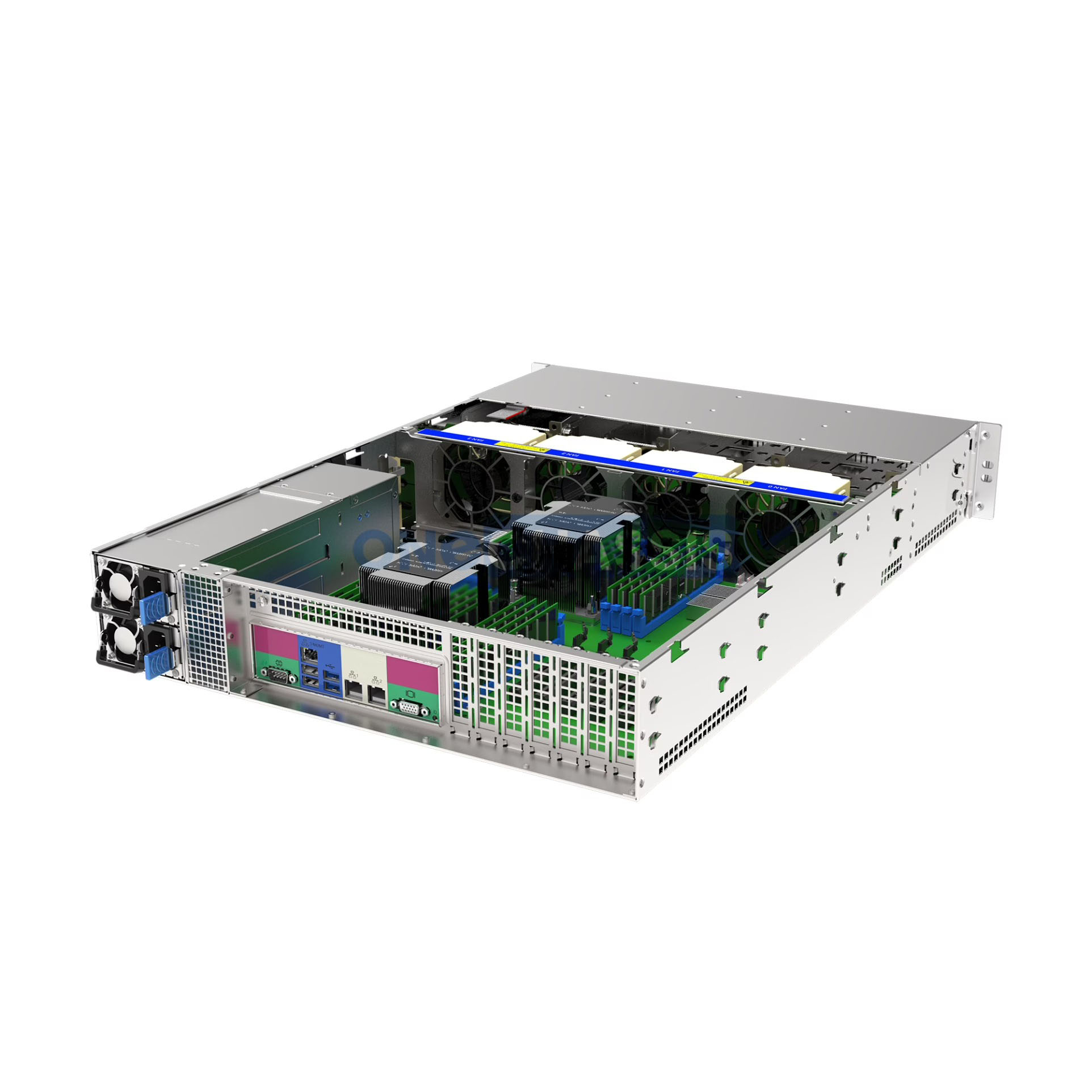

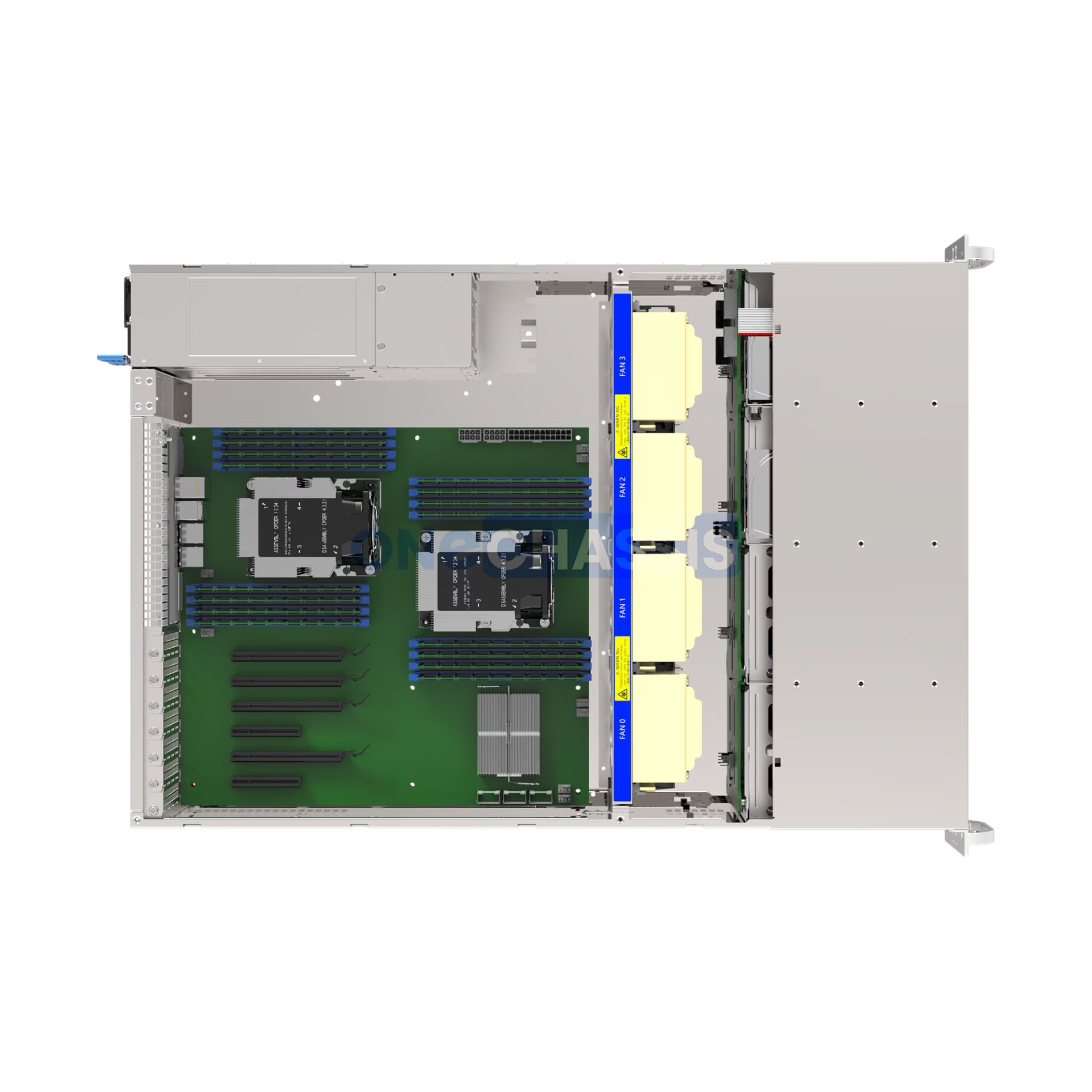

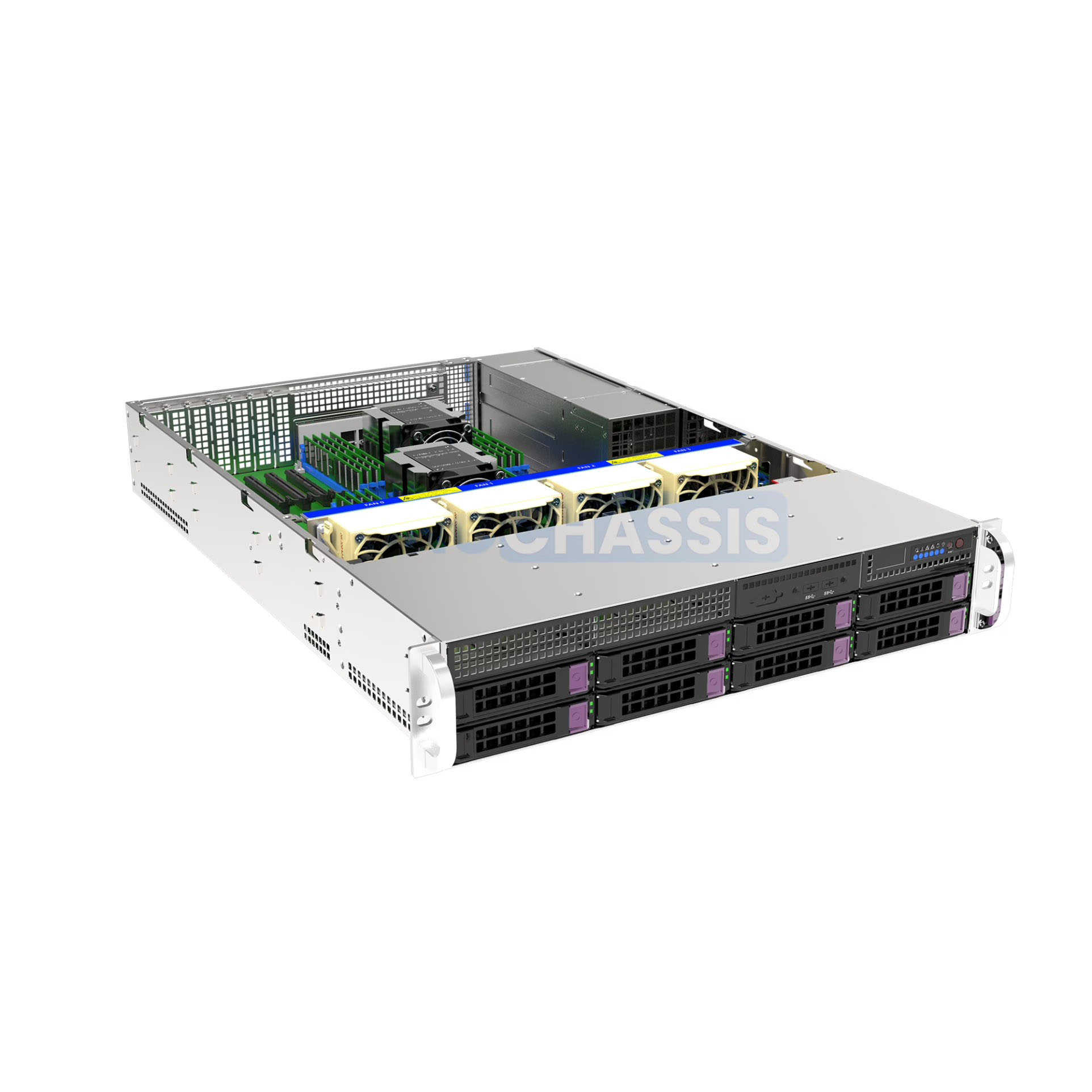

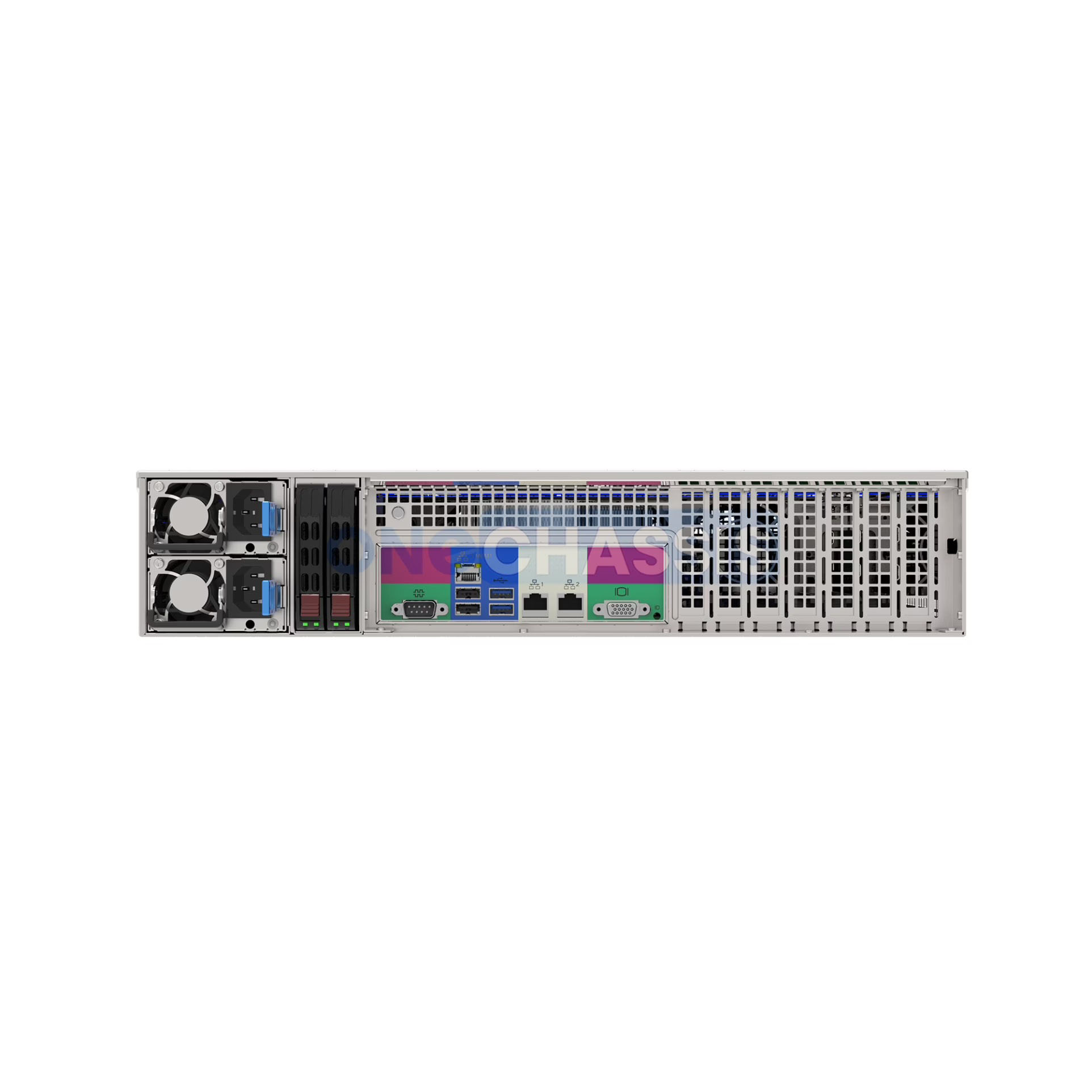

2U 8* HDD Rackmount Server Chassis -OCS2660-H08-C
• High-quality 2U 8-bay storage server chassis
• Full compatibility with SuperMicro motherboards
• 8* 3.5″ hot-swappable HDD
• Rear PCI-e expansion supports one low-profile GPU card, enabling light AI or parallel processing workloads within a compact form factor
• CRPS redundant power supply support (550W/800W/1300W 80PLUS Platinum)
Description
Package Information
Inquiry
| Model: | OCS2660-H08-C | |
| 2U Server Chassis: | 660 (D)*438.4 (W)*88 (H) mm; Rackmount style | |
| Material: | Taiwan Zhonggang SGCC 1.0 mm | |
| Front Panel Control: | Power ON/OFF x 1, System reset x 1, USB3.0 x 2, COM port (optional) x 1 | |
| Indicators: | Power ON/OFF x 1, HDD x 1, NIC x 2, Power Alarm x 1 | |
| M/B Form Factor: | EEB (12x13), CEB (12x10.5), ATX (12x9.5), and Micro ATX standard motherboards | |
| PSU Form Factor: | Single power supply supports 600W 80PLUS single-battery high-efficiency power supplies (single-battery bracket optional); Redundant power supplies support 550W/800W/1300W 80PLUS Platinum Series CRPS 1+1 high-efficiency redundant power supplies. | |
| HDD Backplane: | Supports 8* SAS/STA 12Gbps direct-connect backplanes | |
| HDD Support: | Front panel: 8* 3.5″hot-swappable HDD (or 2.5″HDD compatible), 2* 3.5"/2.5" internal hard drives; Rear panel: 2* 2.5" internal hard drives, 2* 2.5″ NVMe hot-swappable OS modules (optional) | |
| Expansion Slot: | 7 low-profile PCI-e expansion slots | |
| System Cooling Fans: | Integrated shock absorption/standard configuration with 4* 8038 hot-swappable system cooling fan modules (silent version/PWM, high-quality fans with a 50,000-hour warranty). | |
| Optional | ||
| HDD Backplane: | 12* SAS/STA 12Gbps direct-connect backplanes | |
| PSU: | 1+1 redundant: 550W/800W/1300W original power supplies (Platinum) (optional); Single power supply: 600W 80PLUS power supply | |
| HDD OS Module: | 2* 2.5" hot-swappable hard drive enclosures; optional SATA direct-connect backplane + NVMe backplane/built-in 2* 2.5" hard drive brackets | |
| HDD Data Cable: | Customizable data cable lengths available | |
| Power Cable: | 3C-certified high-quality server power cables | |
| Chassis Front Panel: | Customizable 2U front panel | |
| Rack Rails: | 2U support-type rack rails; 2U tool-free quick-release ball bearing fully removable rails | |
| Customization: | Customizable logos, enclosure color, and packaging materials available | |
