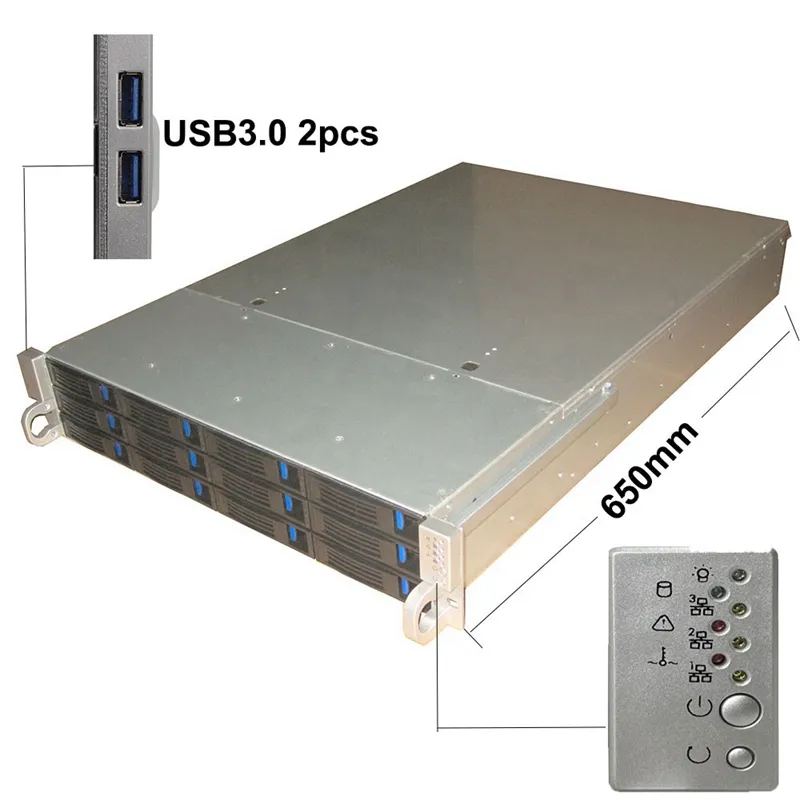

2U 12* HDD Rackmount Server Chassis -OCS2650-H12-F

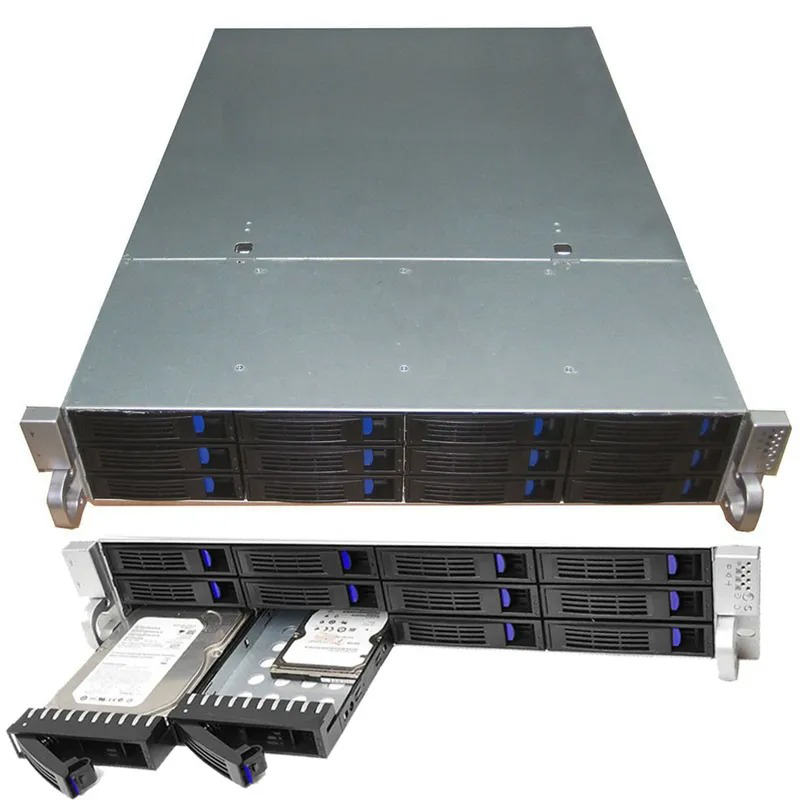

• 2U Rackmount Server Case with 12* 3.5″(or 2.5″) Hot-swappable SATA/SAS drive bay, Mini SAS /SATA connector; 1* 3.5″ internal HDD (or 2* 2.5″ internal HDD)
| • 7* Half-height PCI expansion slot, giving expansion options
Description
Package Information
Inquiry
| Model: | OCS2650-H12-F | |
| 2U Server Chassis: | 650 (D)*482 (W)*88 (H) mm / 25.5*19*3.5 inch; Rackmount style | |
| Material: | 1.0 mm SGCC, panel and handle metal | |

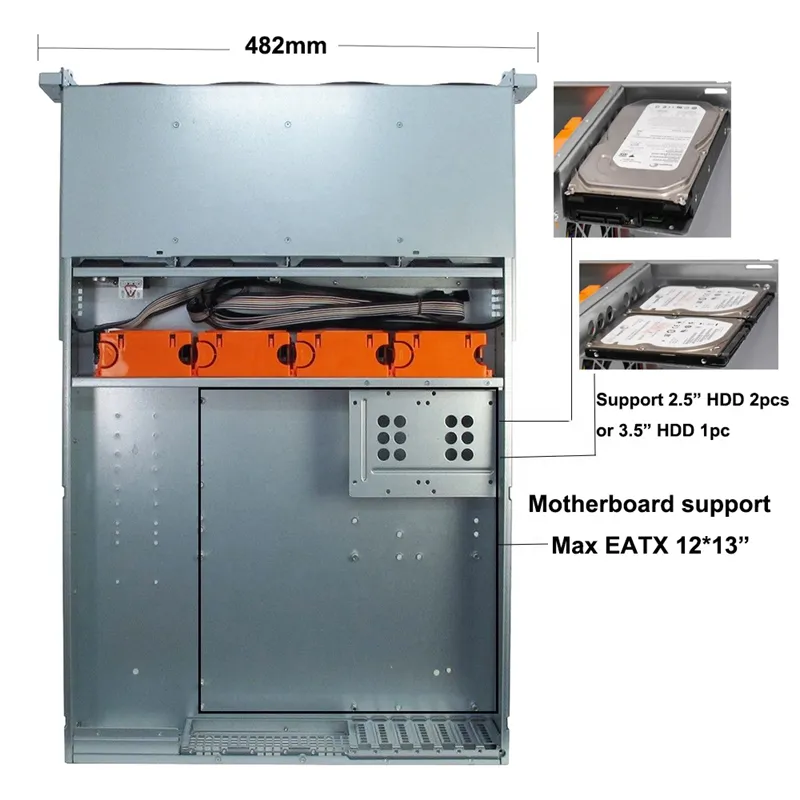

| M/B Support: | EEB (12″* 13″), microATX (9.6″* 9.6″), CEB (12″* 10.5″), ATX (12″* 9.6″), Mini-ITX (6.7″* 6.7″) | |

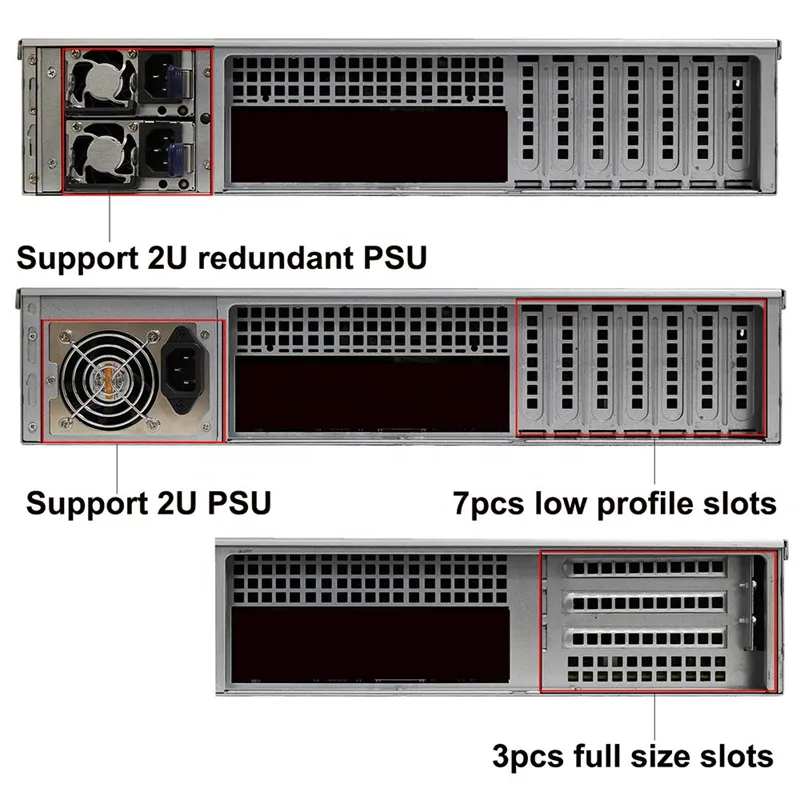

| PSU Support: | 2U power supply / 2U redundant power supply | |

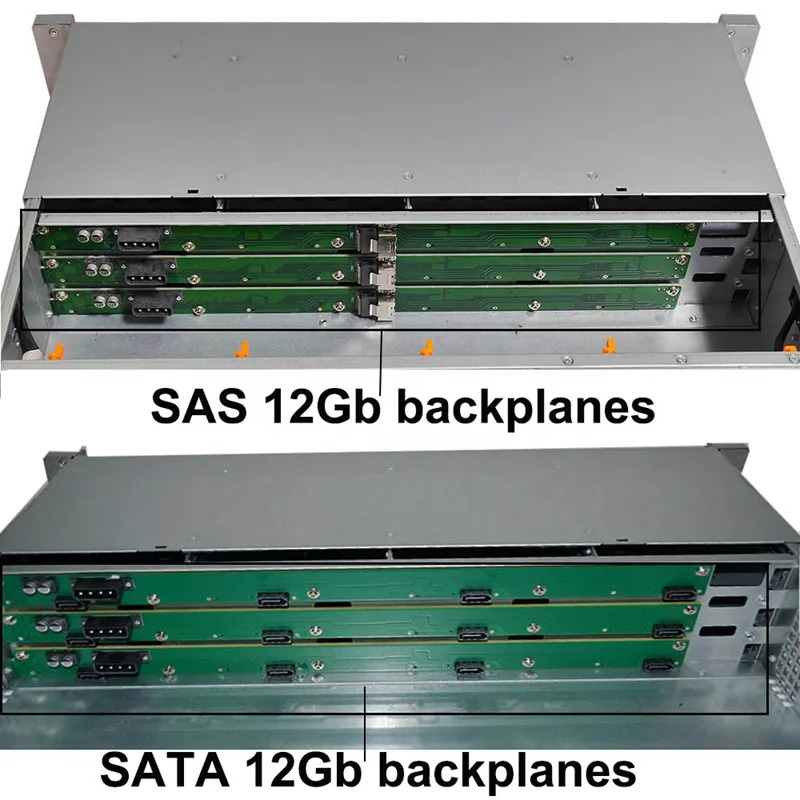

| HDD Backplane: | S-ATA or SAS hot-swap backplane (12Gb/s) | |
| HDD Support: | 12* 3.5″ or 2.5″ external (hot-swap) drive bays; internal 1* 3.5″ or 2* 2.5″ | |
| Expansion: | Riser slots *7 (low-profile) or 3 (full size) | |
| System Cooling Fans: | Middle 4* 80mm fans PWM (hot-pluggable), optional | |

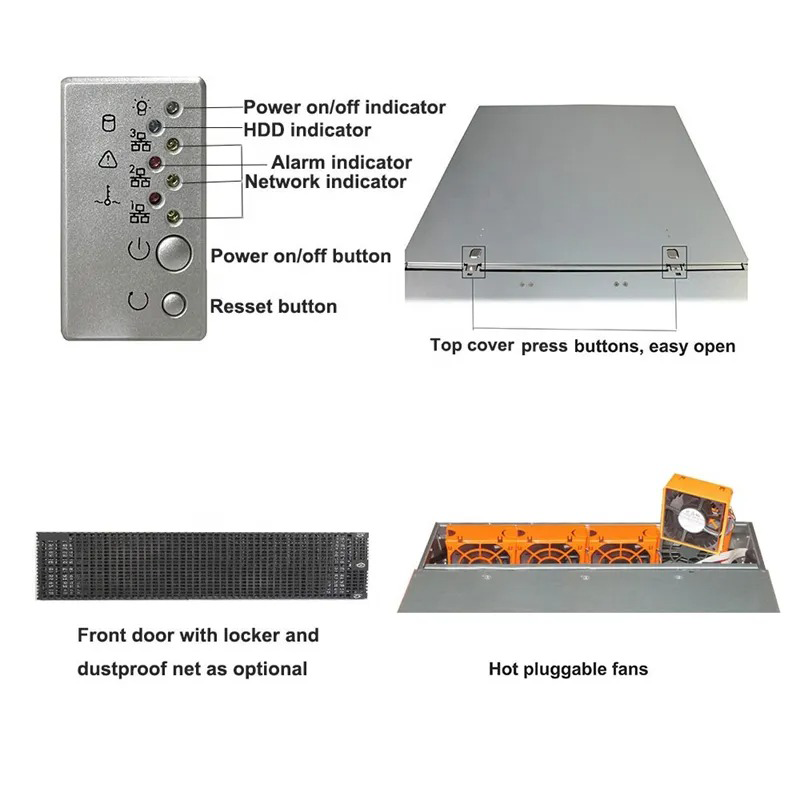

| Front Panel: | 1* Power SW, 1* Reset; 1* Power LED, 1* HDD LED, 3* Network LED, 1* Alarm LED; 2* USB3.0 | |
| Net Weight: | 12 kg | |
| Gross Weight: | 14 kg | |
| Packing Size: | D830* W555* H155 mm / 32.6* 21.8* 6.1 inch | |
| Packing Material: | Polyfoam with carton box | |
| Environment Temperature: | 0/55 ℃, 32/131 ℉ (Operating) -20/60 ℃, -4/140 ℉ (Non-Operating) | |
| Relative Humidity: | 5% to 95%, non-condensing | |
| Gross Weight: | 14 kg | |
| Packing Size: | D830* W555* H155 mm / 32.6* 21.8* 6.1 inch | |
| Packing Material: | Polyfoam with carton box | |
