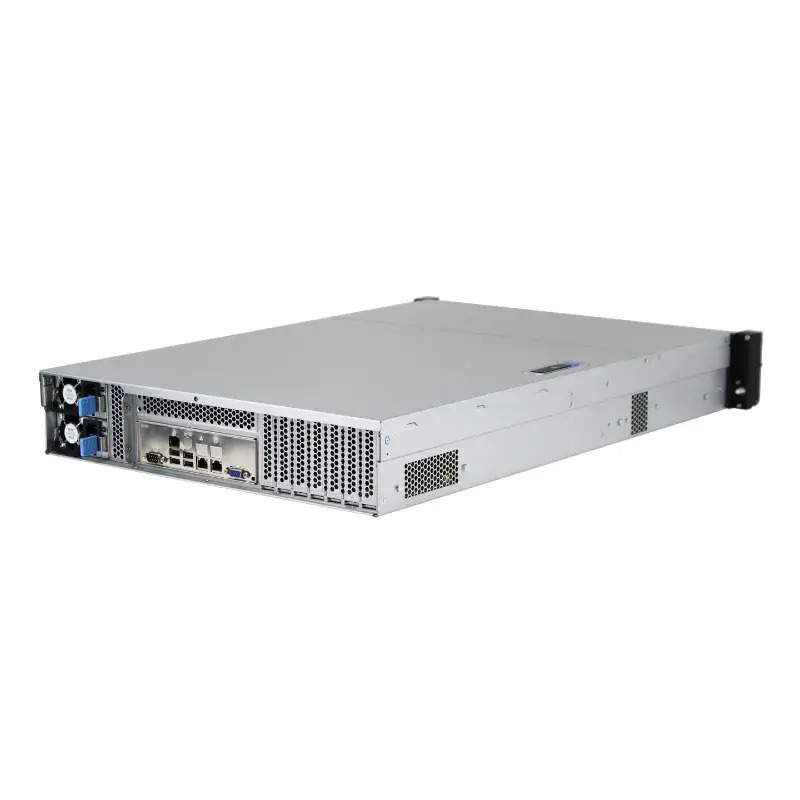

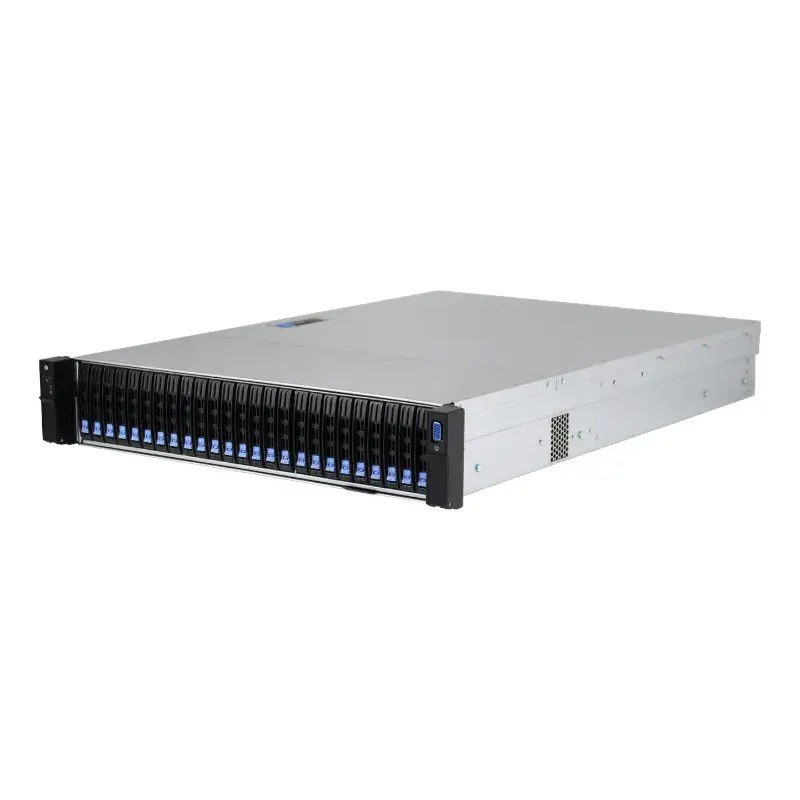

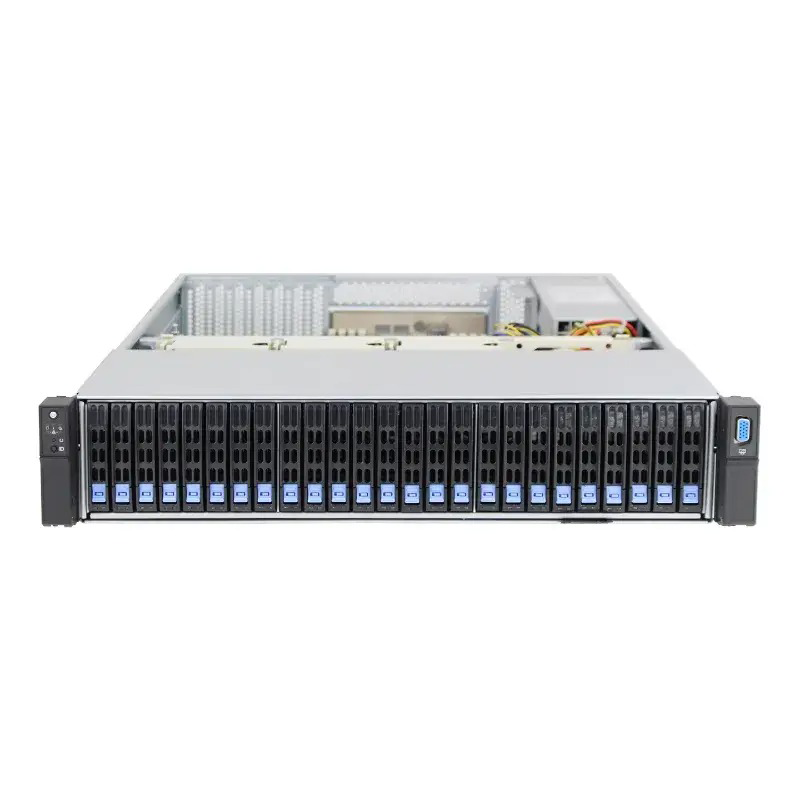

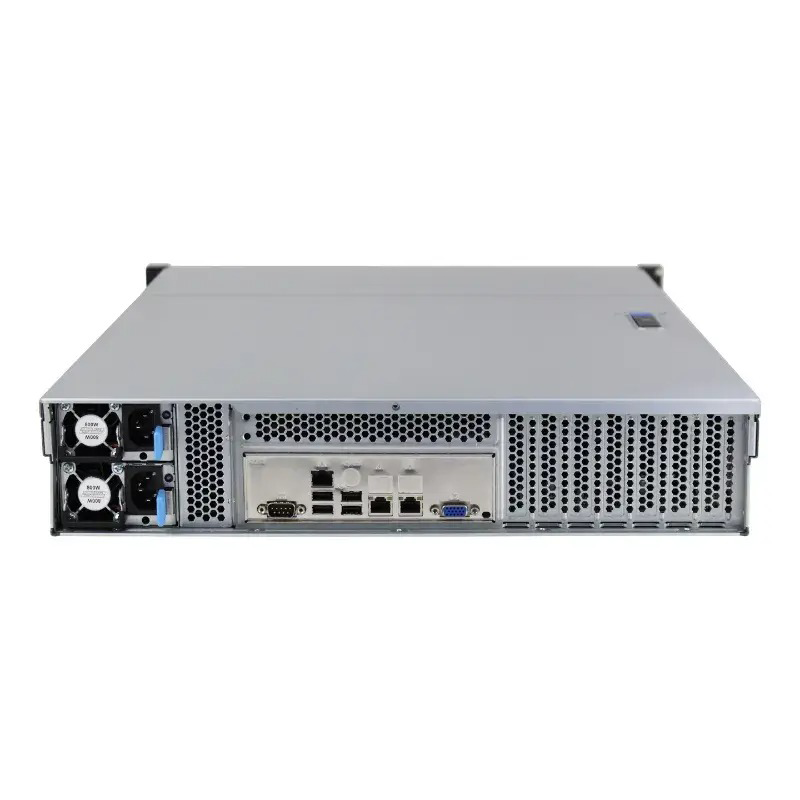

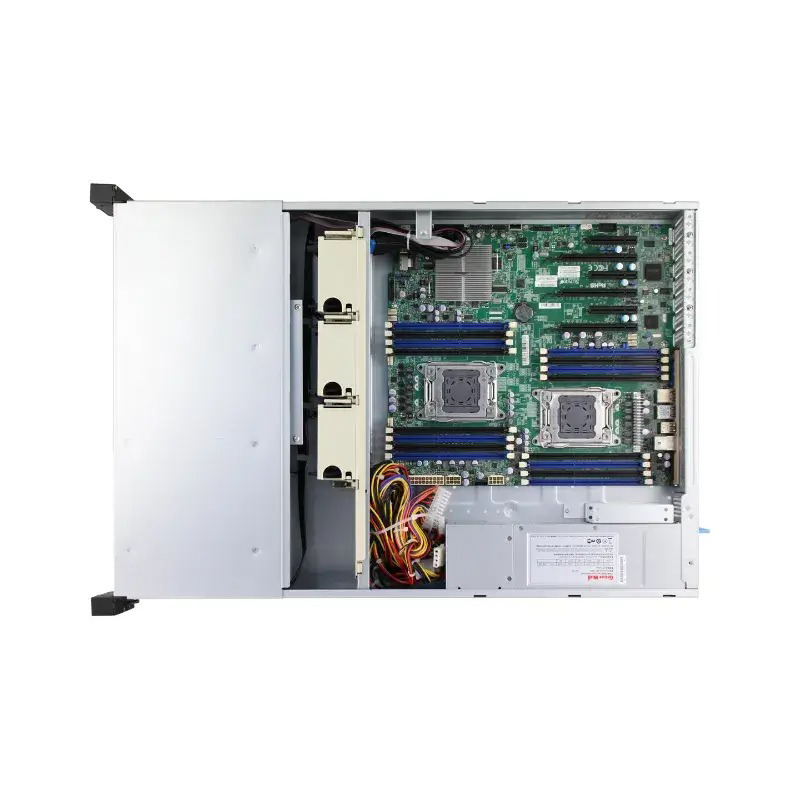

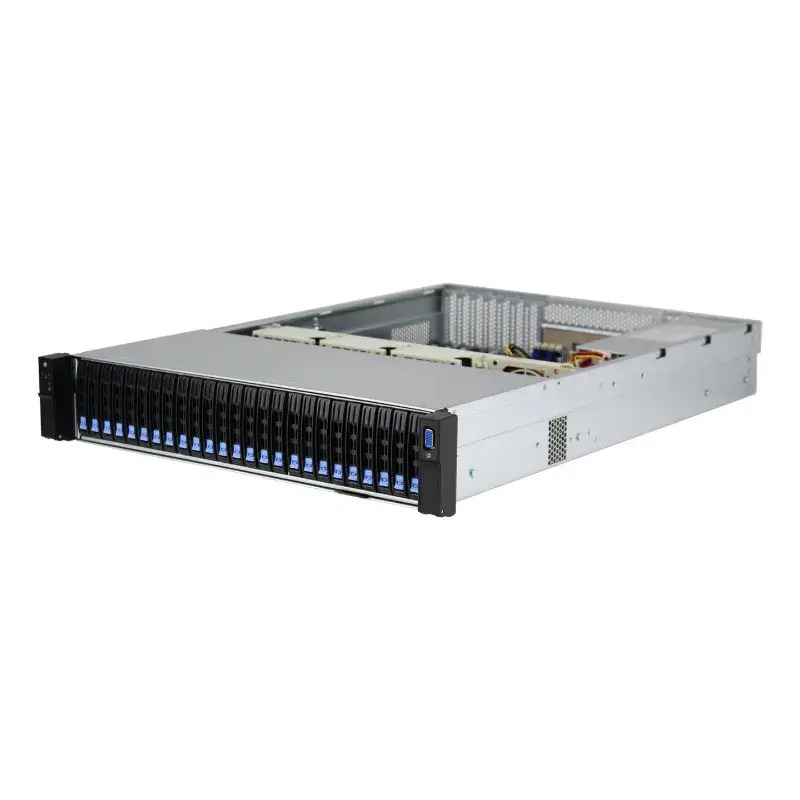

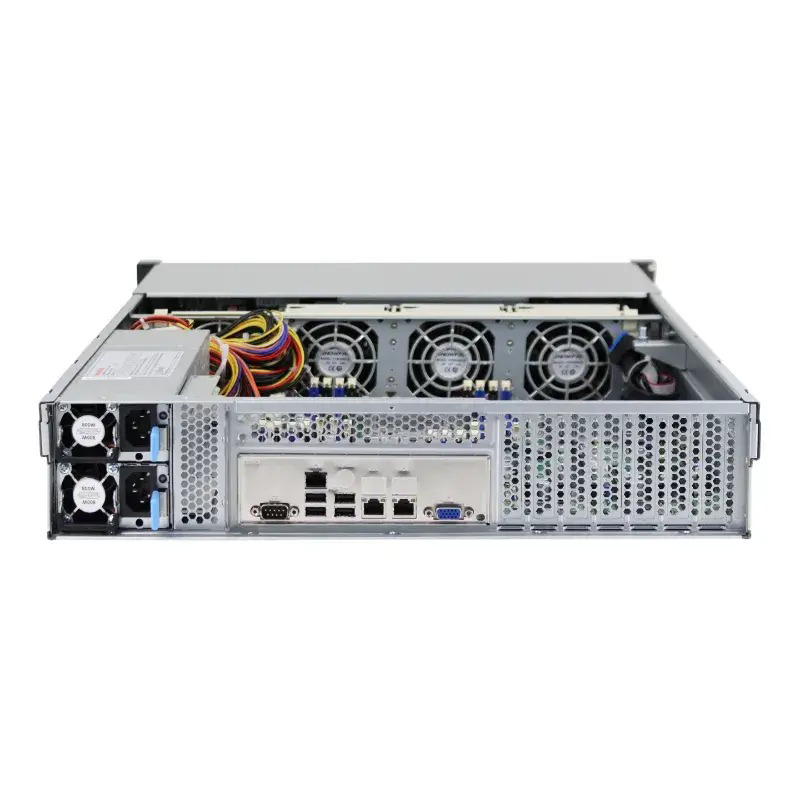

2U 25* HDD Rackmount Server Chassis -OCSM2650S-H25-T
> • 25* front 2.5″ Hot-Swap HDD/SDD, HDD 1-3 supports SAS/SATA/NVME three hard disk modes, HDD 4-24
| • Support SATA/SAS hard disk mode
| • 7* Half-height PCI expansion slot, 1* VGA port, giving expansion options
Description
Package Information
Inquiry
| Model: | OCSM2650S-H25-T | |
| 2U Server Chassis: | 650 (D)*437.5 (W)*88 (H) mm; Rackmount style | |
| Material: | Sinosteel, environmental protection, anti-fingerprint 1.0 mm SGCC | |
| Surface Treatment: | Handle and hanging ears are sandblasted and oxidized bright black, and other steel plates are of natural color | |
| HDD Backplane: | 12Gb/s MiniSAS HD interface (12Gb Expander backplane), with temperature control, SGPIO, time-sharing startup, hard disk short circuit protection, support cold storage | |
| HDD Support: | 25 front 2.5″ HDD/SSD, HDD 1-3 support SAS/SATA/NVME three hard drive modes, HDD 4-24 support SATA/SAS hard drive mode | |
| I/O Expansion: | 7 Half height PCle expansion slots | |
| System Cooling Fans: | Standard 3* 8038 hot-swap fan slots | |
| Applicable Motherboard: | 12″ x 13″(E-ATX) and below size motherboard | |
| Applicable PSU: | Compatible with standard 2U power supply or CRPS redundant power supply | |
| External Interface: | Front USB3.0 *2, Front VGA port *1 | |
| System Control: | 1* Power LED, 1* HDD LED, 2* NIC LED, 1* UID LED, 1* OH/FAN FaiL LED, 1* Power Fail LED; 1* Power SW, 1* UID SW, 1* Reset | |
| Internal Accessories: | Power bracket, screw bag | |
| Safety Standards: | GB/T 13914-2002 | |
| Packing Info: | Pearl cotton + inner box + corner guard + outer box | |
| Applicable Field: | Cloud storage, cloud computing, big data, security monitoring, and other fields | |
| Operaing Temperature: | 10°C-35°C (without direct light); extended operating temperature: 5°C-40°C (restrictive configuration satisfied); storage temperature: 20%-90% | |
| Transportation & Storage Temperature: | -40°C-70°C | |
