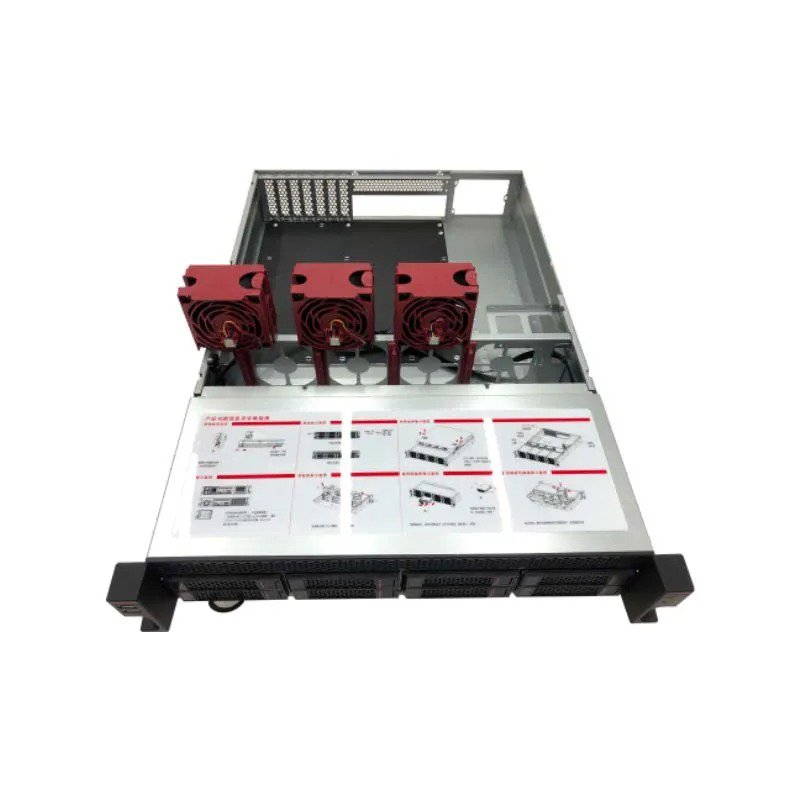

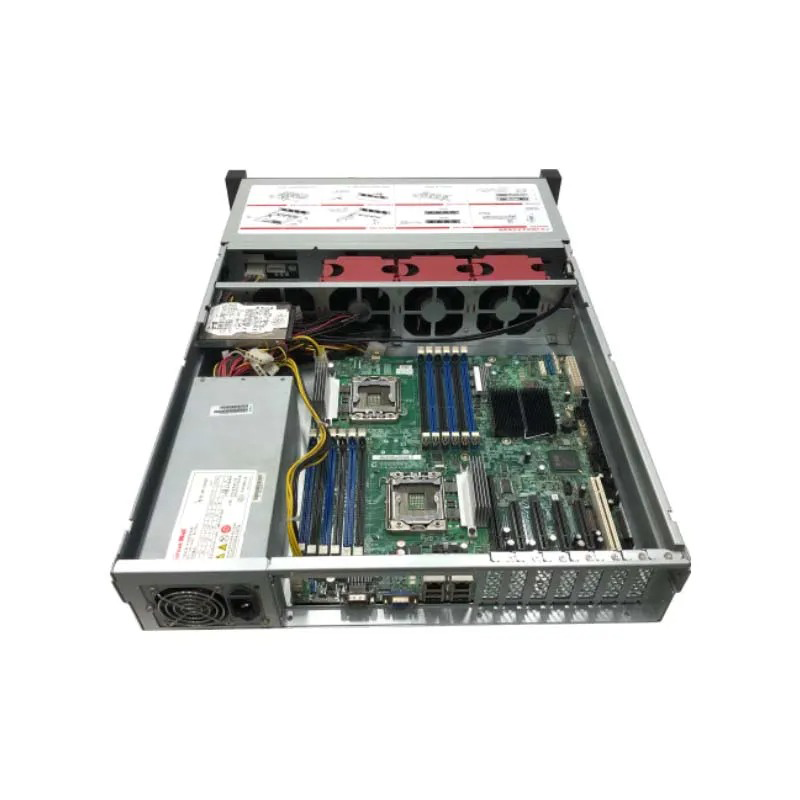

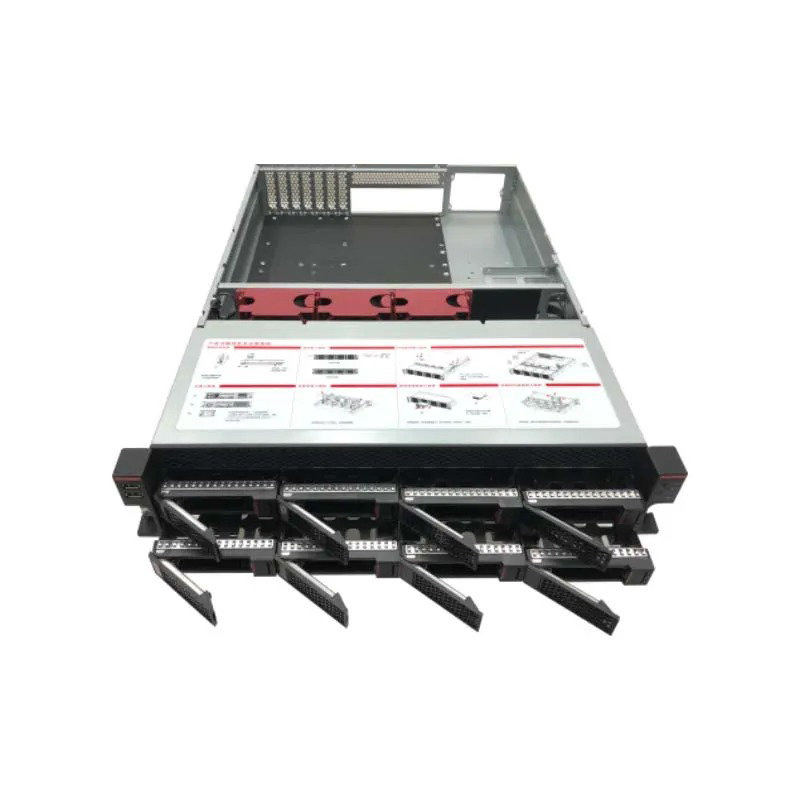

2U 8* HDD Rackmount Server Chassis -OCS2661-8-GD
• 8* 3.5″(or 2.5″) Hot-Swap HDD
| • 7* Half-height PCI expansion slot, giving expansion options
Description
Package Information
Inquiry
| Model: | OCS2661-8-GD | |
| 2U Server Chassis: | 661 (D)*435 (W)*88 (H) mm, excluding handle height | |
| Material: | 1.0-1.2 mm thick high-strength galvanized steel (SGCC) | |
| Surface Treatment: | Black powder for the ears of the chassis, anti-baking sand grain black for the HDD bracket, and no paint for the main part of the chassis | |
| HDD Support: | 8* 3.5″ hot-swappable HDD | |
| HDD Backplane: | 1. Rear window horizontal card module (including PCI-E adapter card) 2. Rear window vertical card module 3. All-in-one power accessories combination 4. Redundant power supply accessories combination 5. Redundant power supply + 2.5TRAY disk *2 bracket combination 6. Support 2.5″ SSD *5 | |
| I/O Expansion: | 7 Half height cards or 1 full-height card | |
| System Cooling Fans: | Support 4* (80*80*38mm) fans, hot-swappable fan structure to ensure sufficient cooling requirements | |
| Applicable Motherboard: | Support Extended ATX / ATX / micro ATX / EEB / CEB motherboard | |
| Applicable PSU: | 2U standard power supply / 2U redundant power supply | |
| External Interface: | Front panel USB2.0 *2 | |
| Environment Temperature: | 0℃-40℃ (Operating/ Working); -10℃-70℃ (Non-Operating) | |
| Container Loading Qty: | 20GP: 331; 40GP: 728 | |
| Optional | ||
| 1. 8038 Fan 6000 RPM 4PIN Double Roller *3 | ||
| 2. Backplane 6GB (4 Bay) *2 | ||
| 3. Backplane 12GB (4 Bay) *2 | ||
| 4. Backplane 12GB (8 Bay) with temperature control, SGPIO function *1 | ||
| 5. Backplane 12GB (8 Bay) 8-port MINI-SAS 4-port compatible with Nvme U.2, with temperature control, SGPIO function *1 | ||
| 6. Front USB3.0 *2 | ||
| 7. Rear 2* 2.5″ HDD module *1 | ||
| 8. Dedicated slide rails/pairs | ||
| 9. Horizontal card rear window module + riser card *1 | ||
