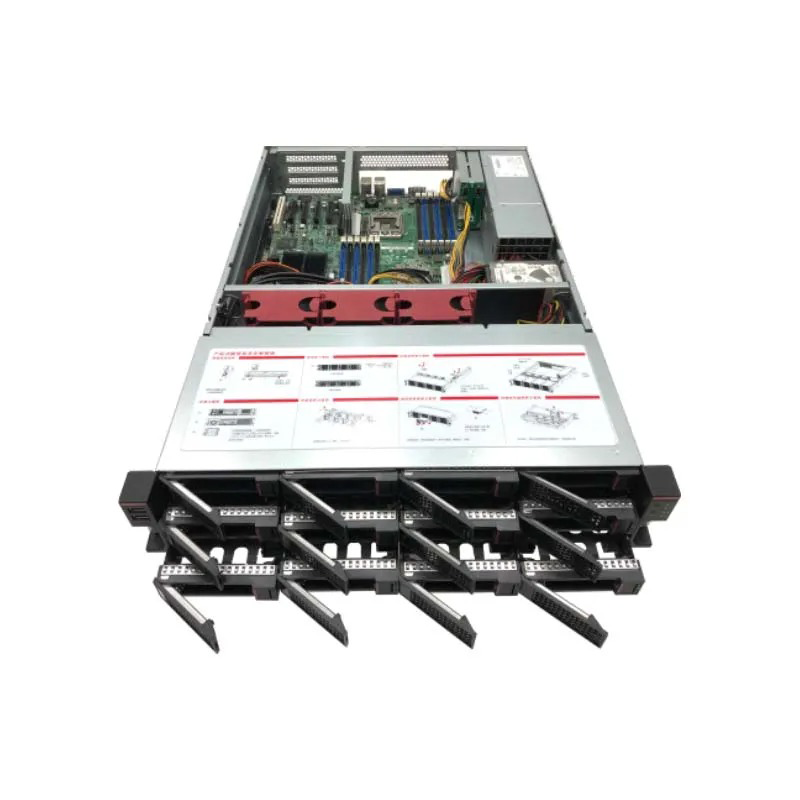

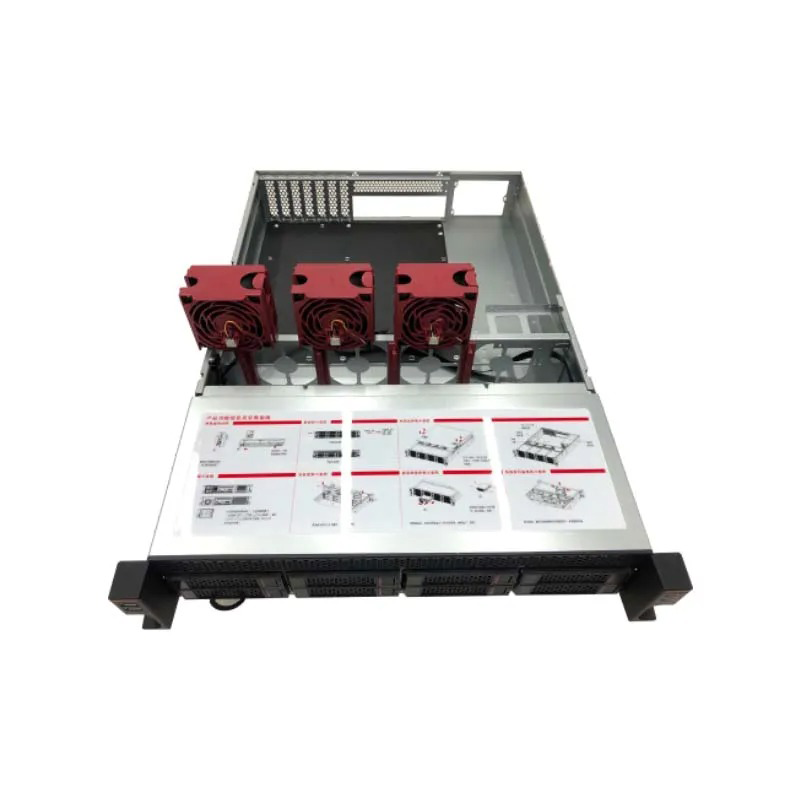

2U 12* HDD Rackmount Server Chassis -OCS2661-12-GD
• 12* 3.5″(or 2.5″) Hot-Swap HDD
| • 7* Half-height PCI expansion slot, giving expansion options
Description
Package Information
Inquiry
| Model: | OCS2661-12-GD | |
| 2U Server Chassis: | 661 (D)*435 (W)*88 (H) mm, excluding handle height | |
| Material: | 1.0-1.2 mm thick high-strength galvanized steel (SGCC) | |
| Surface Treatment: | Black powder for the ears of the chassis, anti-baking sand grain black for the HDD bracket, and no paint for the main part of the chassis | |
| HDD Support: | 12* 3.5″ hot-swappable HDD | |
| HDD Backplane: | 1. 12 BAY rear window horizontal card module 2. 12 BAY rear window vertical card module 3. 12 BAY integrated power supply accessories combination 4. 12 BAY redundant power supply accessories combination 5. 12 BAY redundant power supply + 2.5TRAY disk *2 bracket combination | |
| I/O Expansion: | 7 Half height cards or 1 full-height card | |
| System Cooling Fans: | Support 4* (80*80*38mm) fans, hot-swappable fan structure to ensure sufficient cooling requirements | |
| Applicable Motherboard: | Support Extended ATX / ATX / micro ATX / EEB / CEB motherboard | |
| Applicable PSU: | 2U standard power supply / 2U redundant power supply | |
| External Interface: | Front panel USB2.0 *2 | |
| Environment Temperature: | 0℃-40℃ (Operating/ Working); -10℃-70℃ (Non-Operating) | |
| Container Loading Qty: | 20GP: 331; 40GP: 728 | |
| Optional | ||
| 1. 8038 Fan 6000 RPM 4PIN Double Roller *3 | ||
| 2. Backplane 6GB (4 Bay) *3 | ||
| 3. Backplane 12GB (4 Bay) *3 | ||
| 4. Backplane 12GB (12 Bay) with temperature control, SGPIO function *1 | ||
| 5. Backplane 12GB (12 Bay) 12-port MINI-SAS 4-port compatible with Nvme U.2, with temperature control, SGPIO function *1 | ||
| 6. Expansion backplane 12GB with temperature control, SGPIO function (12Bay) *1 | ||
| 7. Front USB3.0 *2 | ||
| 8. Rear 2* 2.5″ HDD module *1 | ||
| 9. Dedicated slide rails/pairs | ||
| 10. Horizontal card rear window module + riser card *1 | ||
