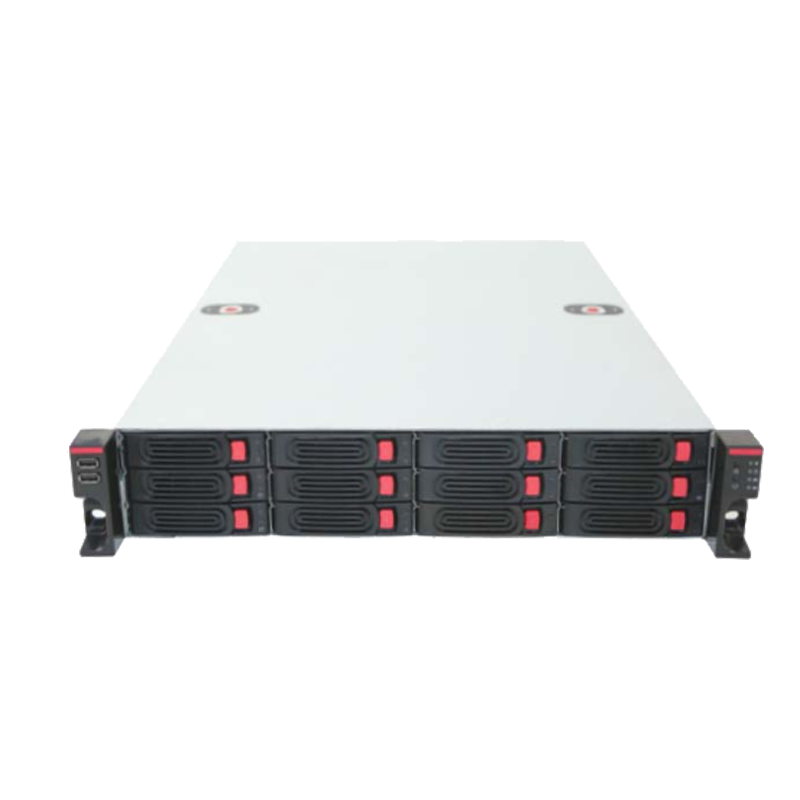

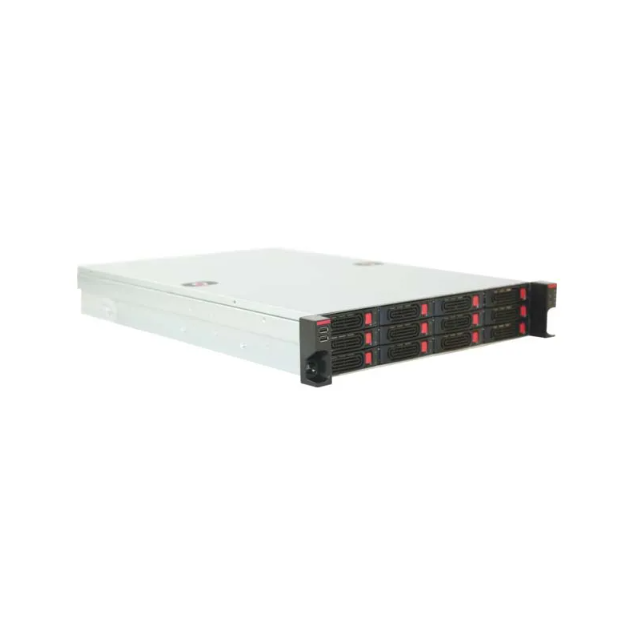

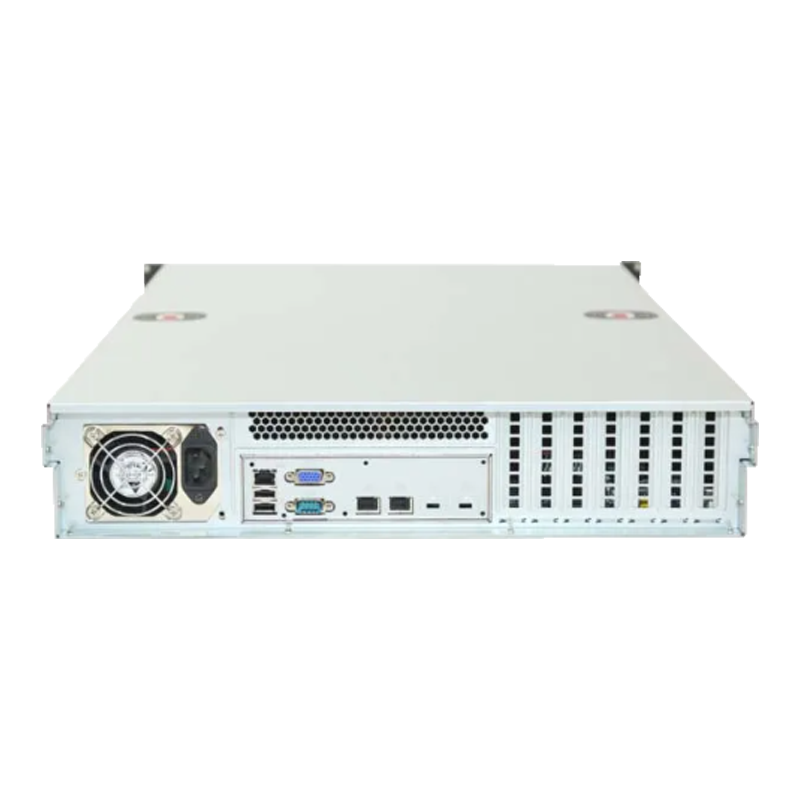

2U 12* HDD Rackmount Server Chassis -OCS2660-12-GD
• 12* 3.5″(or 2.5″) Hot-Swap HDD
| • 7* Half-height PCI expansion slot, giving expansion options
Description
Package Information
Inquiry
| Model: | OCS2660-12-GD | |
| 2U Server Chassis: | 660 (D)*430 (W)*87 (H) mm, excluding handle height | |
| Material: | 1.0-1.2 mm thick high-strength galvanized steel (SGCC) | |
| Surface Treatment: | Black powder for the ears of the chassis, no paint for the chassis body | |
| HDD Support: | Standard 12* 3.5″ hot-swappable tray | |
| I/O Expansion: | 7 Half height cards | |
| System Cooling Fans: | Support 4* (80*80*38mm) fans in the middle to ensure sufficient cooling requirements | |

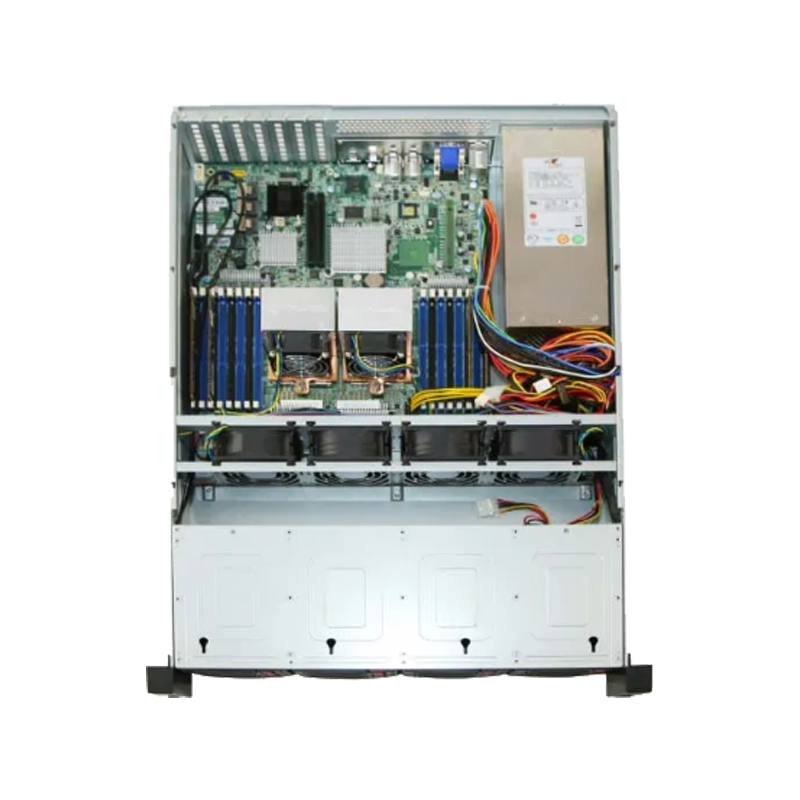

| Applicable Motherboard: | Support Extended ATX / ATX / micro ATX / EEB / CEB motherboard | |
| Applicable PSU: | 2U standard power supply / 2U redundant power supply | |
| External Interface: | Front panel USB2.0 *2 | |
| Environment Temperature: | 0℃-40℃ (Operating/ Working); -10℃-70℃ (Non-Operating) | |
| Container Loading Qty: | 20GP: 336; 40GP: 672 | |
| Optional | ||
| 1. 8038 Fan 6000 RPM 4PIN, 4PCS | ||
| 2. Backplane 6GB (4 Bay) *3 | ||
| 3. Backplane 12GB (4 Bay) *3 | ||
| 4. Backplane 12GB (12 reels with expansion) *1 | ||
| 5. Front USB3.0 *1, USB2.0 *1 | ||
| 6. Server-specific slide rails | ||
