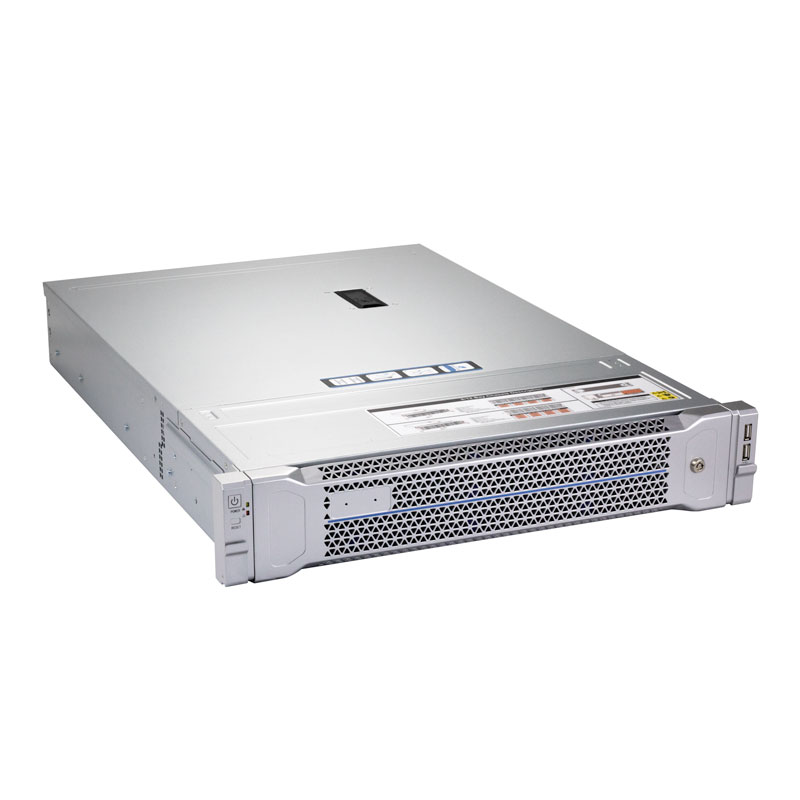

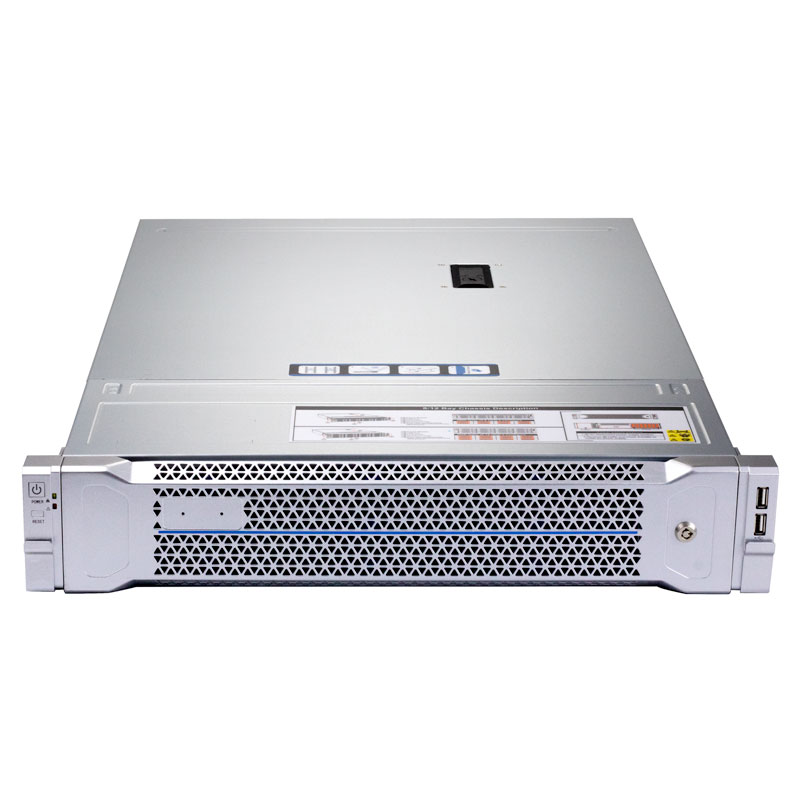

2U 12* HDD Rackmount Server Chassis -OC265-12-LX
• 12* 3.5″(or 2.5″) Hot-Swap HDD
| • 7* Half-height PCI expansion slot,and Micro-ATX compatibility giving expansion options
Description
Package Information
Inquiry
| Model: | OC265-12-LX | |
| 2U Server Chassis: | 650 (D)*436 (W)*90 (H) mm; Rackmount style | |
| Material: | 1.0 mm SGCC | |
| M/B Support: | EATX (12″* 13″), CEB (12″* 10.5″), ATX (12″* 9.6″), microATX (9.6″* 9.6″) | |
| PSU Support: | 2U power / CRPS POWER | |
| HDD Backplane: | 12Gb/s SAS backplane (12Gb/s SAS Expander backplane optional) | |
| HDD Support: | 12* 3.5″ or 2.5″ external (hot-swap) drive bays | |
| Expansion: | 7* Half-heigh PCI slot | |
| System Cooling Fans: | 3* 8038 Fan, High speed, high air volume, high air pressure | |
| Front Panel: | 1* Power SW, 1* System Reset; 1* Power LED, 1* HDD LED, 2* Network LED, 1* Faul/Alarm LED; 2* USB2.0; 1* Safety Mask | |
| Gross Weight: | 15 kg | |
| Packing Size: | D805* W580* H215 mm (0.1CBM) | |
| Container Loading Qty: | 20GP: 280; 40GP: 580; 40HC(HQ): 680 | |
| Environment Temperature: | 0/55 ℃, 32/131 ℉ (Operating) -20/60 ℃, -4/140 ℉ (Non-Operating) | |
| Relative Humidity: | 5% to 95%, non-condensing | |
