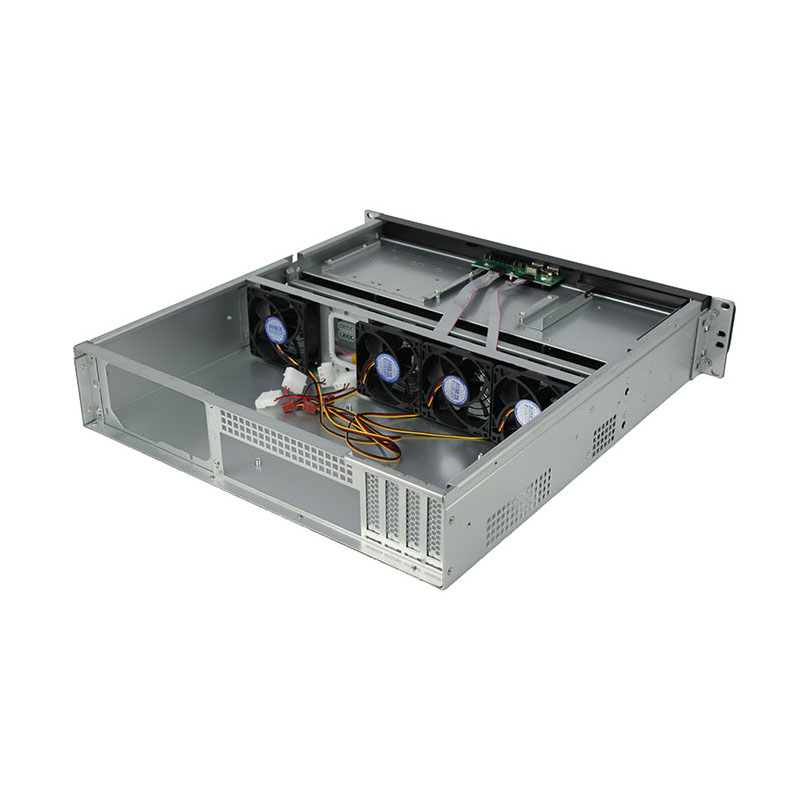

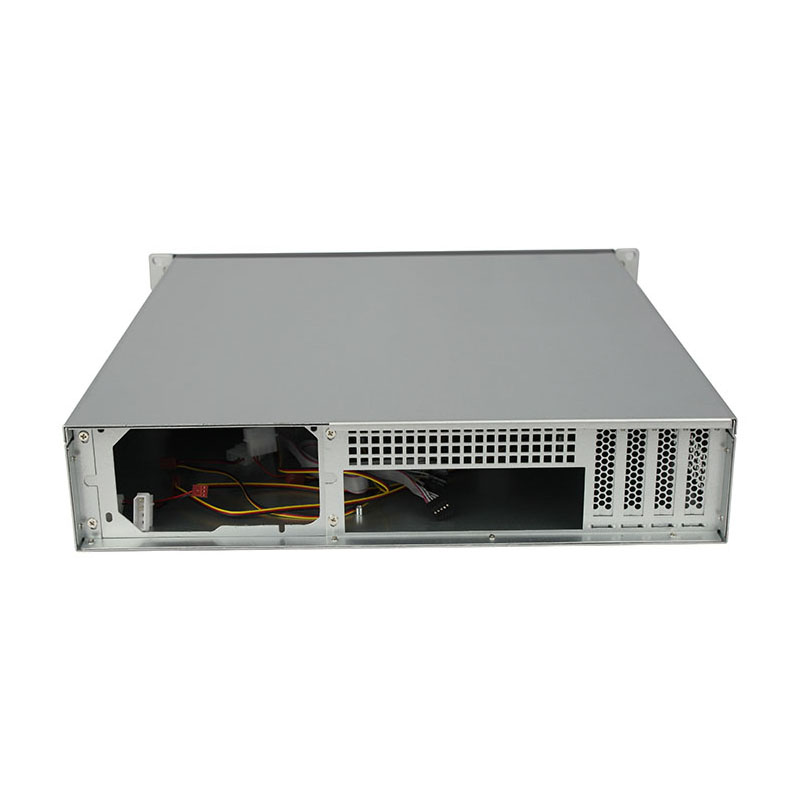

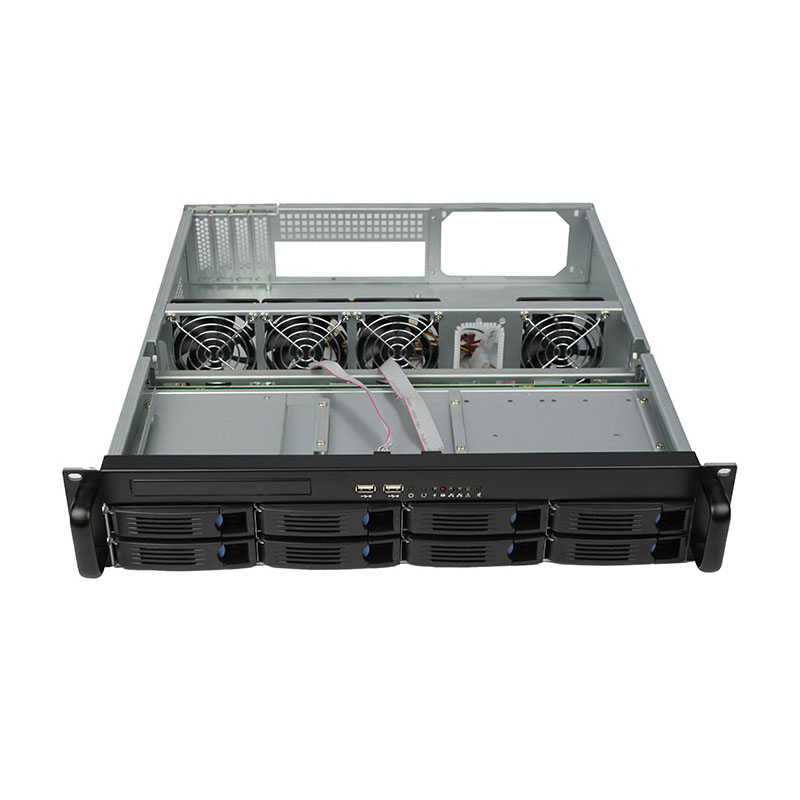

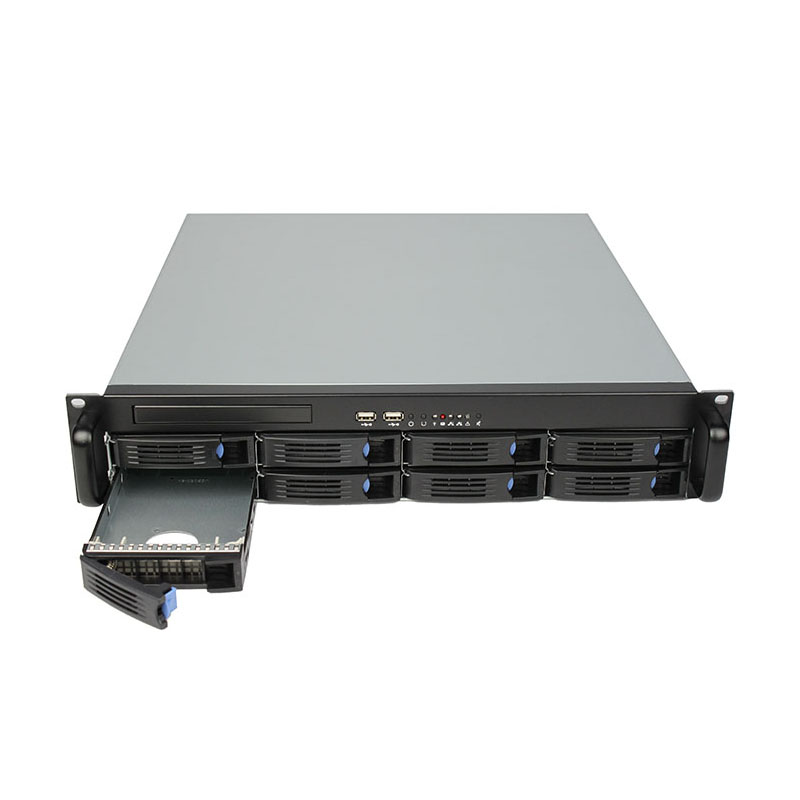

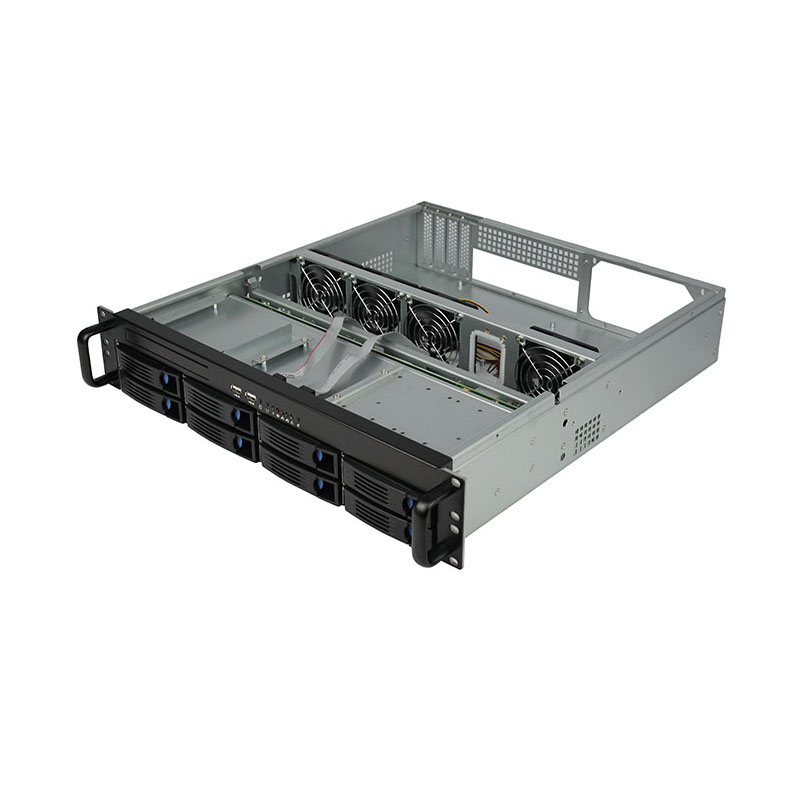

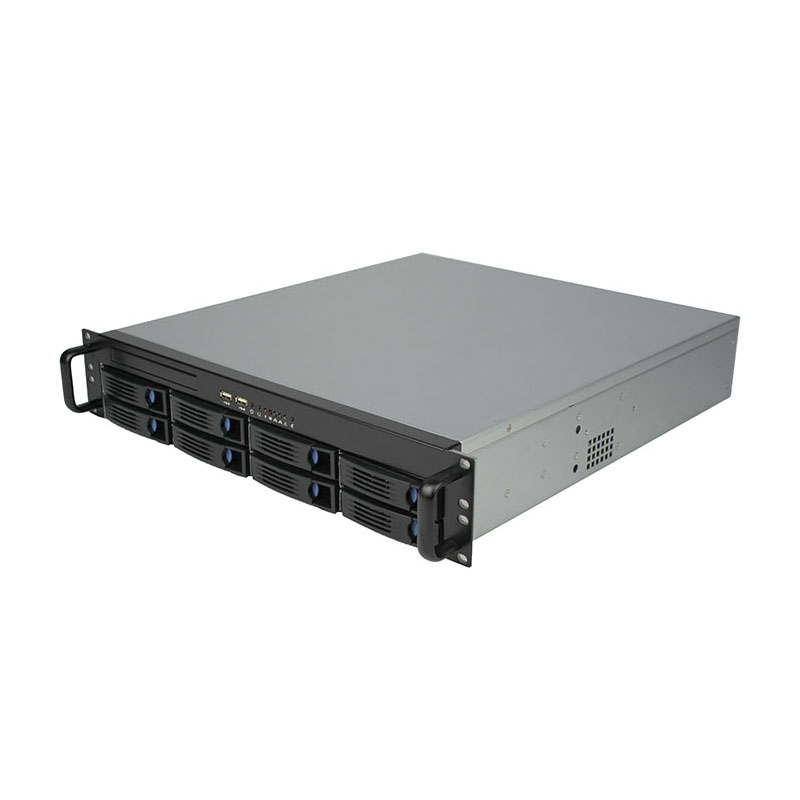

2U 8* HDD Rackmount Server Chassis -OC248-8-M
• 8* 3.5″(or 2.5″) Hot-Swap HDD
| • 1* 5.25“ Slim CD-ROM Drive
| • 4* Half-height PCI expansion slot (option)
Description
Package Information
Inquiry
| Model: | OC248-8-M | |
| 2U Server Chassis: | 482 (D)*480 (W)*89 (H) mm; Rackmount style | |
| Material: | 1.2 mm SGCC | |
| M/B Support: | 12″ * 9.6″(305 * 245mm) | |
| PSU Support: | ATX PSU | |
| HDD Backplane: | 12Gb/s SAS backplane (12Gb/s SAS Expander backplane optional) | |
| HDD Support: | 8* 3.5-inch Hard Disk + 1* 3.5 HDD bracket | |
| CD-ROM: | 1* 5.25″ Slim CD-ROM Drive | |
| Expansion: | 4* Half-heigh PCI slot | |
| System Cooling Fans: | 3* 8025 | |
| Front Panel: | Power switch with indicator, Reset *1; USB2.0 *2 | |
| Net Weight: | 8.78 kg | |
| Gross Weight: | 12.15 kg | |
| Packing Size: | D64* W58* H22 cm (0.082CBM) | |
| Container Loading Qty: | 20GP: 340; 40GP: 700; 40HC(HQ): 800 | |
| Environment Temperature: | 0/55 ℃, 32/131 ℉ (Operating) -20/60 ℃, -4/140 ℉ (Non-Operating) | |
| Relative Humidity: | 5% to 95%, non-condensing | |
