2U 4* HDD Rackmount Server Chassis -OCS2480-H4-F
2U Rackmount Server Case with 4 Hot-Swappable SATA/SAS Drive Bay, MiniSAS /SATA connector
| • 4* 3.5″(or 2.5″) Hot-Swap HDD
| • 7* Half-height PCI expansion slot (option)
Description
Package Information
Inquiry
| Model: | OCS2480-H4-F | |

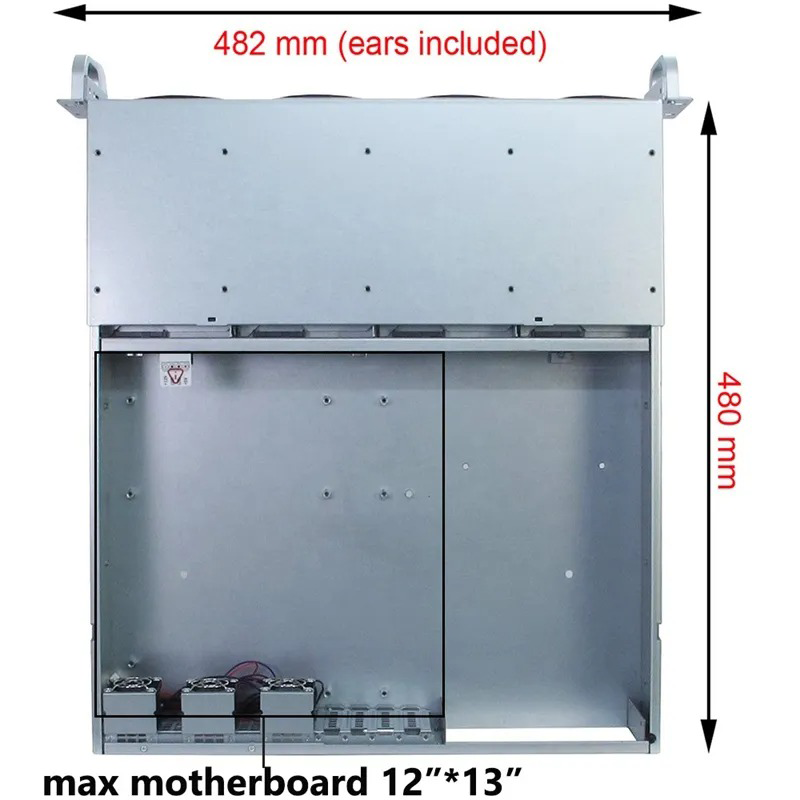

| 2U Server Chassis: | 480 (D)*482 (W)*88 (H) mm; 18.9*19*3.5 inch; Rackmount style | |
| Material: | 1.2 mm SGCC, Metal Panel & Handle | |
| M/B Support: | EATX(12″* 13″), CEB (12″* 10.5″),ATX (12″* 9.6″),microATX (9.6″* 9.6″), Mini-ITX (6.7″* 6.7″) | |
| PSU Support: | ATX power supply / 1U power supply / 2U power supply | |

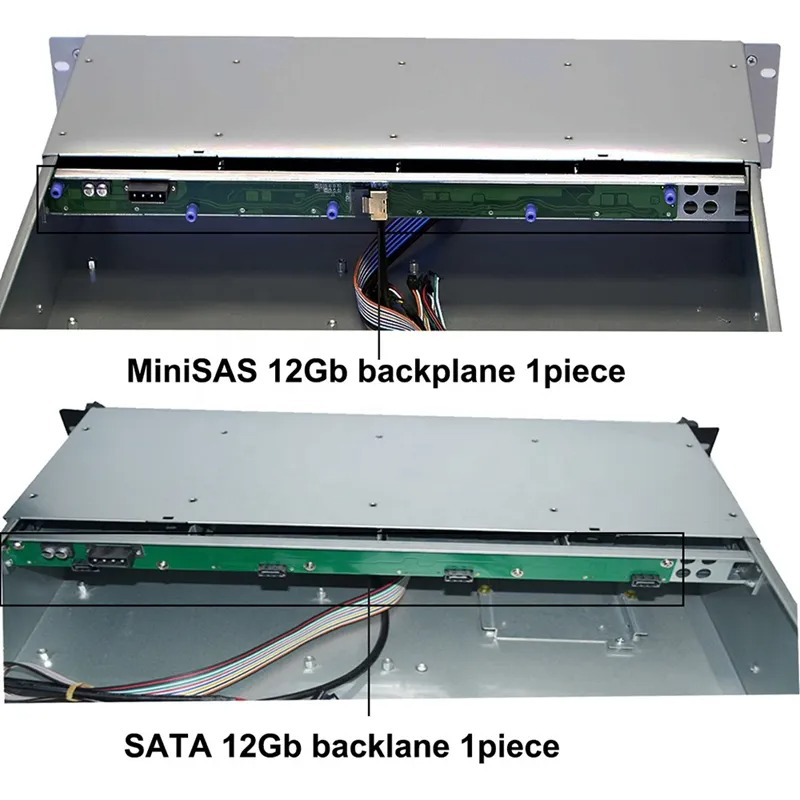

| HDD Backplane: | 12Gb/s(max) S-ATA or SAS backplane | |

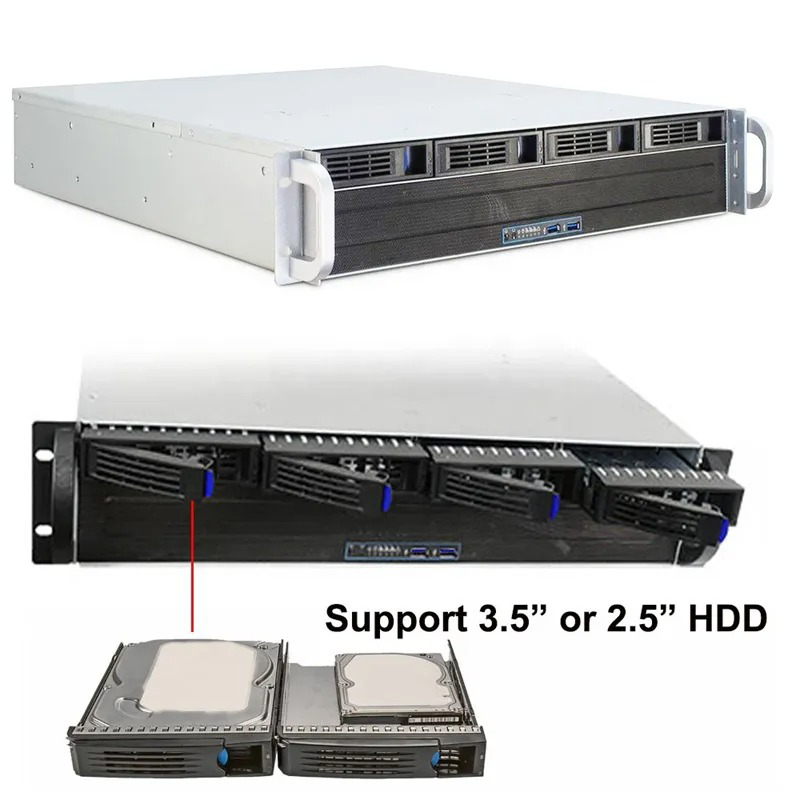

| HDD Support: | 4* 3.5″ or 2.5″ external (hot-swap) drive bays | |

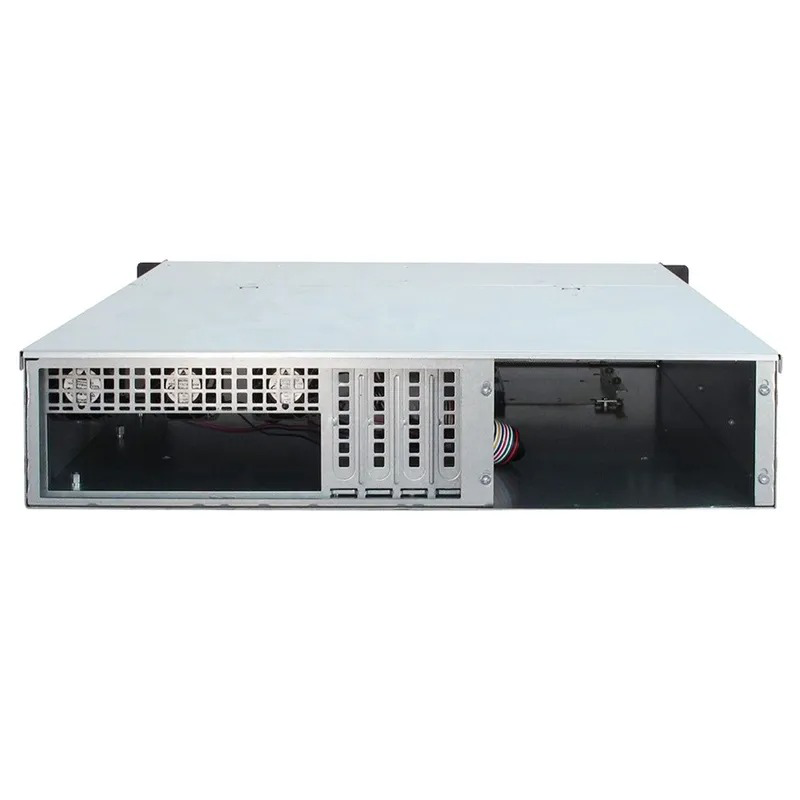

| Expansion: | 4* (low-profile) /7* (low-profile) Riser slot | |

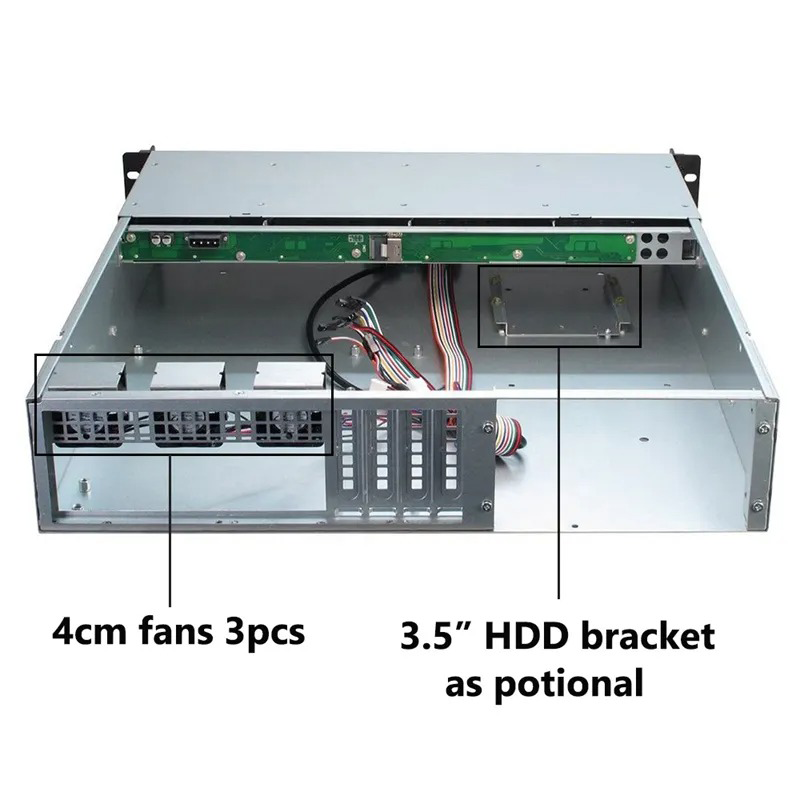

| System Cooling Fans: | 3* 40mm fans at rear | |
| Front Panel: | 1* Power SW, 1* System Reset; 1* Power LED, 1* HDD LED, 3* Network LED, 1* Faul/Alarm LED; 2* USB3.0 | |
| Net Weight: | 6.7 kg | |
| Gross Weight: | 8.7 kg | |
| Packing Size: | D680* W555* H155 mm; 26.7*21.8*6.1 inch | |
| Packing Material: | Polyfoam with carton box | |
| Environment Temperature: | 0/55 ℃, 32/131 ℉ (Operating) -20/60 ℃, -4/140 ℉ (Non-Operating) | |
| Relative Humidity: | 5% to 95%, non-condensing | |
| Net Weight: | 6.7 kg | |
| Gross Weight: | 8.7 kg | |
| Packing Size: | D680* W555* H155 mm; 26.7*21.8*6.1 inch | |
| Packing Material: | Polyfoam with carton box | |
