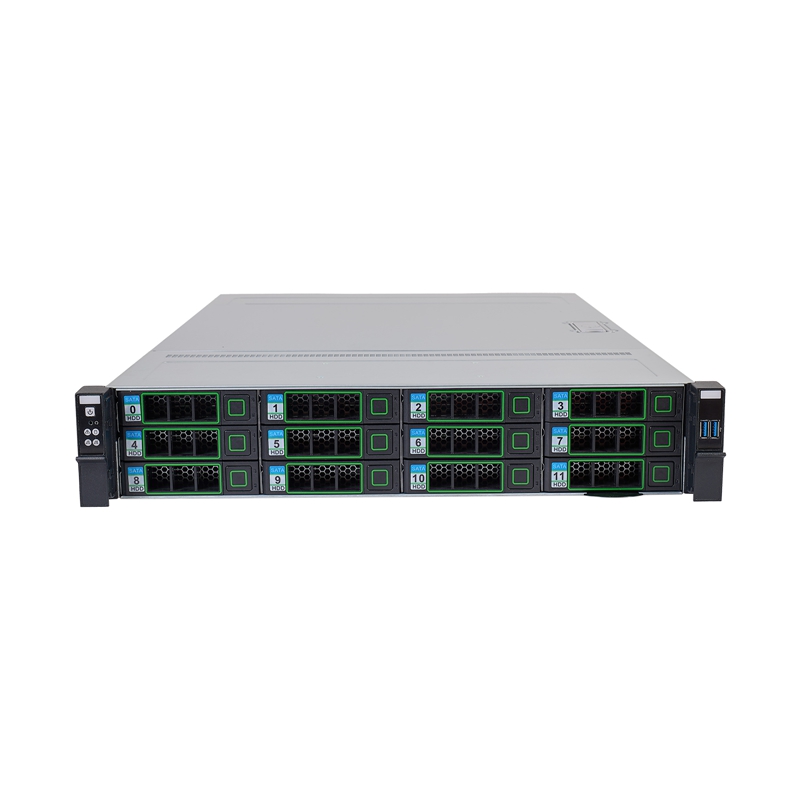

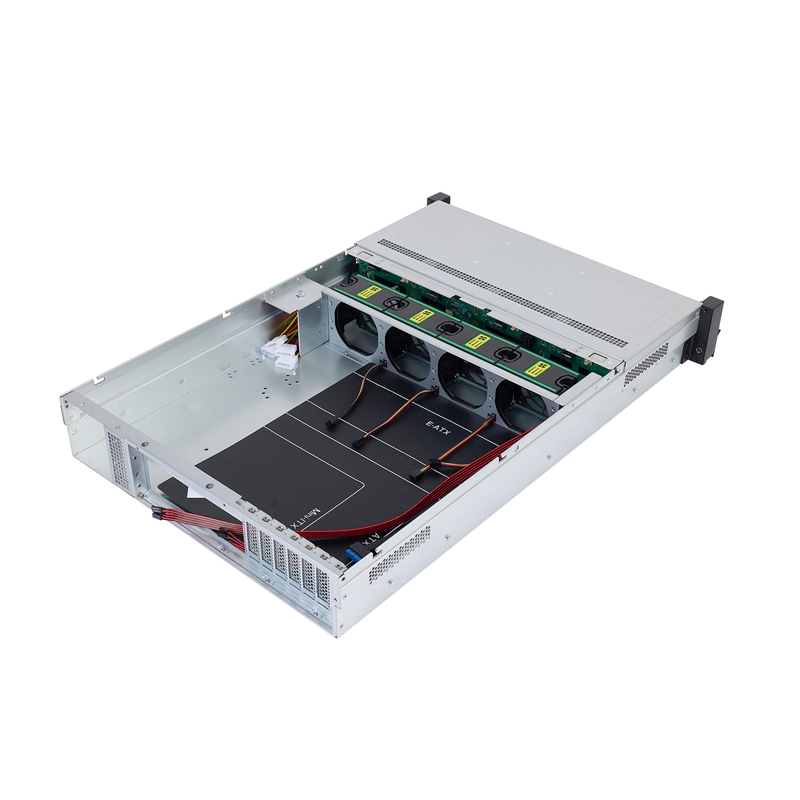

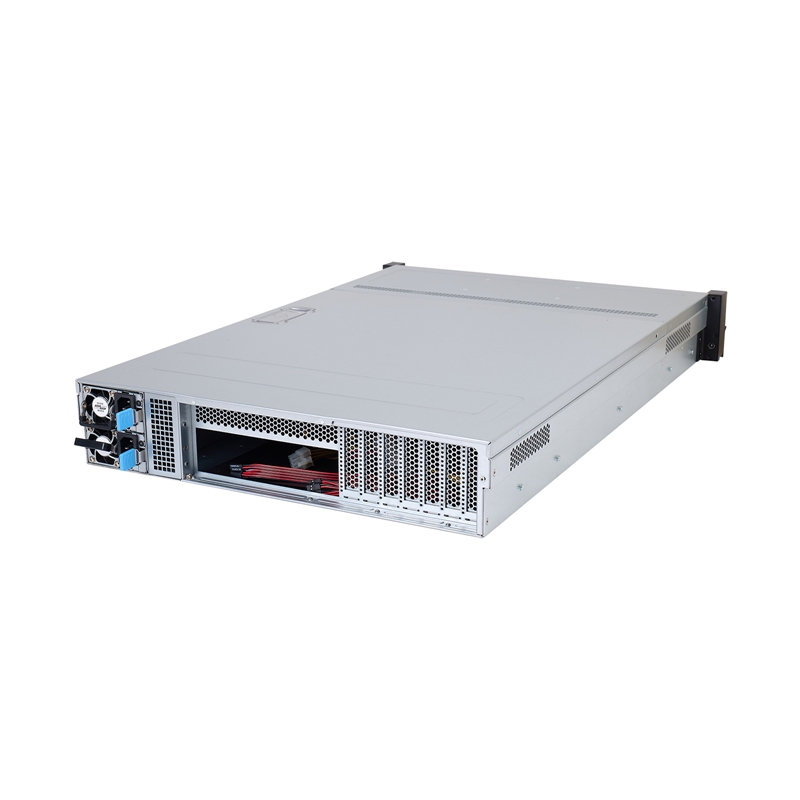

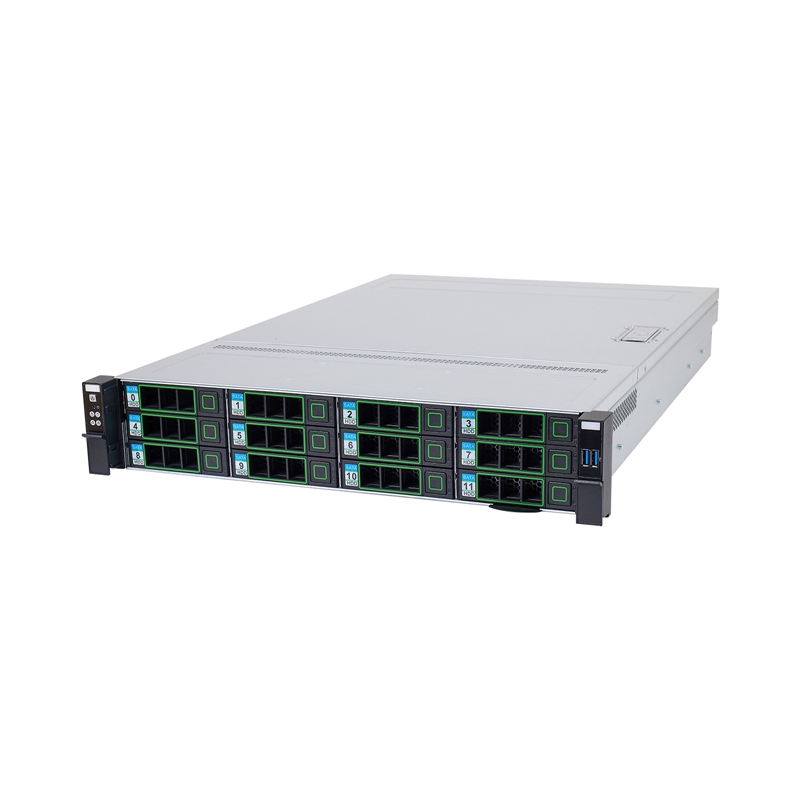

2U Storage Server Chassis - OC-2680-12B
server case
Description
Package Information
Inquiry
| Model | OC-2680-12B |
| Material | 1.2 mm SGCC |
| Dimension | 680mm*482mm*89mm (D*W*H), 2U rackmount case |
| Drive bays | 12* 3.5″ hotswap HDD, optional 2*2.5" hotswap HDD at rear |
| M/B form factor | Support motherboard size up to E-ATX (12"*13"), ATX (12"*9.6"), Micro-ATX(9.9"*9.6"), ITX (7"*7") |
| Power | 2U Power & Redundant power |
| Backplane | 12G bps SATA/ SAS |
| Cooling fan | 3* 8cm fan |
| Front Panel | Power ON/OFF*1,HDD*1, NIC*2, Power Alarm *1,Power ON/OFF Switch*1, System reset Switch*1 |
| Expansion space | 7* Half-height PCI-E expansion slots |
| USB ports | USB 3.0* 2 |
| Rail | Support |
| Package | Double carton |
| Net weight | 14KG |
| Gross weight | 16.1KG |
| Package size | 87*58*26CM (D*W*H) |
| Color | White |
| Application | Storage, application servers, and security system. |
