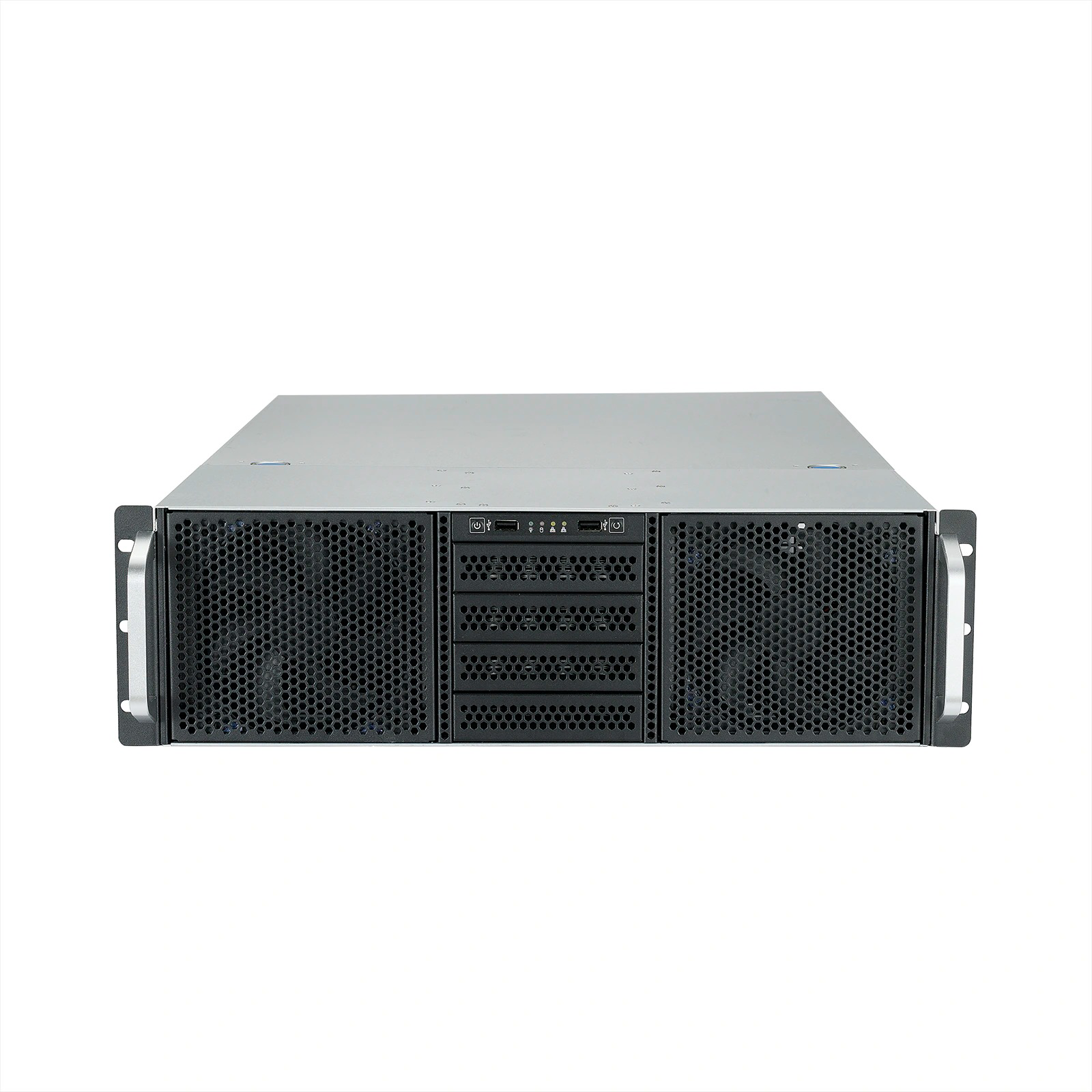

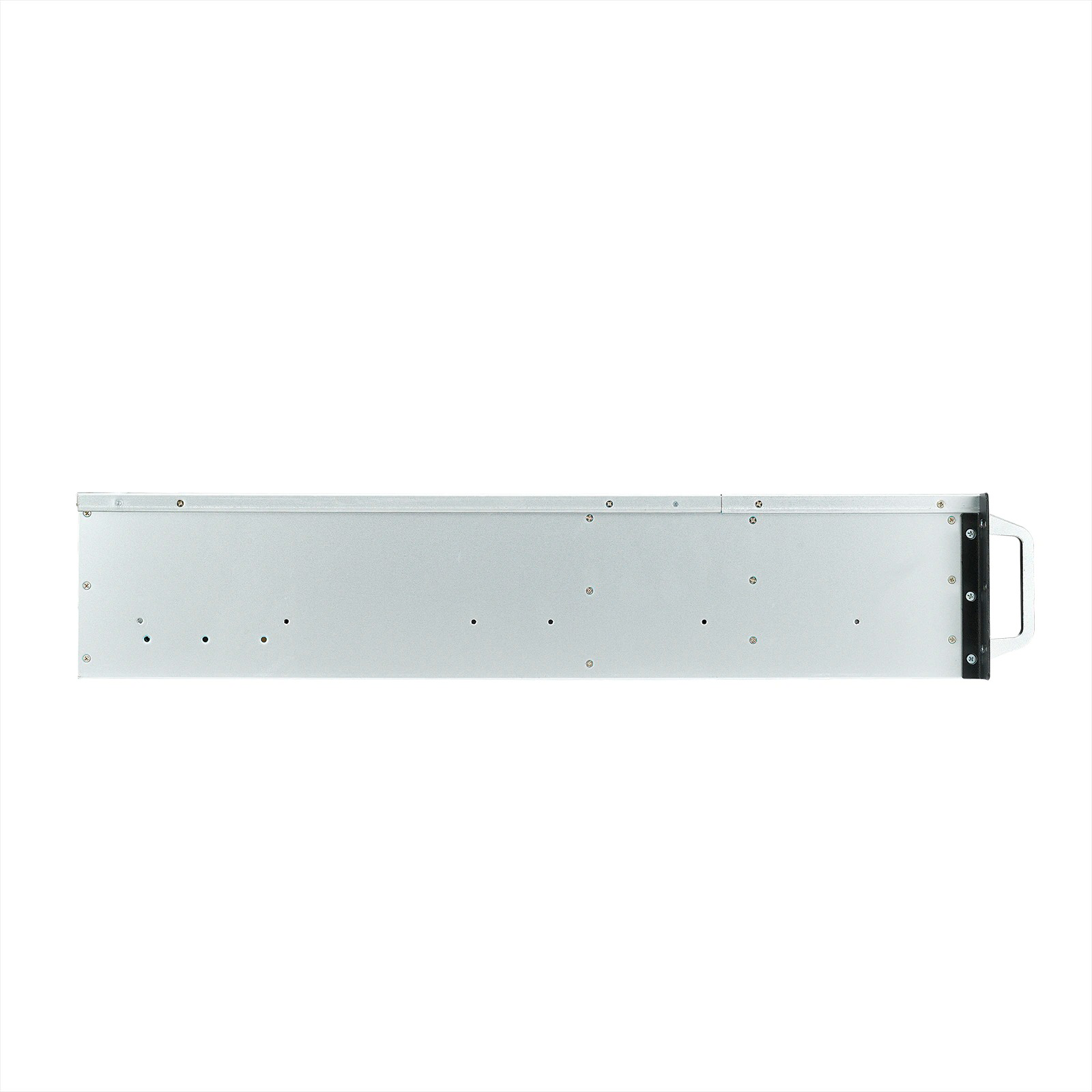

3U Rackmount Chassis- OC3650-Y
• Robust 3U rackmount chassis suitable for housing an ATX motherboard
| • Durable galvanized steel construction, black powder sprayed honeycomb hole panel
| • Efficient cooling system
| • Ample storage capacity for HDDs and SSD
| • Convenient USB connect
| > Power Supply not include
Description
Package Information
Inquiry
| Model: | OC3650-Y (Barebone System) |
| 3U Rackmount Chassis: | D650 × W430 × H132 mm |
| Material: | 1.0 mm galvanized steel plate |
| Surface Treatment: | Panel 1.0 honeycomb hole, black powder spraying; Aluminum handle |
| Cabinet: | Black dusting |
| MB Compatibility: | Support ATX (maximum size within 305* 244 mm) |
| Fan Configuration: | Standard 5* 1225 fans, optional 2* 8025 (2500 rpm with oil) |
| PSU Form Factor: | ATX power supply |
| HDD Bay: | Support 14* 3.5" HDD and 1* 2.5" SSD |
| Expansion Slot: | 4* Full-Height PCI expansion bits |
| Front Panel Control: | Switch key/USB2.0 interface* 2 |
| Operaing Temperature: | 10°C-35°C (without direct light) ; extended operating temperature: 5°C-40°C (restrictive configuration satisfied); storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
