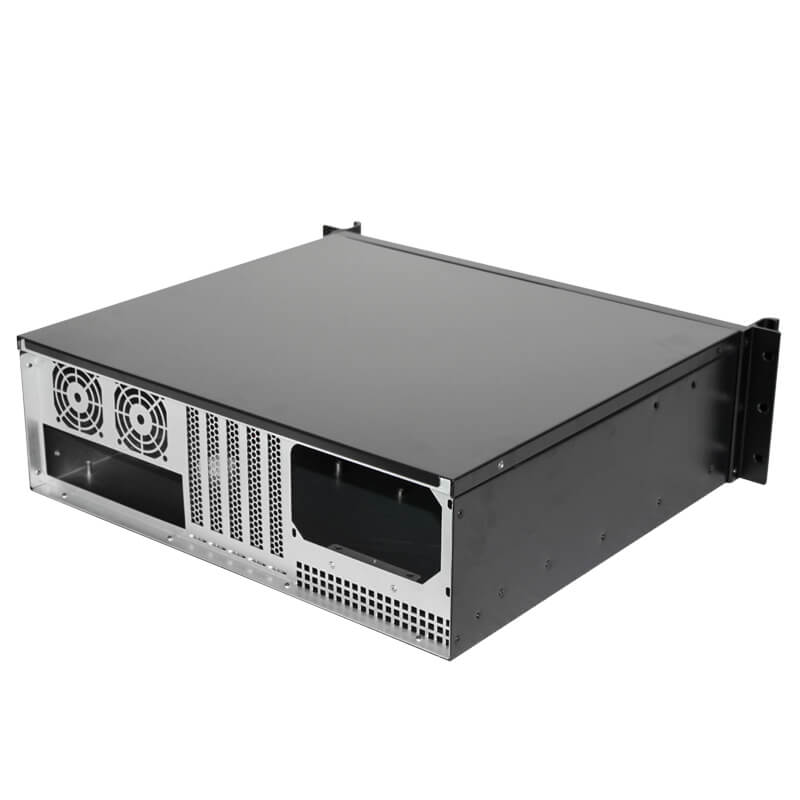

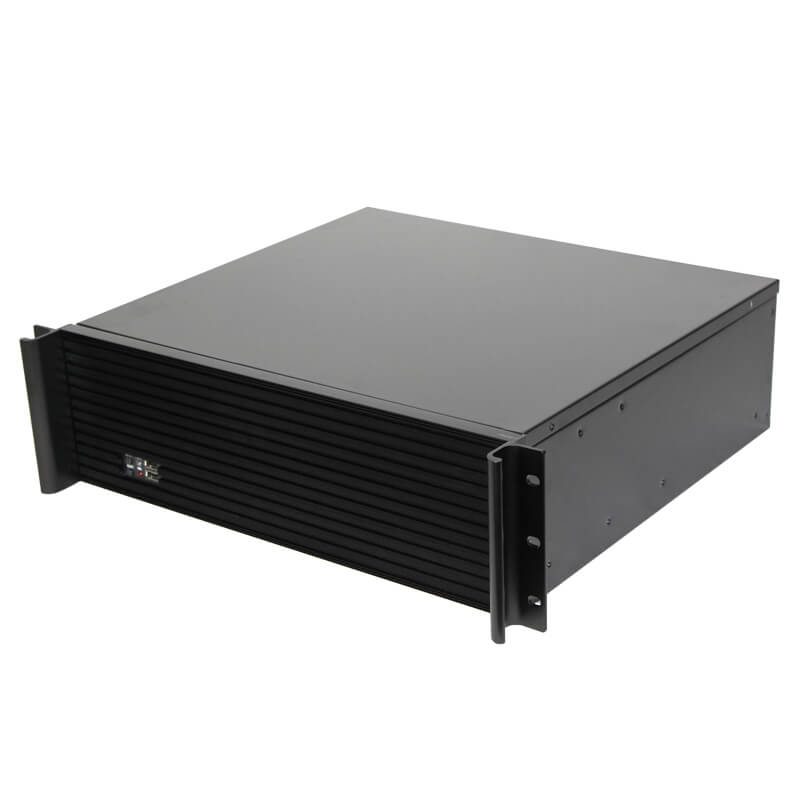

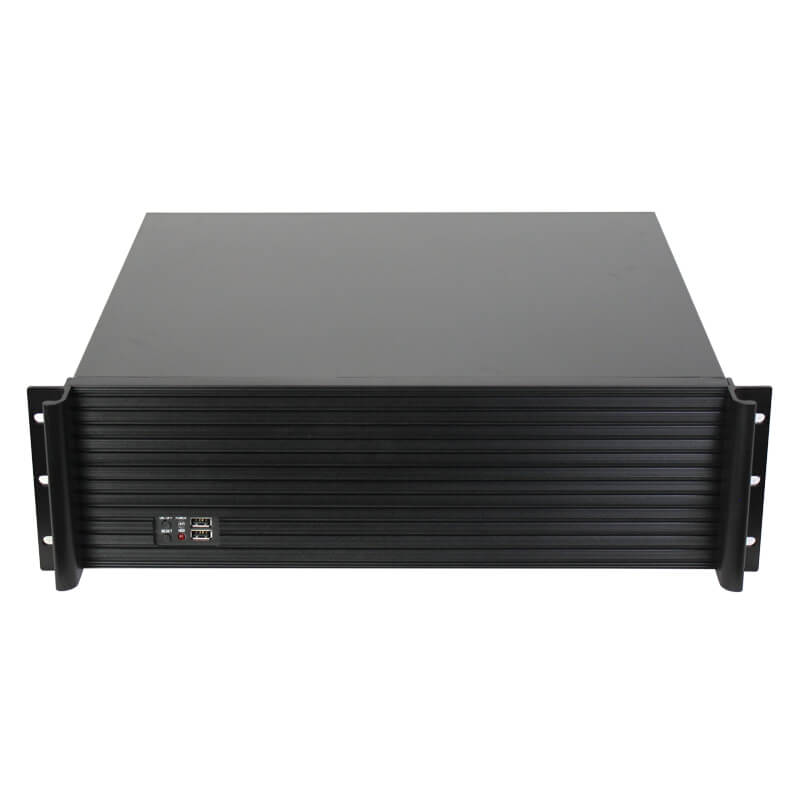

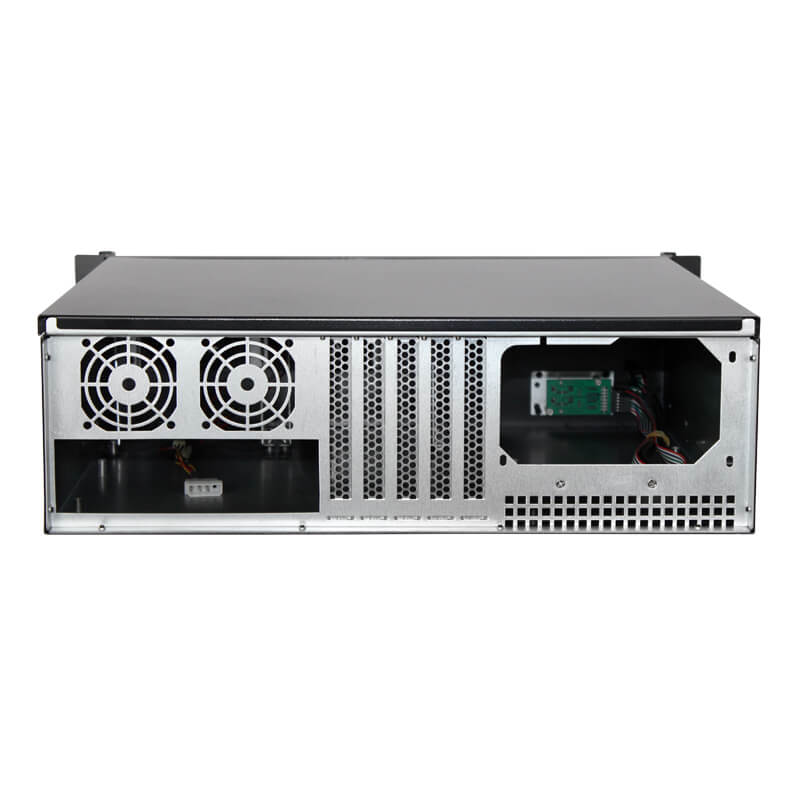

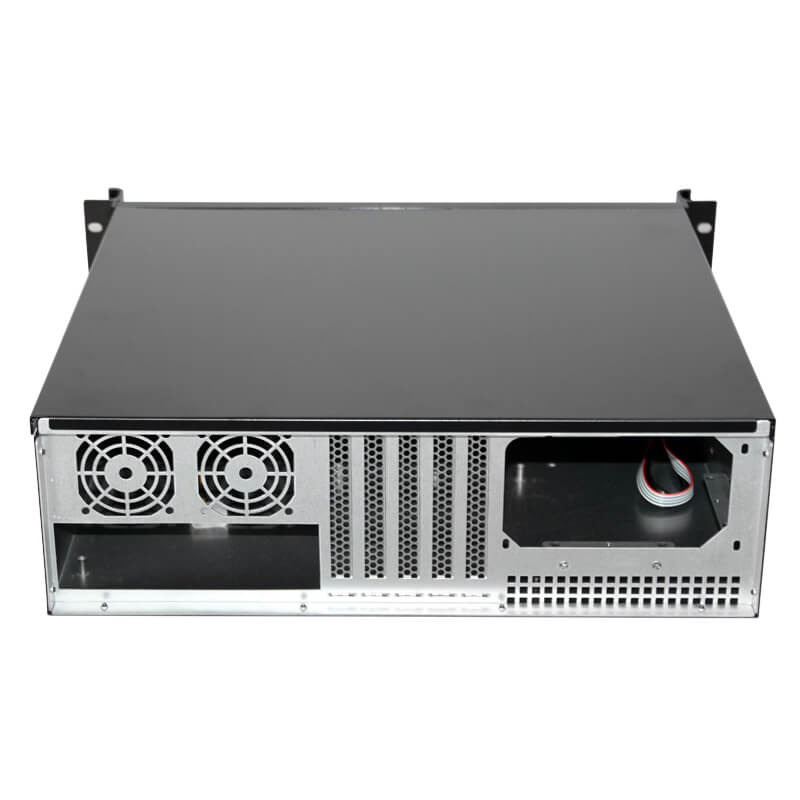

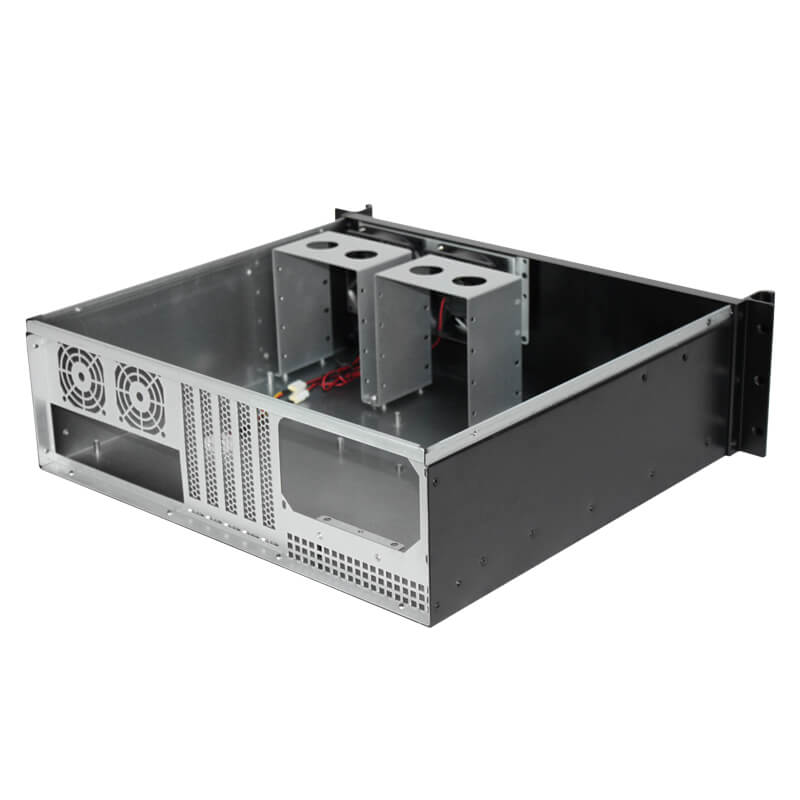

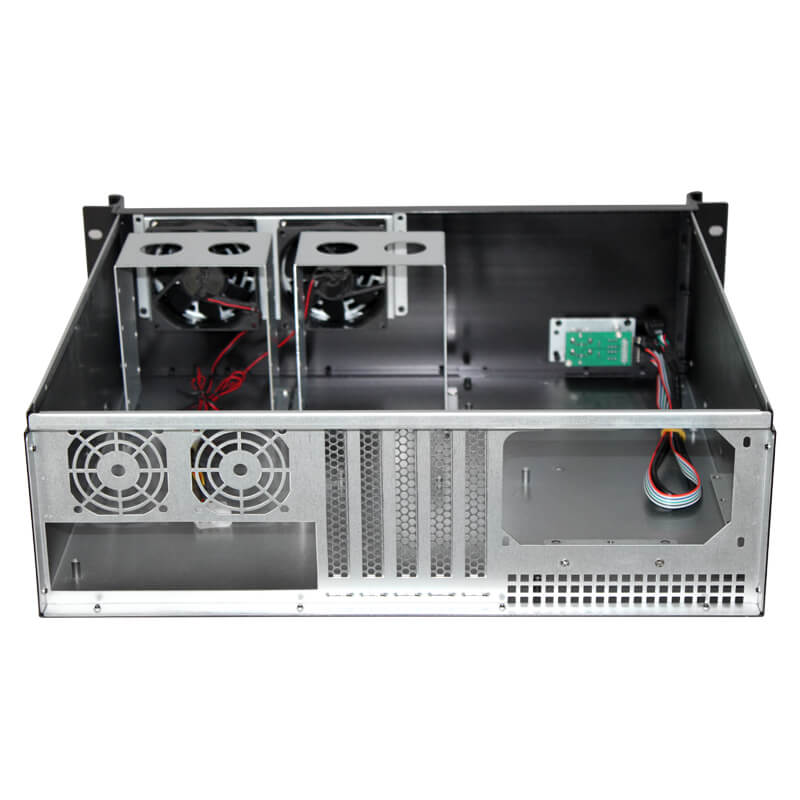

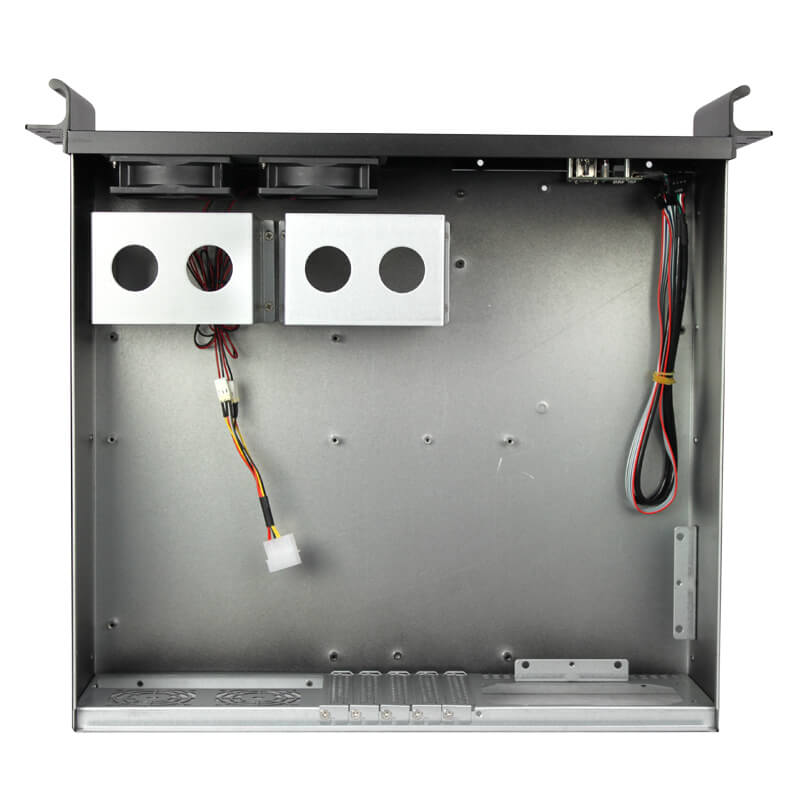

3U Rackmount Chassis- OC339L-M
• Compatible with the ATX form factor
| • 2 front pre-installed cooling fans inside to provide excellent airflow and thermal protection system
| • Widely used in the fields of automation, equipment manufacturing, power monitoring, communication, security, and defense
| > Power Supply not include
Description
Package Information
Inquiry
| Model: | OC339L-M (Barebone System) |
| 3U Rackmount Chassis: | D390 × W482 × H133 mm |
| Material: | 1.2 mm SGCC and Aluminum |
| MB Compatibility: | Support ATX 12″* 9.6″ (maximum size within 305* 244 mm) |
| Fan Configuration: | 2* 8025 Fan |
| PSU Form Factor: | ATX power supply |
| HDD Bay: | Support 11* 3.5-inch Hard Disks |
| CD-ROM: | No |
| Expansion Slot: | 5* Full-Height and Straight Slot |
| Front Panel Control: | 2* USB2.0; 1* Power Switch, 1* Restart Switch; 1* Power Indicator, 1* HD Indicator |
| Net Weight: | 6.5 kg |
| Gross Weight: | 7.5 kg |
| Packaging Size: | 54 * 21.5 * 52 cm (0.08CBM) |
| Container Loading Qty: | 20GP: 437; 40GP: 900; 40HC(HQ): 950 |
Operaing Temperature: | 10°C-35°C (without direct light); extended operating temperature: 5°C-40°C (restrictive configuration satisfied); storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
| Net Weight: | 6.5 kg |
| Gross Weight: | 7.5 kg |
| Packaging Size: | 54 * 21.5 * 52 cm (0.08CBM) |
| Container Loading Qty: | 20GP: 437; 40GP: 900; 40HC(HQ): 950 |
