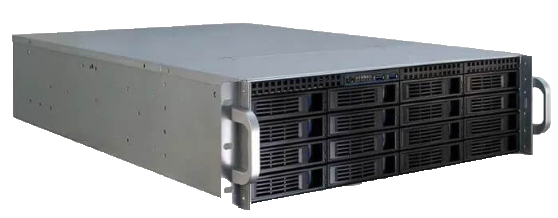

3U Rackmount Server Case -OCS3650-H16-F

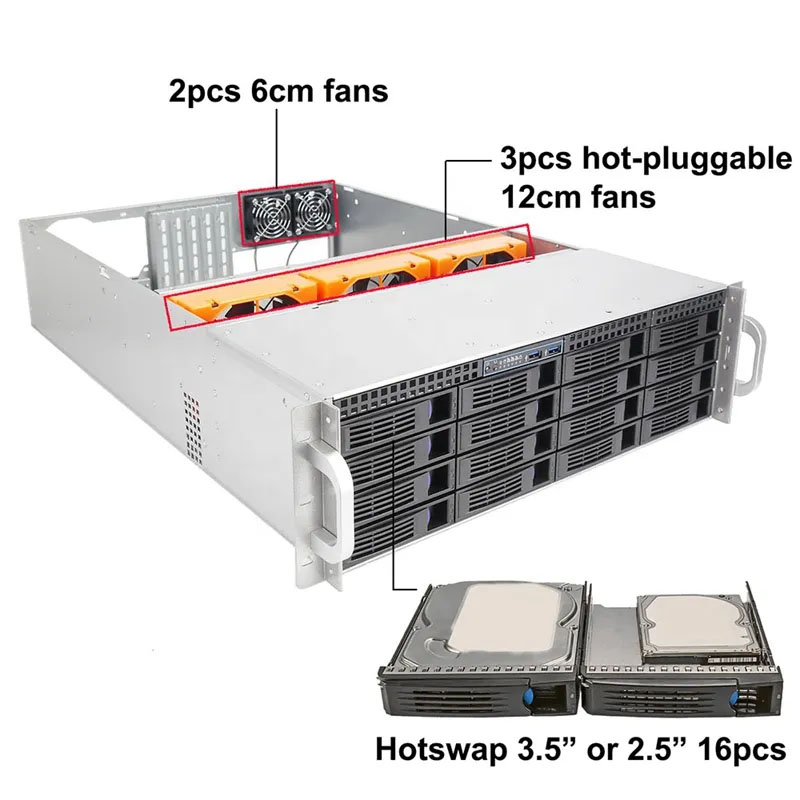

• 3U hot-swap chassis provides the best support for various rackmount systems and different applications
• 4* 80mm cooling fans (or 3* 120mm cooling fans ) provides excellent airflow and thermal protection
• 16* 3.5″(or 2.5″) hot-swap HDD, 1* 3.5″ external HDD (or 2.5″), 1* external slim CD-ROM drive bay and 7* half-height PCI expansion slot, giving expansion options
Description
Package Information
Inquiry
| Model: | OCS3650-H16-F | |
| Form Factor: | 3U Rackmount Server Case with 16 Hot-Swappable SATA/SAS Drive Bay, MiniSAS /SATA connector | |
| Size: | 650 (W)* 482 (D)*132 (H) mm; 25.5*19*5.1 inch | |
| Material: | SGCC 1.2mm. Metal panel and handle | |
| M/B Form Factor: | EATX(12″ × 13″), microATX (9.6″ × 9.6″), CEB (12″ × 10.5″), ATX (12″ × 9.6″), Mini-ITX (6.7″ × 6.7″) | |
| Drive Bay: | 3.5" or 2.5" external (hot-swap) *16 Slim CD Rom *1 3.5" or 2.5" external *2 | |

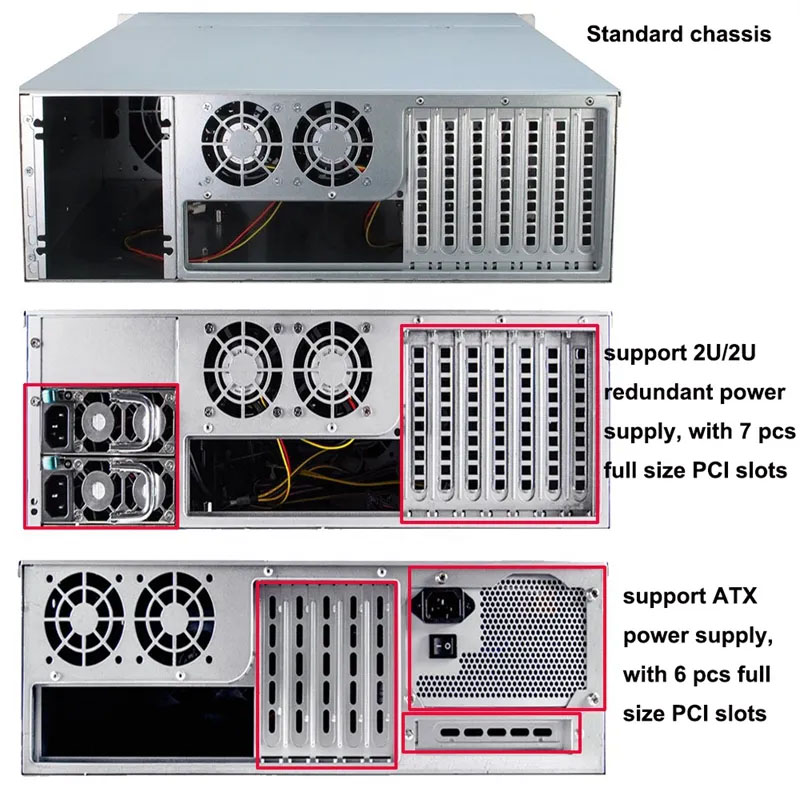

| PSU Form Factor: | ATX power supply/ 2U redudant power supply /2U power supply | |
| Expansion Slot: | 7pcs or 6pcs (full size) Riser Slot | |
| Hot-swap Backplane: | SATA or SAS backplane (12Gbit / s max) | |
| System Cooling (optional): | Front: No; Middle: 3 x 120mm fans PWM (hot-pluggable); Rear: 2* 60mm fans | |
| Front Panel: | Control button: Power ON/OFF *1, system reset *1; Indicator: Power ON/OFF *1, HDD *1, NETWORK *3, Alarm *1 Ports: USB3.0 *2 | |
| Packing Material: | Polyfoam with carton box | |
| Carton Size: | 830*555*200 mm; 32.6*21.8*7.8 inch | |
| Net Weight: | 14 kg | |
| Gross Weight: | 16 kg | |
| Environment Temperature: | 0/55℃, 32/131℉ (Operating); -20/60℃, -4/140℉ (Non-Operating) | |
| Relative Humidity: | 5% to 95%, non-condensing | |
