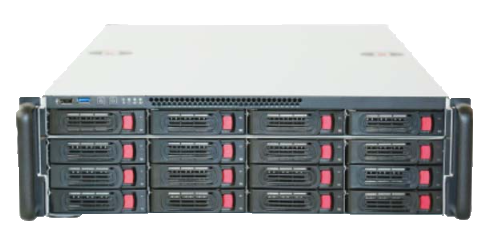

3U Rackmount Server Case -OCS3660-16-GD
• 3U hot-swap chassis provides the best support for various rackmount systems and different applications
| • 4* 80mm cooling fans provides excellent airflow and thermal protection
| • 16* 3.5″(or 2.5″) hot-swap HDD, and 7* half-height PCI expansion slot, giving expansion options
Description
Package Information
Inquiry
| Model: | OCS3660-16-GD | |
| Form Factor: | 3U Rackmount Server Case with 16 Drives | |
| Size: | L660 * W430.4 * H131.8 mm, excluding handle height | |
| Material: | 1.0-1.2 mm thick high-strength galvanized steel (SGCC) | |
| Color: | Black powder for the ears of the chassis, no paint for the chassis body | |
| M/B Form Factor: | Extended ATX / ATX / micro ATX / EEB / CEB motherboards | |
| Hard Disk: | Standard 3.5 inch hot-swap tray *16 | |
| Card Support: | 7* half-height cards | |
| PSU Form Factor: | Support 2U standard power supply / 2U redundant power supply | |
| System Cooling: | Support 4* (80*38) fans in the middle, 2* (60*25) fans in the back | |
| Front Panel: | Standard USB2.0 *2 | |
| Packing Material: | Polyfoam with carton box | |
| Container Loading Qty: | 20GP: 280 pcs; 40GP: 560 pcs | |
| Environment Temperature: | 0℃-40℃ (Operating); -10℃-70℃ (Non-Operating) | |
| Optional |
1. 8038 fans, 6000 rpm, 4PIN,4PCS; 6025 fans, 3600 RPM, 4PIN |
| 2. Backplane 6GB (4 BAY)*4; Backplane 12GB (4 BAY)*4 |
| 3. Front USB2.0*1PCS+3.0*1PCS |
| 4. Special slide rail for server |
