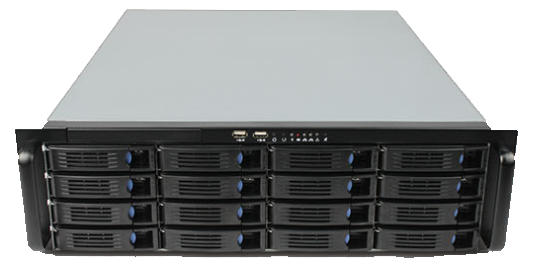

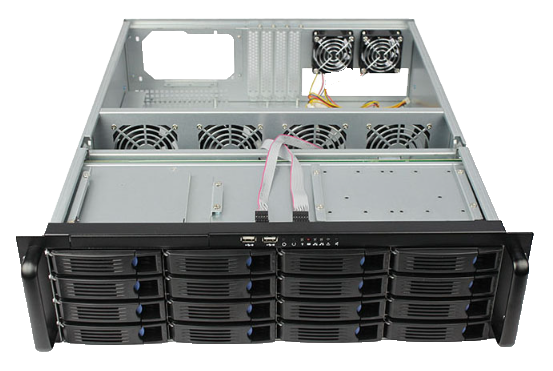

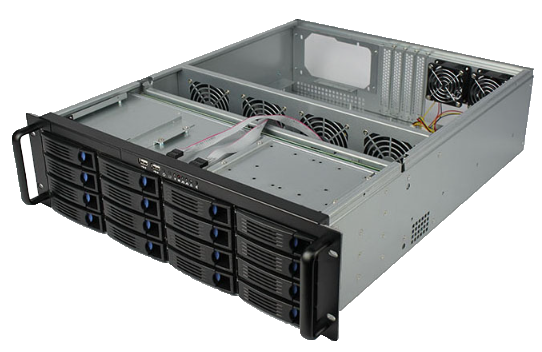

3U Rackmount Server Case -OC355-16-M
• 3U hot-swap chassis provides the best support for various rackmount systems and different applications
• 4* 80mm middle pre-installed cooling fans provides excellent airflow and thermal protection
• 16* 3.5″(or 2.5″) hot-swap HDD, 1* 5.25“ Slim CD-ROM Drive, and 7* PCI expansion slot, giving expansion options
Description
Package Information
Inquiry
| Model: | OC355-16-M | |
| Dimension: | 482 (W)* 550 (D)*133.5 (H) mm | |
| Material: | SGCC 1.2mm | |
| M/B Form Factor: | 12″* 9.6″(305* 245mm) | |
| Hard Disk: | HDD tray for 3.5″ HDD *16 | |
| CD-ROM: | 1* 5.25″ Slim CD-ROM Drive | |
| PSU Form Factor: | ATX power supply | |
| Expansion Slot: | 7* full-height and straight slots | |

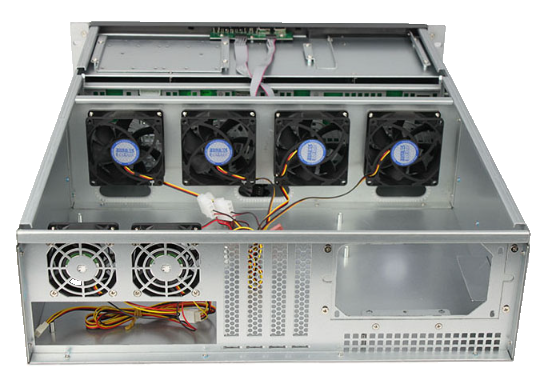

| System Cooling: | Support 4* (80*38) fans in the middle, 2* (60*25) fans in the back | |
| Panel Setting: | Power switch with indicator, reset with indicator HDD indicator on the tray, and USB2.0 *2 | |
| Packing Material: | Polyfoam with carton box | |
| Carton Size: | 830*590*250 mm | |
| Net Weight: | 16.3 kg | |
| Gross Weight: | 12.4 kg | |
| Container Loading Qty: | 20GP: 260 pcs; 40GP: 560 pcs; 40HC(HQ): 650 pcs | |
| Operaing Temperature: | 10°C-35°C (without direct light); extended operating temperature: 5°C-40°C (restrictive configuration satisfied); storage temperature: 20%-90% | |
| Transportation & Storage Temperature: | -40°C-70°C | |
