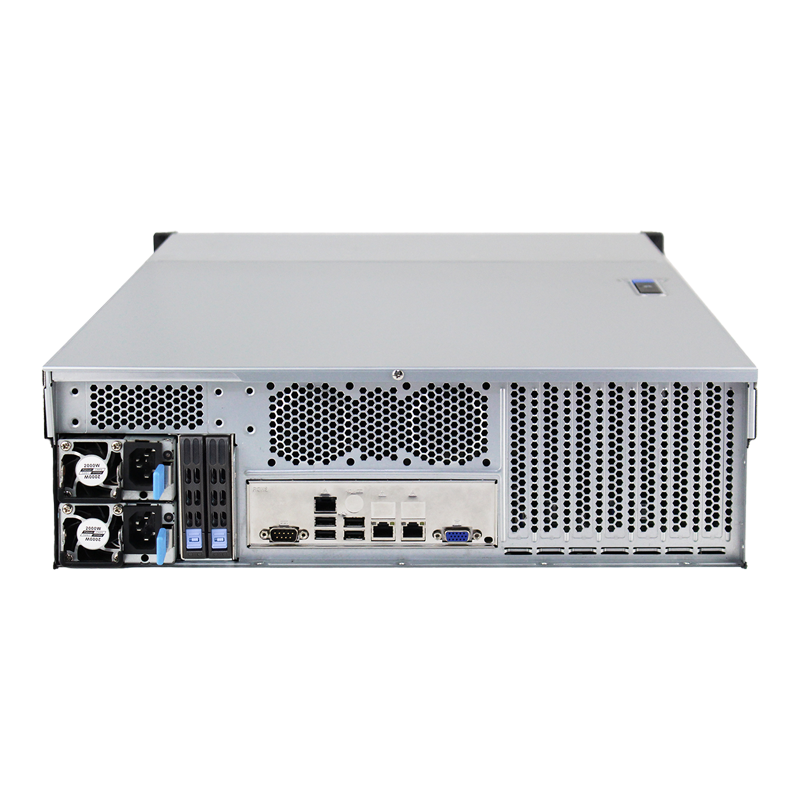

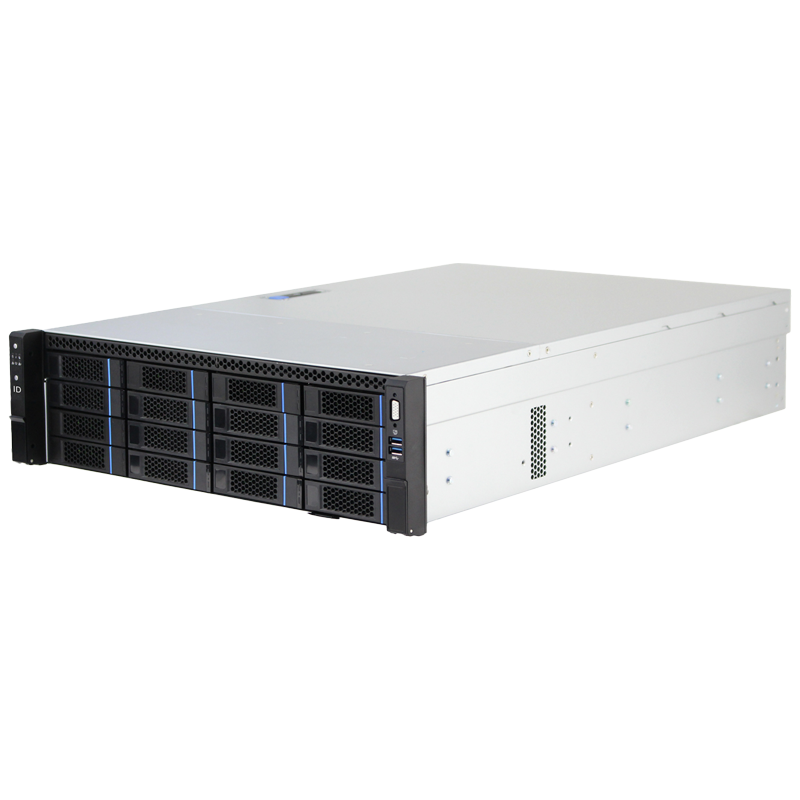

3U 16* HDD Rackmount Server Chassis -OCSM365-H16-T
> Front Panel / I/O: Newly designed front panel; includes 1 front VGA port and 2 front USB 3.0 ports.
| > Power Supply Support: Compatible with CRPS and standard 2U power supplies.

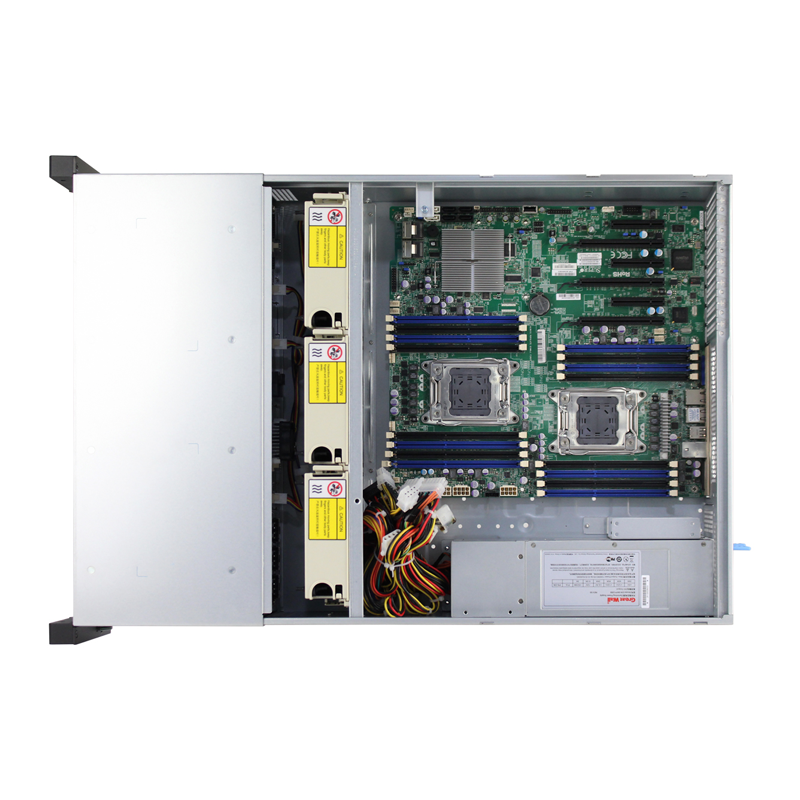

| > Motherboard Support: Supports E-ATX size motherboards and smaller.
| > Hard Drive Bays:

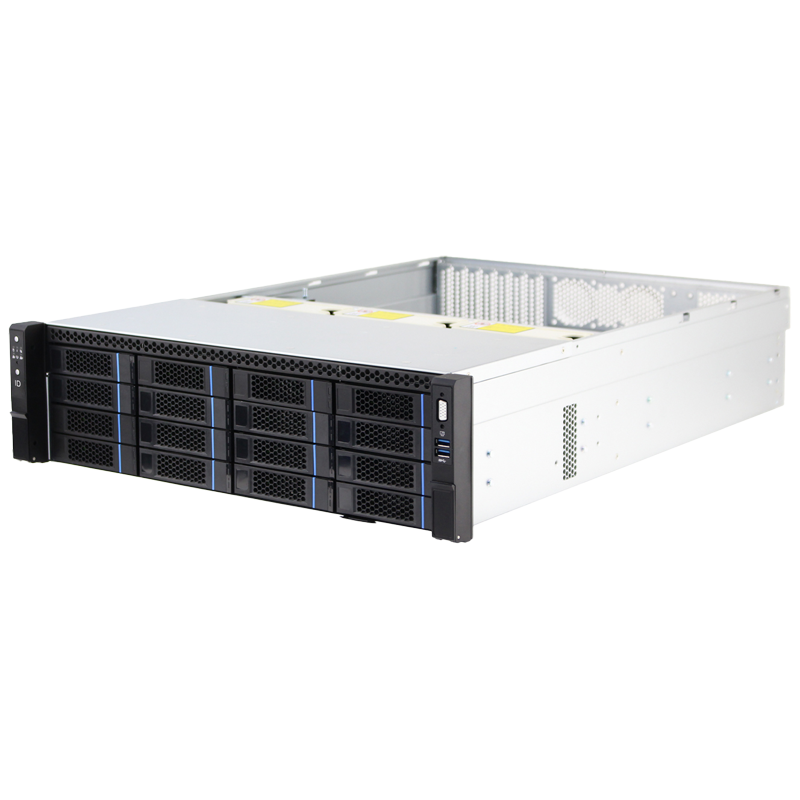

| > Front: 16 hot-swappable 3.5″ HDD bays (also compatible with 2.5″ HDD/SSD).
| > Rear: 2 hot-swappable 2.5″ bays.

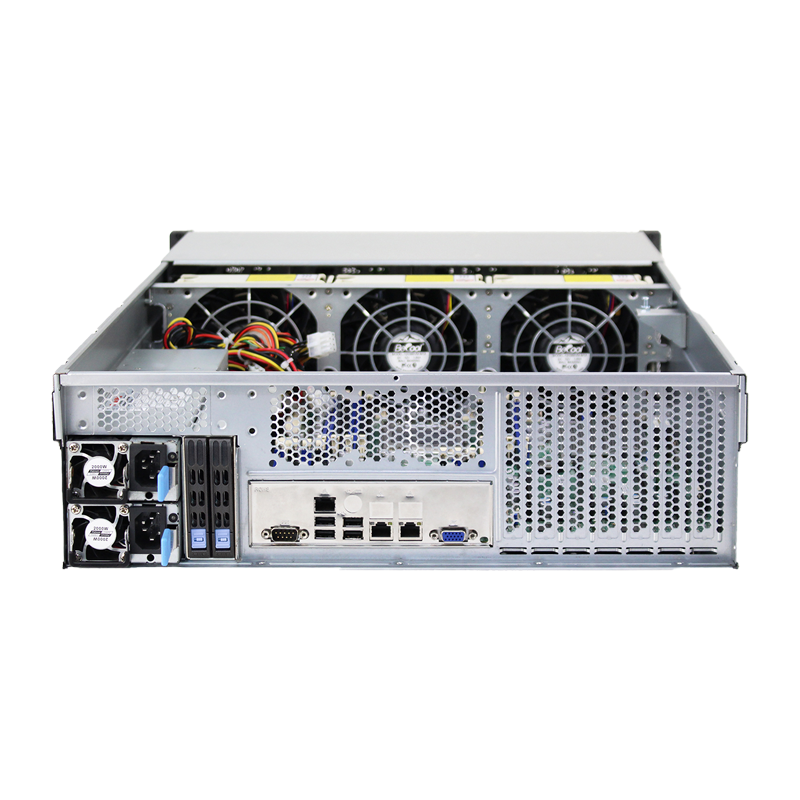

| > Cooling: Comes with 3 × 12038B hot-pluggable ball-bearing fans for good airflow / cooling.
Description
Package Information
Inquiry
| Model: | OCSM365-H16-T |

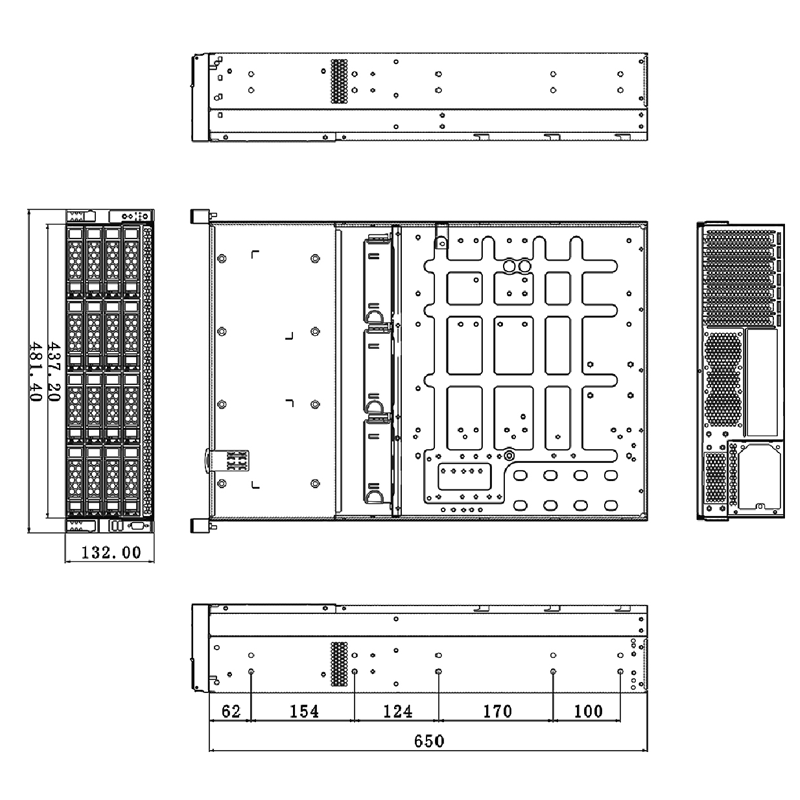

3U Storage Server Chassis: | 650 (D) × 437.5 (W) × 132 (H) mm; Rackmount style |
| Main Material: | SGCC cold-rolled steel 1.0 mm ; fingerprint-resistant; environmentally friendly |
| Surface Finish: | Front handles and mounting ears are sand-blasted, oxidized, matte black; other steel parts left in raw steel finish |
Power Supply Compatibility: | Supports CRPS redundant power supplies or standard 2U power supplies |
| Motherboard Support: | Up to E-ATX (12″ × 13″) size and smaller |
| Hard Drive Bays: | 16* front 3.5″ hot-swappable HDD bays (compatible with 2.5″ HDD/SSD) 2 × rear 2.5″ hot-swappable bays |
| Backplane Options: | Standard: 12 Gb expander backplane with SGPIO + PWM fan speed control Optional alternatives: • 6 Gb Mini-SAS direct backplane, SGPIO + PWM, optional staggered drive spin-up • 6 Gb expander backplane, SGPIO + PWM, optional staggered drive spin-up • 12 Gb Mini-SAS HD direct backplane, SGPIO + PWM, with drive short-circuit protection, optional staggered spin-up; also optional support for up to 8 NVMe drives (PCIe 4.0) |
| System Cooling Fans: | 3* 12038B ball-bearing fans, hot-pluggable |
| Expansion Slots: | 7 full-height PCI / PCIe slots |
| External I/O Ports: | 1* front VGA; 2* front USB 3.0 |
System Controls & LEDs: | Power LED; Reset; Power Switch; HDD LED; 2* NIC LEDs; UID LED + UID Switch; Overheat / Fan Fail LED; Power Fail LED |
| Packaging: | Protected with pearl cotton + inner box + corner protectors + outer carton |
| Typical Applications: | Cloud storage; cloud computing; big data; private / distributed storage; surveillance systems |
Protected with pearl cotton + Inner box + Corner protectors + Outer carton
