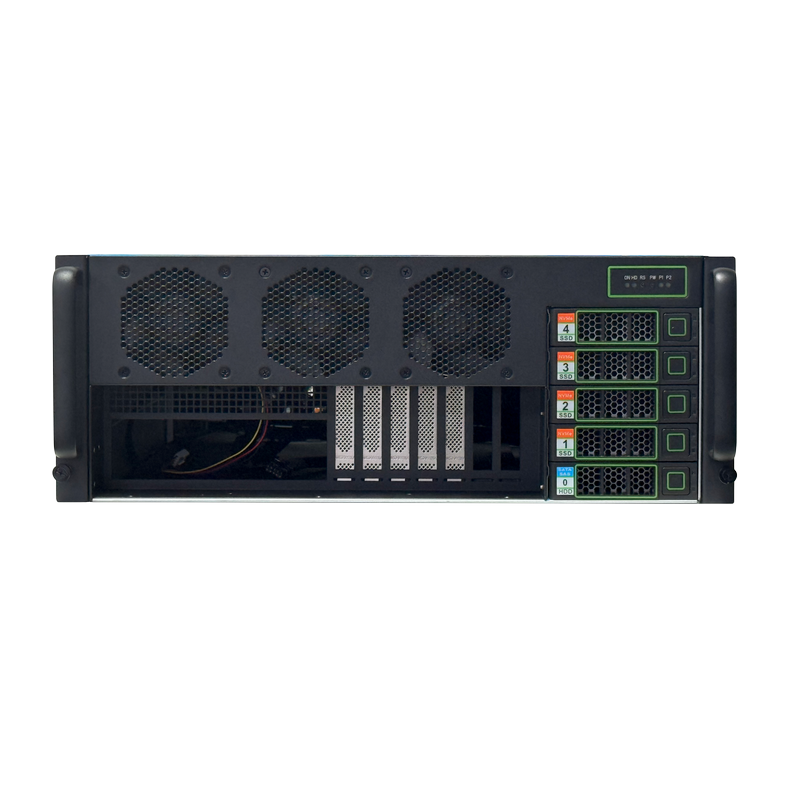

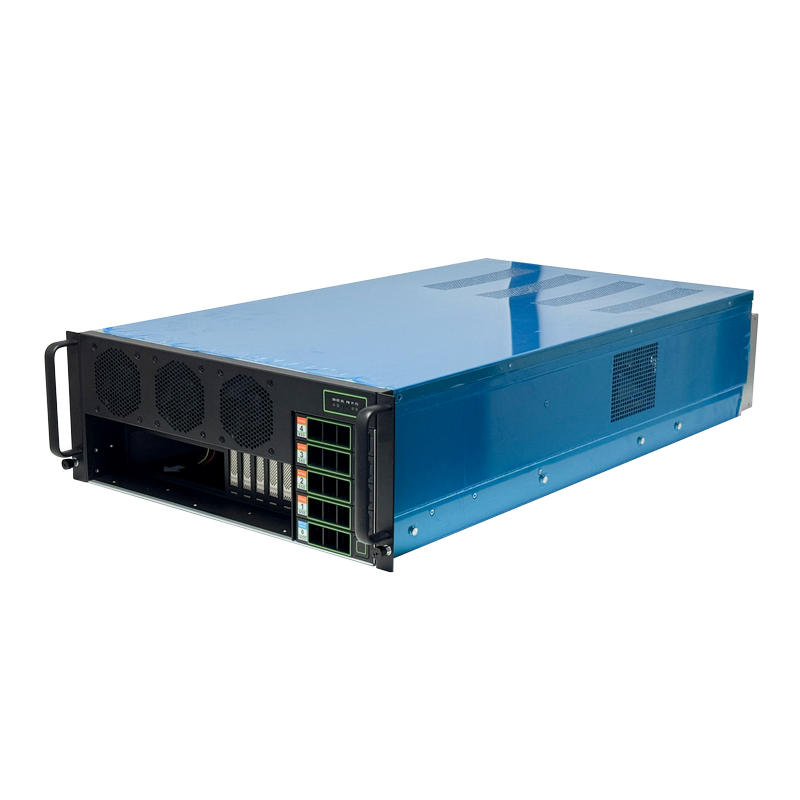

4U GPU Server Chassis -OCG4780-4H5-H
✅ GPU Power: Supports up to four full-length RTX 4090/5090 GPUs with 90mm spacing, delivering massive parallel processing performance.
✅ Reliable Power Supply: Dual CRPS 3200W redundant power modules with 1+1 redundancy, ensuring continuous 24/7 operation.
✅ Efficient Cooling: Equipped with 3* front 8038 fans and 3* rear 12038 fans, all managed by the BMC for stable performance under heavy GPU workloads.
✅ Flexible Storage: Supports 5* 3.5-inch hot-swappable drives, including a mix of SATA and U.2 hard drives.
✅ Easy Maintenance: Front-access motherboard I/O ports for quick servicing and optional 2U tool-free slide rails for simplified rack installation.
Description
Package Information
Inquiry
| Model: | OCG4780-4H5-H (Barebone System) | |
| 4U 4GPU Server Chassis: | 780(D) x 436(W) x 177(H) mm; Rackmount style | |
| M/B Form Factor: | ATX and EATX EPYC and Xeon motherboards | |
| PSU Form Factor: | 2* CRPS 3200w redundant power modules, with 1+1 redundancy and a peak power output of 4000w | |

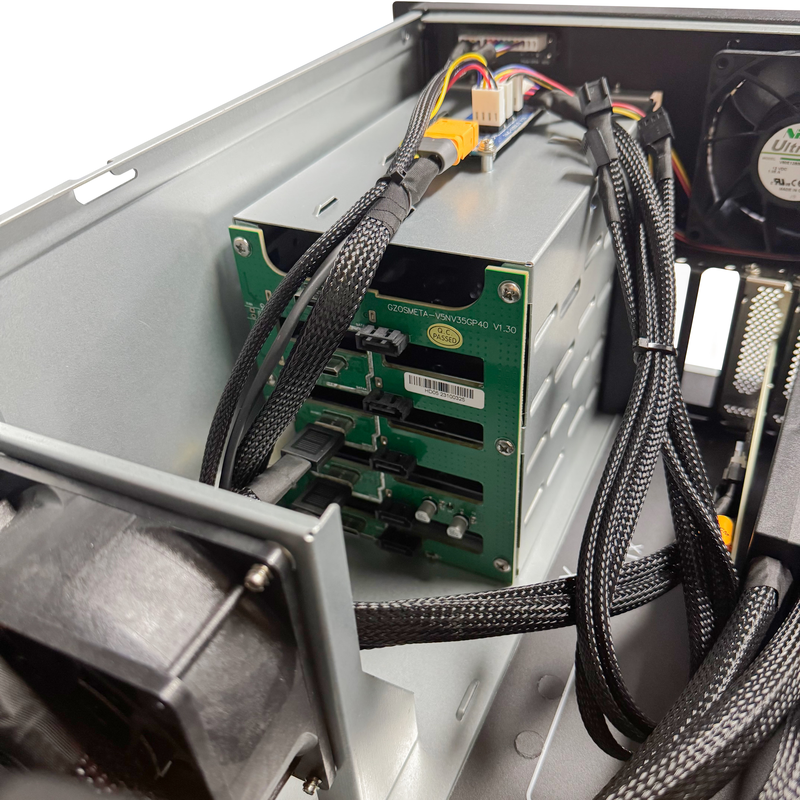

| HDD Support: | 5* 3.5" hot-swappable HDD, including a mix of SATA and U2 hard drives | |
| GPU Support: | 4* 355x70mm RTX4090/5090 graphics cards, with 90mm spacing | |
| System Cooling Fans: | 3* front 8038 fans and 3* rear 12038 fans, controlled by the BMC | |
| Data and Power Cables: | Configuration based on the customer's selected motherboard and graphics card models | |
| System Cooling Fans: | 3* front 8038 fans and 3* rear 12038 fans, controlled by the BMC | |
| Other Features | Front-access motherboard I/O port for easy maintenance | |
| Slide Guides: | 2U tool-free guide rail (optional) | |
| Carton size: | 1010 x 600 x 310 mm | |
| Net Weigh: | 21.3 kg | |
| Gross Weigh: | 23.1 kg | |
| Operaing Temperature: | 10°C-35°C (without direct light); extended operating temperature: 5°C-40°C (restrictive configuration satisfied); storage temperature: 20%-90% | |
| Transportation & Storage Temperature: | -40°C-70°C | |
