6U GPU Server Case
Model: | 6U GPU Barebone System |
5U 8GPU customized chassis: | 447mm(W)*880mm(D)*265mm(H) |
Material: | 1.0mm SGCC Zinc-Coated Steel |
Drive bays: | 4 x 2.5′ hot-swappable SATA (II or III) / SAS (II or III) 6Gb/s drive bays |

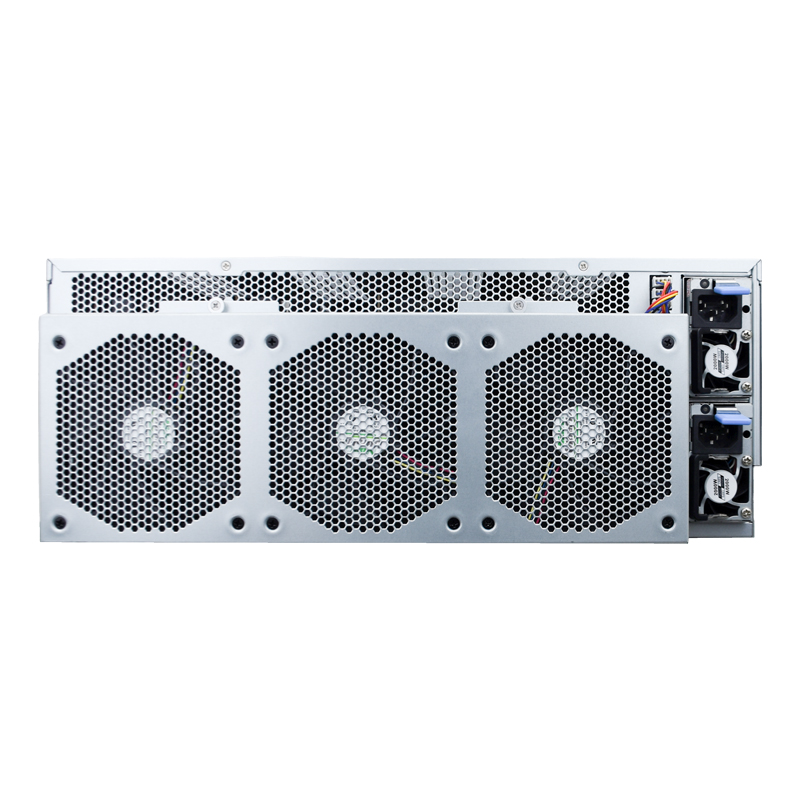

Cooling fan: | 3*12 cm fan, 5*8cm fan |
Dual-port cards | 4 pieces of 8654-8i dual-port cards(optional) |

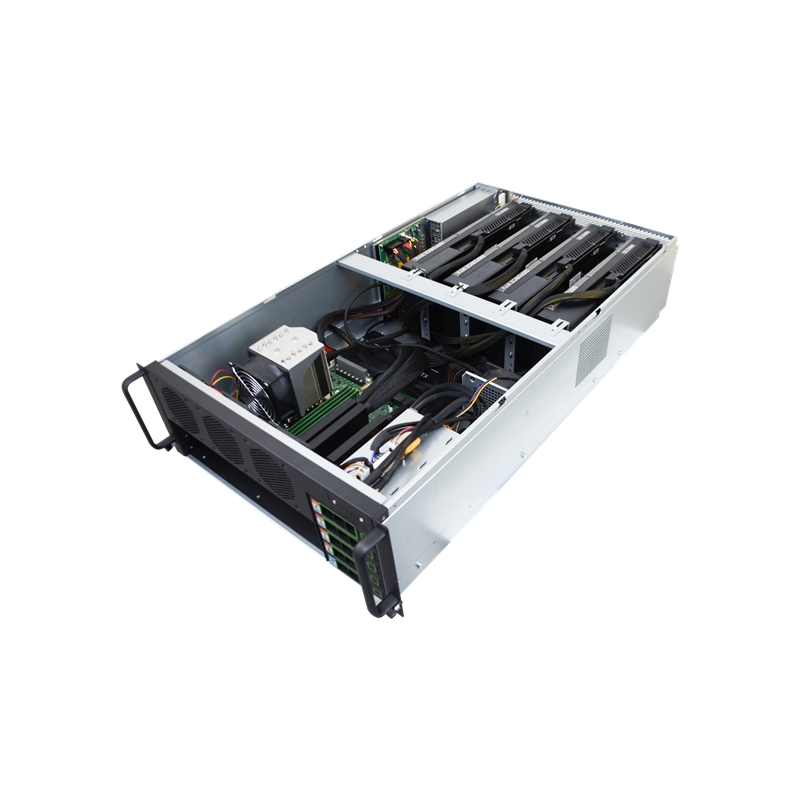

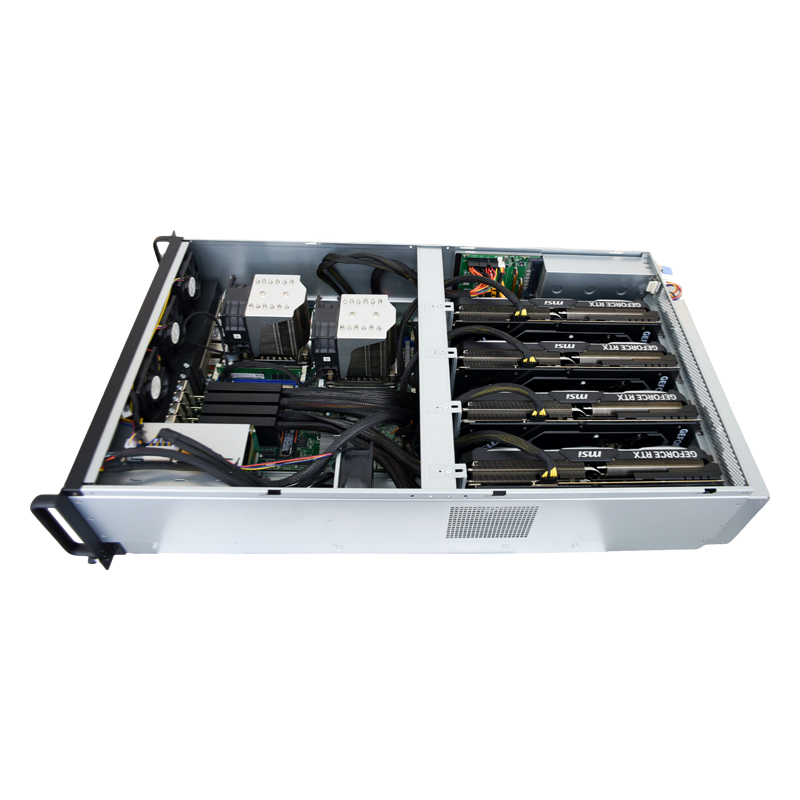

GPU riser card: | 8 pieces of GPU riser card(Gen4),8 * PCIE3.0X16, supports up to 8 public GPUs. |
M/B form factor: | Support motherboard size up to E-ATX (12"*13") |
Power board: | Supports standard CRPS power modules, adopts 4+1 redundancy mode, and comes standard with 4*1600W power modules. |
Power : | 1600W CRPS*4 |
Connector | 1*USB2.0 |
System Control | 1*Power SW ,1*Reset SW,1*LAN LED,1*Alert LED. |
Cable: | 8 pieces of 8654-8i dual-header cables |
Motherboard cable: | Motherboard 24pin power supply cable*1 |
CPU power supply cable: | CPU power supply cable*2 |
GPU backplane power supply cable: | GPU backplane power supply cable*4 |
4090 VGA card power cable: | 4090 VGA card power cable*8 |
Hard disk backplane power cable: | hard disk backplane power cable*1 |
