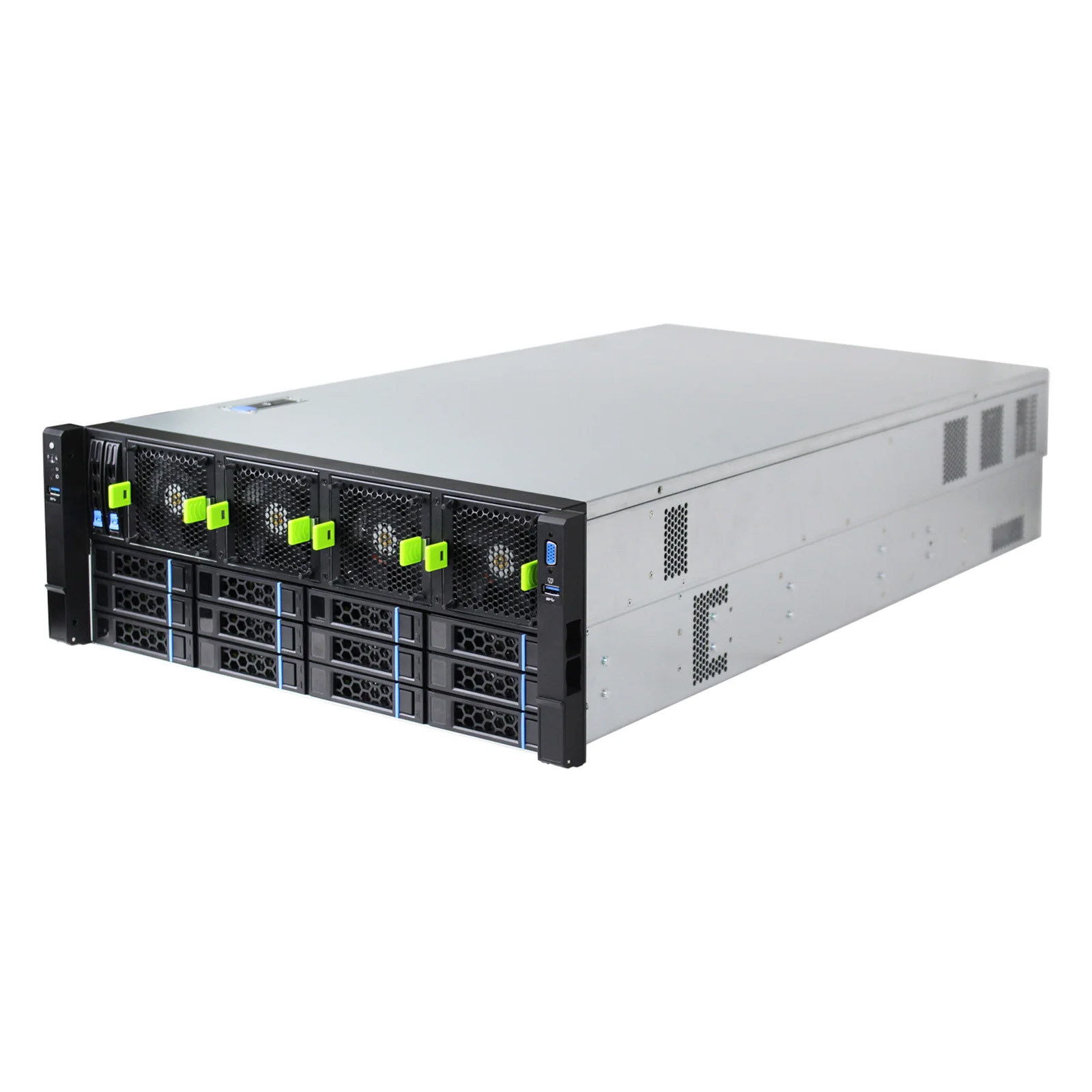

4U Rack-mounted GPU Server Chassis -OCG4885-9H12-T
• Conformed with EMC design standards to prevent electromagnetic interference;
• Support motherboard PEX8796 and PEX8747 backplane, standard CRPS power modules, adopts 3+1 redundancy mode, and comes standard with 4* 2000W power modules;
• Good ventilation system with 3*120mm ball bearing fans and 8*80mm ball bearing fans make sure system working steadily
Description
Package Information
Inquiry
| Model: | OCG4885-9H12-T (Barebone System) |
| 4U 9GPU Server Chassis: | 885(D) x 437.5(W) x 176.5(H) mm |
| Material: | 1.2 mm SGCC Zinc-Coated Steel |
| M/B Form Factor: | E-ATX/ATX/Micro ATX motherboards of 12" x 13" and smaller sizes, and the motherboard needs to support 2/5 PCIEX16 expansion slots |
| PSU Form Factor: | Standard CRPS power modules, adopt 3+1 redundancy mode, and comes standard with 4*2000W power modules |
| Drive Bays: | 12*3.5' hot-swappable SATA (II or III) / SAS (II or III) 6Gb/s drive bays, 2*2.5" hot-swappable system disk |
| Cooling Fan: | Standard quotation with 3*120mm ball bearing fans and 8*80mm ball bearing fans |
| GPU Support : | GPU backplane adopts PEX8796 and PEX8747 expansion schemes, where PEX8796 can bridge 5 PCIE3.0X16 channels through 1 PCIE3.0X16 channel, and PEX8747 can bridge 2 PCIE3.0X16 channels through 1 PCIE3.0X16 channel |
| PCIE Channel： | 10 * PCIE3.0X16, support up to 9 public GPUs |
| RAM: | DDR3 4G notebook memory |
| Connector: | 1*VGA, 2*USB3.0, 2*USB2.0, 2*LAN, 1*IPMI |
| System Control: | 1*Power LED, 1*Reset, 1*Power SW, 1*HDD LED, 2*NIC LED, 1*UID LED, 1*UID SW, 1*OH/FAN Fail LED, 1*Power Fail LED |
| Colour: | Handle and lug are all sandblasted black (other steel plate’s natural color) |
| Applicarion: | Cloud storage, cloud computing, Render, etc. |
| Operaing Temperature: | 10°C-35°C (without direct light) ; extended operating temperature: 5°C-40°C(restrictive configuration satisfied); storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
