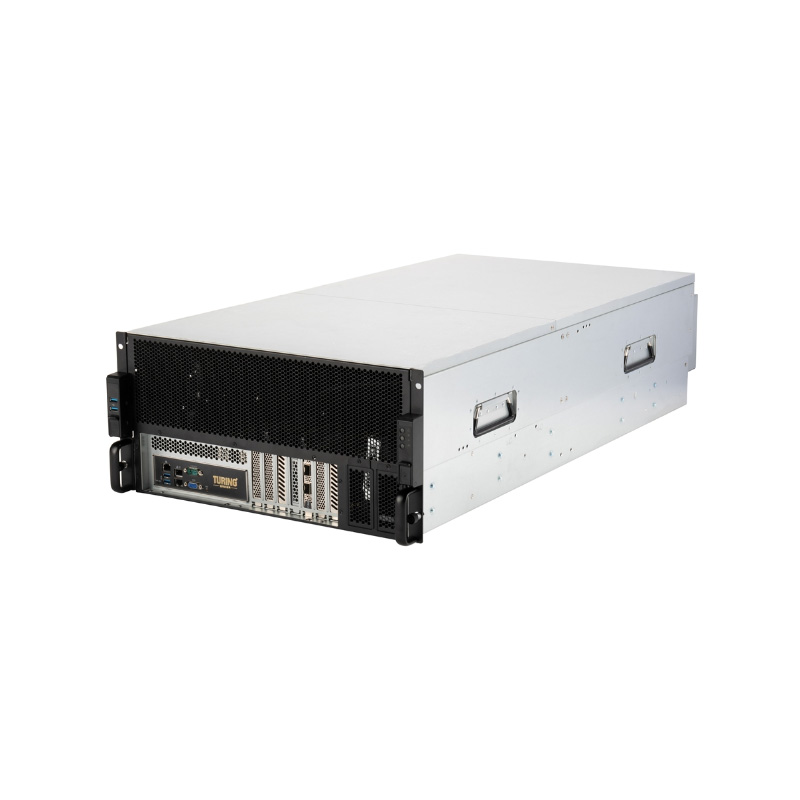

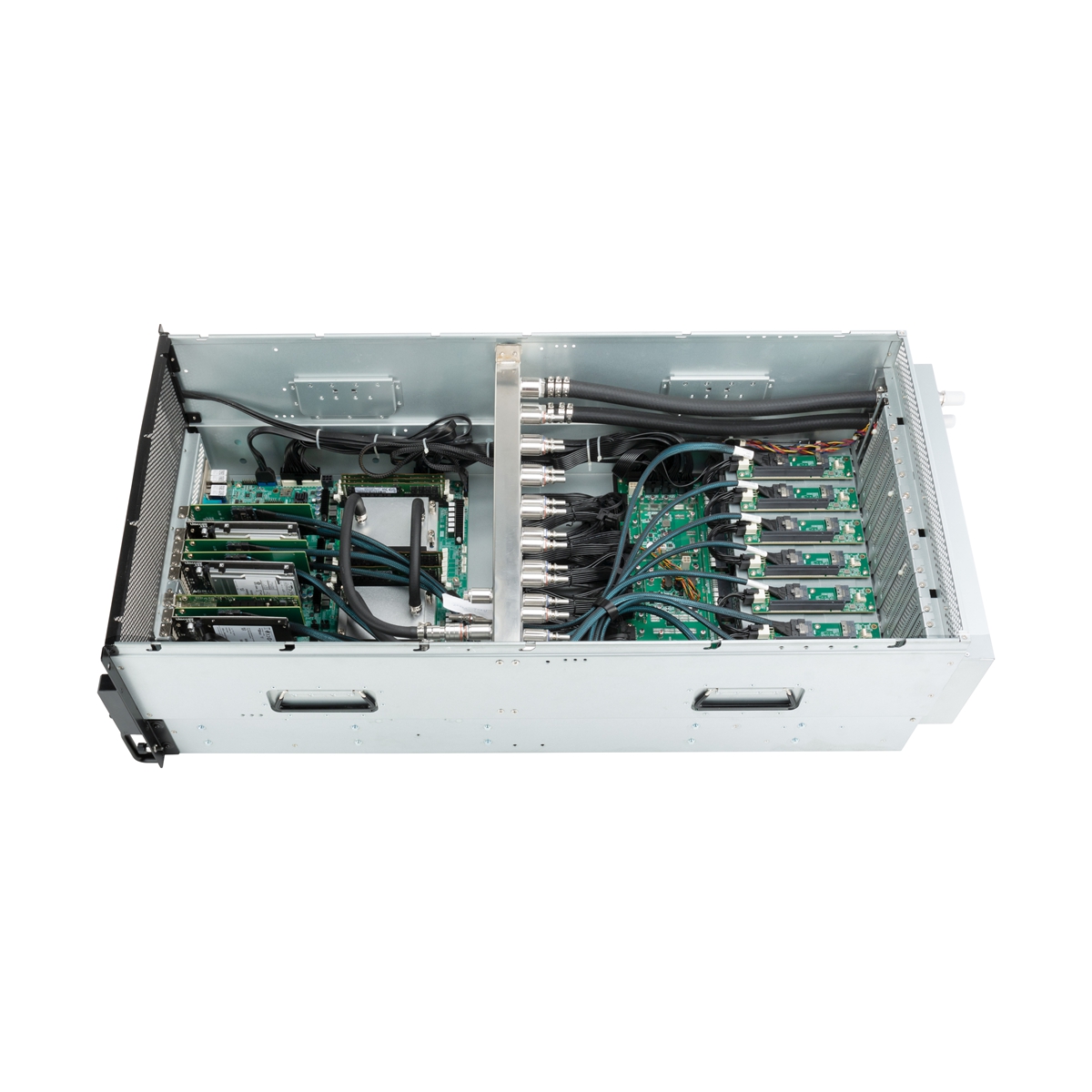

4U Rack-mounted GPU Liquid Cooling Server Chassis -OCG4645-8G

An outstanding liquid – cooling server, a top – notch one among servers • Support the AMD EPYC dual – channel processor with powerful performance. • Equipped with five 2000 – watt high – power redundant power supplies • Provide a solid and powerful power guarantee for the stable operation of the server, ensuring stable and strong power supply during the operation of the server.

Description Package Information Inquiry

Model:	OCG4645-8G (liquid cooling server)
Chassis	L(645)* W(435)*H(176)mm, without handle
Material	1.0-1.2 mm SGCC
Platform	AMD dual-channel 8 GPU platform

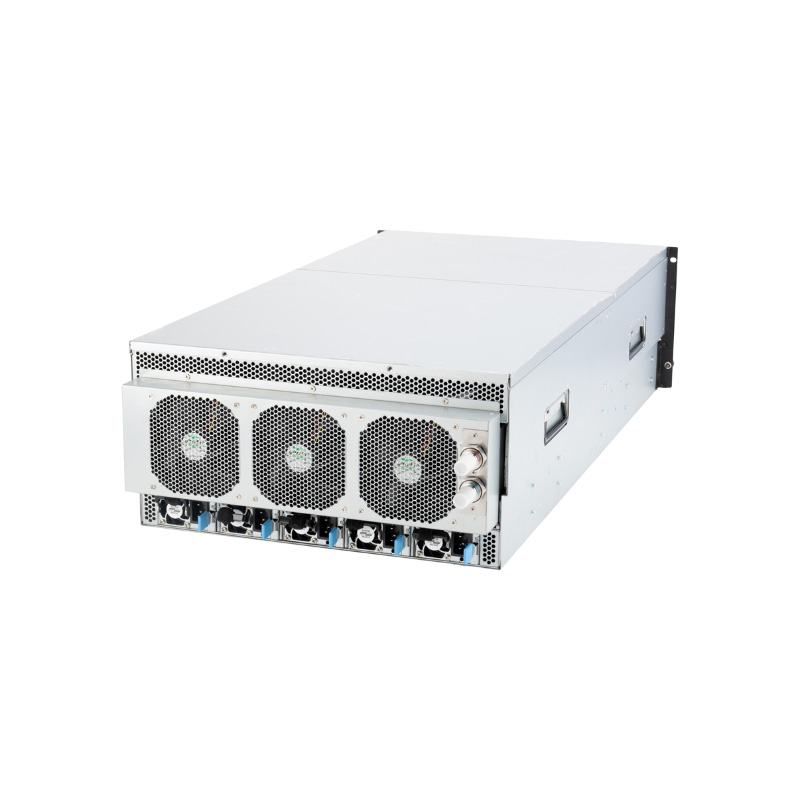

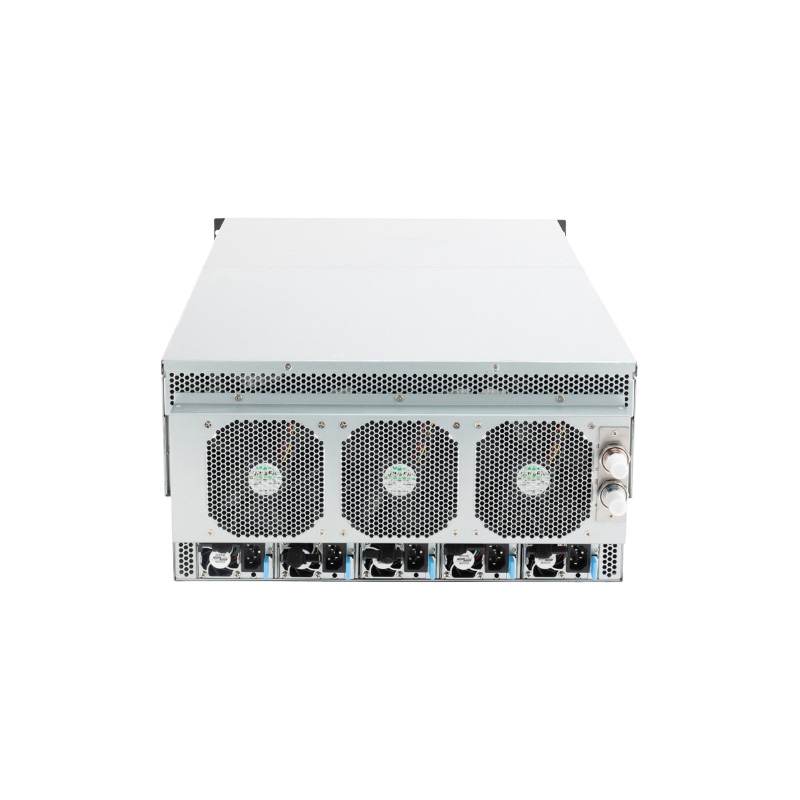

Server PSU	Equipped with high power redundant power supply 2000W *5
CPU	AMD EPYC 7K62(2.6GHZ,48C96T) *2, 2.6GHZ
RAM	8* 64G DDR4, Operating frequency 3200MHz, 2.6GHZ DDR4 total 512G
NIC	Dual-port 10 Gbit/s optical fiber(Typical power consumption is generally about 10W)
System Disk	2* SATA SSD 480GB, 2.5″, SATA3（6Gbps）
Data Disk	7.68TB U.2 NVME SSD(2.5 inches, Read and write speeds can reach thousands of MB/s)
GPU	Supports nVIDIA RTX4090 *8

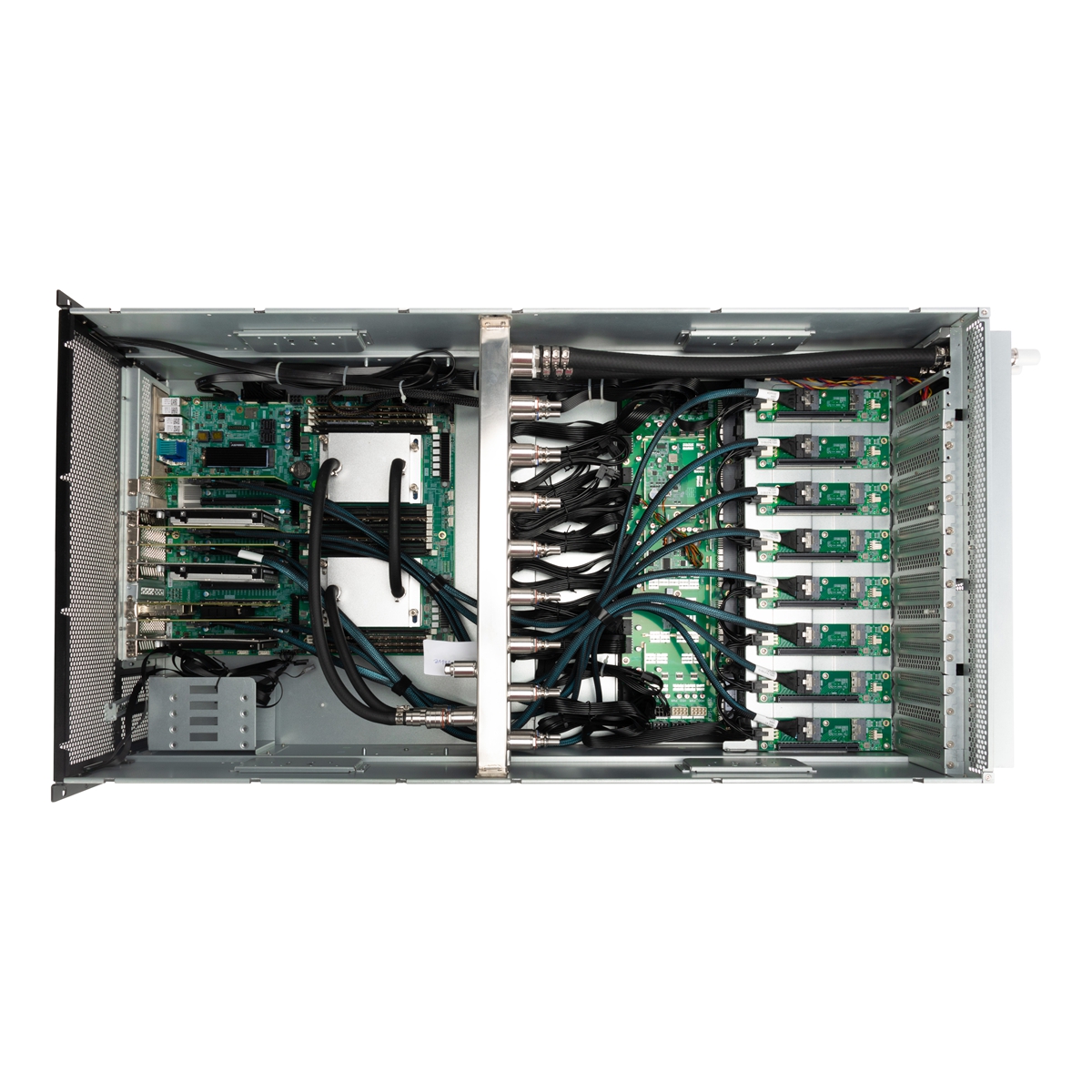

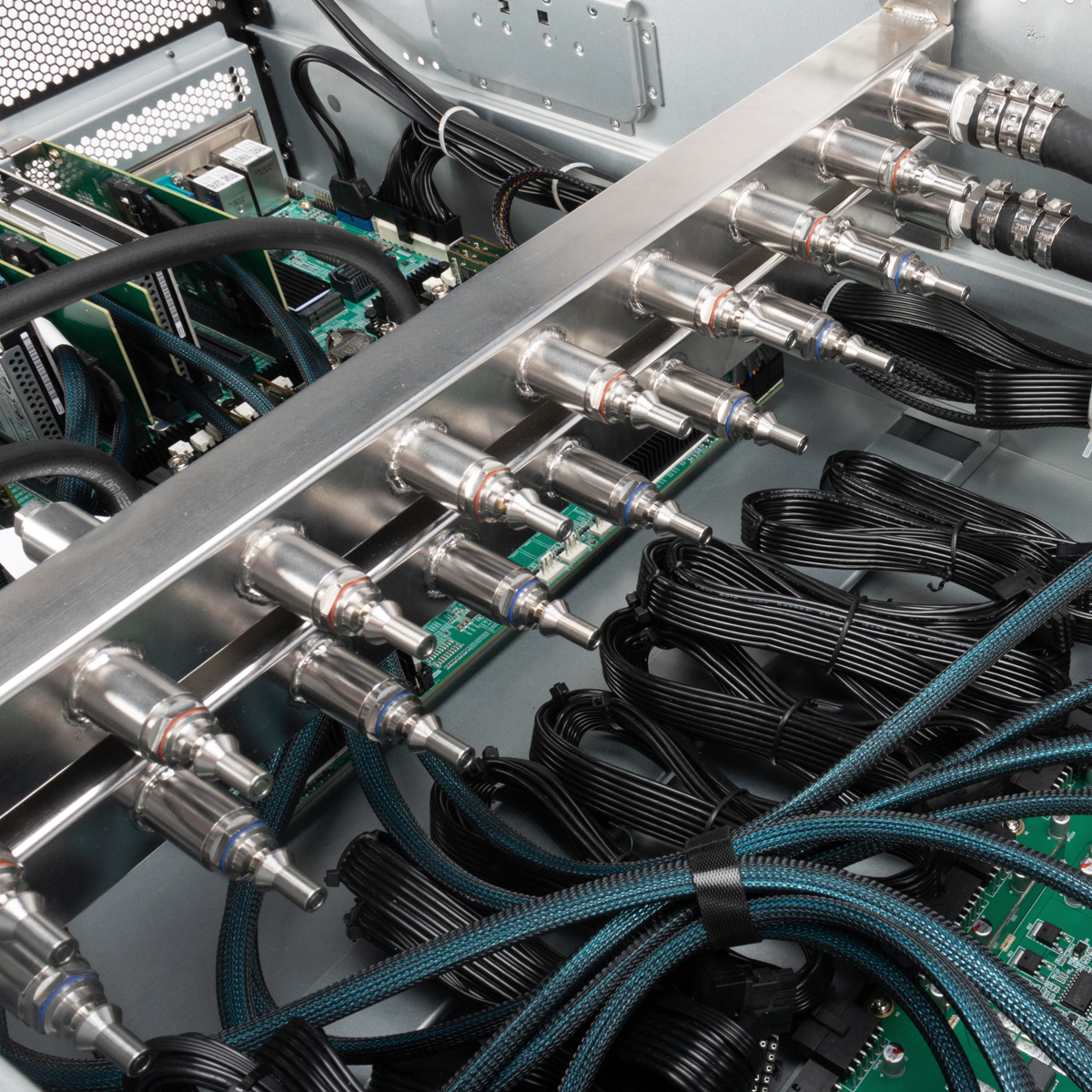

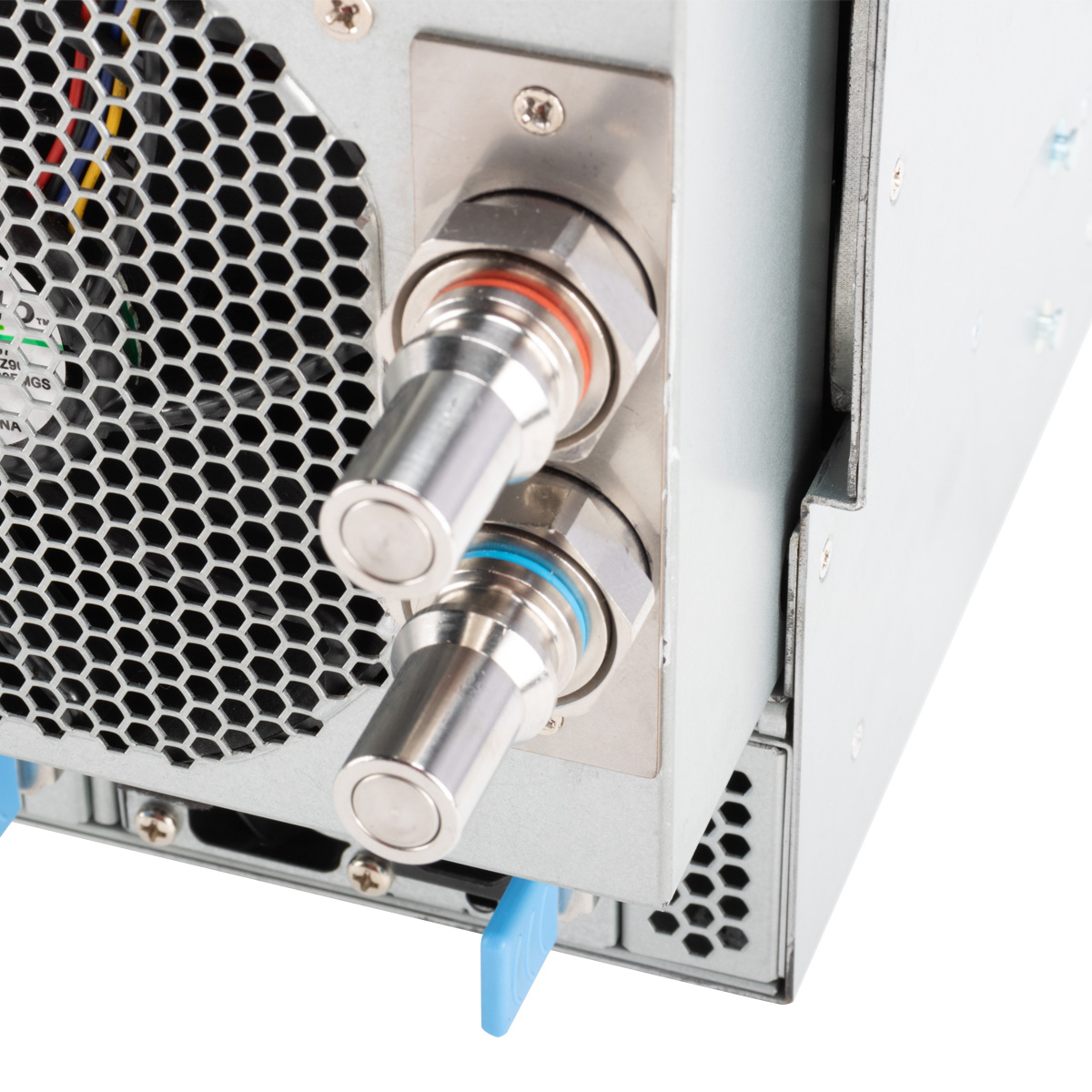

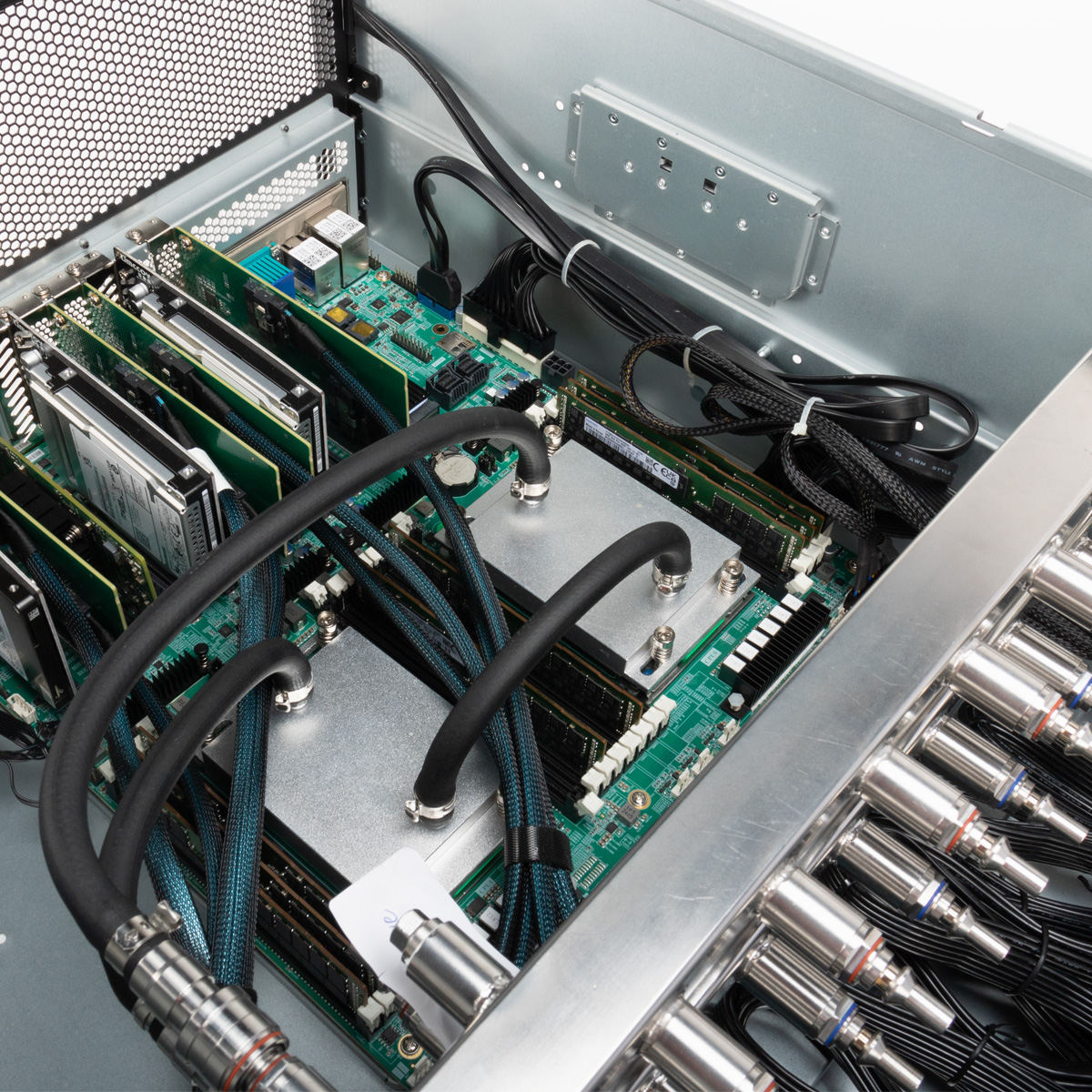

Smart Water Cooling Kit	1. CPU water-cooled plates and tubes 2 2. GPU water-cooled plates and tubes 8 3. Separate water collectors in the chassis 2 4. Sets of UQD quick connectors 12 transform the intelligent water cooling kit, the inlet temperature is 35℃, the outlet temperature is 41℃. The maximum inlet and outlet water pressure is 1MPa. Support 200W to 500W heat relief capacity.
Packing Size	1085735cm
Gross Weight	55 KG
