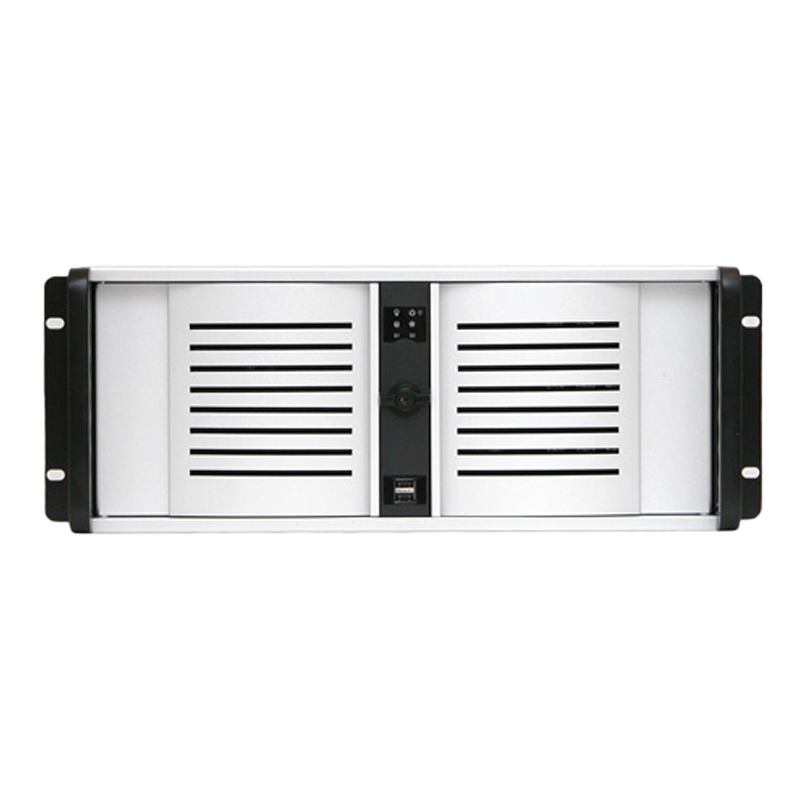

4U Rackmount Case -OC480L-F
4U Rackmount Chassis with 4 x 5.25 bays, 3 x 3.5 bays
Description
Package Information
Inquiry
| Model: | OC480L-F |
| 4U Rackmount Chassis: | 528 (D)*482.6 (W)*176.8 (H) mm |
| Material: | Galvanized Steel 1.2 mm SGCC; Thick Aluminum extrusion parts |
| PSU Form Factor: | ATX |

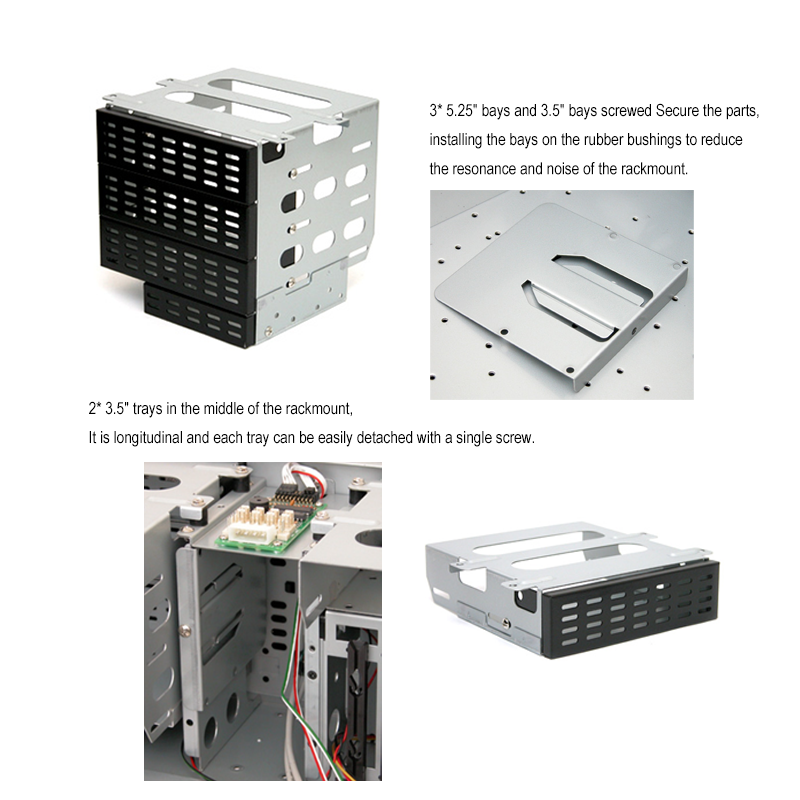

| HDD Bit: | 3 x 3.5″ Hard Disks (outside *1; middle inside *2) |
| CD-ROM Bit: | 4 x 5.25″ optical drive bays (outside *3; side *1) |

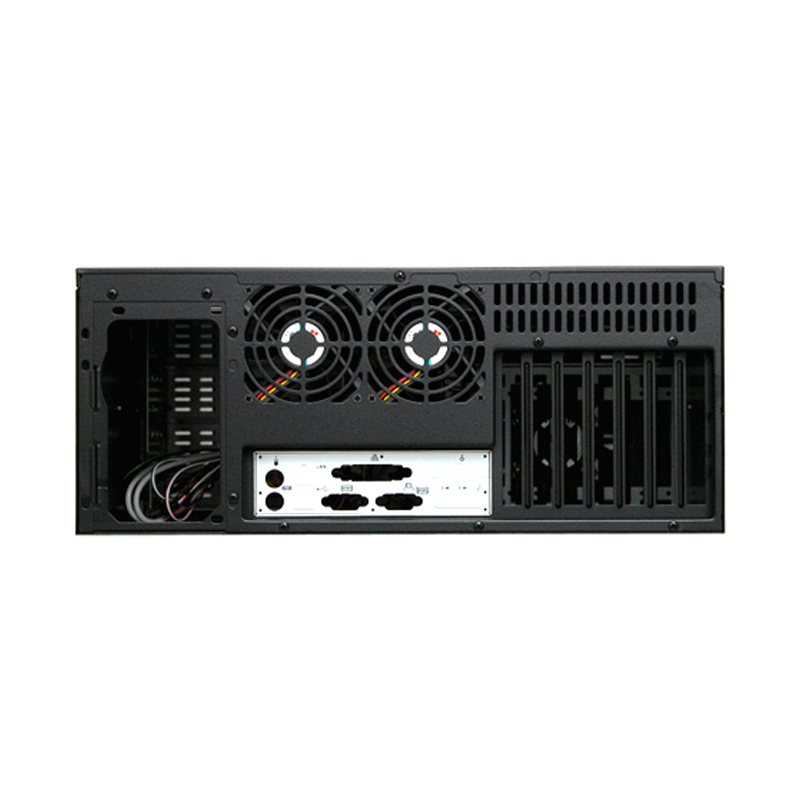

| System Cooling Fans: | 1 x 12025 fan & 2 x 8025mm Fan |

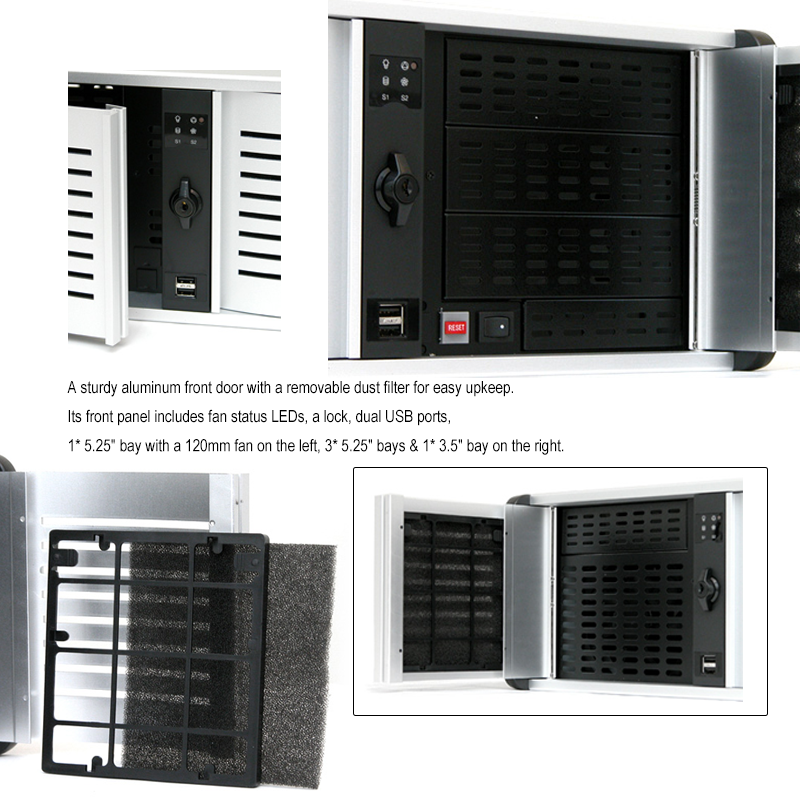

| Panel Setting: | USB2.0 *2, Power SW *1, Power LED *1, Fan Status LED *1 |
| Operaing Temperature: | 10°C - 35°C (without direct light) ; extended operating temperature: 5°C - 40°C (restrictive configuration satisfied); storage temperature: 20% - 90% |
| Transportation & Storage Temperature: | -40°C - 70°C |
Protected with pearl cotton + Inner box + Corner protectors + Outer carton
