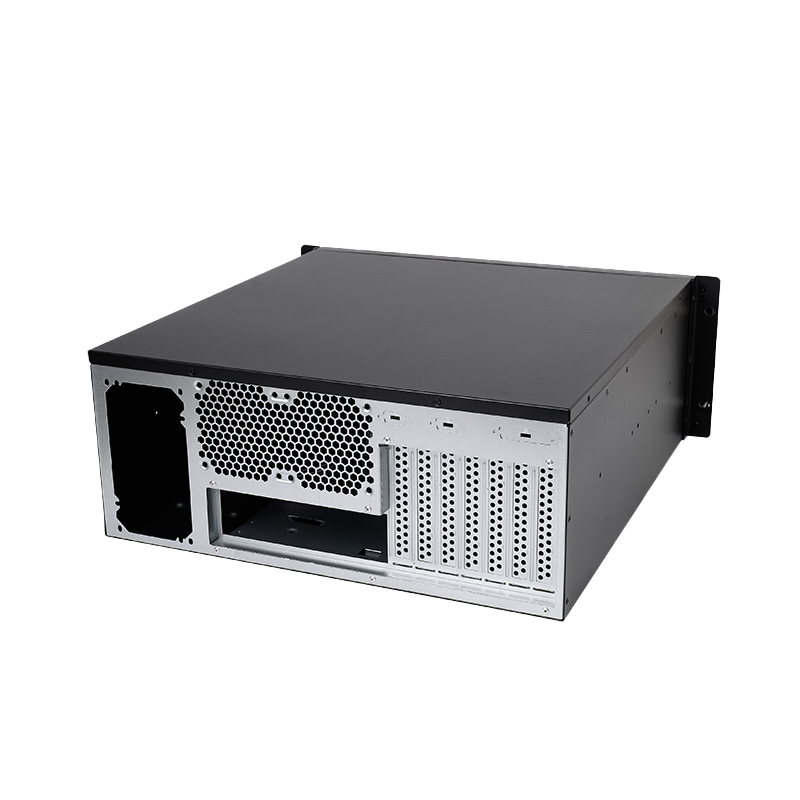

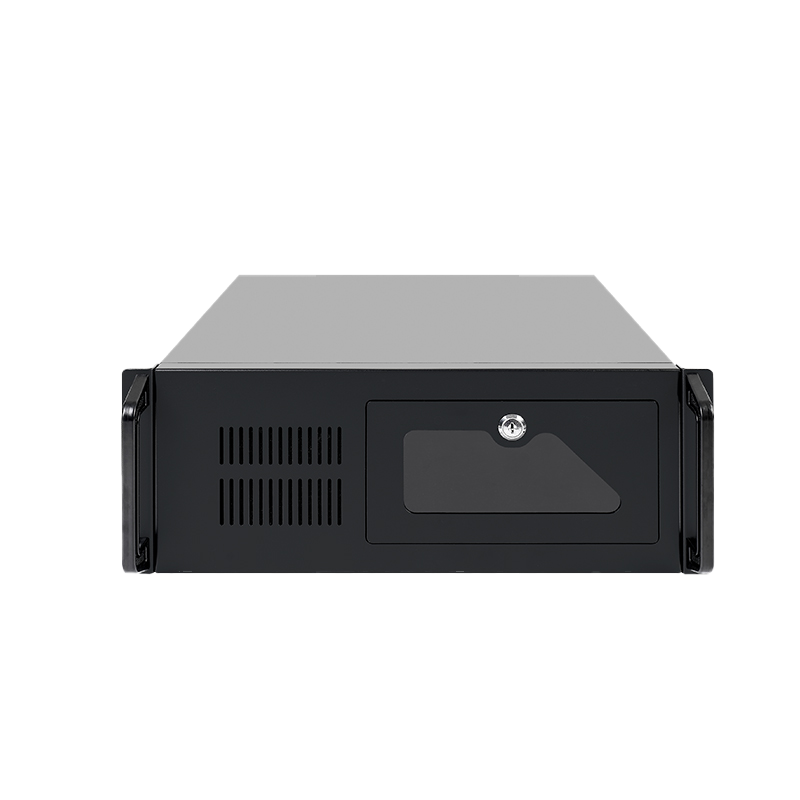

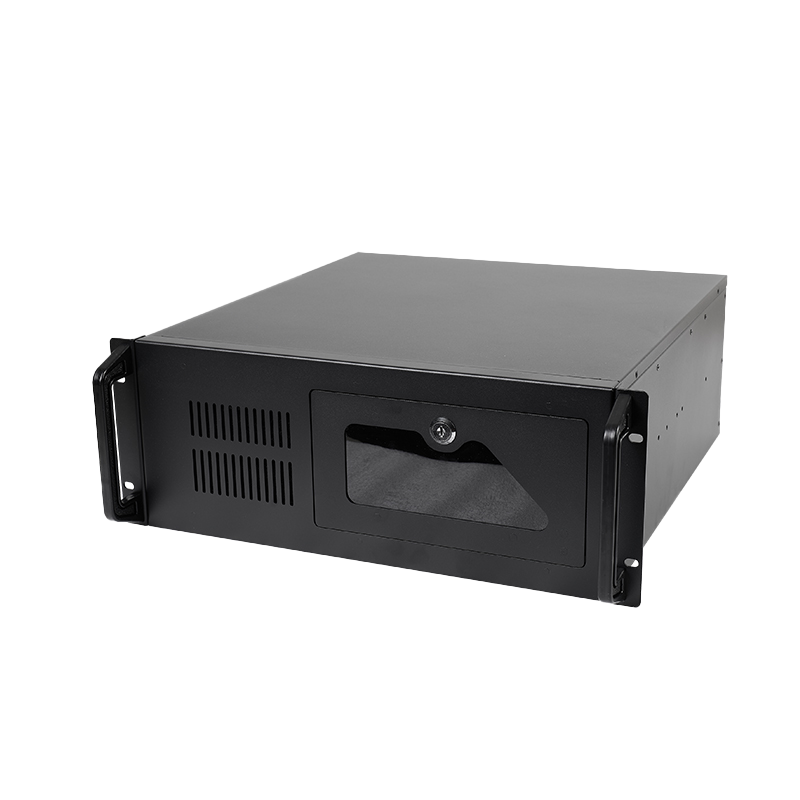

4U IPC Rackmount Chassis -OCR44508GS-H
• Support 3 optical drive bays or interchangeable hard drive bays
| • Motherboard: Max ATX (12" x 9.6"), downward compatible with ATX and smaller form factors
| • Power Supply: Standard ATX power supplies and various power supply bay customizable
| • 7 Full-height PCI Cards; Multiple Rear I/O Panel
Description
Package Information
Inquiry
| Model: | OCR44508GS-H |
| 4U Rackmount Chassis: | 450 (D)*430 (W)*176.3 (H) mm |
| Material: | Cold rolledsteel 0.8mm |
| M/B Form Factor: | ATX (12" × 9.6")/Mini-ATX (11.2" × 8.2")/MicroATX (9.6" × 9.6")/ITX |
| PSU Form Factor: | Standard ATX power bit |
| HDD Support: | Built-in 10 x 3.5 inch hard drive |
| Expansion Slot: | 7 full-height PCl cards |
| System Cooling Fans: | Built-in 2* 12025 and 2* 8025 fan bits |
| Smart Fans Speed Control: | NO |
| Air Duct: | Support for customization, optional materials (SGCC/PC/ABS/PE, etc.) |
| Indicators: | Power ON/OFF x 1, HDD x 1, KB-LK x 1 |
| Front Panel Control: | Power ON/OFF x 1, System reset x 1, KB-LK x 1, USB2.0 x 2/USB3.0 x 2 |
| Slide Rail: | Simple guide rail |
| Carton Size: | 570*530*260 mm |
| Net Weight: | 6.8 kg |
| Gross Weight: | 8.8 kg |
| Operaing Temperature: | 10°C-35°C (without direct light) ; extended operating temperature: 5°C-40°C (restrictive configuration satisfied); storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
