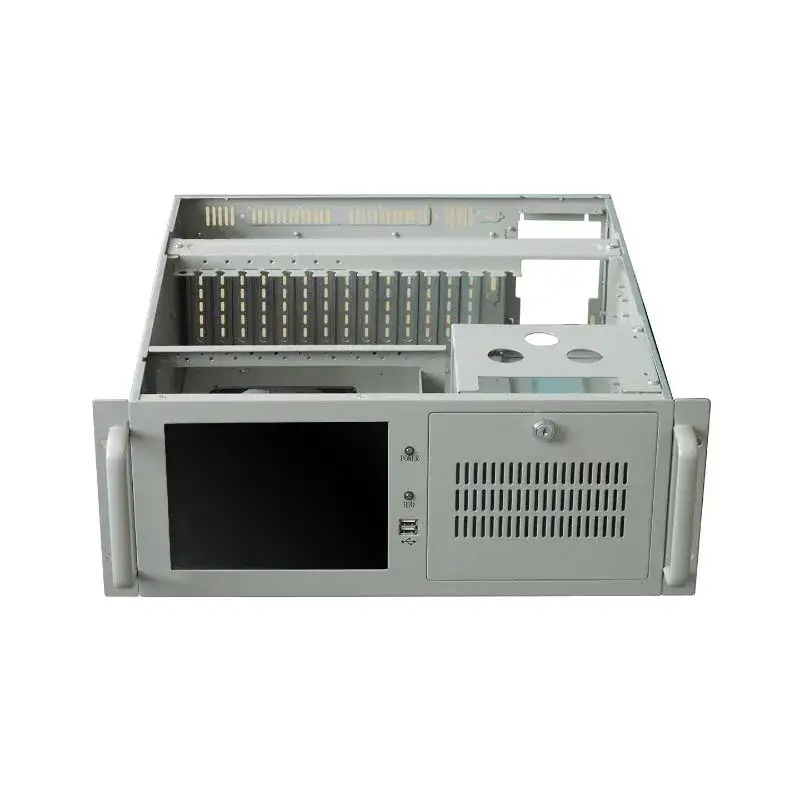

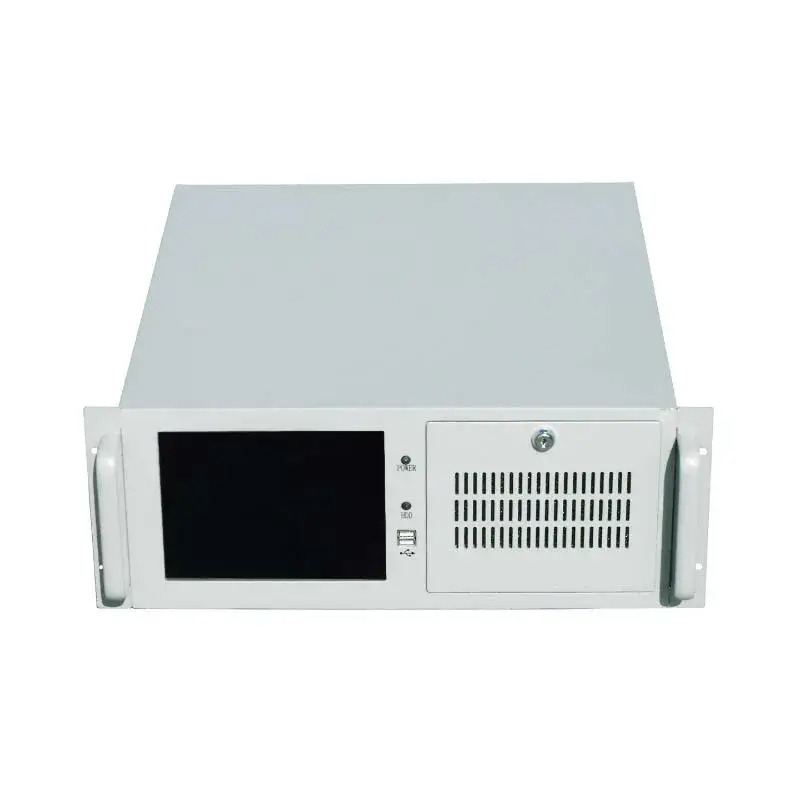

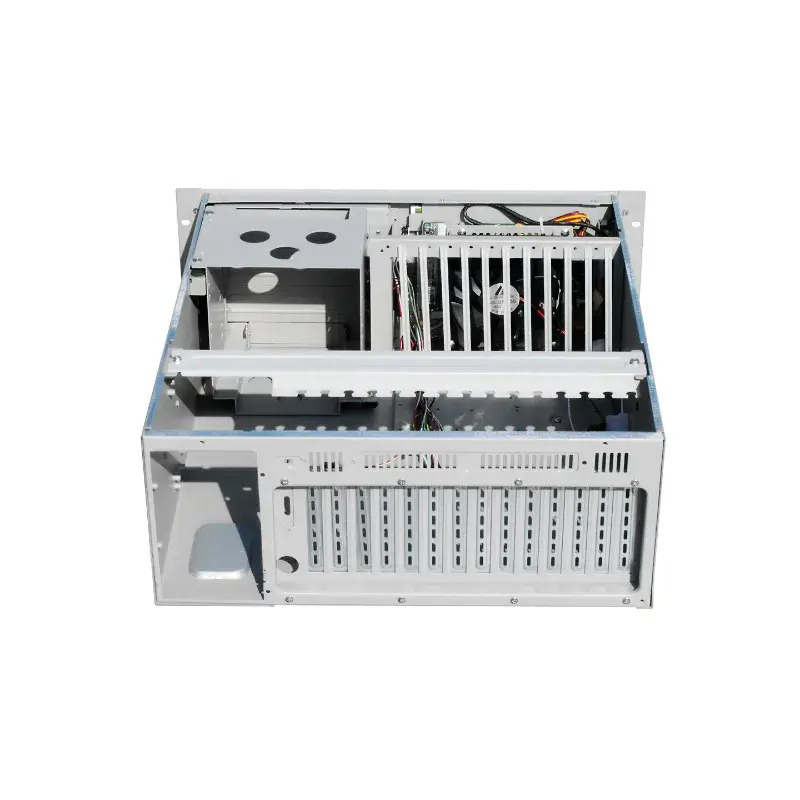

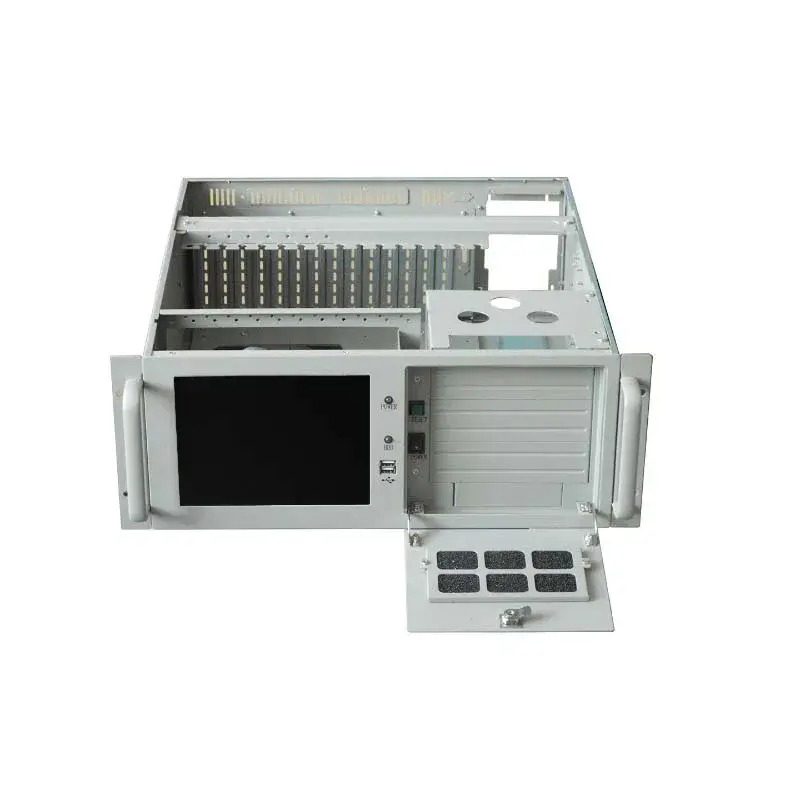

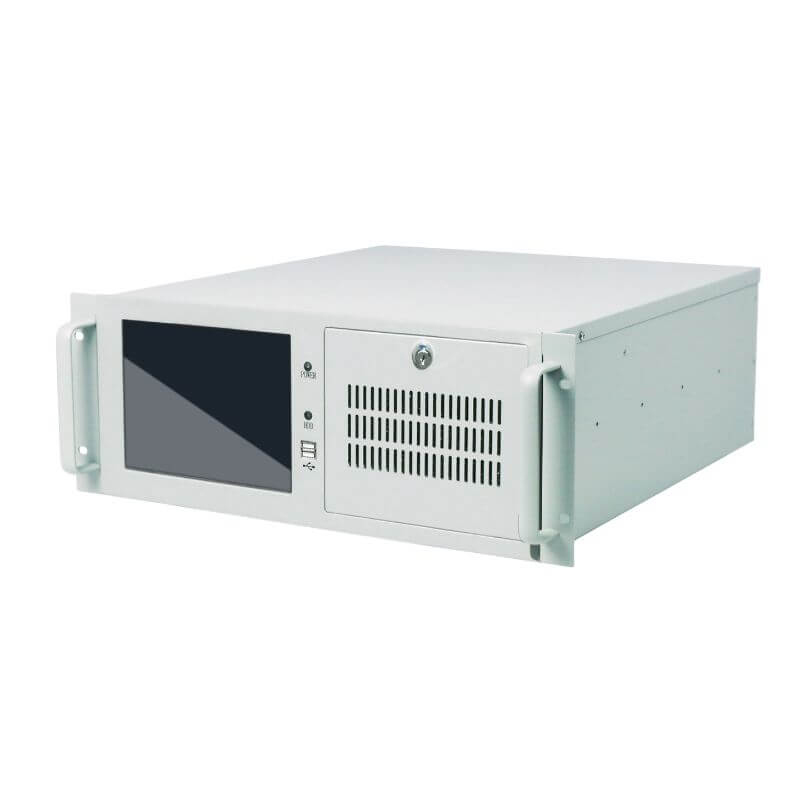

4U IPC Rackmount Chassis -OCIPC610M-T
• Broad Compatibility
| • Flexible Power Options
| • Durable Steel Construction
| • Efficient Cooling System
| • Ample Storage and Expansion
| • User-Friendly Front Panel
| • Ideal for Industrial Applications
Description
Package Information
Inquiry
| Model: | OCIPC610M-T |
| 4U Rackmount Chassis: | 480 (D)*427 (W)*177 (H) mm, standard 19″ rack-mounted industrial control chassis |
| Material: | Environmental protection, fingerprint resistant 1.2mm/SGCC |
| M/B Form Factor: | Standard ISA/PCI/PCIMG industrial backplane or 12″ x 9.6″ and below the industrial motherboard |
| PSU Form Factor: | Standard PS2 power supplyor redundant power supply |
| HDD Support: | 2* 3.5″ hard disk bays, the hard disk adopts a spring shock absorption design |
| FDD Bit: | 1* 3.5″ floppy drive bay |
| CD-ROM Bit: | 3* 5.25″ optical drive bays |
| Expansion Slot: | 7-slot rear window or 14-slot rear window can be replaced |
| System Cooling Fans: | 1* 12025 fan |
| USB Interface: | 2 front USB ports |
| Color: | Different colors can be sprayed on request |
| LCD Screen: | 8.4″ LCD screen, optional resistive touch screen |
| Application Field: | Used in industrial control, mechanical automation, the Internet of Things, intelligent transportation, and other fields |
| Operaing Temperature: | 10°C-35°C (without direct light); Extended operating temperature: 5°C-40°C (restrictive configuration satisfied); Storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
