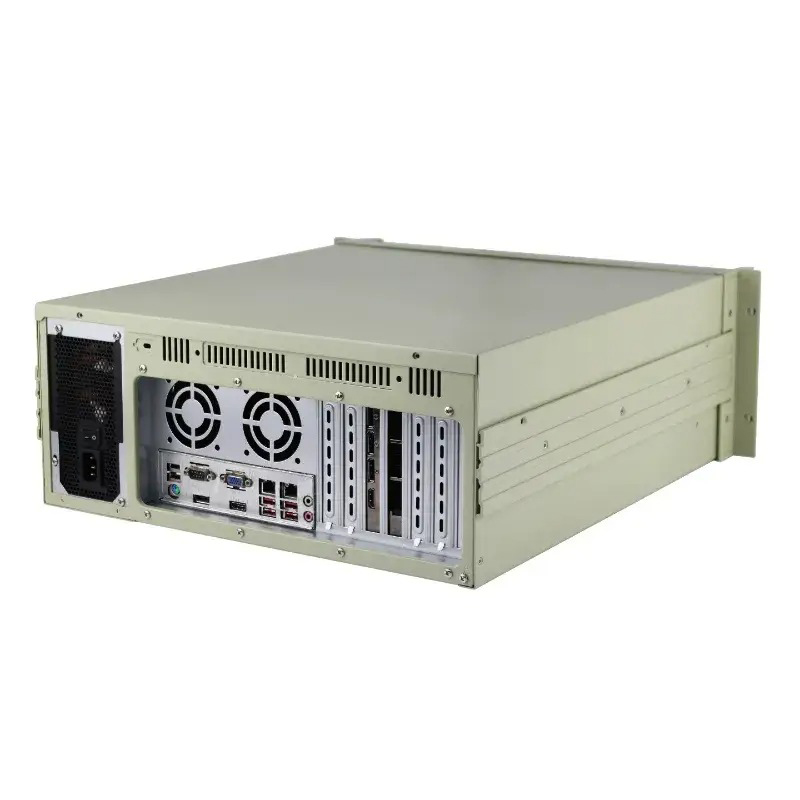

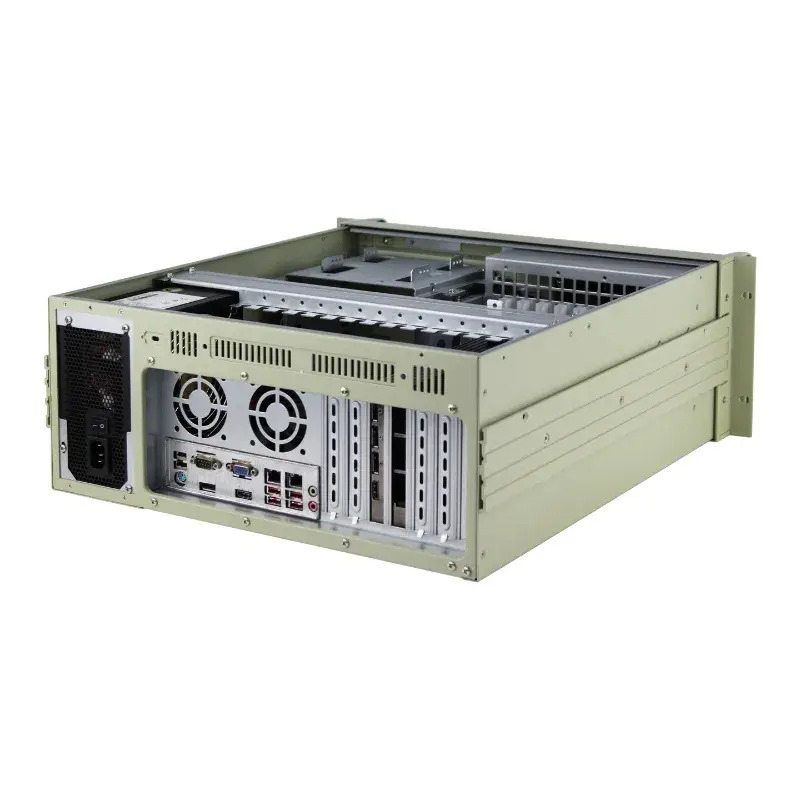

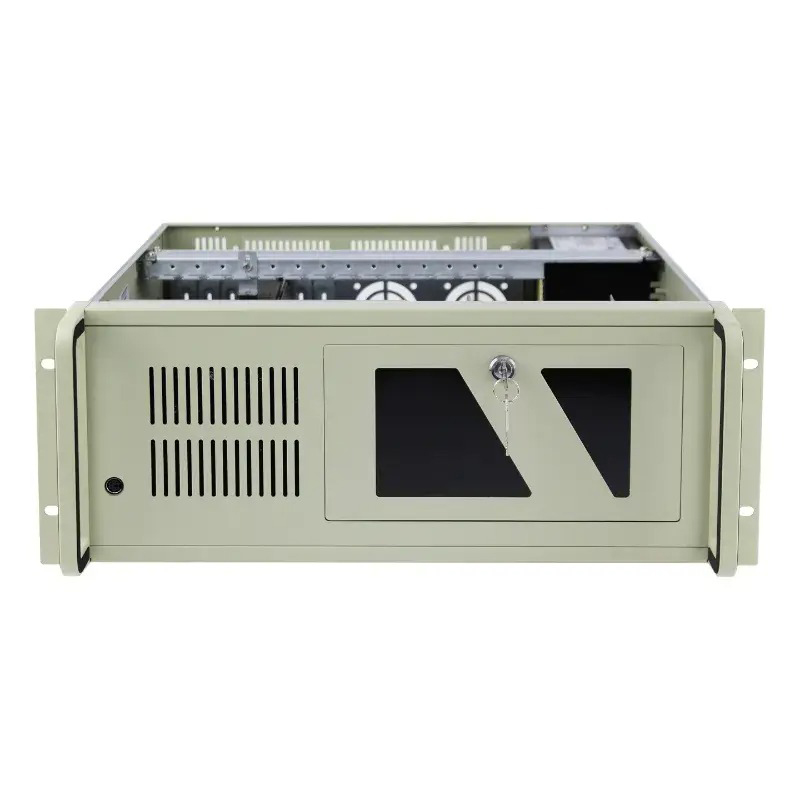

4U IPC Rackmount Chassis -OCIPC610P-T
• Standard 4U Industrial Rackmount Design
| • Durable and Clean Construction

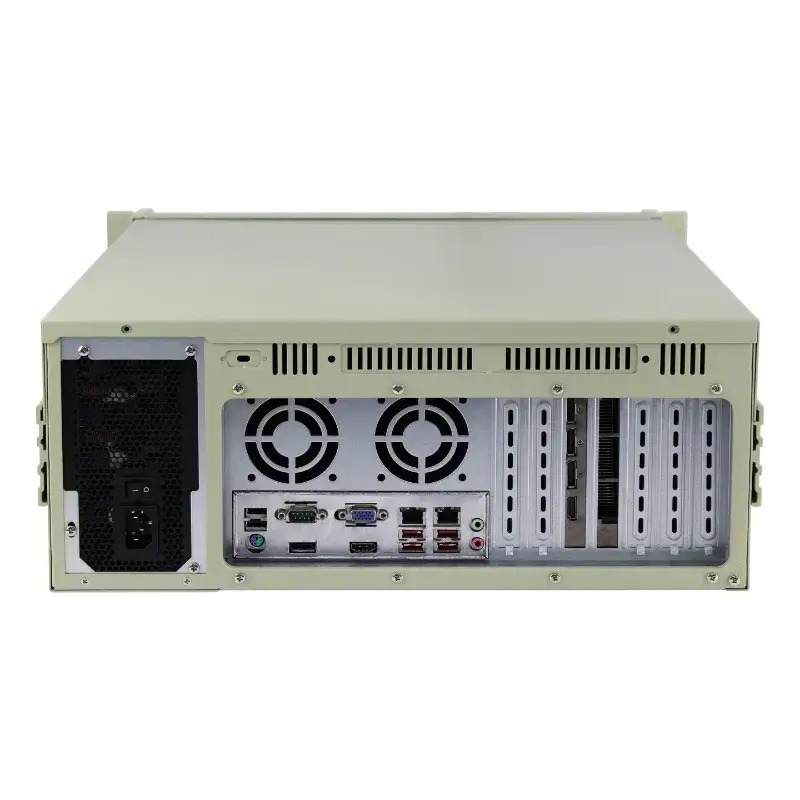

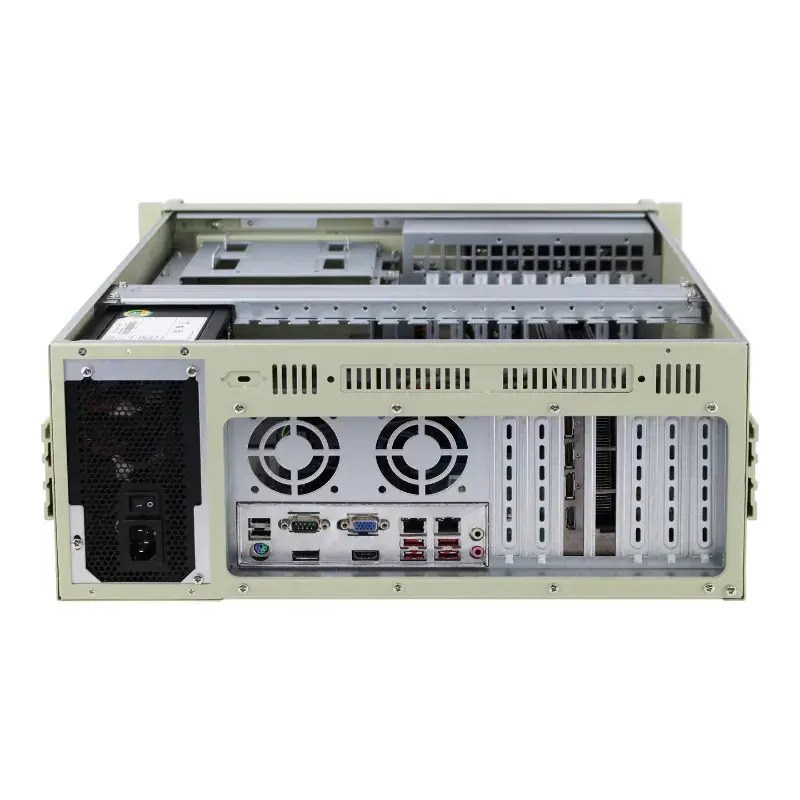

| • Expandable and Adaptable Rear Panel
| • Flexible Storage Options
| • Power Supply Compatibility

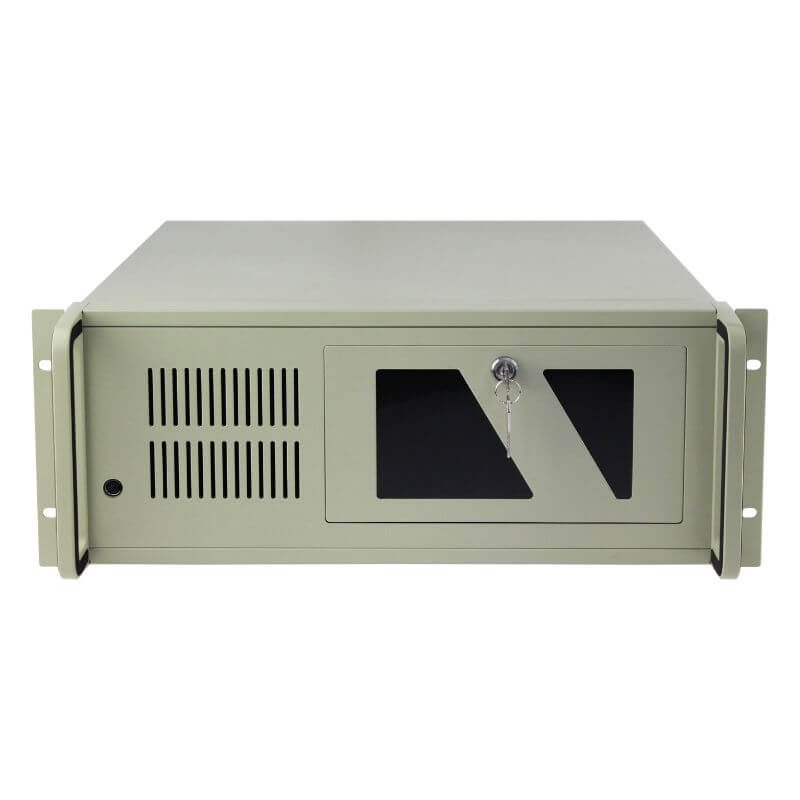

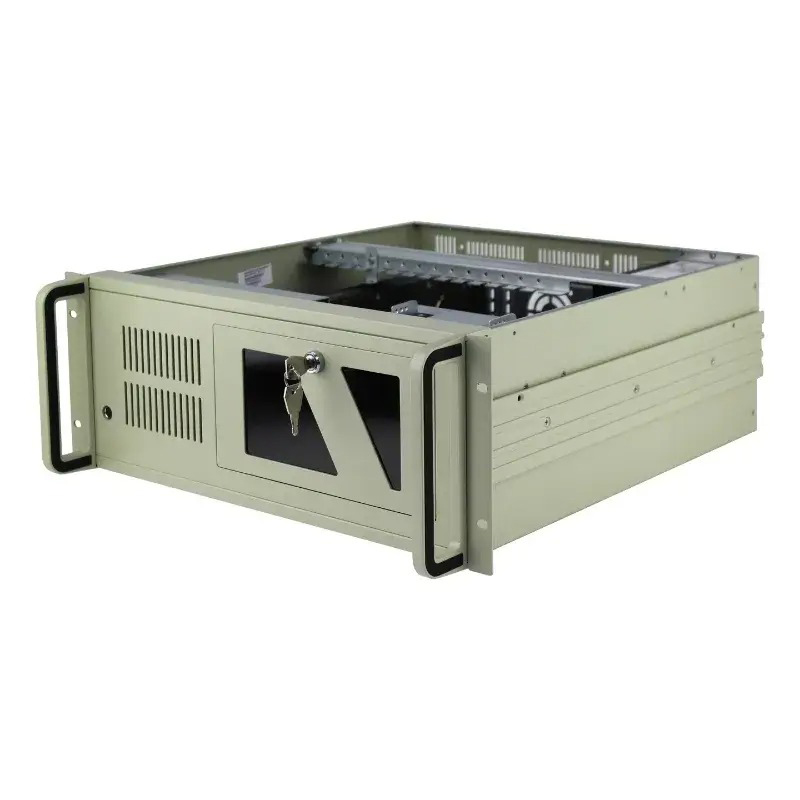

| • Secure and Convenient Front Access
| • Industrial-Grade Applications
Description
Package Information
Inquiry
| Model: | OCIPC610P-T |
| 4U Rackmount Chassis: | 450 (D)*427 (W)*177 (H) mm, standard 19″ rack-mounted industrial control chassis |
| Material: | Environmentally friendly, fingerprint resistant 1.2mm SGCC |

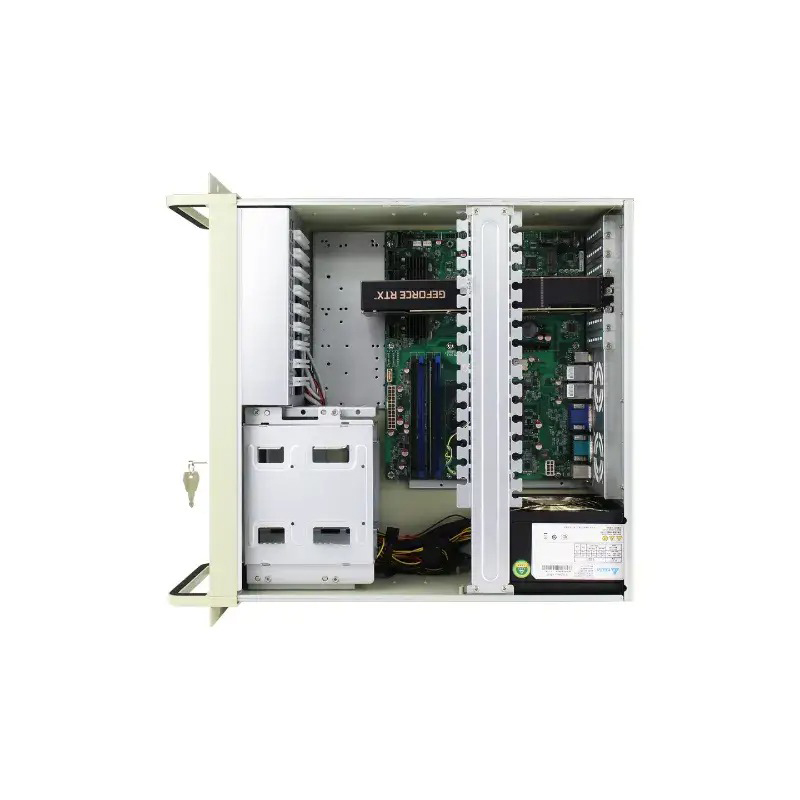

| M/B Form Factor: | Standard ISA/PCI/PCIMG industrial backplane or 12″ x 10.5″ and below the industrial motherboard |
| PSU Form Factor: | Standard PS2 power supplyor redundant power supply |
| HDD Support: | 2* 3.5″ hard drive bays |
| FDD Bit: | 1* 3.5″ floppy drive bay (compatible with 3.5″ hard drives) |
| CD-ROM Bit: | 2* 5.25″ optical drive bays |

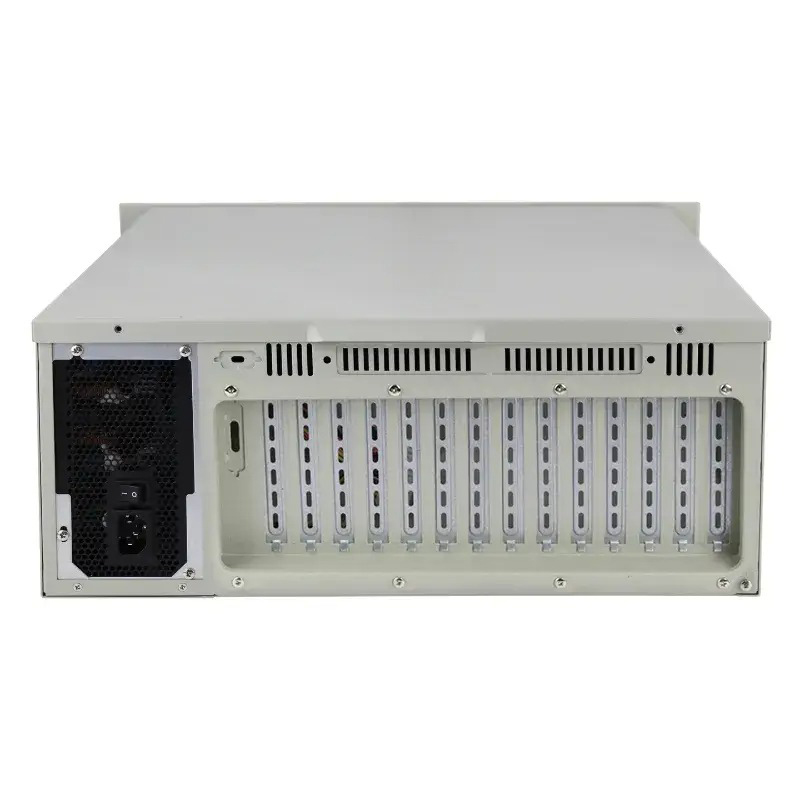

| Expansion Slot: | 7-slot or 14-slot rear window can be replaced |
| System Cooling Fans: | 1* 12025 fan |
| USB Interface: | 2 front USB ports |
| Application Field: | Widely used in industrial control, security monitoring, mechanical automation, intelligent transportation, the Internet of Things, and other fields |
| Operaing Temperature: | 10°C-35°C (without direct light); Extended operating temperature: 5°C-40°C (restrictive configuration satisfied); Storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
