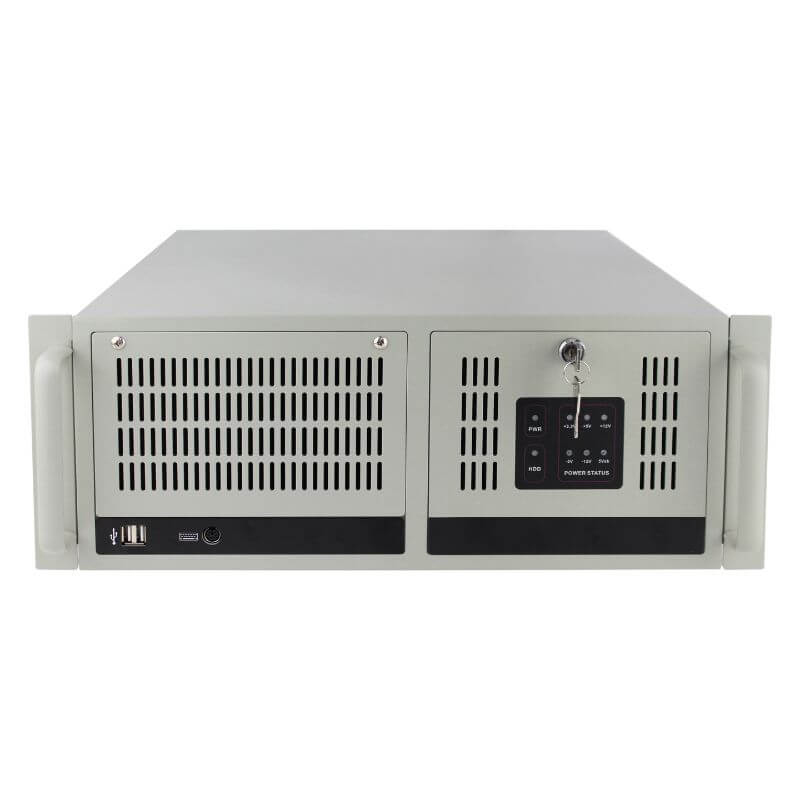

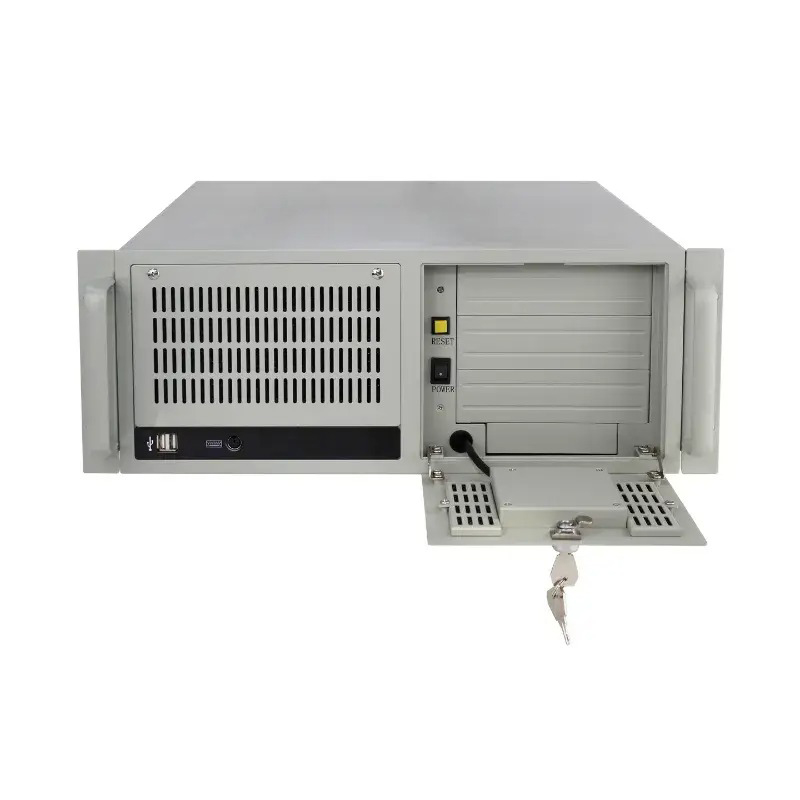

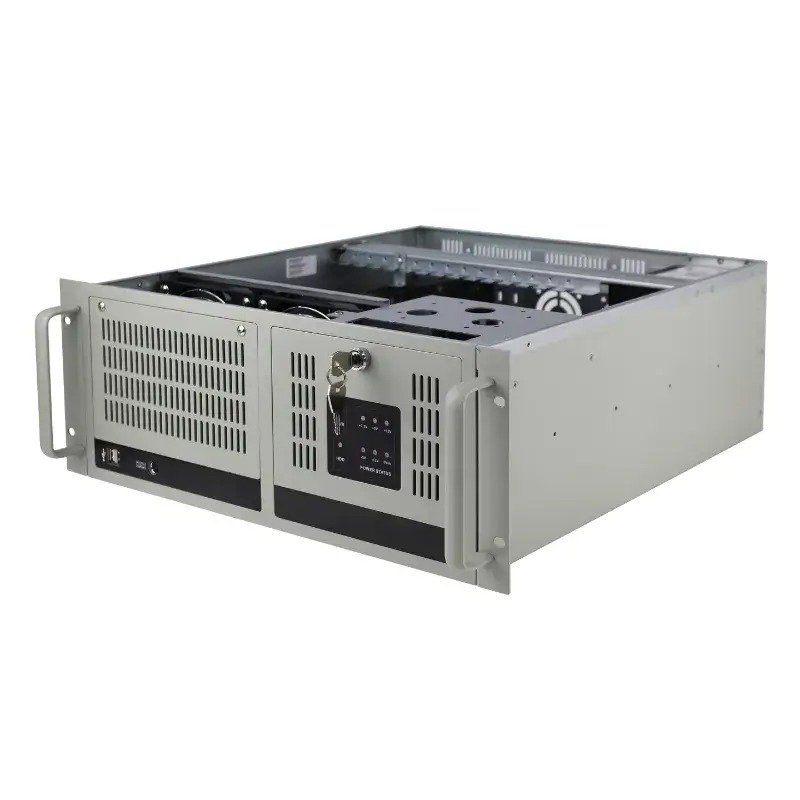

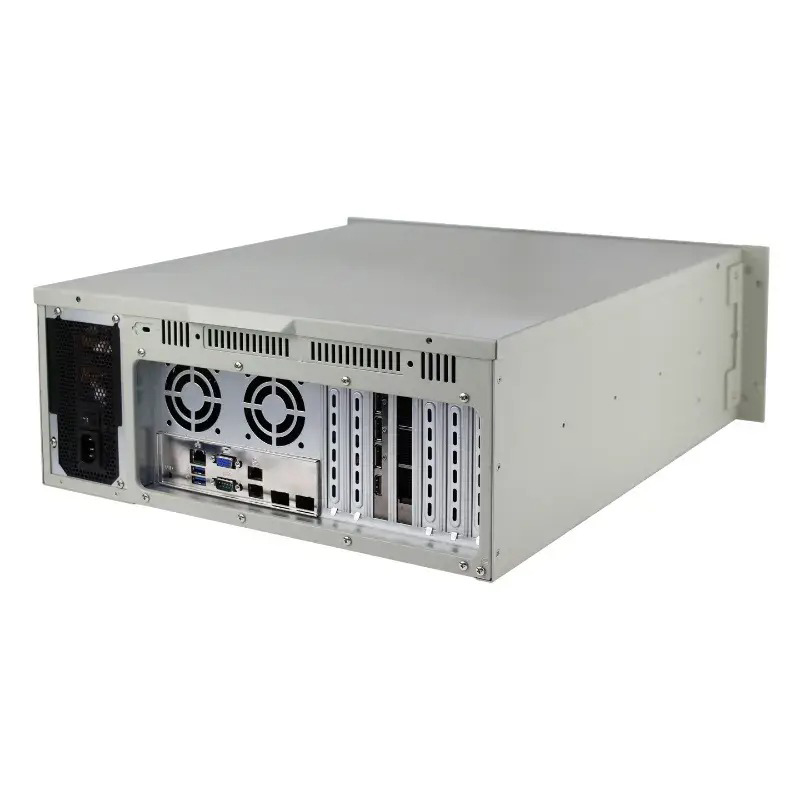

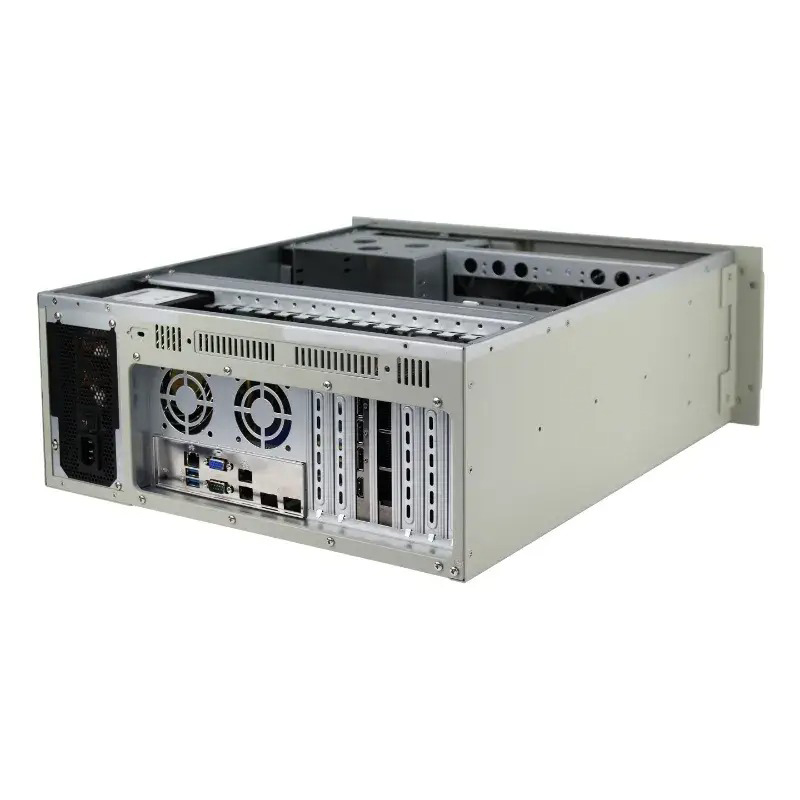

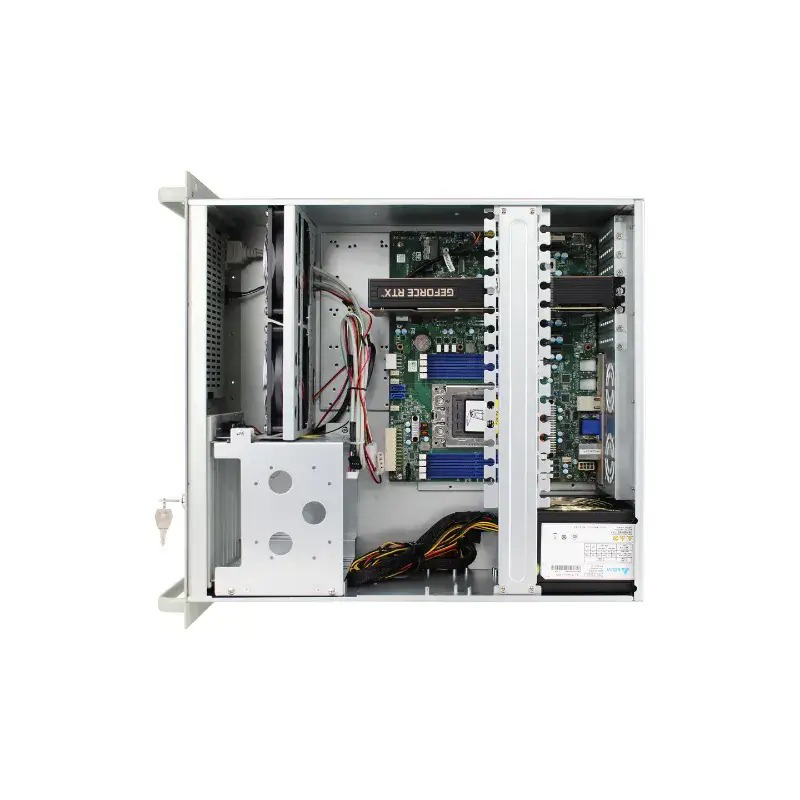

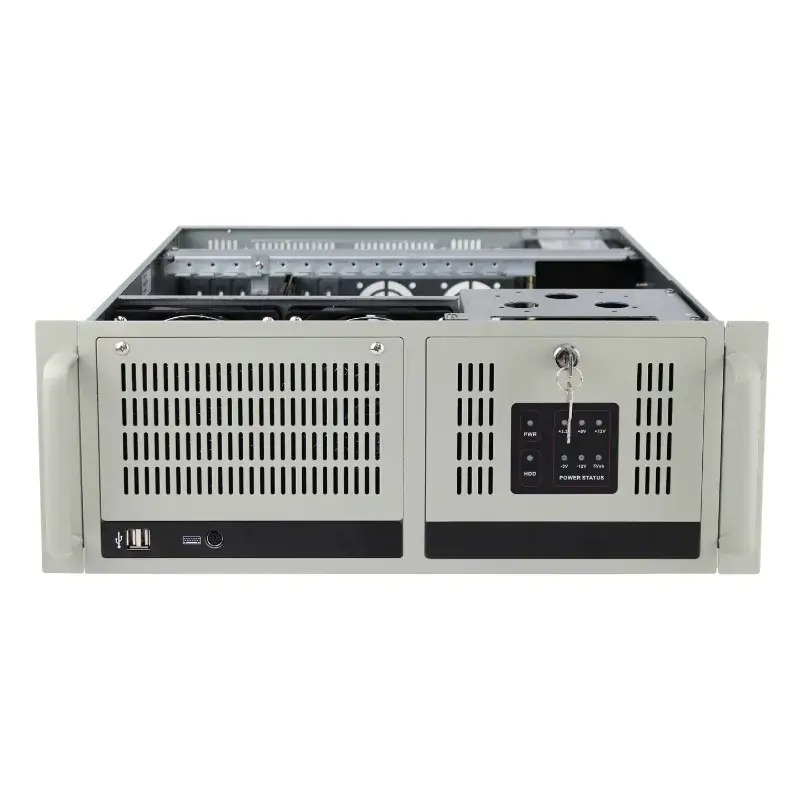

4U IPC Rackmount Chassis -OCIPC610H-T
• Compact and Compatible Design
| • Sturdy and Clean Build
| • Effective Cooling System
| • Flexible Drive Support
| • Power Supply Compatibility
| • Expandable and Adaptable
| • Convenient Front Access
| • Industrial Use Ready
Description
Package Information
Inquiry
| Model: | OCIPC610H-T |
| 4U Rackmount Chassis: | 480 (D)*427 (W)*177 (H) mm |
| Material: | Environmentally friendly, fingerprint resistant 1.2mm SGCC |
| M/B Form Factor: | Standard ISA/PCI/PCIMG industrial backplane or 12″ x 10.5″ and below the industrial motherboard |
| PSU Form Factor: | Standard PS2 power supplyor redundant power supply |
| HDD and FDD Bit: | 1* 3.5″ floppy drive bay (compatible with 3.5″ hard drives) |
| CD-ROM Bit: | 3* 5.25″ optical drive bays |

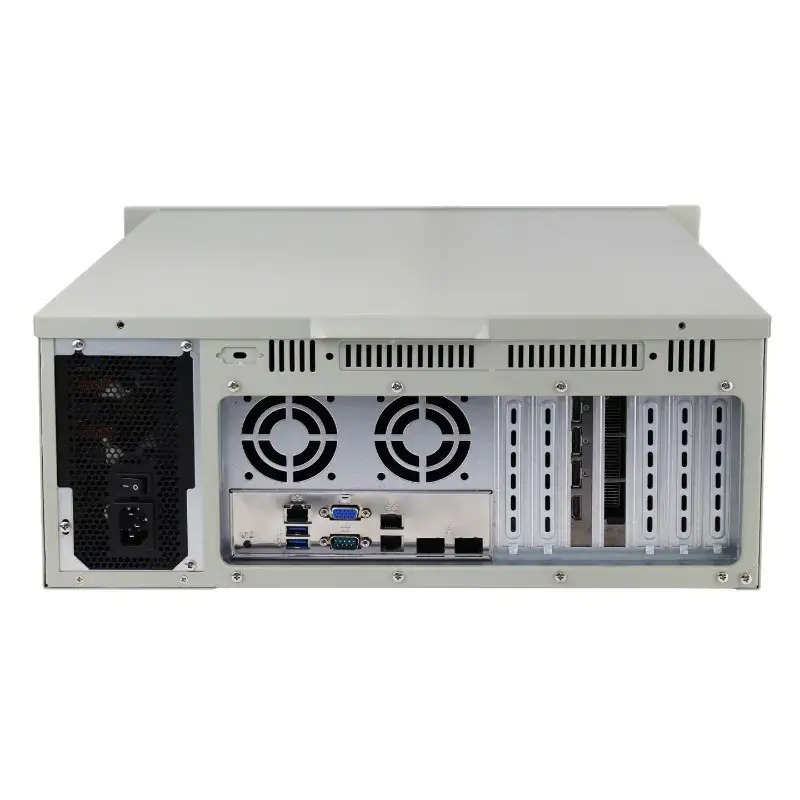

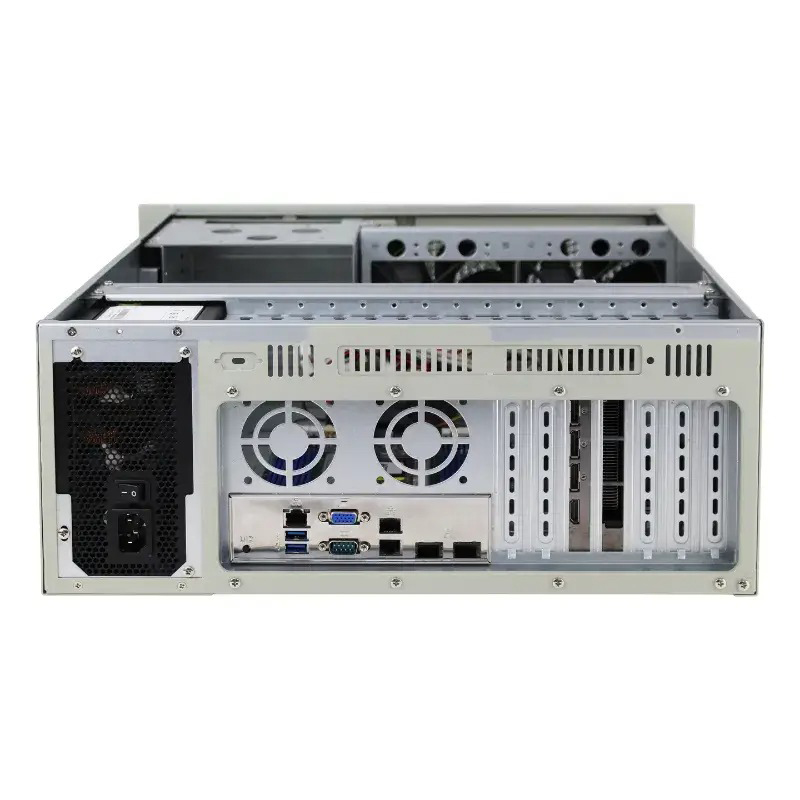

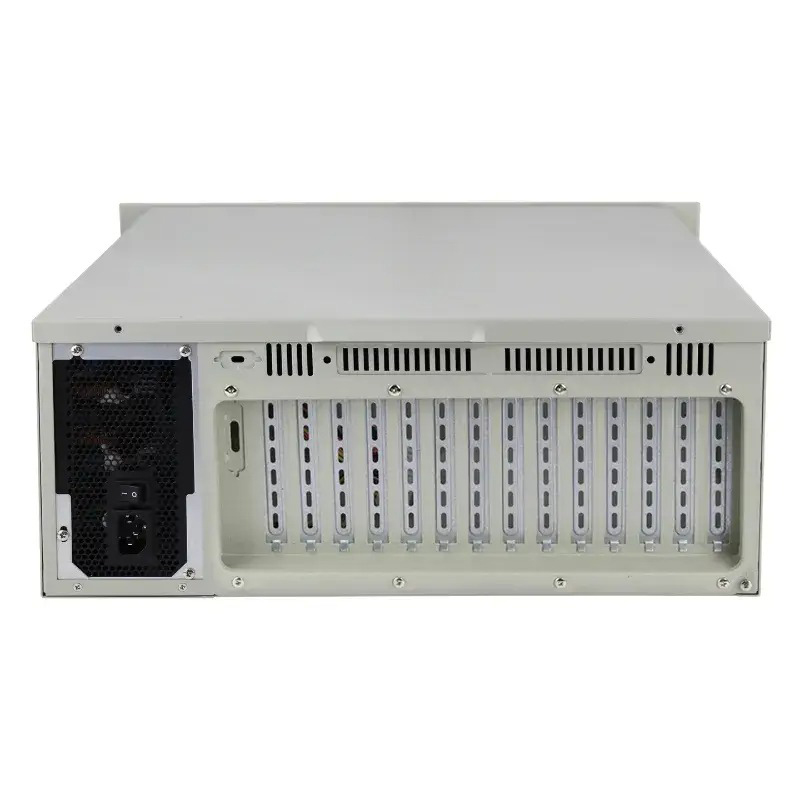

| Expansion Slot: | 7-slot or 14-slot rear window can be replaced |
| System Cooling Fans: | 8* 8025 fan |
| USB Interface: | 2 front USB ports |
| Application Field: | Widely used in industrial control, intelligent transportation, mechanical automation, the Internet of Things, security monitoring, and other fields |
| Operaing Temperature: | 10°C-35°C (without direct light); Extended operating temperature: 5°C-40°C (restrictive configuration satisfied); Storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
