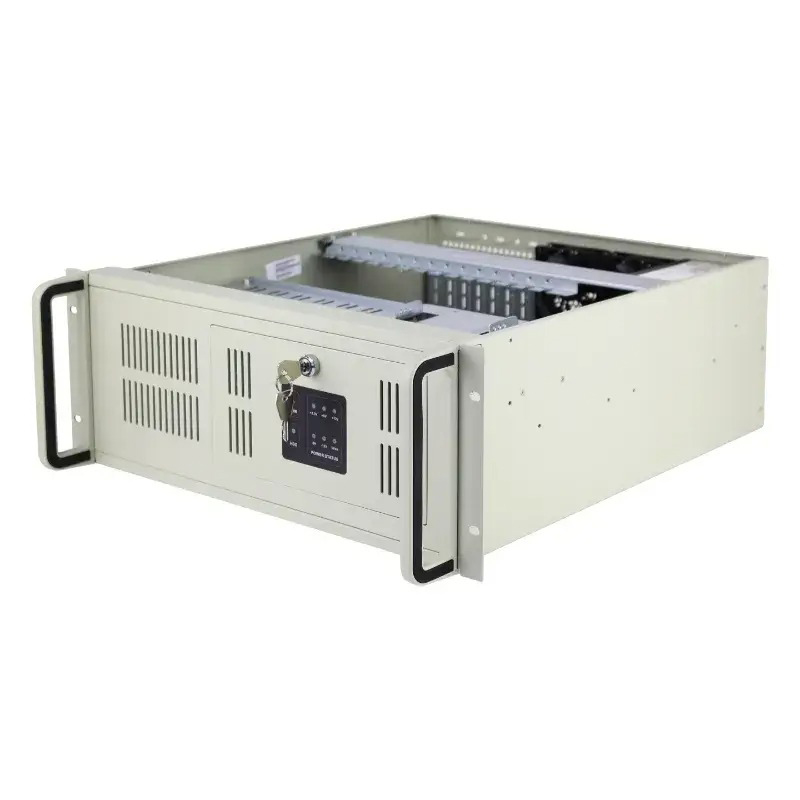

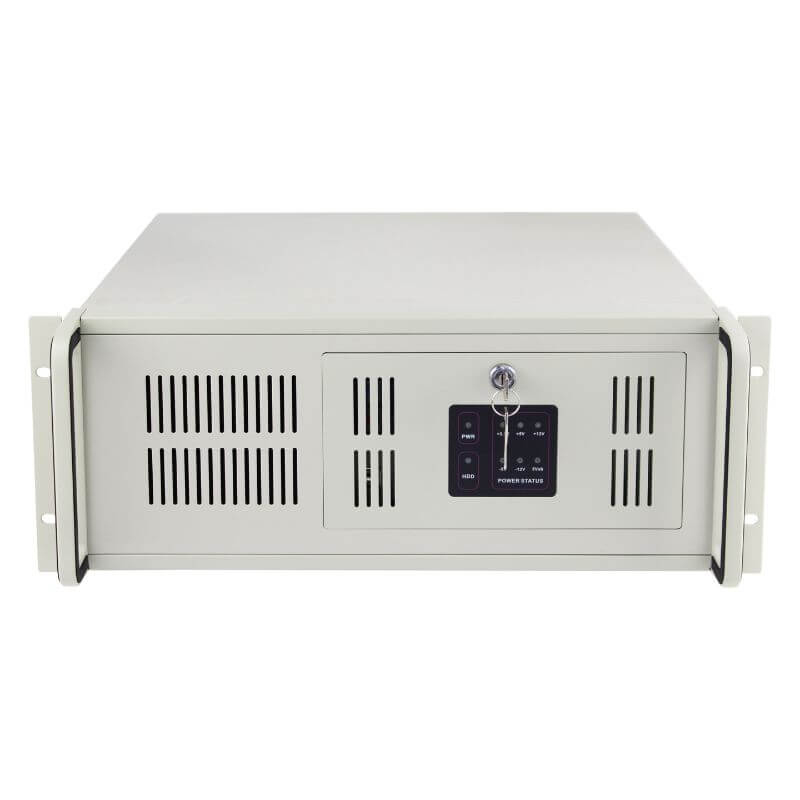

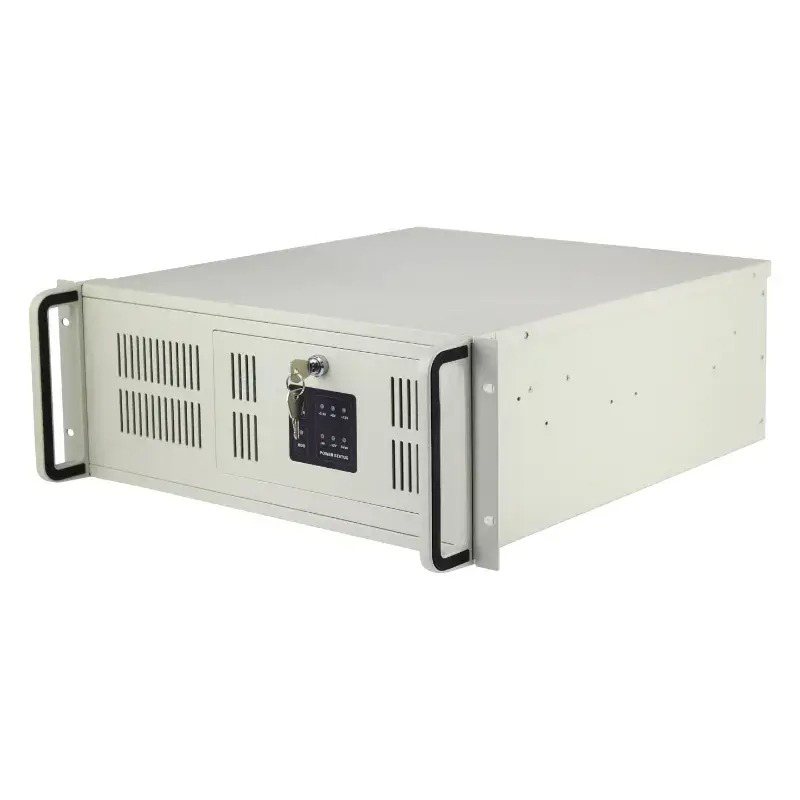

4U IPC Rackmount Chassis -OCIPC510HW-T
• Efficient Cooling System
| • Durable and Industrial-Grade Build
| • Ample Drive Bay Options
| • Wide Motherboard and Power Compatibility
| • Robust Expansion Capacity
| • User-Friendly I/O and Lockable Front Panel
| • Ideal for Industrial Applications
Description
Package Information
Inquiry
| Model: | OCIPC510HW-T |
| 4U Rackmount Chassis: | 450 (D)*427 (W)*177 (H) mm, standard rack-mounted industrial chassis |
| Material: | Environmental protection, fingerprint resistant 1.2mm/SGCC |
| M/B Form Factor: | Support 12″ x 9.6″ and below motherboard size |
| PSU Form Factor: | Standard PS2 power supply |
| HDD Support: | 8* 3.5" hard drive bays |
| FDD Bit: | 1* 3.5″ floppy drive bay, compatible with 3.5″ hard drive |
| CD-ROM Bit: | 2* 5.25″ optical drive bays |
| Expansion Slot: | 7 PCI/PCI-E full-height expansion slots |
| System Cooling Fans: | 1* 12025 fan on the front panel, 2 x 8025 fans on the rear window |
| USB Interface: | 2 front USB ports |
| Application Field: | Widely used in industrial control, intelligent transportation, mechanical automation, the Internet of Things, security monitoring, and other fields |
| Operaing Temperature: | 10°C-35°C (without direct light); Extended operating temperature: 5°C-40°C (restrictive configuration satisfied); Storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
