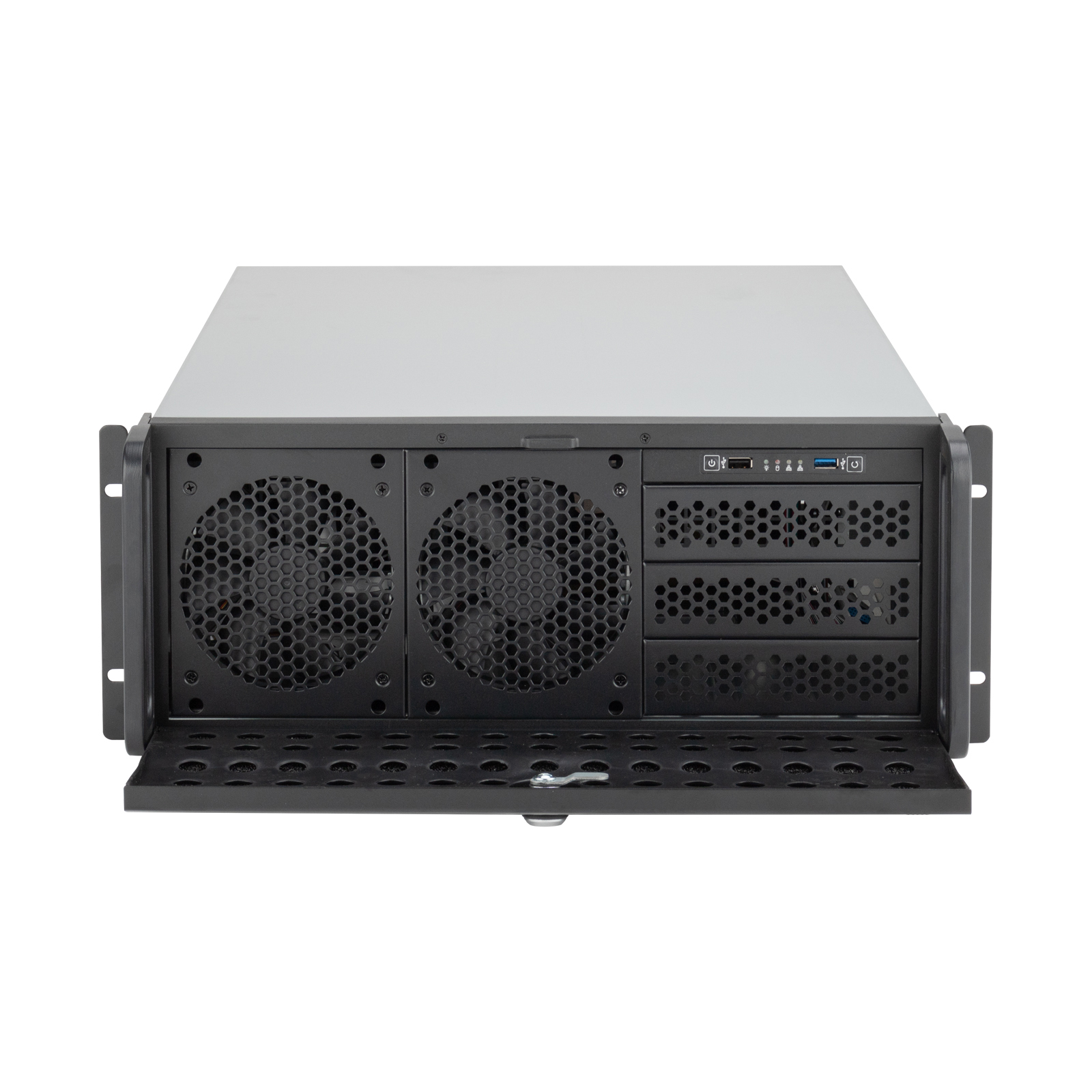

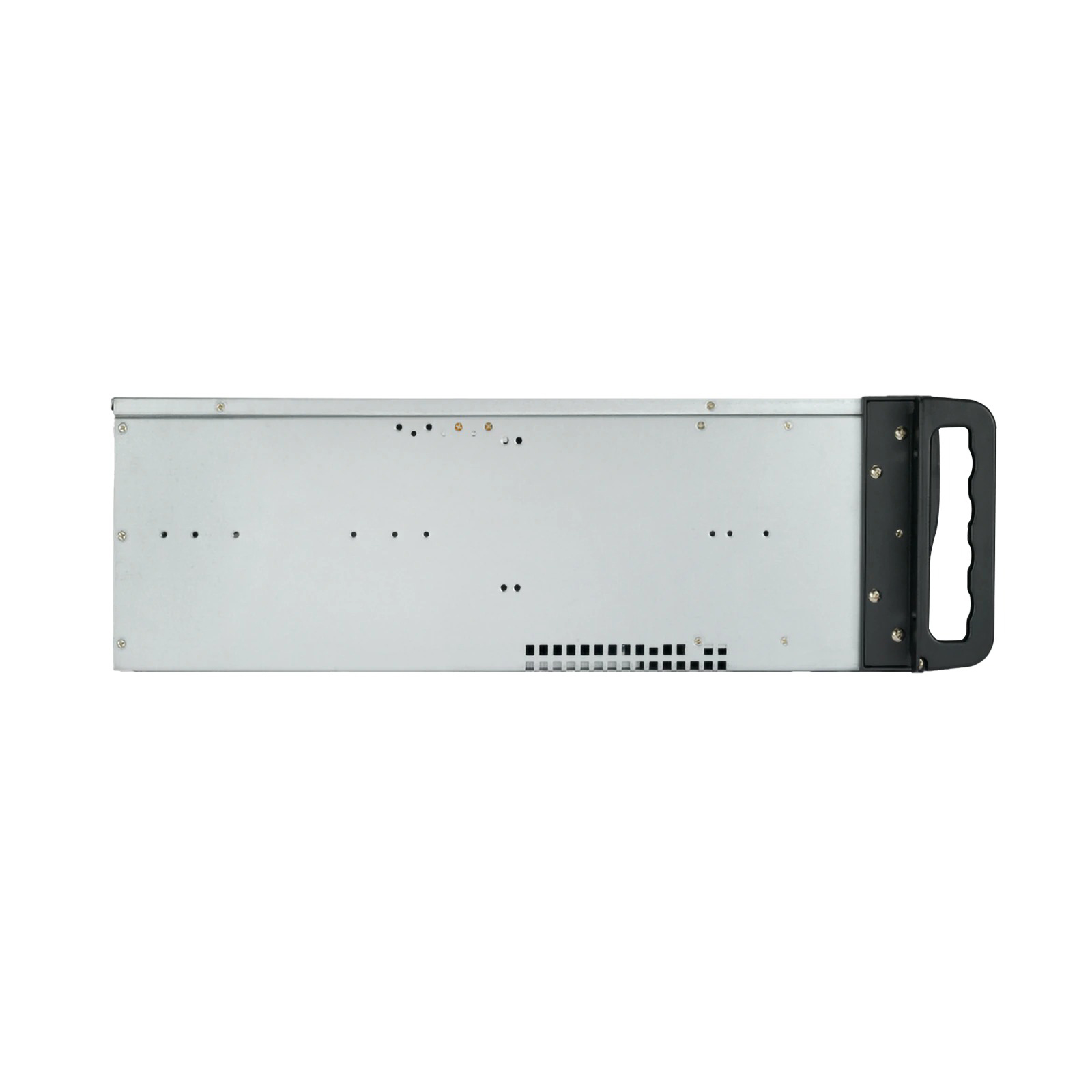

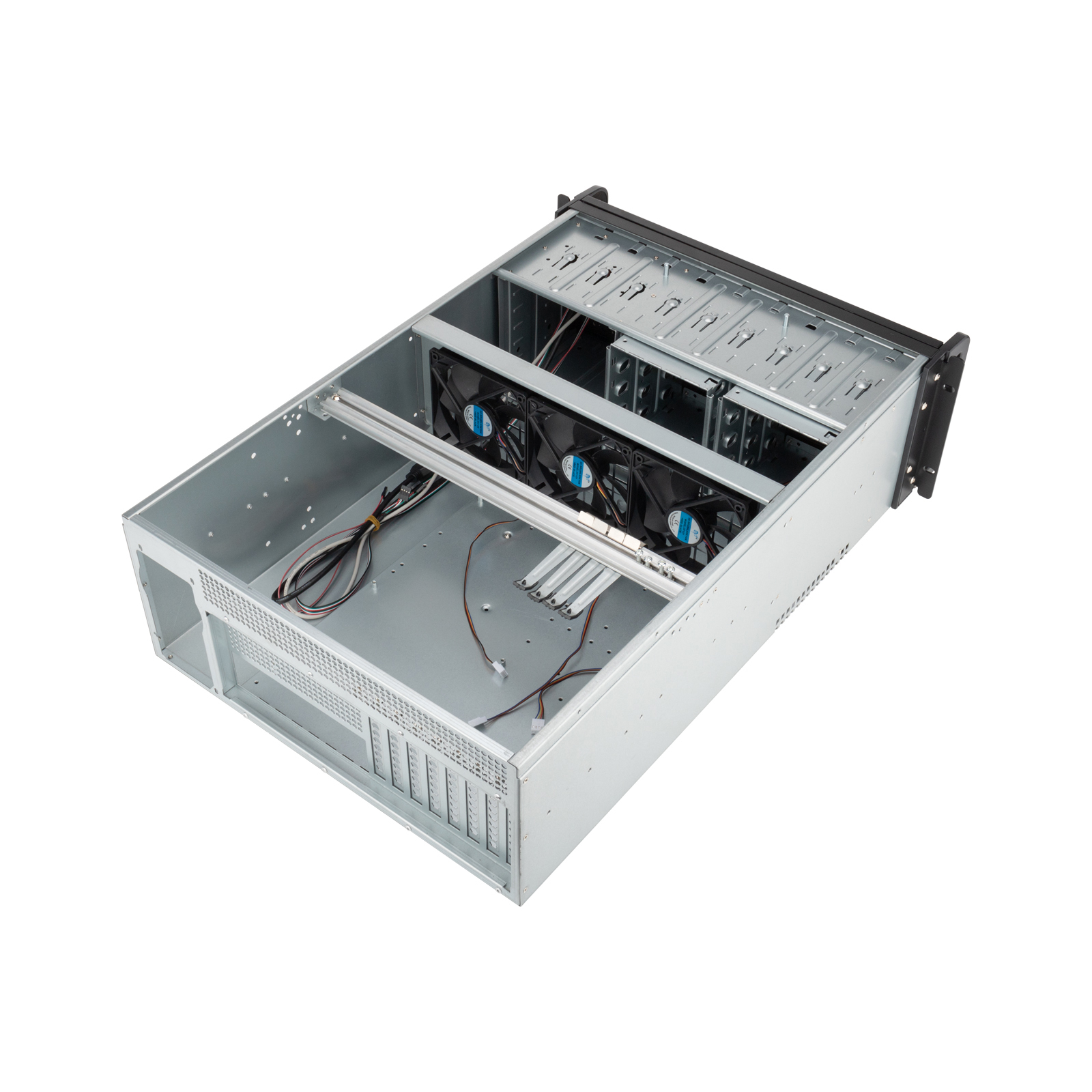

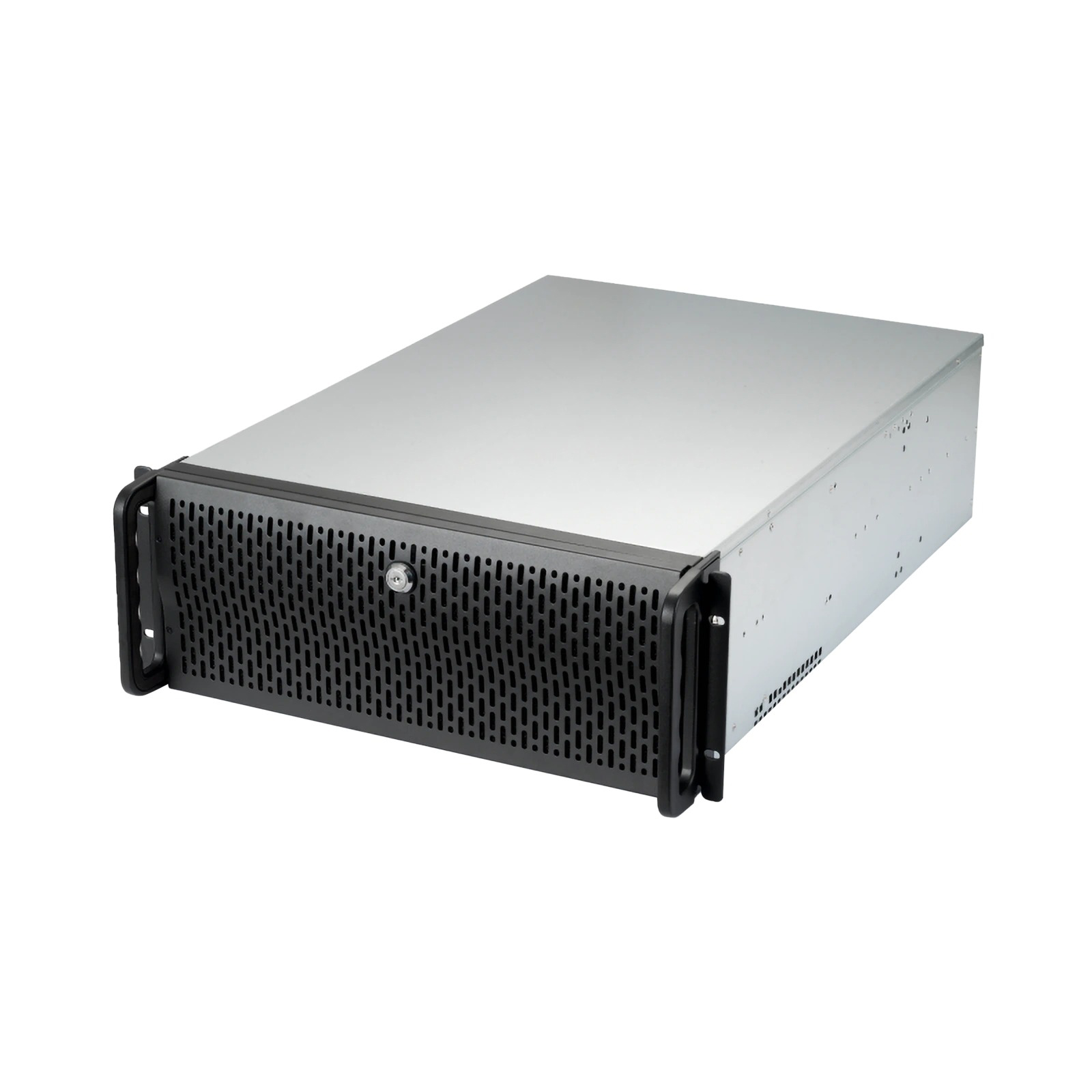

4U Rackmount Chassis- OC4650-Y
• Extreme Cooling – Configurable for air/water cooling
| • Enterprise Storage – 10+3 drive capacity
| • Mission-Critical Power – Redundant PSU ready
| • Design Excellence – Premium aluminum handles + honeycomb vents
| > Power Supply not include
Description
Package Information
Inquiry
| Model: | OC4650-Y |
| 4U Rackmount Chassis: | 650 (D)*430 (W)*178 (H) mm |
| Material: | Taiwan sinosteel SGCC 1.2mm |
| M/B Form Factor: | ATX (maximum size within 305* 244mm) |
| PSU Form Factor: | ATX power supply, 4U\2U redundant power supply |
| HDD Support: | 10* 3.5" HDD, 3* 5.25" CD-ROM |
| Expansion Slot: | 8 PCl cards |
| System Cooling Fans: | Standard 3* 1225 fan Support 6* 1225 & 2* 8025 fan and water cooling fans |
| Button: | Switch key/USB2.0 interface *2 |
| Panel: | Panel 1.0 honeycomb hole, black powder spraying |
| Color: | Original color of steel plate |
| Case handle: | Aluminum handle |
| Operaing Temperature: | 10°C-35°C (without direct light); Extended operating temperature: 5°C-40°C (restrictive configuration satisfied); Storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
