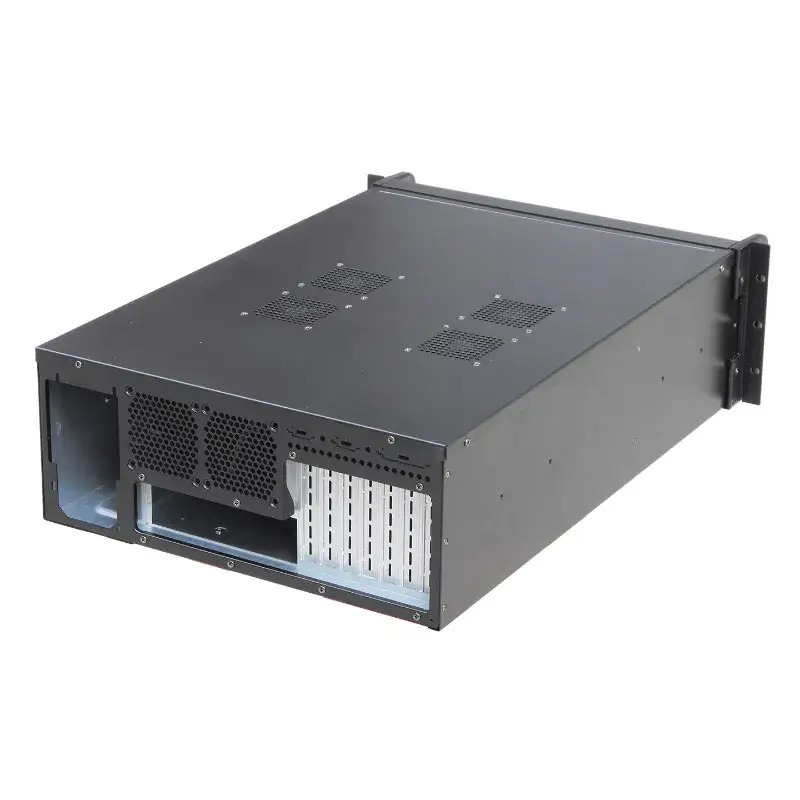

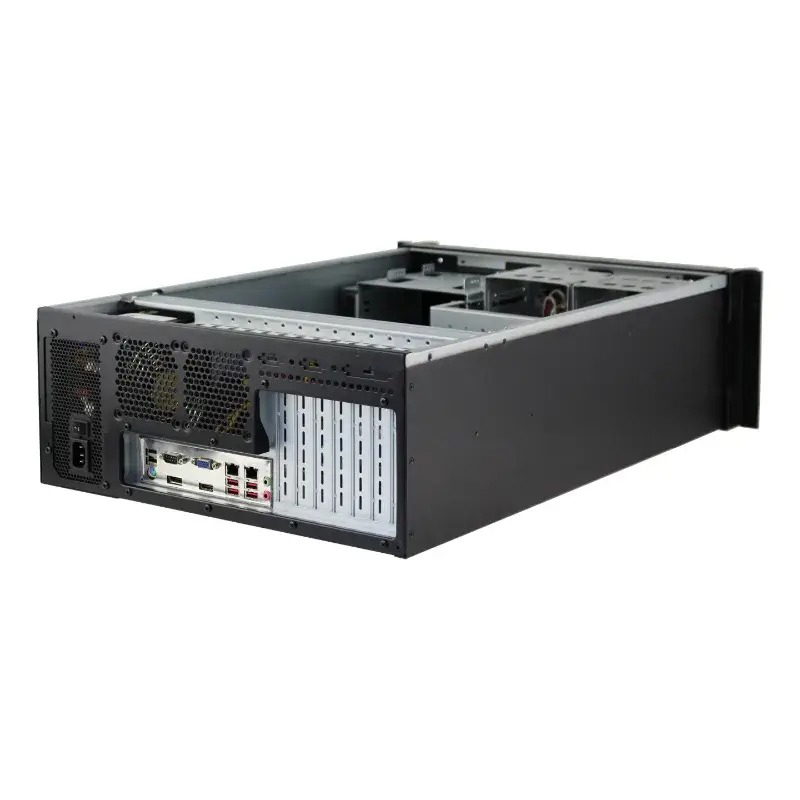

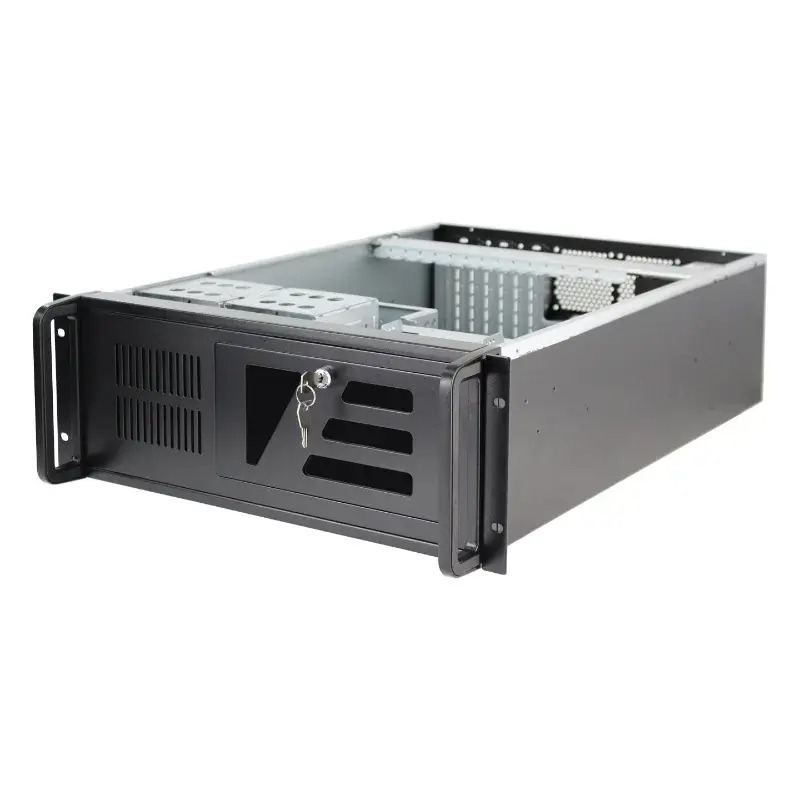

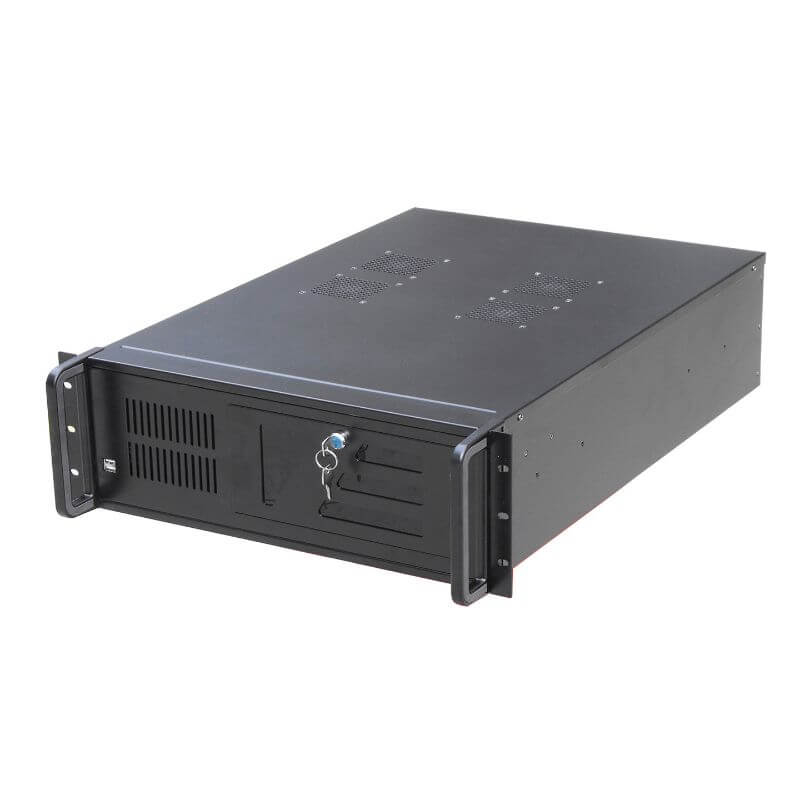

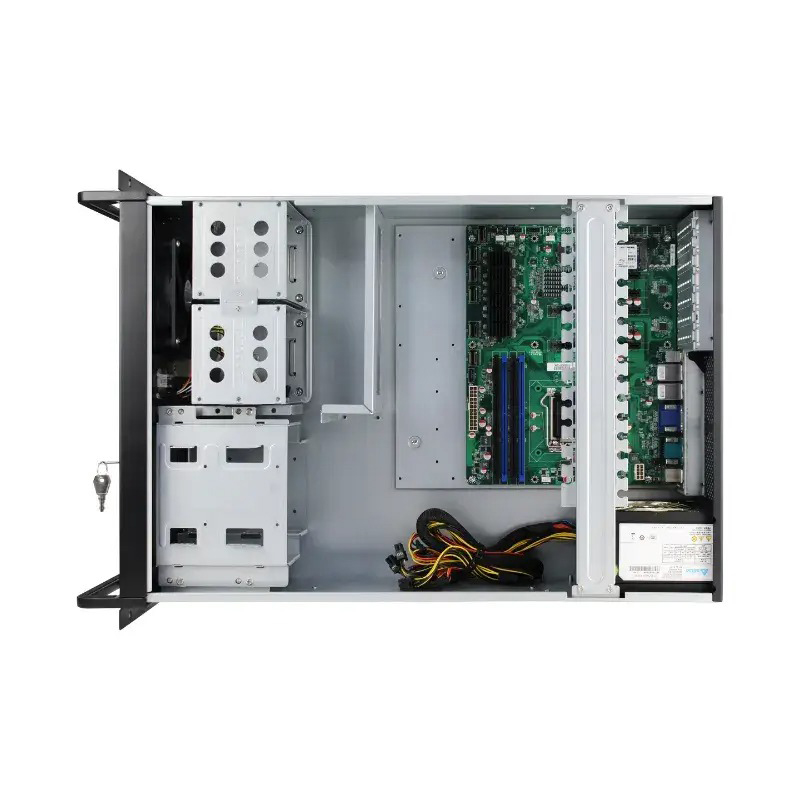

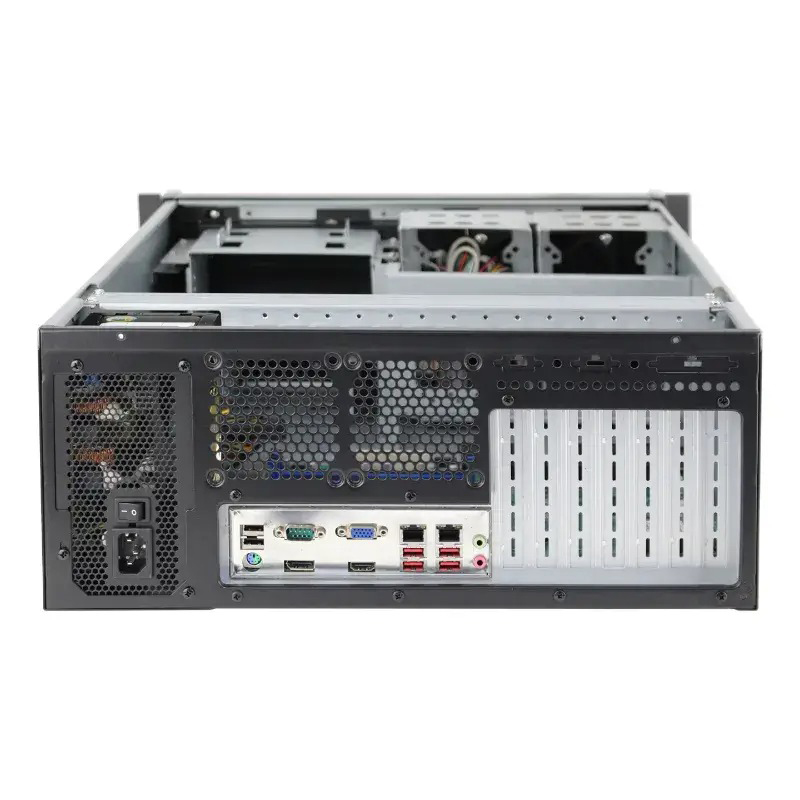

4U IPC Rackmount Chassis -OC4630-T
• Wide Compatibility
| • Durable and Clean Design
| • Flexible Drive Support
| • Efficient Cooling System
| • Expandable and Adaptable

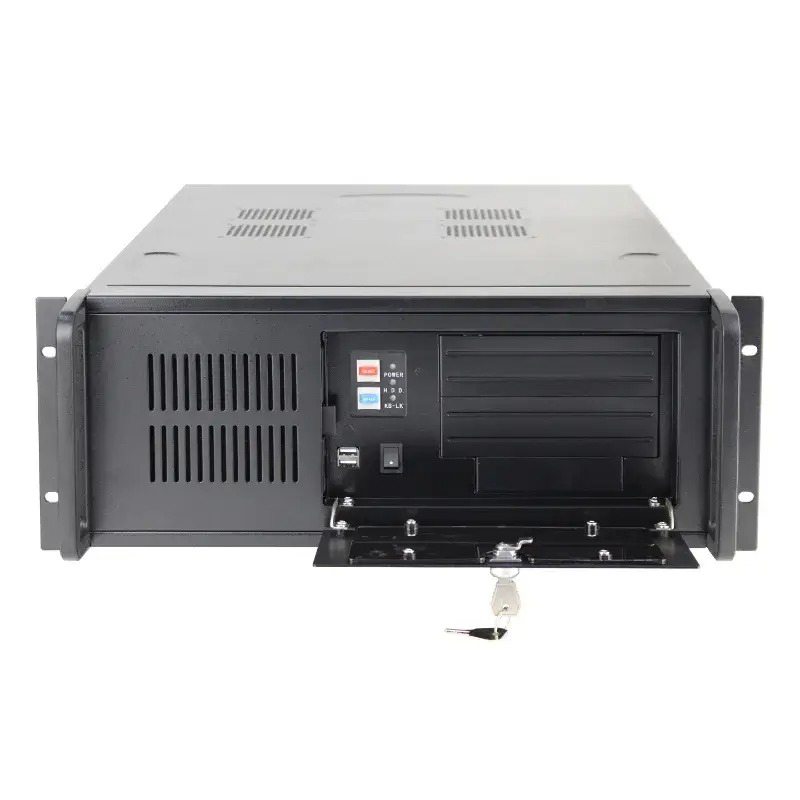

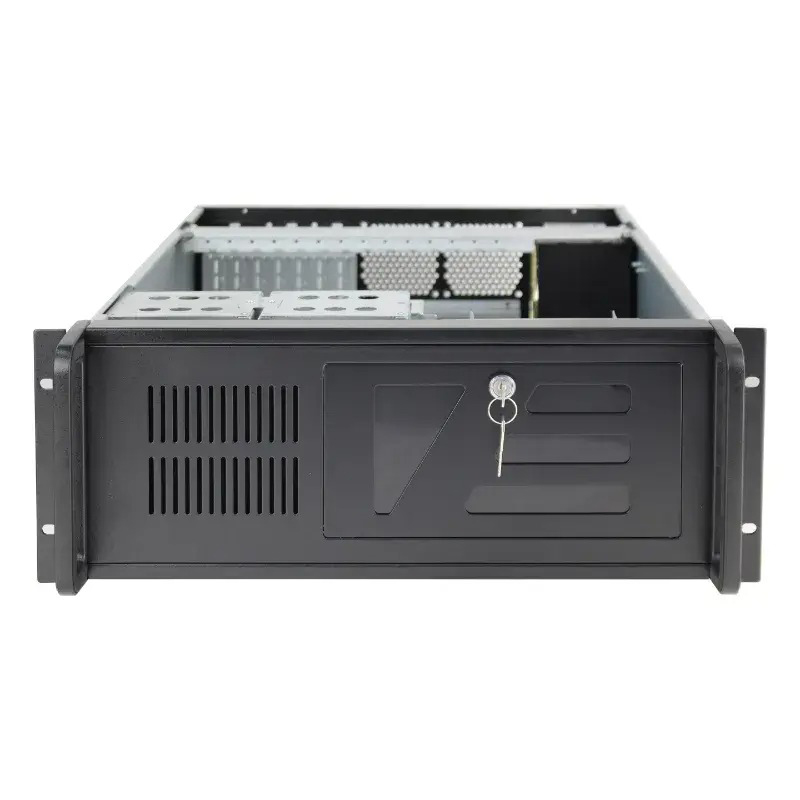

| • Secure and Practical Front Panel
| • Versatile Industrial Application
Description
Package Information
Inquiry
| Model: | OC4630-T |
| 4U Rackmount Chassis: | 630 (D)*427 (W)*177 (H) mm, standard 19″ rack-mounted industrial control chassis |
| Material: | Environmental protection, fingerprint resistant 1.2mm/SGCC |
| M/B Form Factor: | Standard ISA/PCI/PCIMG industrial backplane or 12″ x 13″ and below the industrial motherboard |
| PSU Form Factor: | Standard PS2 power supply |

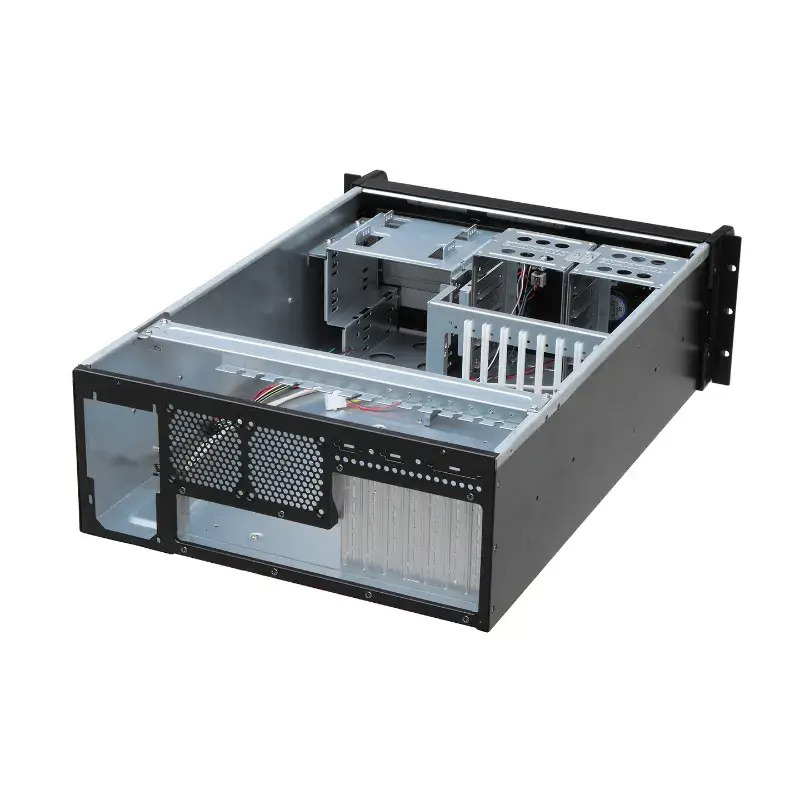

| HDD Support: | 12* 3.5″ hard disk bays, the hard disk adopts a spring shock absorption design |
| FDD Bit: | 1* 3.5″ floppy drive bay |
| CD-ROM Bit: | 2* 5.25″ optical drive bays |

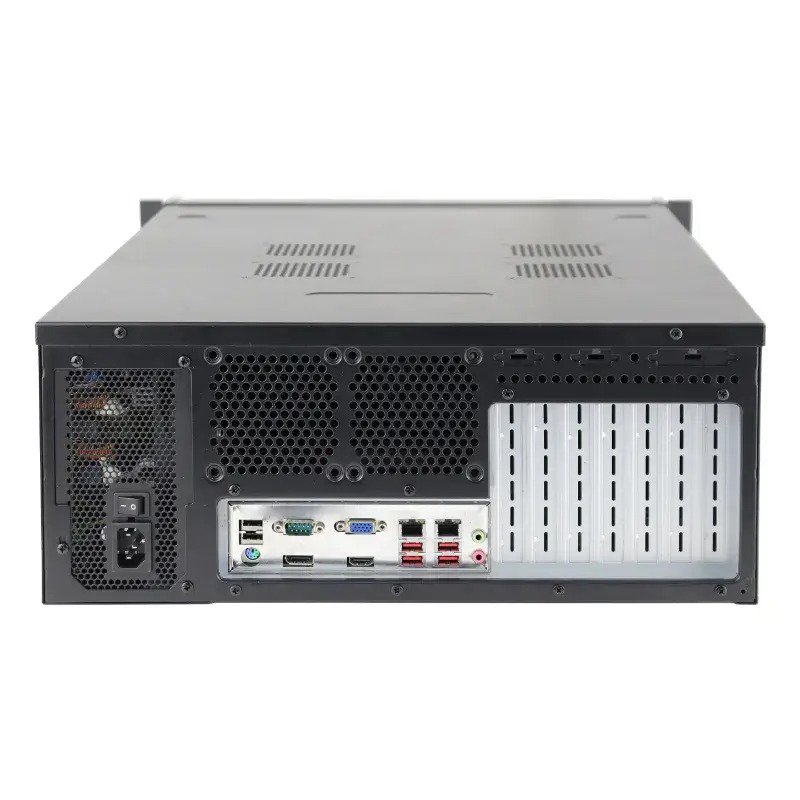

| Expansion Slot: | 7-slot or 14-slot rear window can be replaced |
| System Cooling Fans: | 1* 12025 fan is standard, and 2 x 8025 fans are optional for the rear window |
| USB Interface: | 2 front USB ports |
| Color: | Black dusting |
| Application Field: | Widely used in industrial control, intelligent transportation, mechanical automation, the Internet of Things, security monitoring, and other fields |
| Operaing Temperature: | 10°C-35°C (without direct light); Extended operating temperature: 5°C-40°C (restrictive configuration satisfied); Storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
