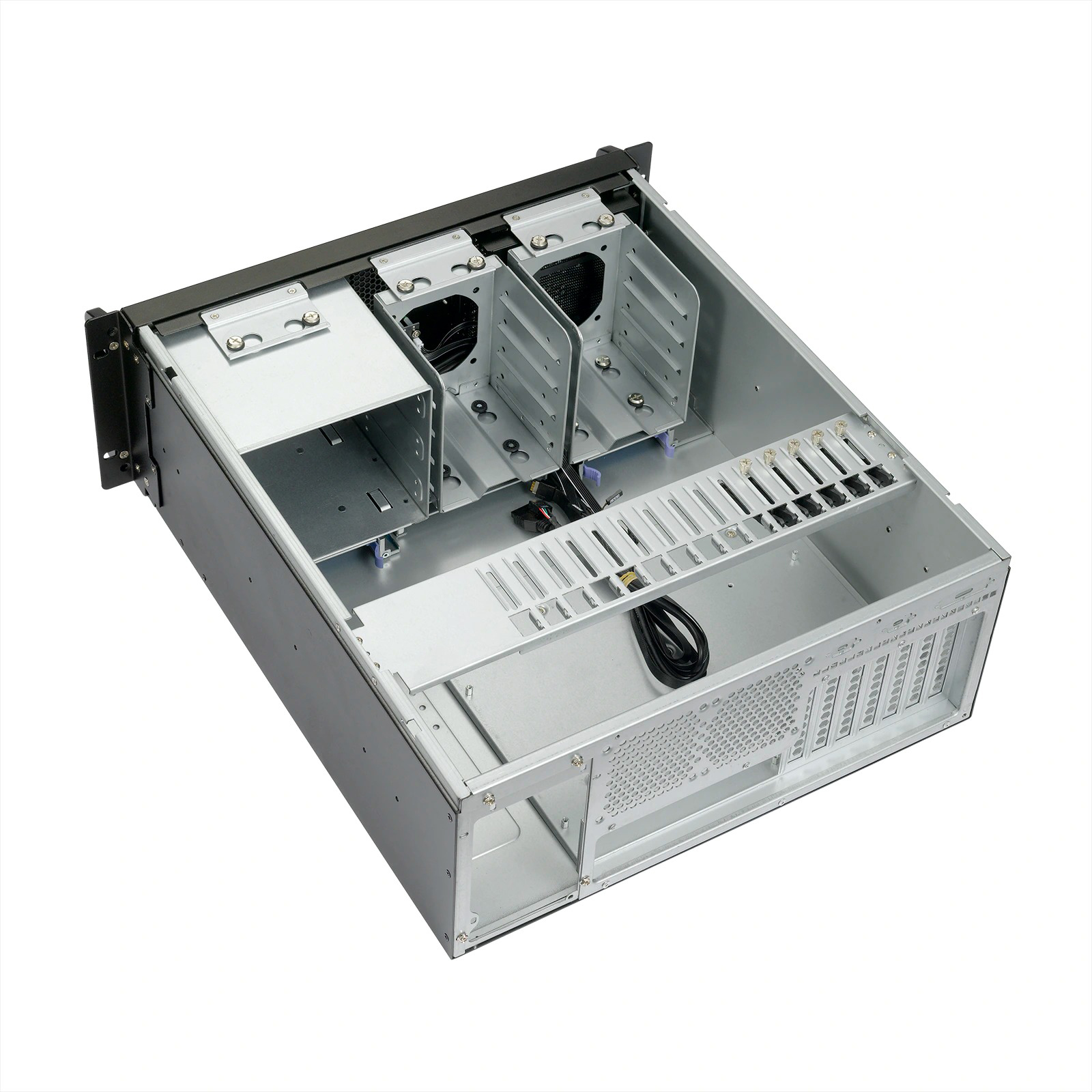

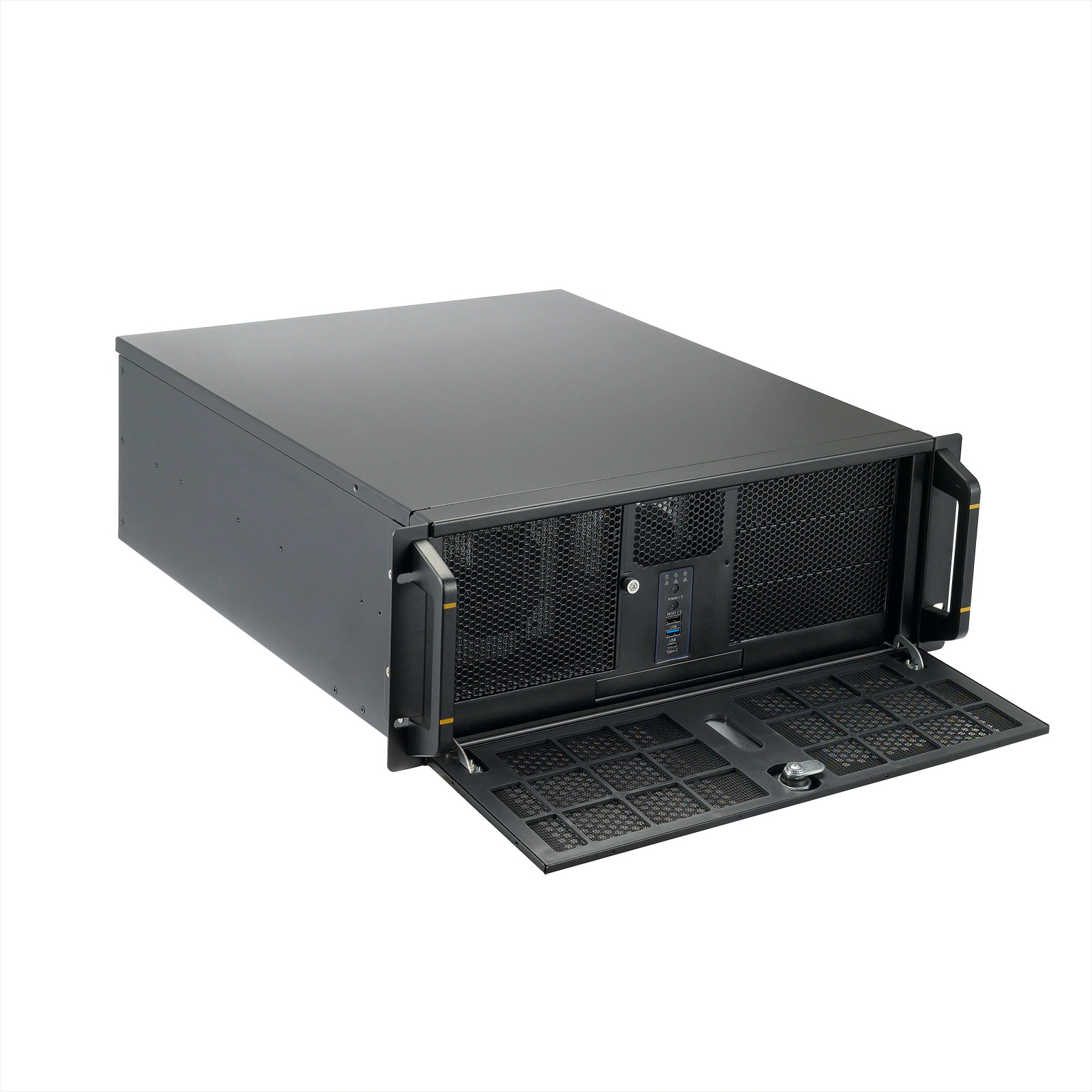

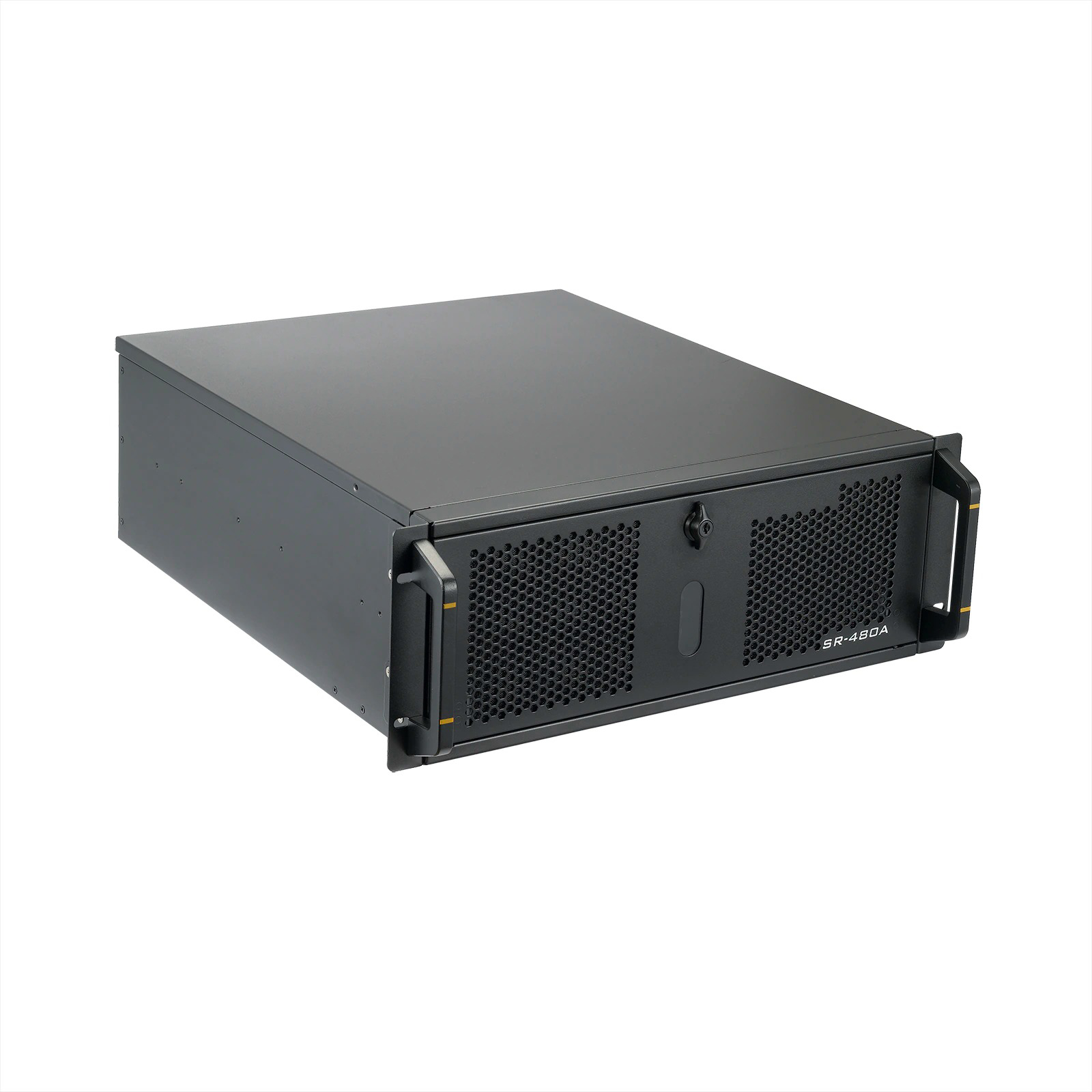

4U Rackmount Chassis- OC4480AB-Y
• Durable Build for Harsh Environments
| • High Compatibility and Storage Capacity
| • Superior Cooling System
| • Secure and Convenient Design
| • Power Supply Flexibility
| • Modern Connectivity and Interface
| > Power Supply not include
Description
Package Information
Inquiry
| Model: | OC4480AB-Y |

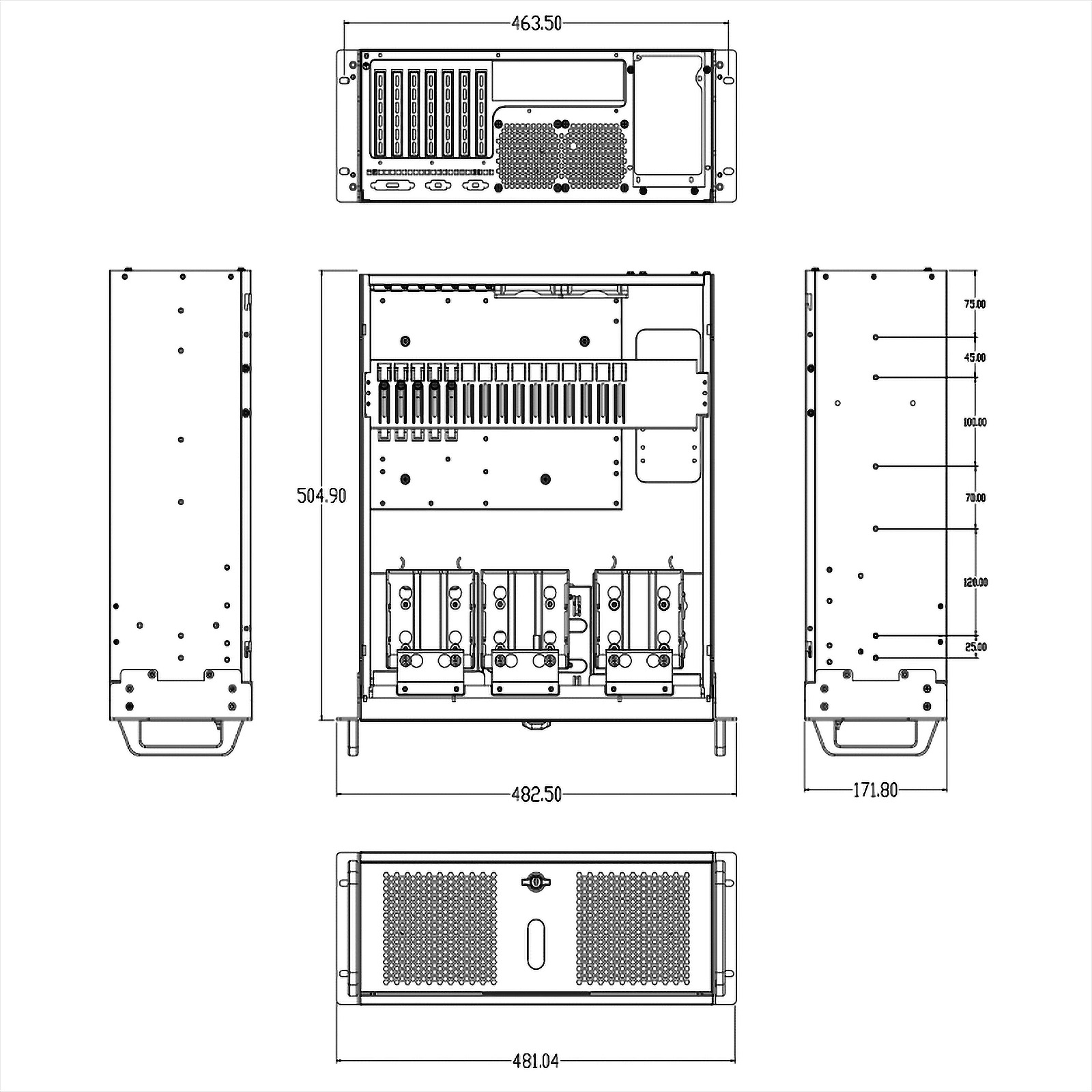

| 4U Rackmount Chassis: | 505 (D)*428 (W)*172 (H) mm |
| Material: | Galvanized steel plate 1.2 mm |
| M/B Form Factor: | ATX (maximum size within 305* 244mm) |
| PSU Form Factor: | ATX power supply, 4U\2U redundant power supply |
| HDD Support: | 12* 3.5" HDD, 2* 2.5" SSD |
| Expansion Slot: | 7 PCl cards |
| System Cooling Fans: | Standard 1 x 1225 fan (2500 revolutions with oil) Support 4 x 8025 fan, (optional) 2pcs for HDD, 2pcs for back window |
| Button: | On key/Restart key/USB2.0/3.0/Type-C/Network light |
| Panel: | Panel 1.0 honeycomb hole, black powder spraying |
| Color: | Black |
| Case handle: | Aluminum handle |
| Operaing Temperature: | 10°C-35°C (without direct light); Extended operating temperature: 5°C-40°C (restrictive configuration satisfied); Storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
